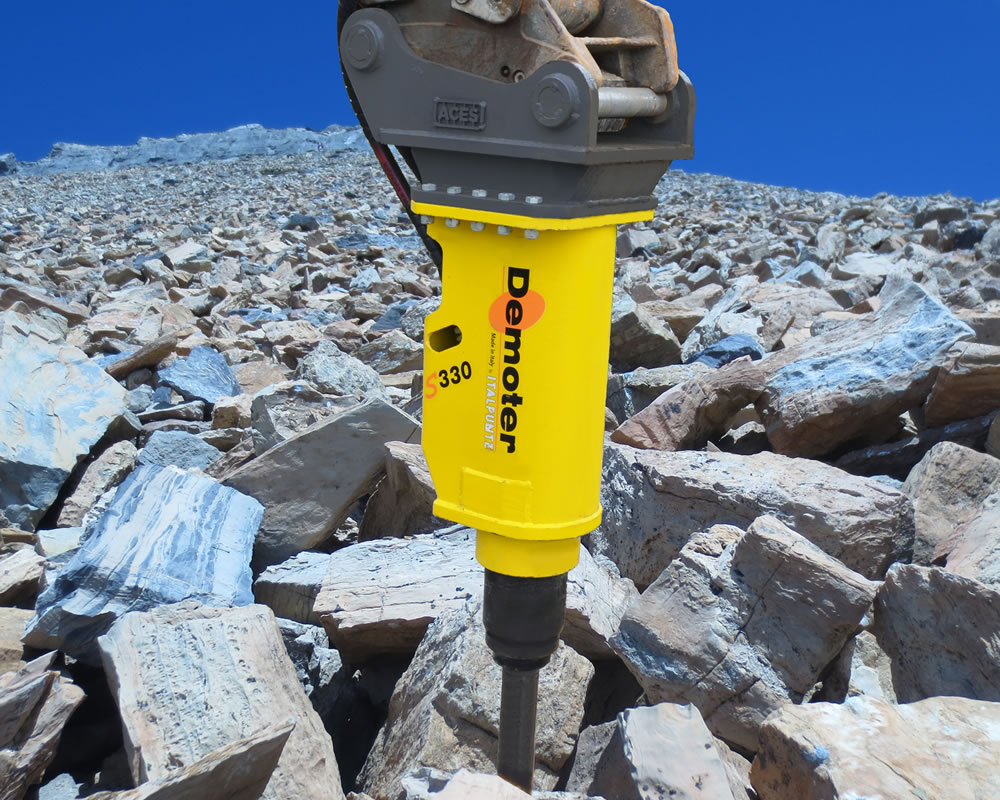

Hydraulic Hammers

Demoter Hydraulic Hammers are made in Italy and feature the very latest technology in Hammer design.

Monoblock Body

  • Breakers are monoblock design – increases power and reduces maintenance
  • No tie rods to re-tension or break in the Demoter

N2 Energy System

  • Nitrogen inertial energy recovery powers breakers
  • Increases power of breaker and reduces stresses on arm of carrier

No Diaphragm

  • Unique design of nitrogen accumulator works without need for a diaphragm
  • Increases power over diaphragm breakers by 30%
  • Lowers maintenance costs

Extended Nitrogen Charge

  • New range of Demoter breakers uses new type of sealing system on a floating support
  • Increases charge life by 300%

Silenced

  • Monoblock construction is quiet by design
  • Dampening material inside body results in extremely low working noise levels

Visibility

  • Streamlined design of breakers allows excellent visibility when working close to walls




Specification S60 S85 S130 S170 S230 S330
Operating weight 65 kg 85 kg 130 kg 170 kg 230 kg 305 kg
Oil supply 10 - 25 l/min 20 - 28 l/min 27 - 35 l/min 30 - 45 l/min 35 - 55 l/min 50 - 70 l/min
Working pressure 70 - 80 bar 75 - 90 bar 90 - 110 bar 125 - 135 bar 130 - 150 bar 135 - 160 bar
Impact rate 635 - 1250 bpm 750 - 1000 bpm 700 - 950 bpm 650 - 900 bpm 600 - 850 bpm 600 - 900 bpm
Blow energy 226 j 285 j 360 j 420 j 640 j 820 j
Tool diameter 40 mm 45 mm 48 mm 57 mm 65 mm 75 mm
Excavator weight 0.7 - 1.2 T 1.2 - 1.8 T 1.8 - 2.8 T 2.8 - 4.5 T 4/0 - 5.0 T 5.0 - 7.0 T
Total length 1,095 mm 1,117 mm 1,121 mm 1,145 mm 1,148 mm 1,158 mm
Back pressure 25 bar 25 bar 25 bar 15 bar 15 bar 15 bar
