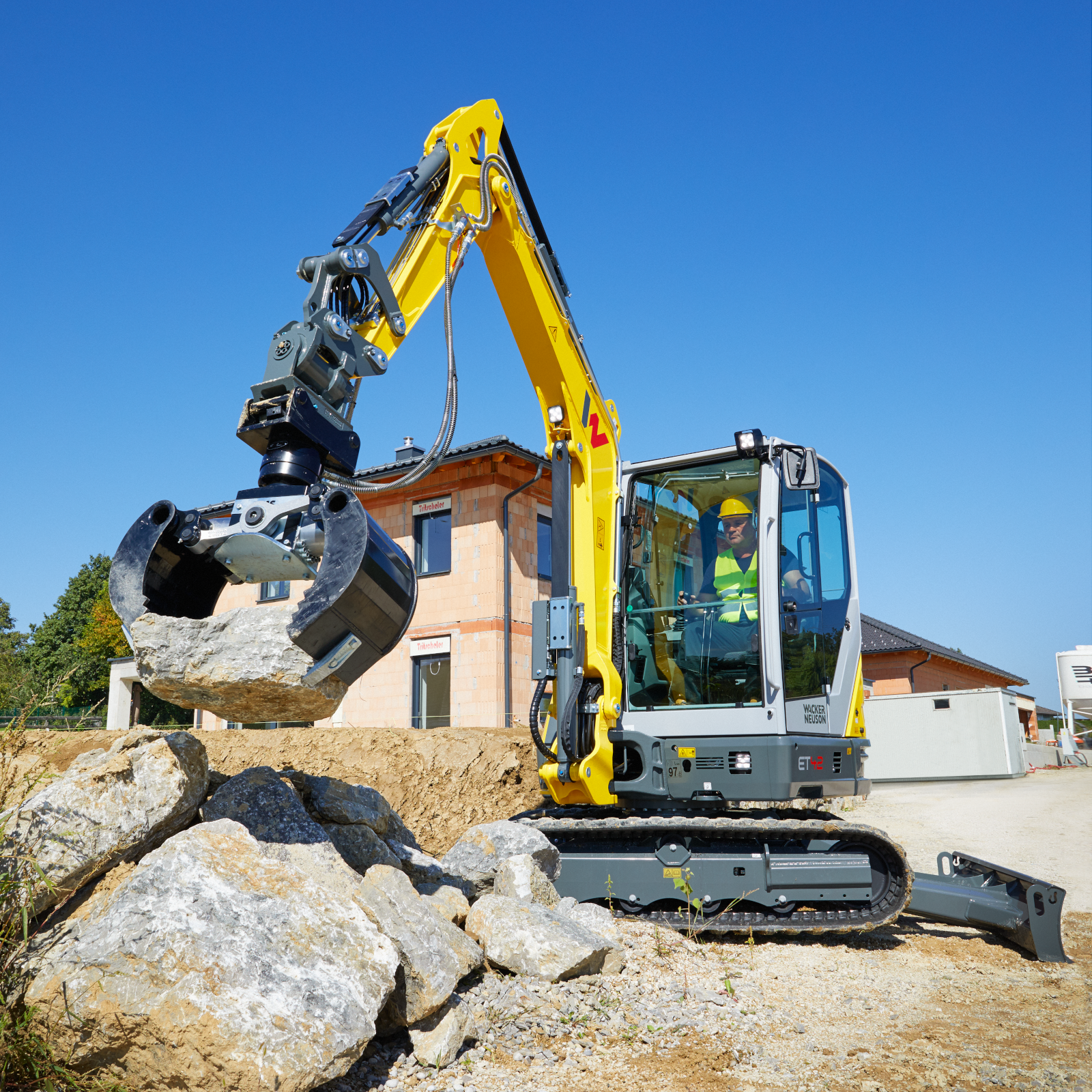

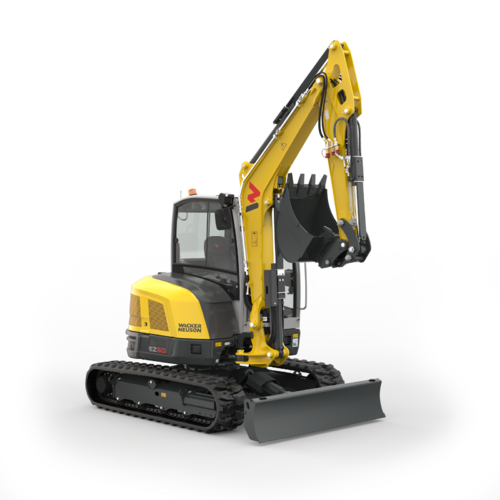

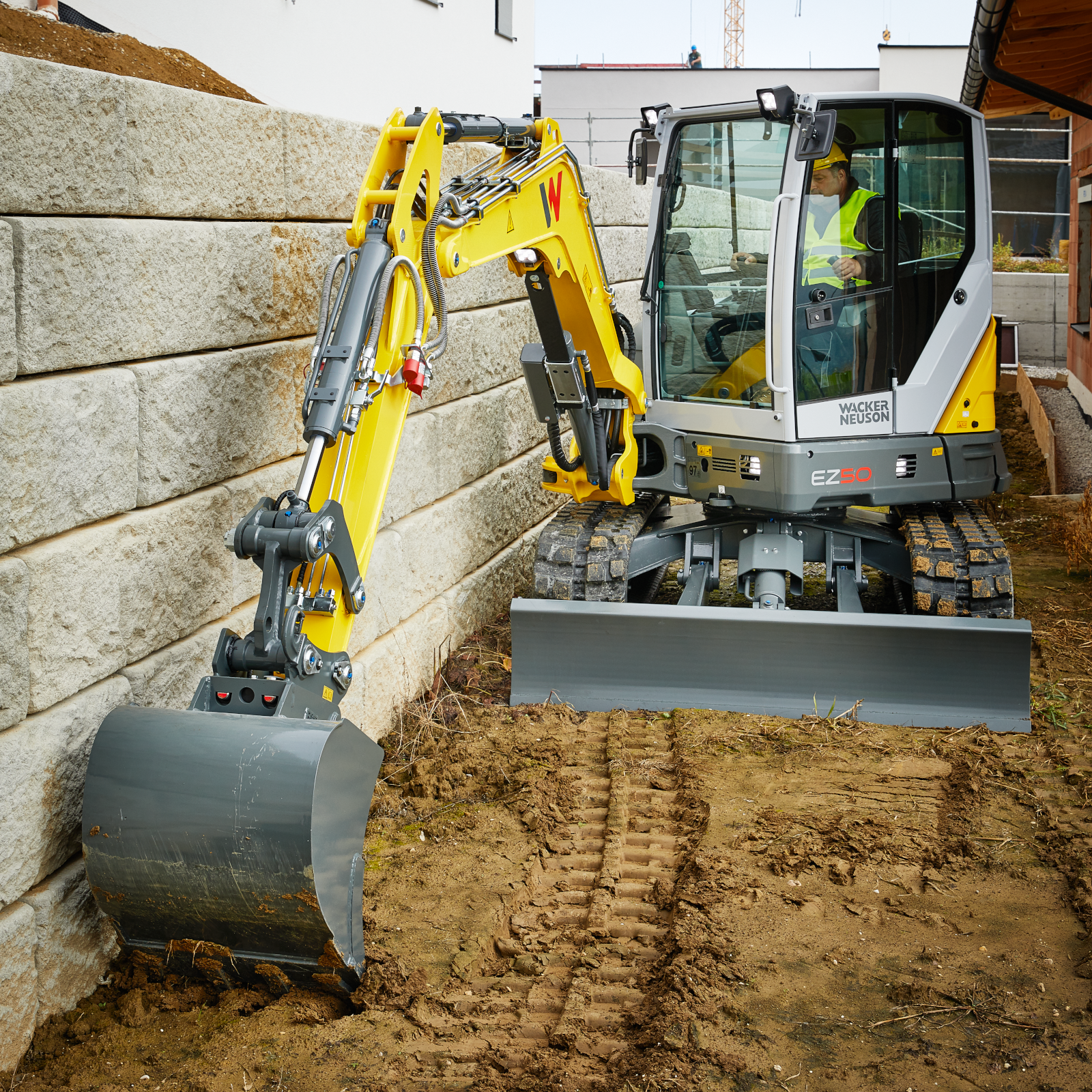

Wacker Neuson EZ50 - 5.0 Tonne Zero Swing Excavator:
The Wacker Neuson EZ50 is the latest 5 Tonne excavator from Wacker Neuson. It features the latest technology available for compact excavators including ful climate control air-conditioning, jog dial controlled LCD screen for machine functions and LUDV efficient hydraulic system. The EZ50 powerful breakout force with a unique 3 point linkage system, while maintaining fantastic fuel efficiency thanks to the LUDV load sensing hydraulic system. Wacker Neuson Equipcare GPS system is fitted as standard with 2 years complimentary tracking, anti-theft and remote diagnosis availability. EZ50 standard with 5 Year / 5000 hour Warranty machine warranty, not just a powertrain warranty.

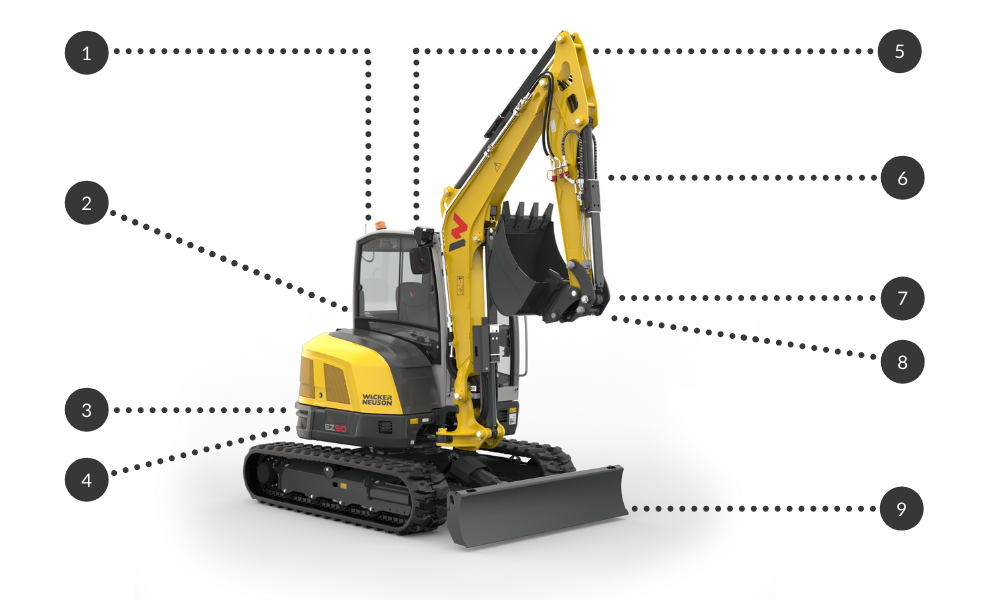

Key Features:
| 1. |
Safety |
- Rotating beacons, reverse beepers and warning horns as standard, ensures machine is inline with latest safety standards.
- All machines sold by ACES have an OHS Risk assessment prior to delivery.
- ROPS and FOPS cabin.
- LED working lights on front and rear of cabin, on boom, and on both sides for optimum safety at night, providing full-360 degree illumination.
- Safety valving fitted to boom and dipper cylinders to lock cylinders in case of hose failure (standard on contractor model).
- Well-designed cabin shape and offset arm positioning for outstanding operator vision.
- Reverse Camera intergrated into LCD display.

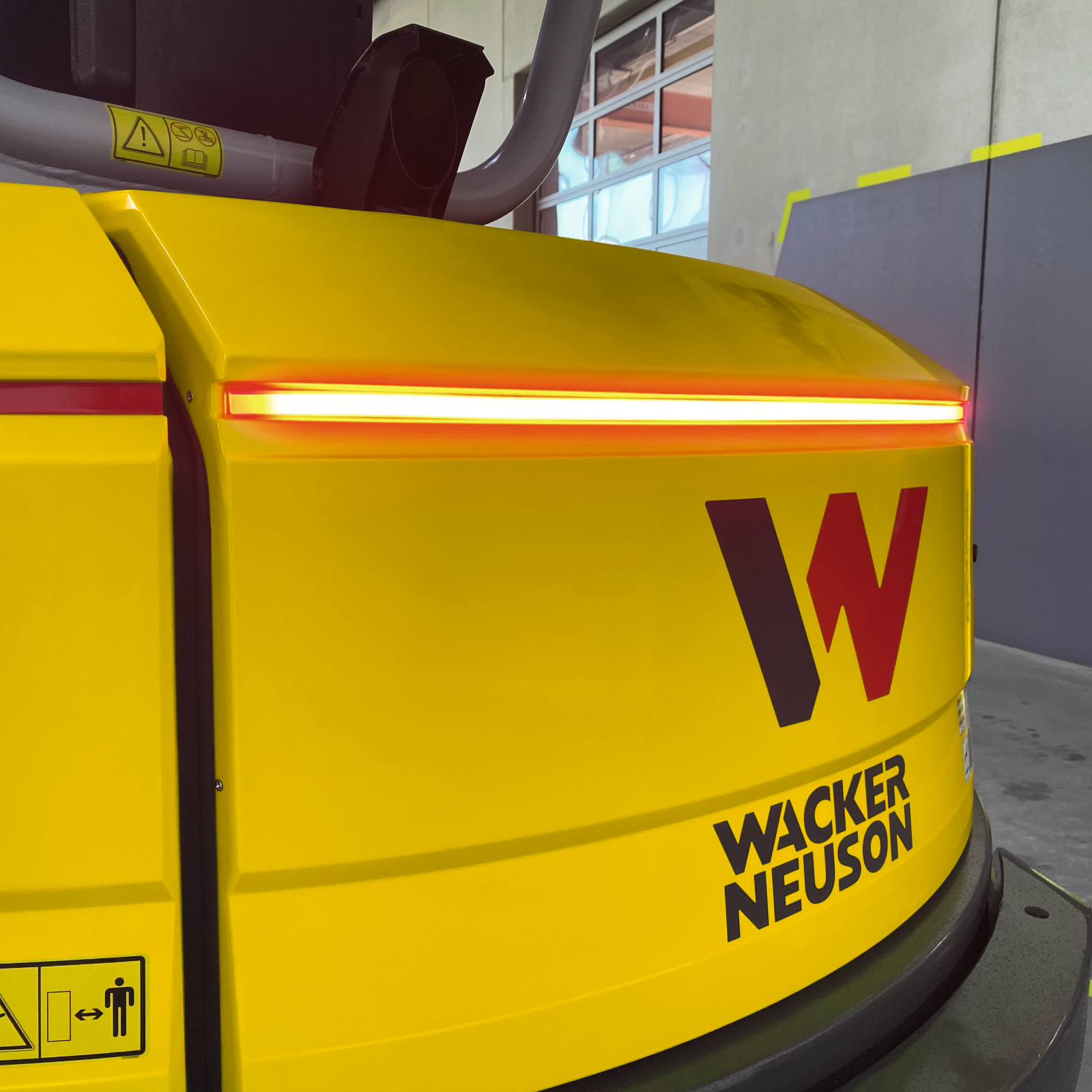

- Active Working Signal - When EZ50 is in operation a red LED light bar is illuminated on the engine hood to inform workers in the vacinity.
|
| 2. |
Comfort |
- Auto-climate control air conditioning system.

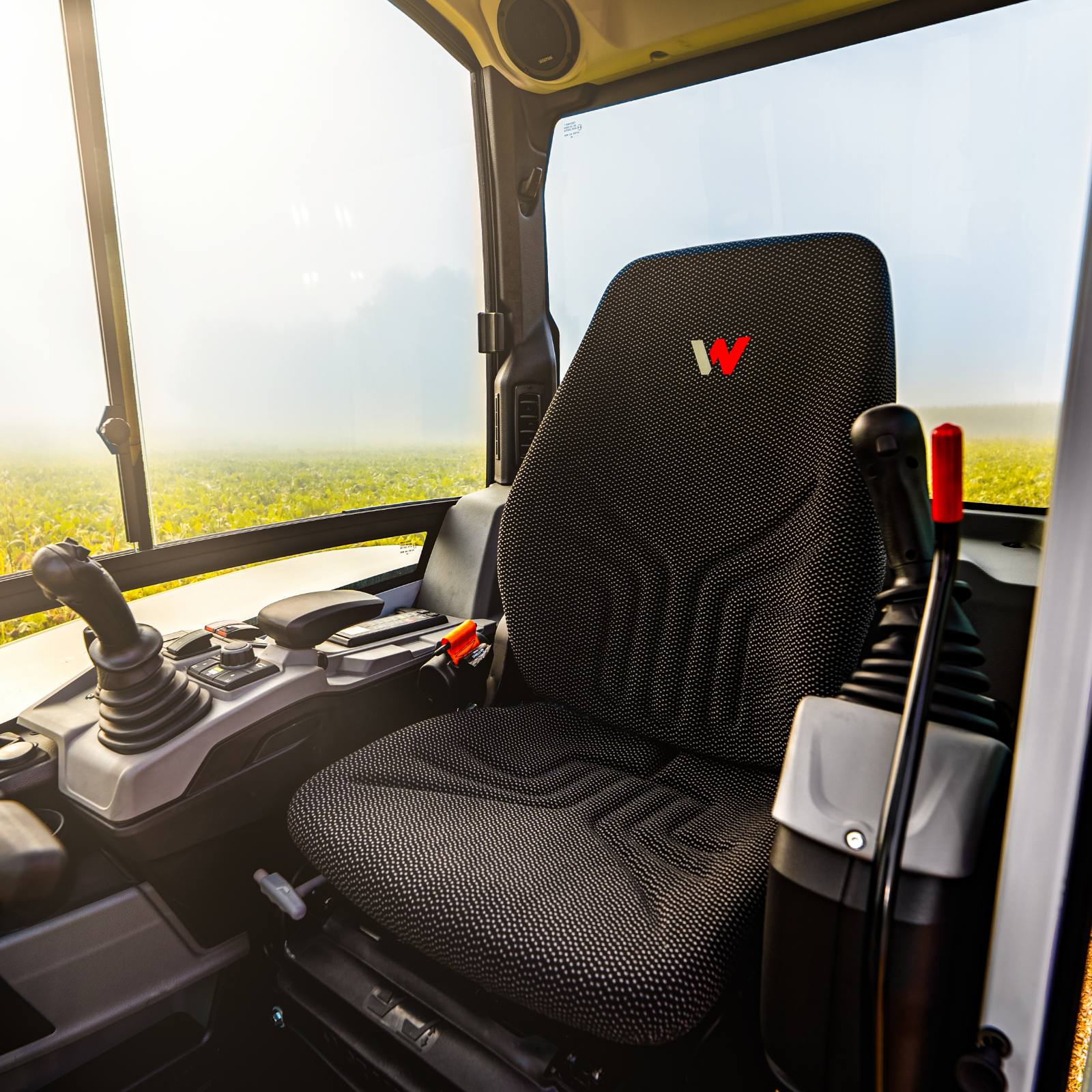

- Operators station ergonomically designed for continuous operation without fatigue.

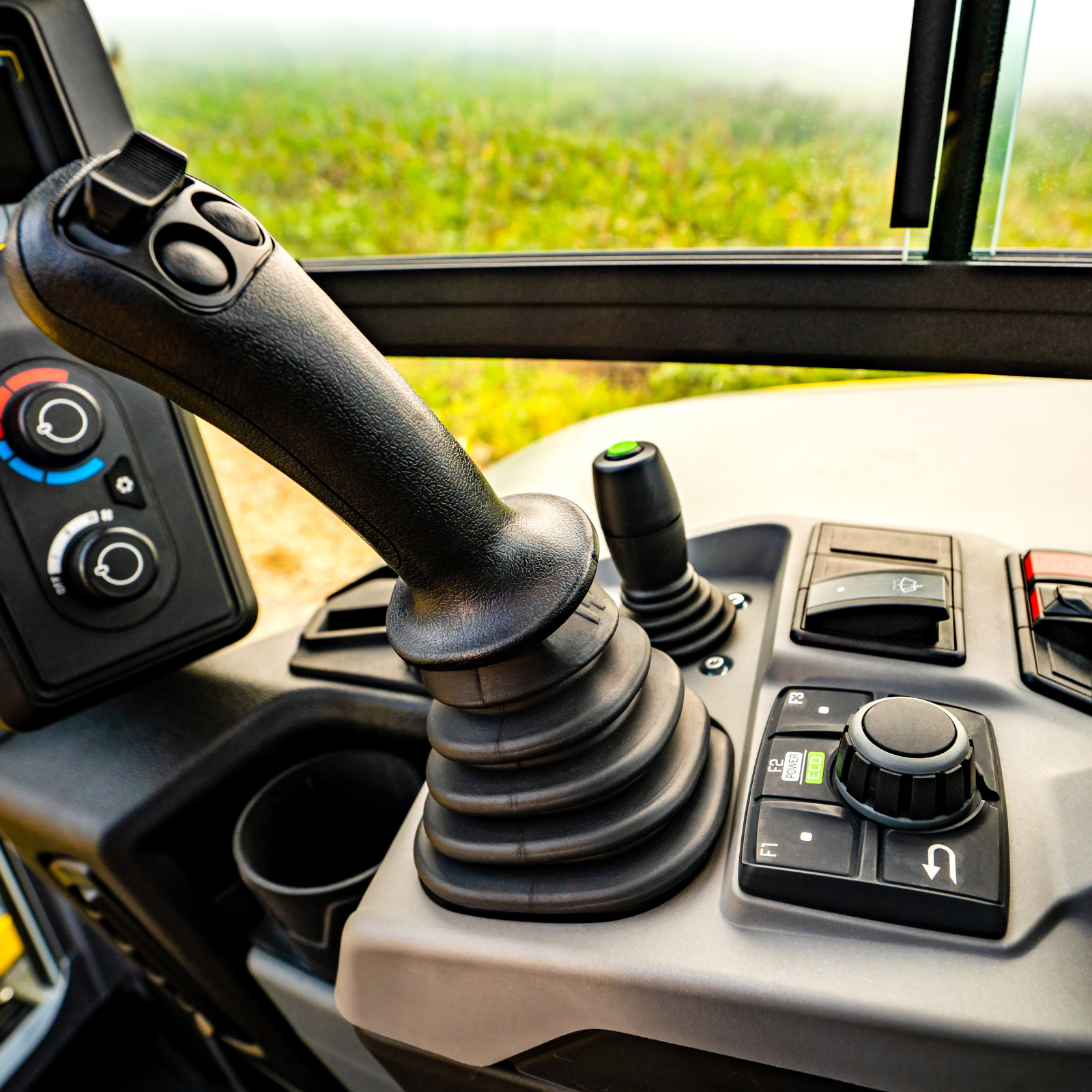

- Controls ensure comfort and feature large handles.
- Adjustable arm rests fitted as standard.
- All levers and switches positioned within easy and comfortable reach.
- Seat features adjustable suspension for operators of different sizes.
- Travel levers fitted with large foot pedals for precise track control while operating other controls.
- Fully retractable front glass panel.
- Right hand side window features two way opening.

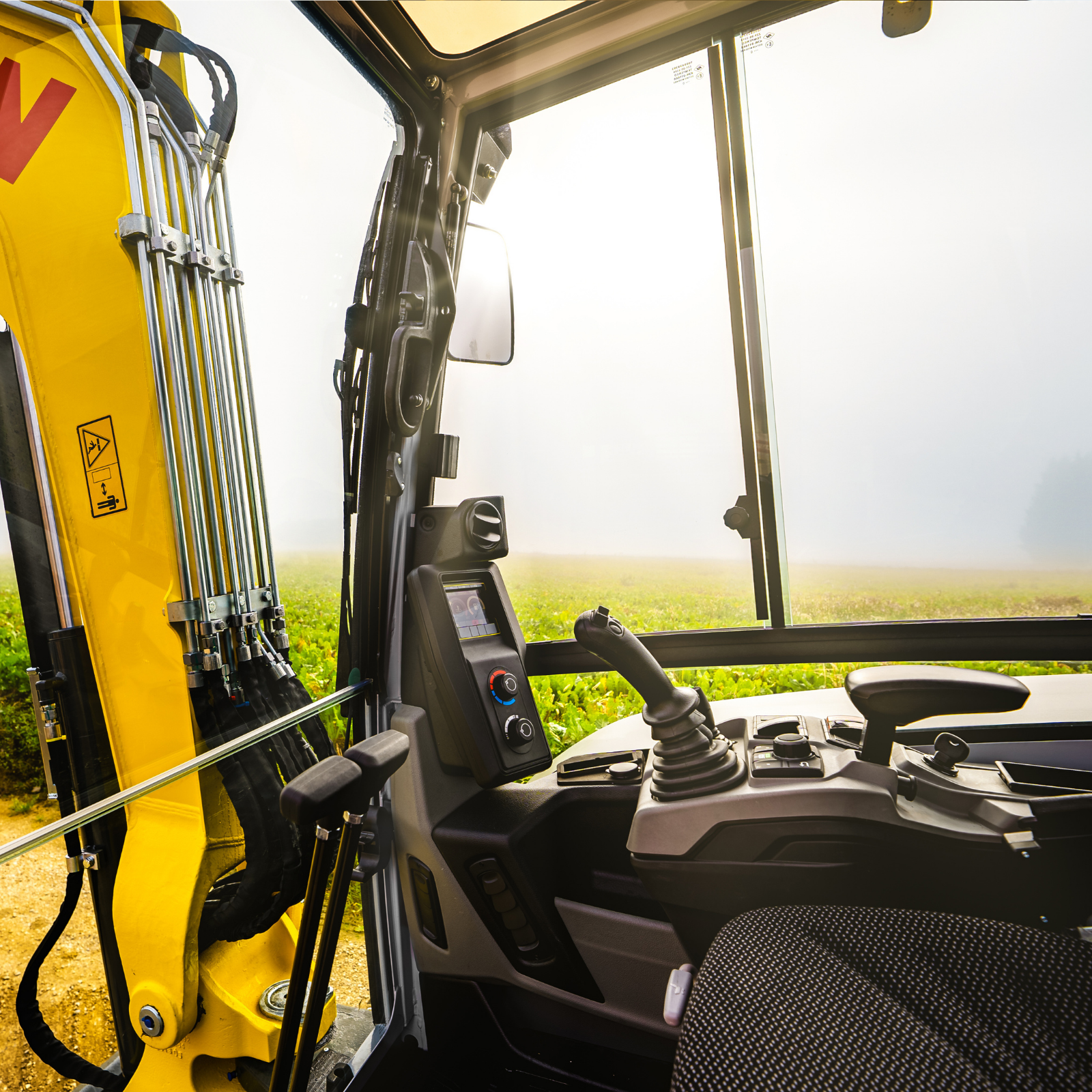

- LCD Screen ergonomically position, control junction via jog dial control without the need to lean and reach forward.
|
| 3. |
Efficiency |
- Hydraulic system of EZ50 comprises variable displacement axial piston pump with load-independent flow distribution (LUDV).
- The most advanced hydraulic system for compact excavators, also the most efficient system.
- High capacity pump ensures enough flow to control multiple circuits at once and is the reason EZ50 has such high flow auxiliary flow availability.
- Up to 20% reduction in fuel consumption over previous model and much higher savings in comparison to competitors.
- Ultra-efficient hydraulic hose routing and bend radius’ to reduce heat and pressure loss.
- Air-conditining condensor is located seperately to the engine radiator and oil cooler to elimiate thermal conduction, greatly improving efficiency.
|
| 4. |
Cooling |
- A high efficiency radiator and cooling system keeps the EZ50 cool in high ambient temperatures.
- Oil cooler and radiator mounted side by side for easy cleaning.
- Side by side coolers stop the common problem of debris building up between coolers as with coolers mounted in front of each other. This ensures the most efficient cooling.
- Integrated expansion chamber in radiator top tank, no overflow bottle necessary, most advance system on market.
|
| 5. |
Vision |
- Cabin designed with perfect visibility.
- ROPS posts positioned to ensure operator's view is not restricted.
- Cabin roof is fitted with window, allowing bucket visibility at all times.
- Offset arm position for greater visibility and safety.
- Intergrated reverse camera in LCD display located perfectly within operators fiel of vision.
- Retractable sunshade in roof.
|
| 6. |
Auxiliary Hydraulics |
- Two way auxiliary piping standard from factory boasting one of the highest auxiliary flow in the industry.
- Massive 74L/min.
- Auxiliary controlled via programable thumb wheel.
- 3rd control circuit available.
- Intergrated tilt hitch circuit available.
|
| 7. |
Power |
- High bucket and arm breakout forces at 36.8kN and 24.8kN respectively.
- Powered by Perkins 403J-E17T efficient Turbo Diesel engine (32.5kW).
- Smooth power with automatic idle control.
- Variable Axial Piston Pump with LUDV load sensing system, load-independent flow distribution.
- 245bar operating pressure.
|
| 8. |
Hitches |

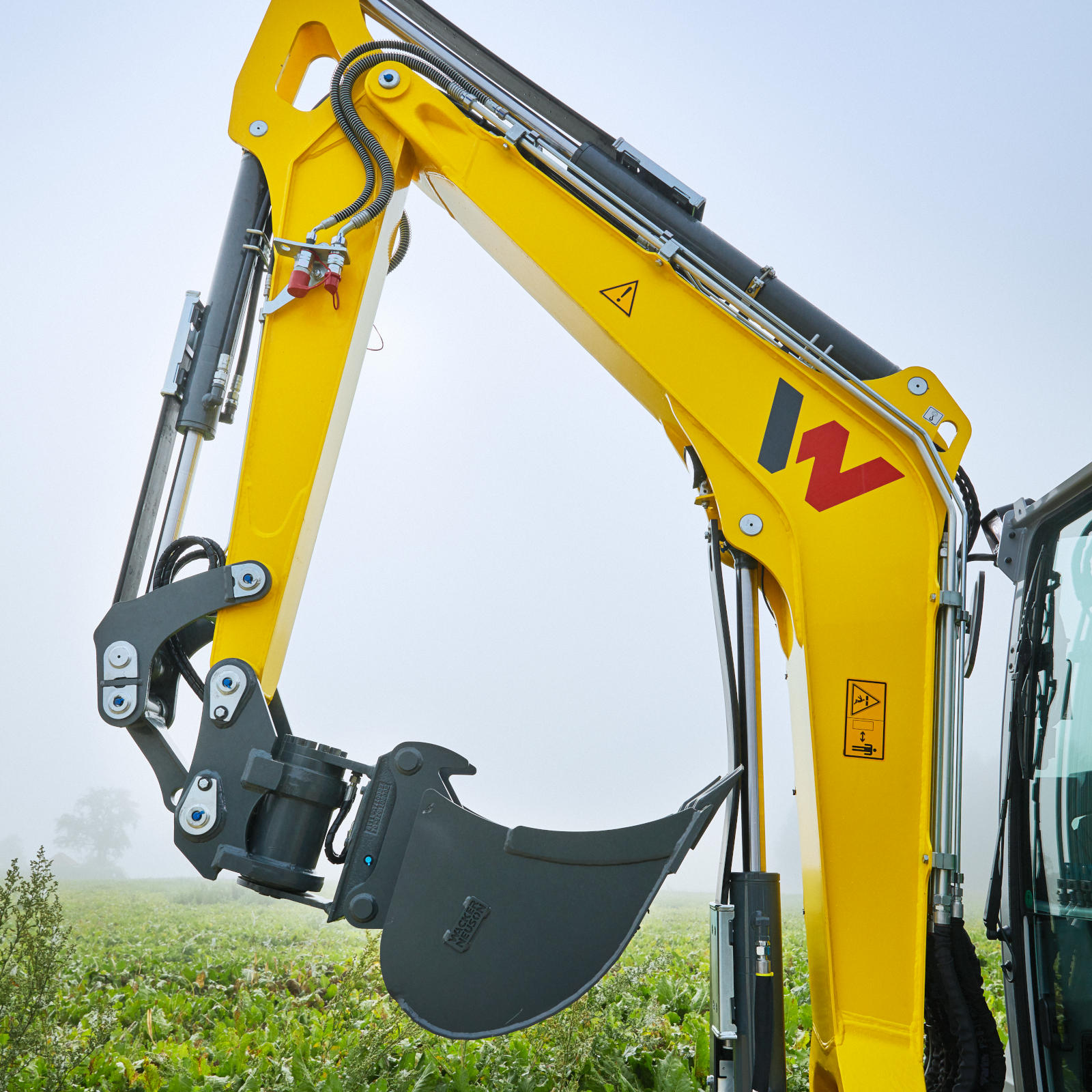

- Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
- Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available as retro fit and factory fit.
|
| 9. |
Versatility |

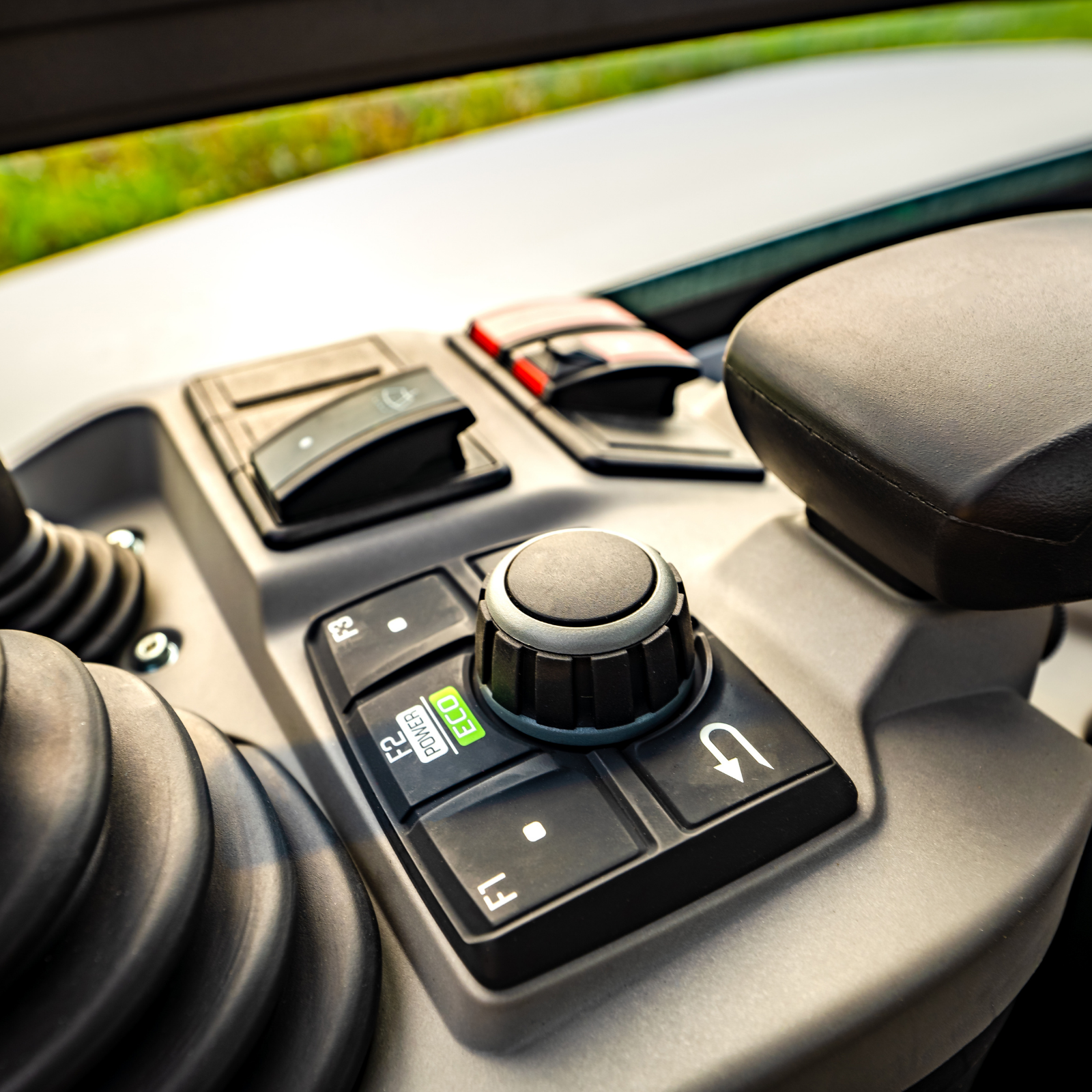

- Jog dial control for machine modes and junction.
- The EZ50 is fitted standard with rubber tracks and has a stable footing and compact dimensions at 1960mm wide.
- Two speed travel pushes the machine along quickly.
- Pattern change from Backhoe (SAE) to Excavator (ISO) via electronic control.
- 10 oversized well positioned tie down points.
- Additional counterweight option available for increase performance and stability.
- Swivelling blade (optional).
|
(EZ50)
General:
| Transport Weight |
4,617 - 5,454 kg |
| Operating Weight |
4,847 - 5,685 kg |
Engine:
| Manufacturer |
Perkins |
| Model |
403J-EZ17 |
| Construction |
Water cooled 3-cylinder turbo diesel engineI |
| Displacement |
1,663 cm³ |
| Engine Output according to ISO |
32.5 kW (43.6 HP) |
Hydraulics:
| Pumps |
Variable displacement pump with LUDV load-independant flow distribution |
| Max. flow rate |
126 L/min |
| Operating Pressure for working and driving hydraulics |
245 bar |
| Operating Pressure for slewing gear |
209 bar |
| Max. tear out force short arm |
24.8 kN |
| Max. breakaway force |
36.8 kN |

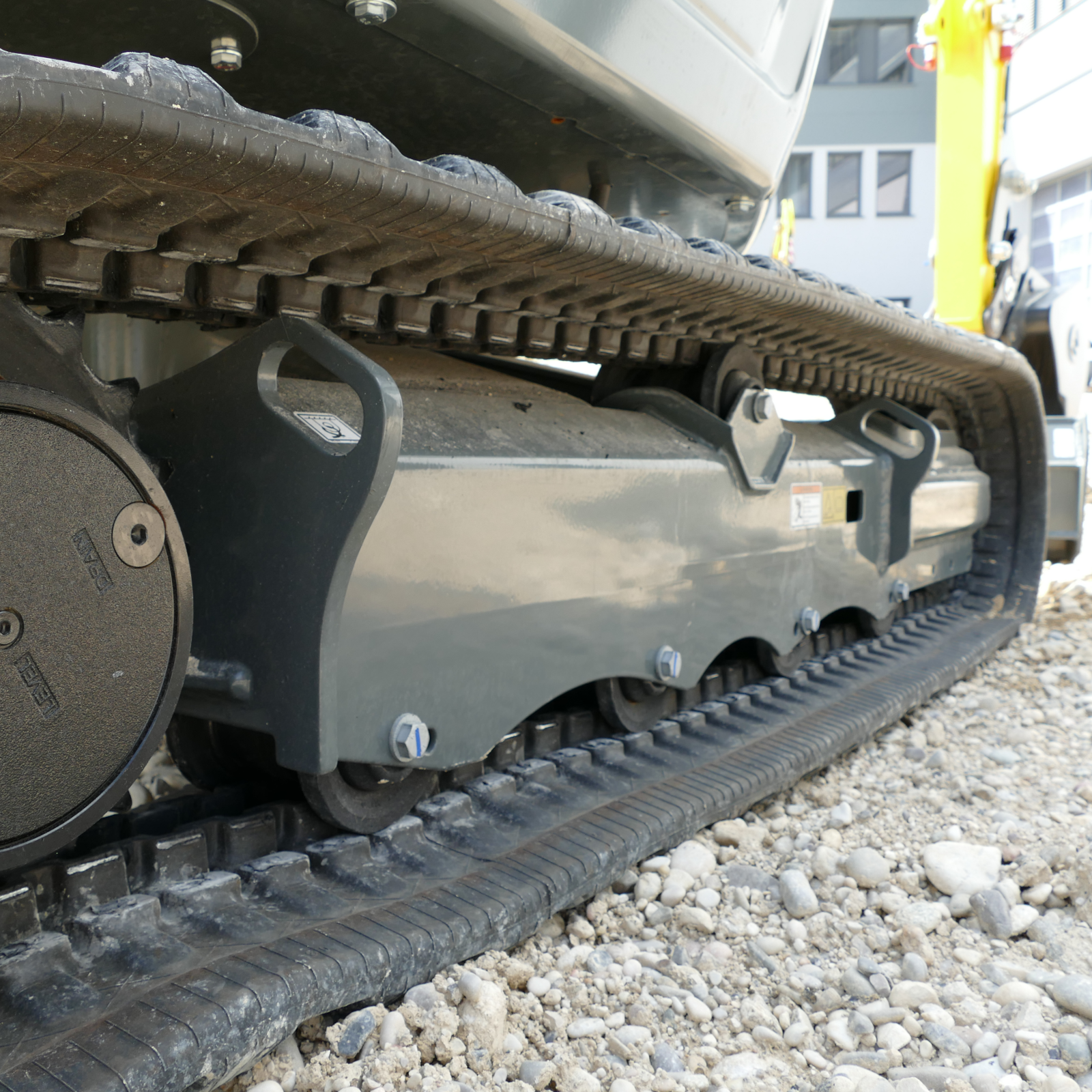

Undercarriage:
| Track width |
400 mm |
| Number of track rollers |
4 |
| Ground Pressure |
0.27-0.31 kg/cm3 |
| Ground clearance |
330 mm |
| Drive speed |
4.8 km/h |
Blade:
| Width |
1,960 mm |
| Stroke above / below |
410 / 443 mm |
Capacities:
| Hydraulic tank |
50 L |
| Fuel tank |
80 L |
Working Dimensions:
| A |
Height |
2,555 mm |
| B |
Width |
1,960 mm |
| C |
Transport length |
5,482 mm |
| D |
Max. excavation depth |
3,467 / 3,667 mm |
| E |
Max. vertical insertion depth |
2,085 / 2,262 mm |
| F |
Max. insertion height |
5,470 / 5,599 mm |
| G |
Max. dumping height |
3,655 / 3,784 mm |
| H |
Max. digging radius |
5,916 / 6,150 mm |
| I |
Max. ground reach |
5,794 / 5,988 mm |
| J |
Min. rear swivel radius |
1,047 mm |
| K |
Arm displacement to center (left / right) |
770 / 764 mm |
| L |
Max. lift height above subgrade |
410 mm |
| M |
Max. scraping depth below subgrade |
443 mm |
| N |
Total traveling gear length |
2,508 mm |
| O |
Max. turning angle of arm, left |
70º |
| P |
Max. turning angle of arm, right |
55º |
| Q |
Track width |
400 mm |
| R |
Boom slewing radius, centre |
2,505 mm |
Specifications subject to change without notice due to continual product development.
