3829-18 Single Strap Adaptor
Similar to the Esco 18 Series*
Notify me when back in stock

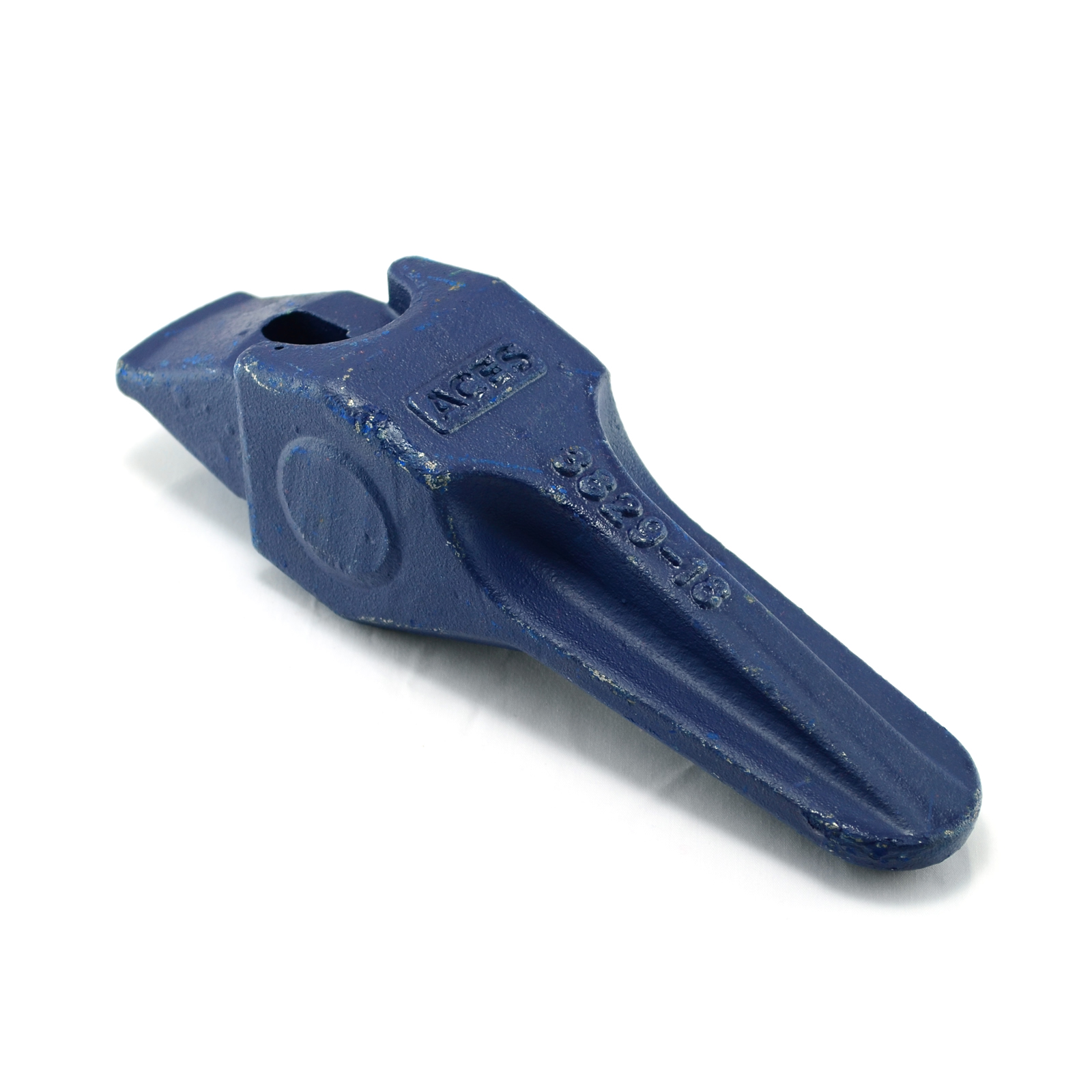

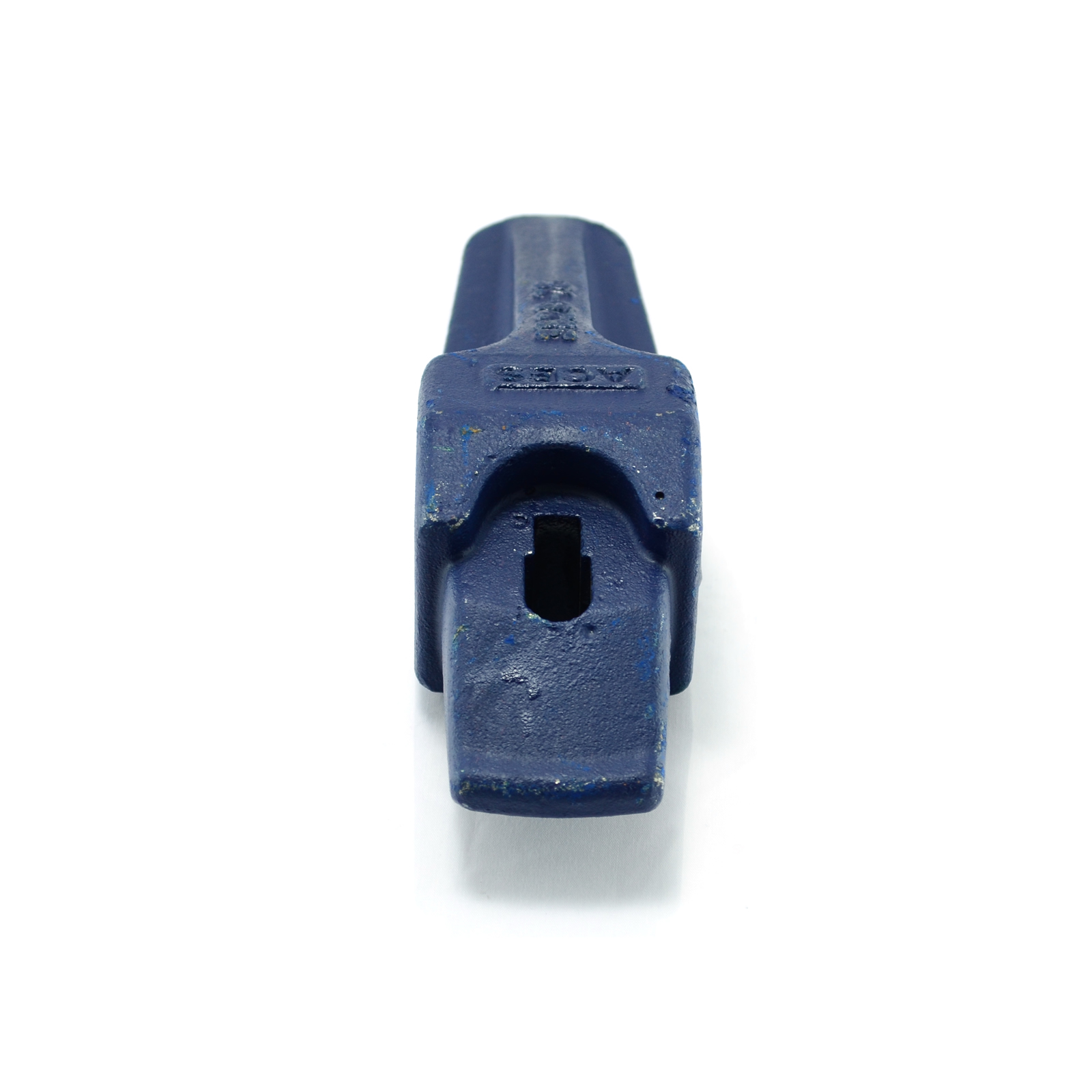

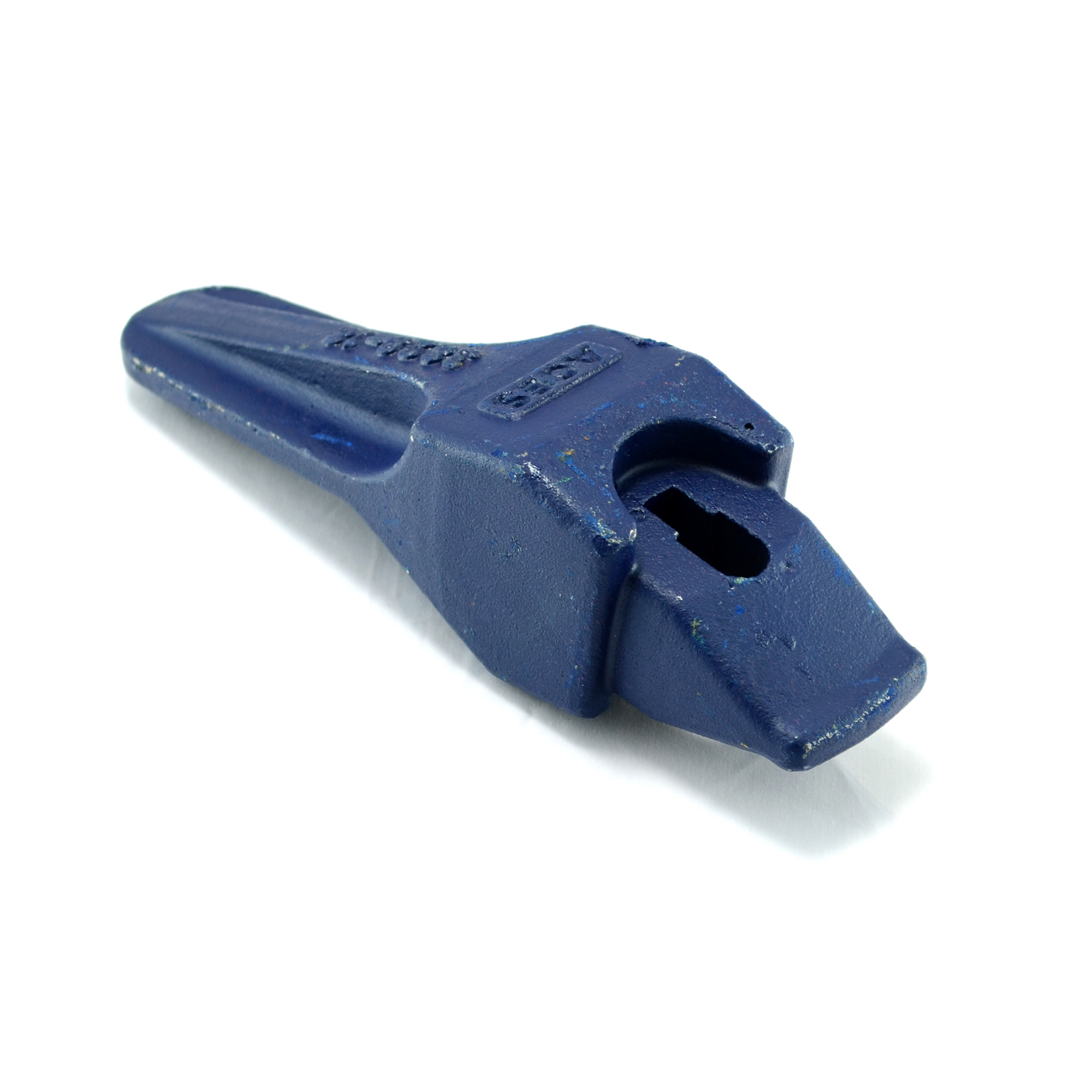

3829-18 Weld-On Single Strap Adapter
Are similar to the 18 Series Esco teeth which are the most common teeth in Australia for mini excavators from 3 to 6 tonne. They are fitted with a rubber lock inside the adapter and a serrated pin which is punched in vertically from top to bottom. These will most likely be the teeth fitted If you have an older mini excavator from 3 to 6 tonne with a rectangular pin.
*All products on this website are in no way associated with or endorsed or manufactured by ESCO Group LLC (or its related entities). The term "ESCO" is used for descriptive purposes only, to aid the end user in interpretation of part selection.
Blade or Twin Tiger?
Blade teeth are great for general purpose work and long life, the large wear area will last longer than twin tip tiger teeth. Twin tip tiger teeth will penetrate the ground much easier than blade teeth due to sharper points on the teeth, however they will wear faster than blade teeth due to the smaller wear area than blade teeth. The general rule of thumb is to use blades for normal work and tigers when the ground is too hard and the machine is struggling to dig.
ACES Teeth
Aces Teeth are manufactured to the highest quality standards available. All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process. This ensures higher tolerances on the teeth and adapters during casting. All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.
(3829-18)
Fitting Specifications:
Width | 47 mm |
Height | 39 mm |
Depth | 50 mm |
Shipping Specifications:
SKU | 3829-18 |
Shipping Weight | 2.0000kg |
Shipping Width | 0.060m |
Shipping Height | 0.070m |
Shipping Length | 0.220m |
Shipping Cubic | 0.000325000m3 |
