6Y3224Z Double Strap Adapter

CAT J225 Style

$32.90
In Stock


Calculate Shipping

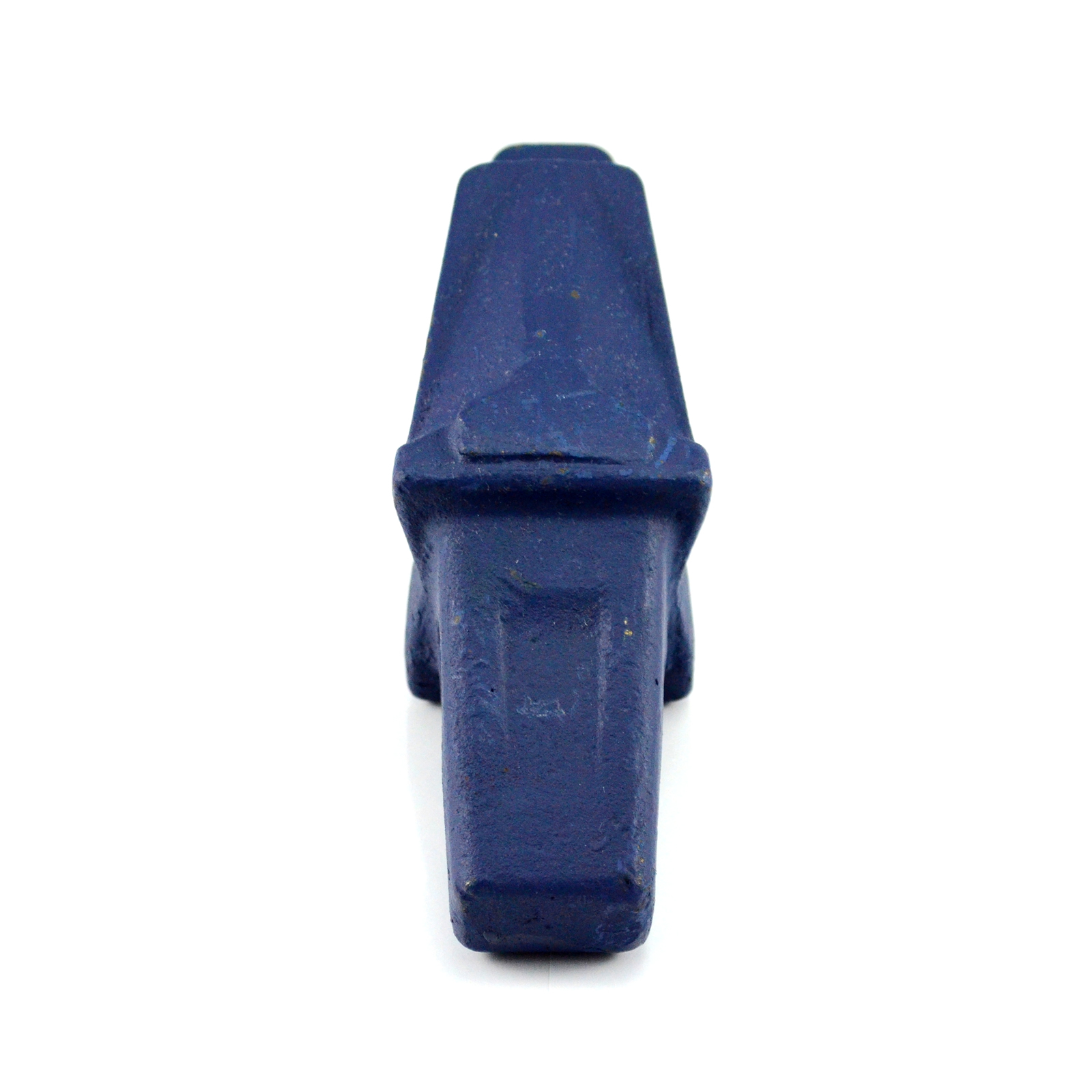

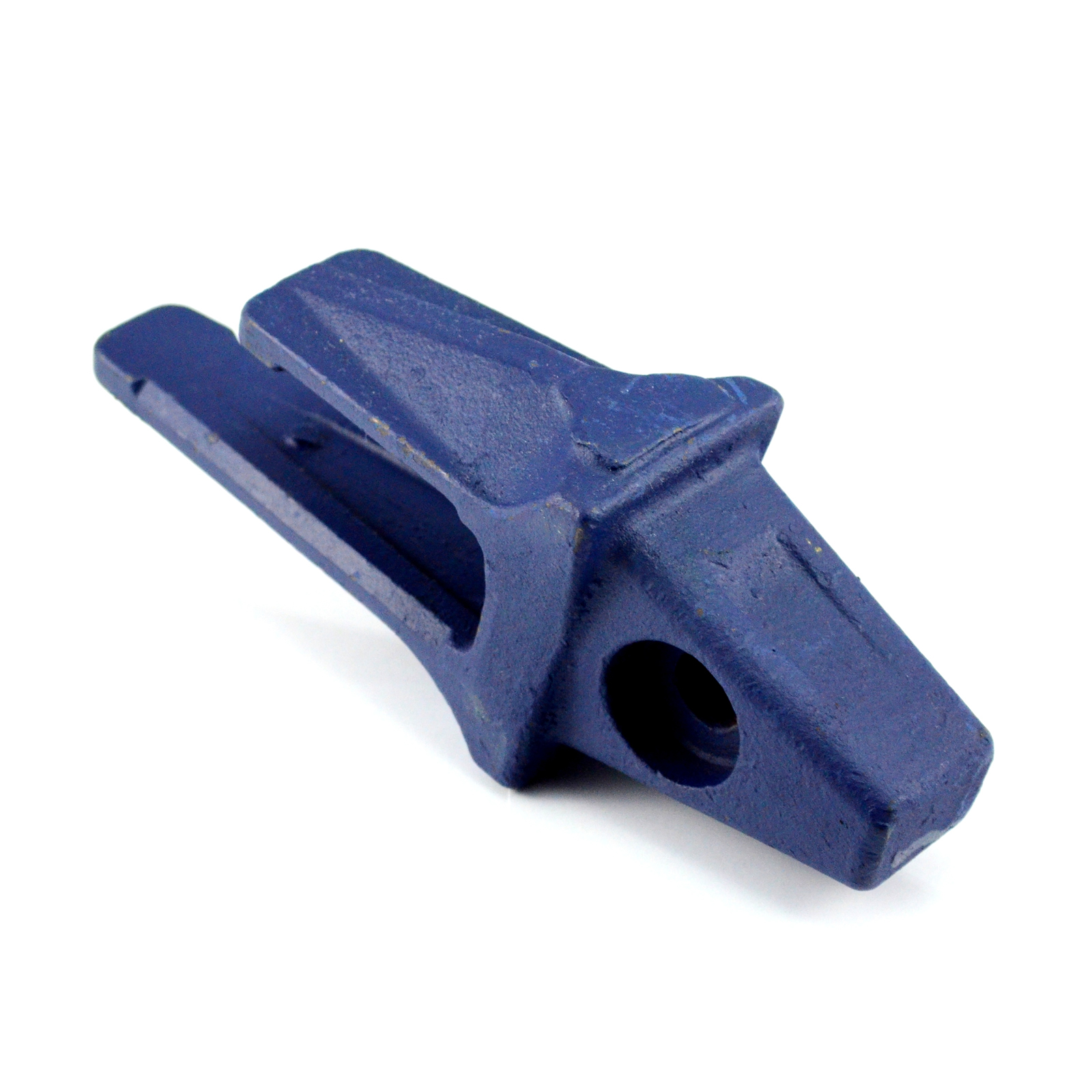

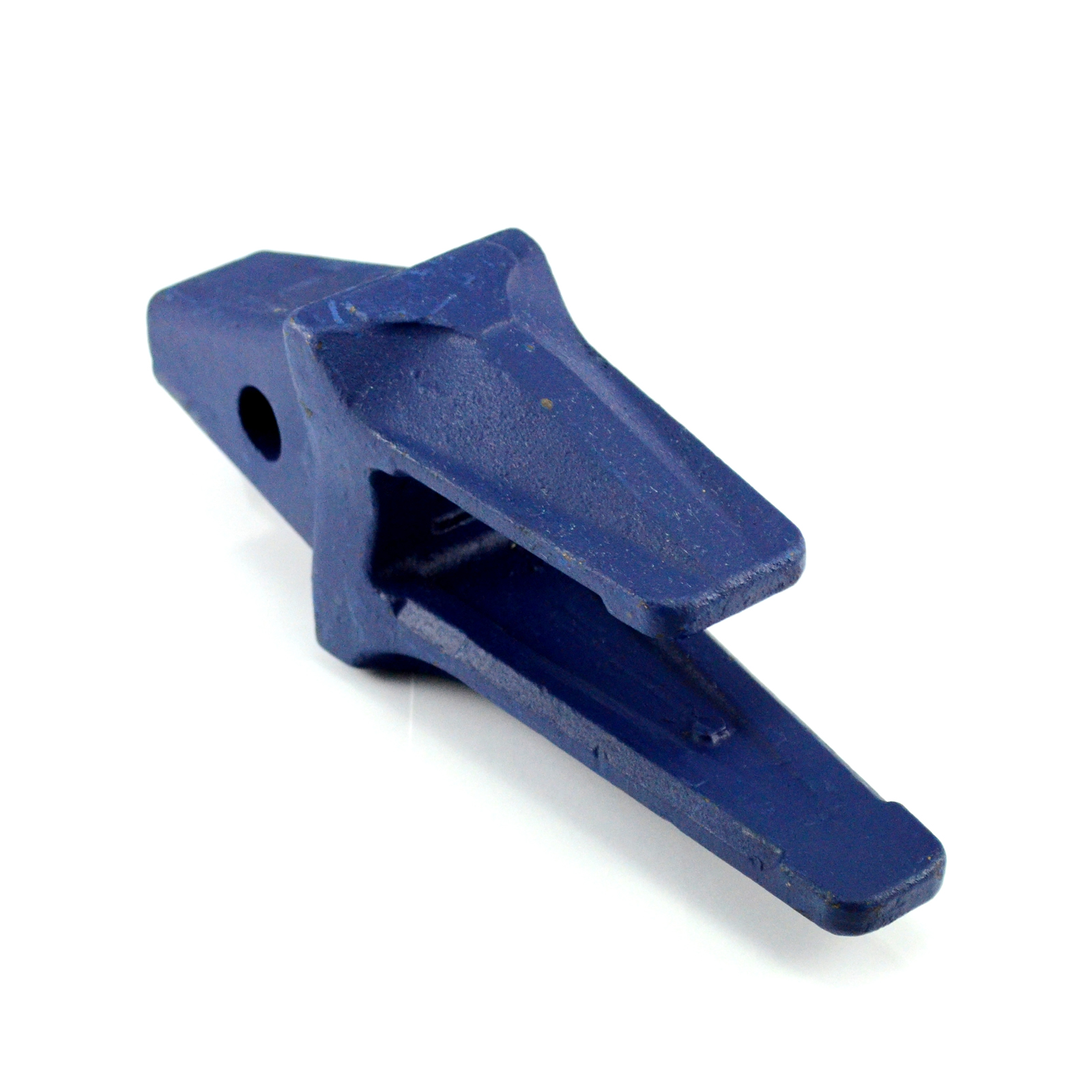

6Y3224Z Double Strap Adapter

Caterpillar J225 Style are the most common teeth in Australia for Caterpillar excavators from 6 to 9 tonne.  They are fitted with a steel pin and a round spring steel retaining ring punched through the tooth horizontally.  These will most likely be the teeth fitted If you have a compact loader or excavator from 6 to 9 tonne manufactured by Caterpillar.

Blade or Twin Tiger?

Blade teeth are great for general purpose work and long life, the large wear area will last longer than twin tip tiger teeth.  Twin tip tiger teeth will penetrate the ground much easier than blade teeth due to sharper points on the teeth, however they will wear faster than blade teeth due to the smaller wear area than blade teeth.  The general rule of thumb is to use blades for normal work and tigers when the ground is too hard and the machine is struggling to dig.

ACES Teeth

Aces Teeth are manufactured to the highest quality standards available.  All our teeth are manufactured using the Lost Wax Investment Casting process rather than the old fashioned sand casting process.  This ensures higher tolerances on the teeth and adapters during casting.  All teeth and adapters are made from high quality alloy steel to achieve an impact strength of greater than or equal to 20J. They are also hardened from 47-52 HRC for extremely long wear life.

(6Y3224Z)

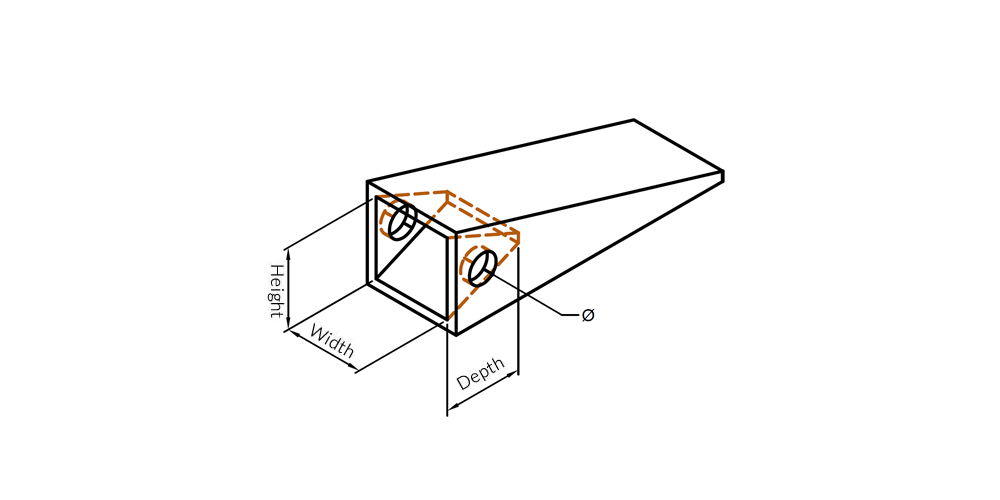

Fitting Specifications:

Width 50 mm
Height 60 mm
Depth 70 mm
Ø 18 mm

Shipping Specifications:

SKU 6Y3224Z
Shipping Weight 2.3000kg
Shipping Width 0.060m
Shipping Height 0.080m
Shipping Length 0.220m
Shipping Cubic 0.000325000m3
