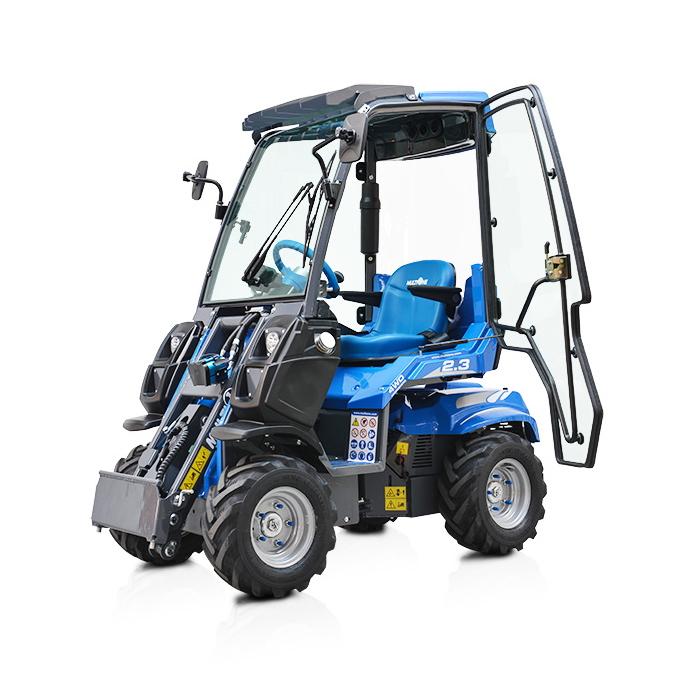

MultiOne 2.3 EFI

Multione 2.3 vs "Stand Up" Mini Loaders

See the machinery comparison charts below to compare the Multione 2.3 Mini Loader to common Stand Up Mini Loaders.  It is pretty easy to see how a 2.3 mini loader could help increase your efficiency on the job site over a Stand-Up mini loader, in some cases they can travel twice as fast and lift 88% more weight.

Multione 2.3 vs Dingo All-Rounder (Kohler)

	Multione 2.3	Dingo All-Rounder (Kohler)	Multione Advantage
Power	25 HP	23 HP	8%
Hyd Flow	42 L/min	47 L/min*
Travel Speed	12 km/h	7 km/h	71%
Lift Capacity	420 kg	275 kg	71%
Standard Width	1035 mm	1050 mm
Length - no attachments	1859 mm	1565 mm
Height to Hinge Pin	1584 mm	1680 mm	8%
Weight	700 kg	772 kg

*entire system output

Multione 2.3 vs Dingo 950 Classic (Kohler)

	Multione 2.3	Dingo 950 Classic (Kohler)	Multione Advantage
Power	25 HP	23 HP	8%
Hyd Flow	42 L/min	43 L/min*
Travel Speed	12 km/h	6 km/h	100%
Lift Capacity	420 kg	250 kg	88%
Standard Width	1035 mm	1050 mm
Length - no attachments	1859 mm	1565 mm
Height to Hinge Pin	1584 mm	1680 mm	8%
Weight	700 kg	695 kg

*entire system output

Multione 2.3 vs Kanga 6 Series (Honda)

	Multione 2.3	Kanga 6 Series (Honda)	Multione Advantage
Power	25 HP	22 HP	23%
Hyd Flow	42 L/min	41 L/min*
Travel Speed	12 km/h	7 km/h	71%
Lift Capacity	420 kg	250 kg	88%
Standard Width	1035 mm	1030 mm
Length - no attachments	1859 mm	1660 mm
Height to Hinge Pin	1584 mm	1855 mm
Weight	700 kg	875 kg

*entire system output

General:

Weight	747 kg
Length	2,187 mm
Height	1958 mm

Engine:

Manufacturer	Kohler
Model	ECV749
Construction	Air-Cooled, 2-Cylinder EFI Petrol
Displacement	747 cc
Output	19.8kW (26.5Hp)
Torque	55.5 Nm @ 2600 RPM
Battery Voltage / Capacitance	12v / 30 Ah

Drive:

Construction	Hydrostatic Transmission to direct drive hydraulic wheel motors
Motors	Direct Drive, 4 Wheel Motors
Drive Speed	15 km/h
Parking Brake	Mechanical
Standard Tyres	21x8.00-10

Hydraulics

Auxiliary Flow	42 L/m
Working Pressure	200 bar
Boom Pressure	150 bar

Performance

Max. Lift Height	1580 mm
Max. Tip Load1	700 kg
Lifting Capacity Straight2	560 kg
Lifting Capacity Fully Articulated3	450 kg
Breakout Force	840 kg
Pushing Force	770 kgf

Capacities

Fuel Tank	12 / 24L
Hydraulic Tank	25 L

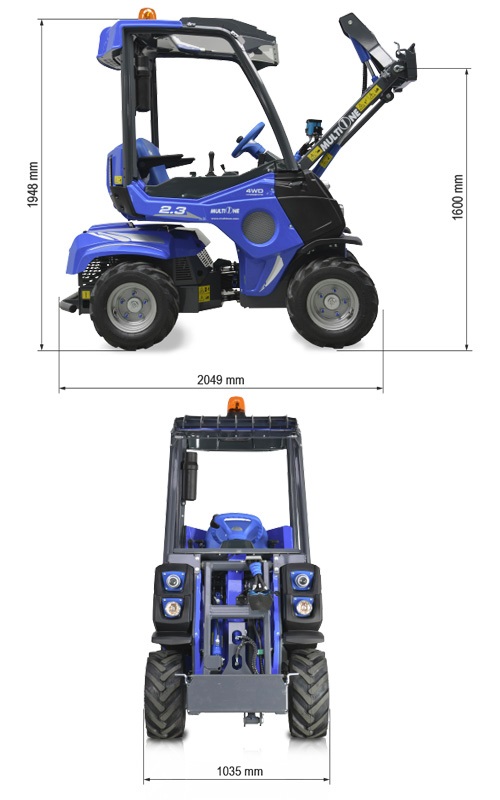

Working Dimensions:

1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.

* Specifications subject to change without notice due to continual product development.
