MultiOne 9.5
2600kg Tipping Load
Notify me when back in stock

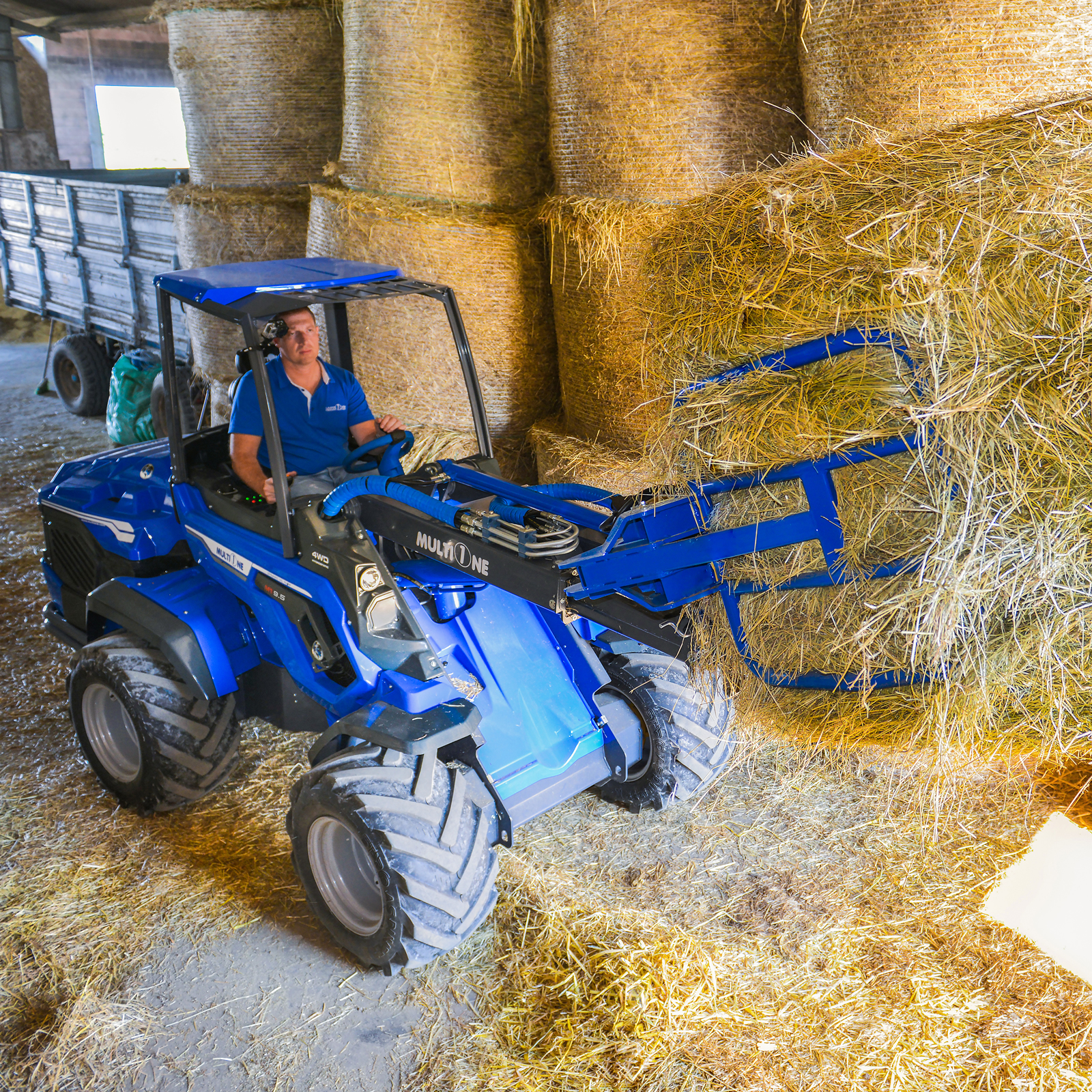

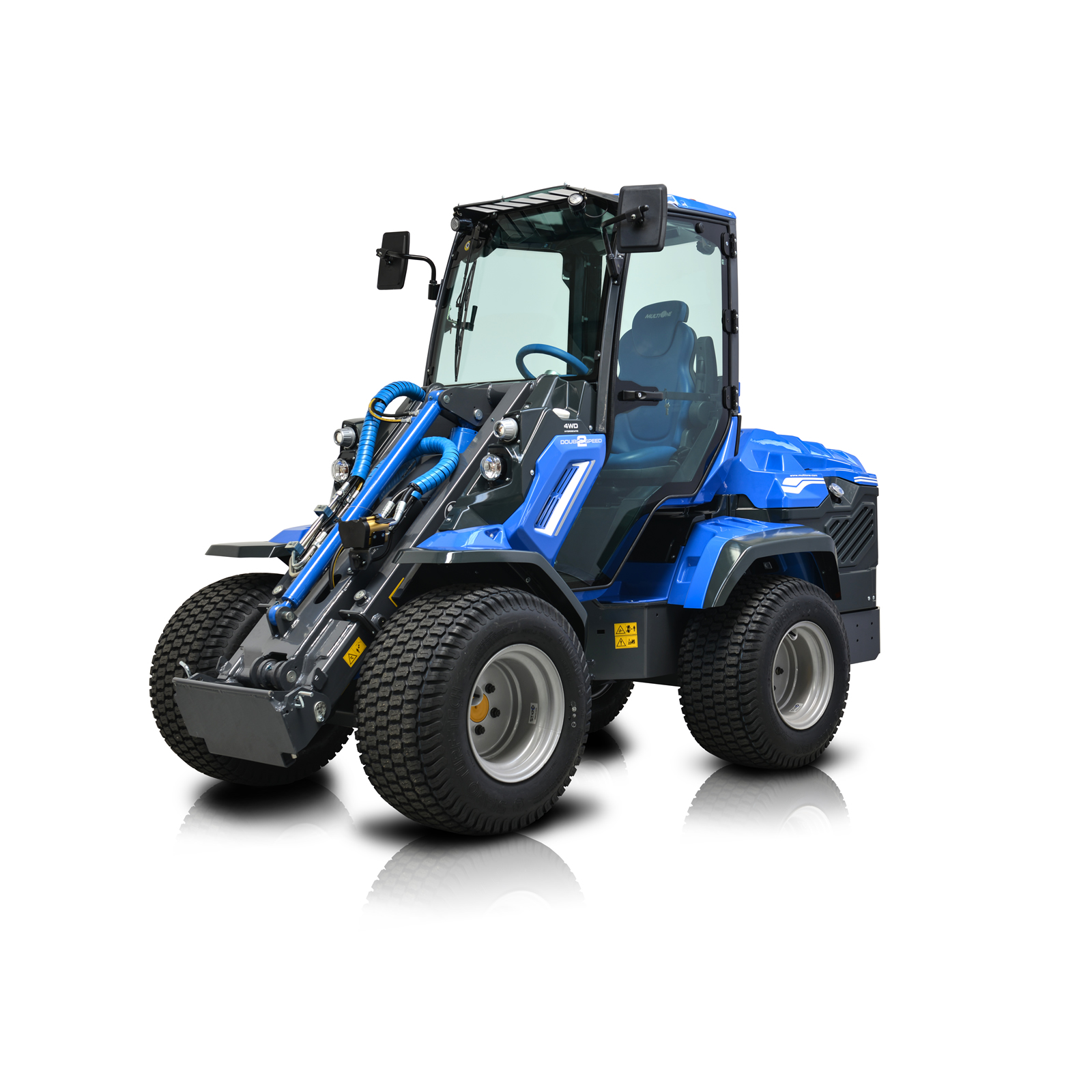

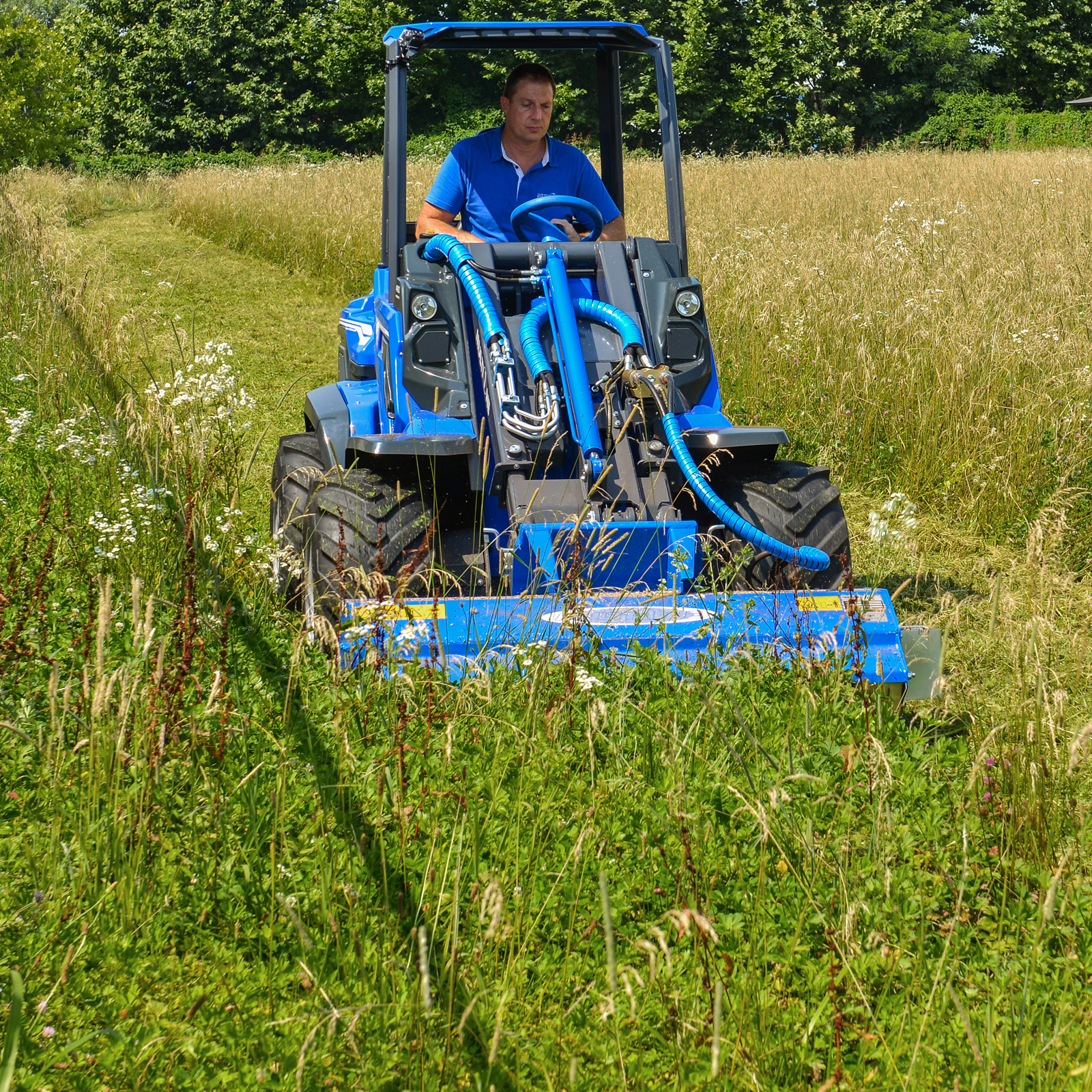

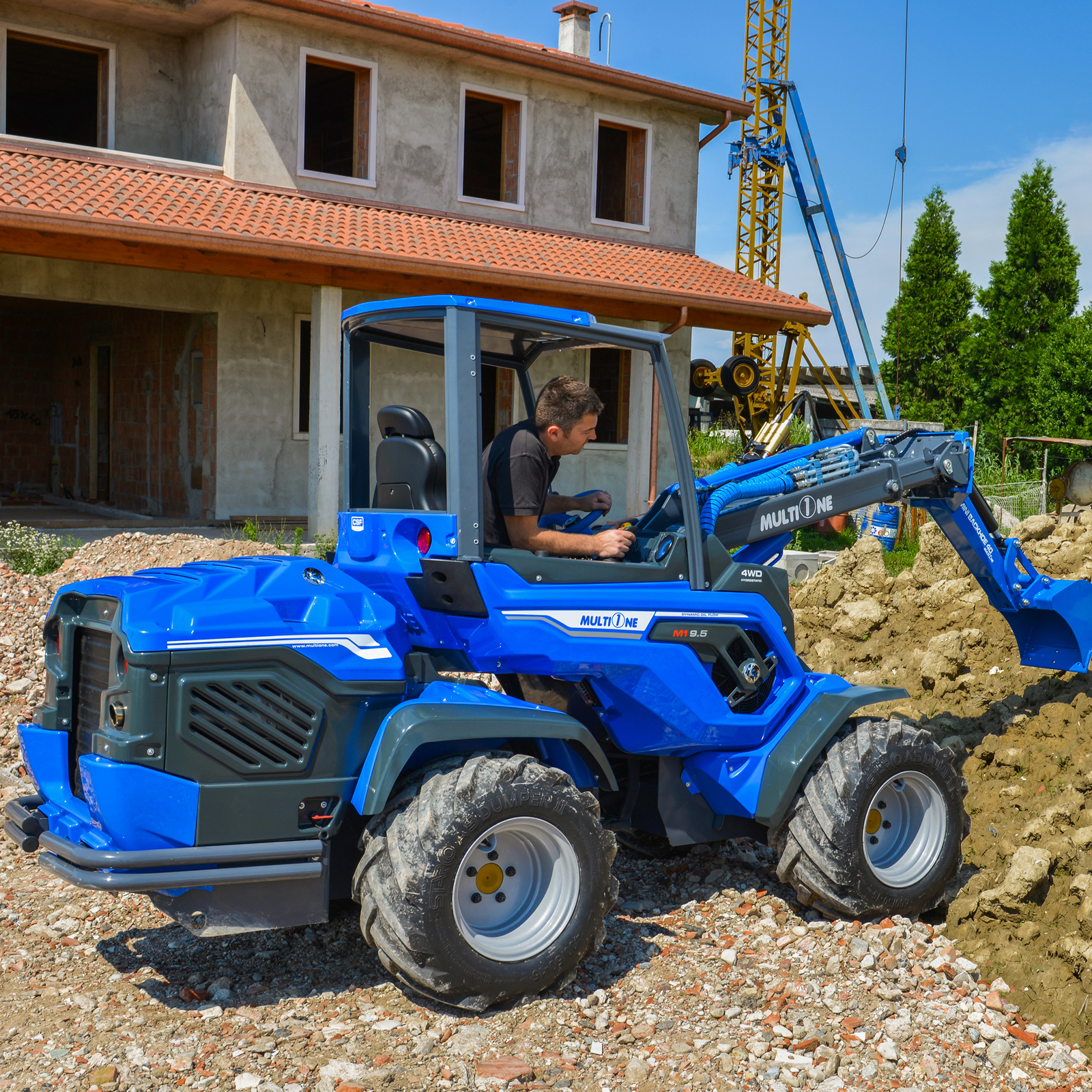

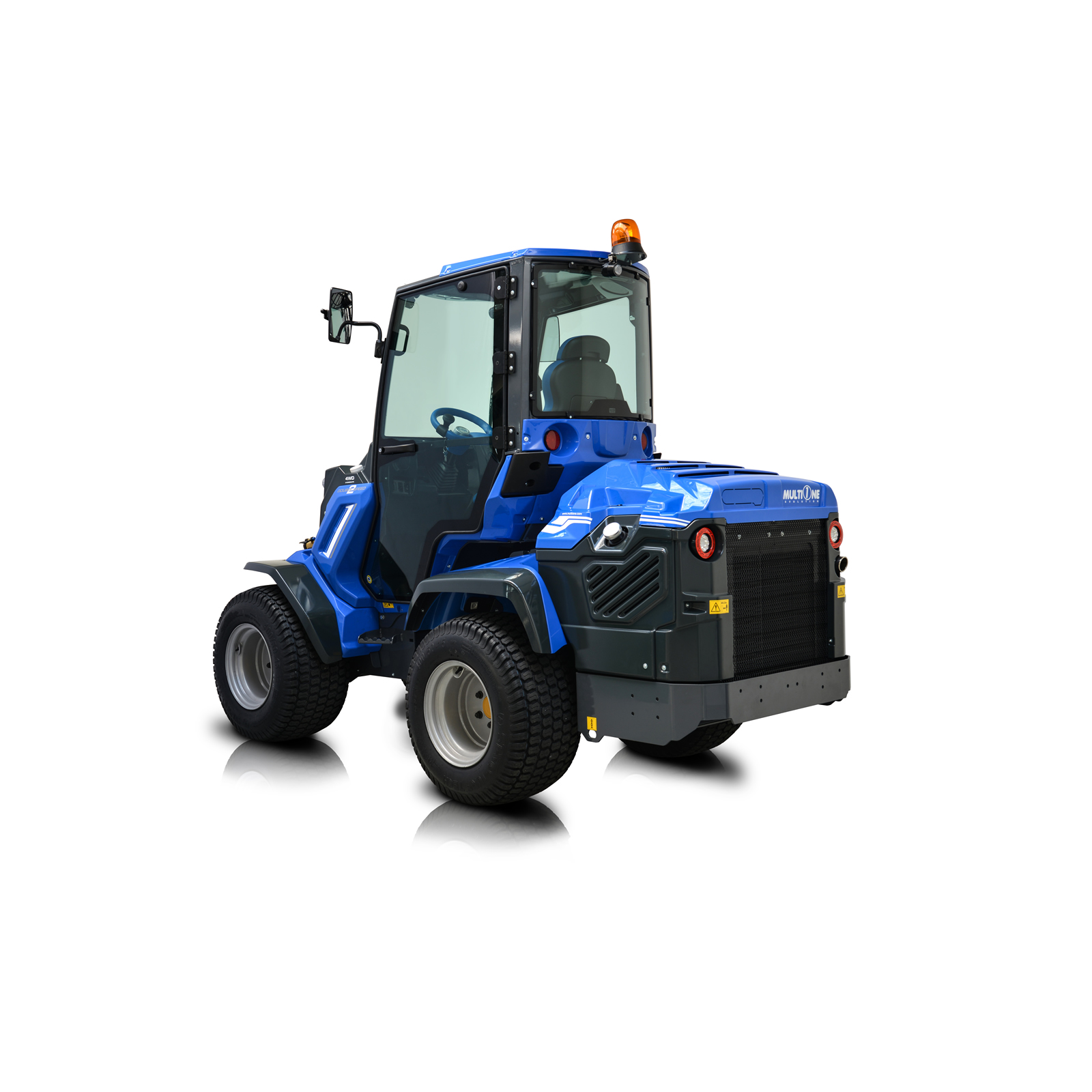

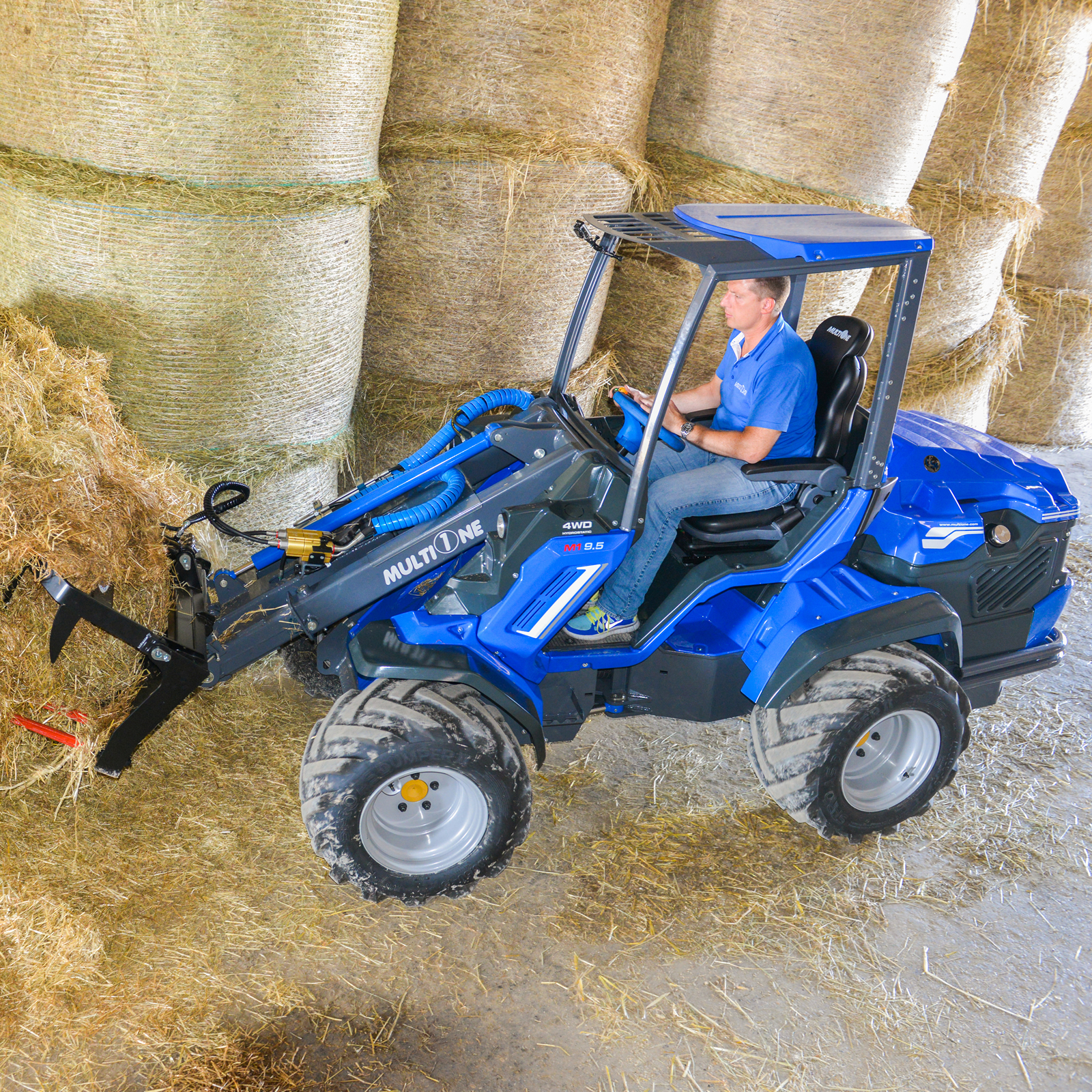

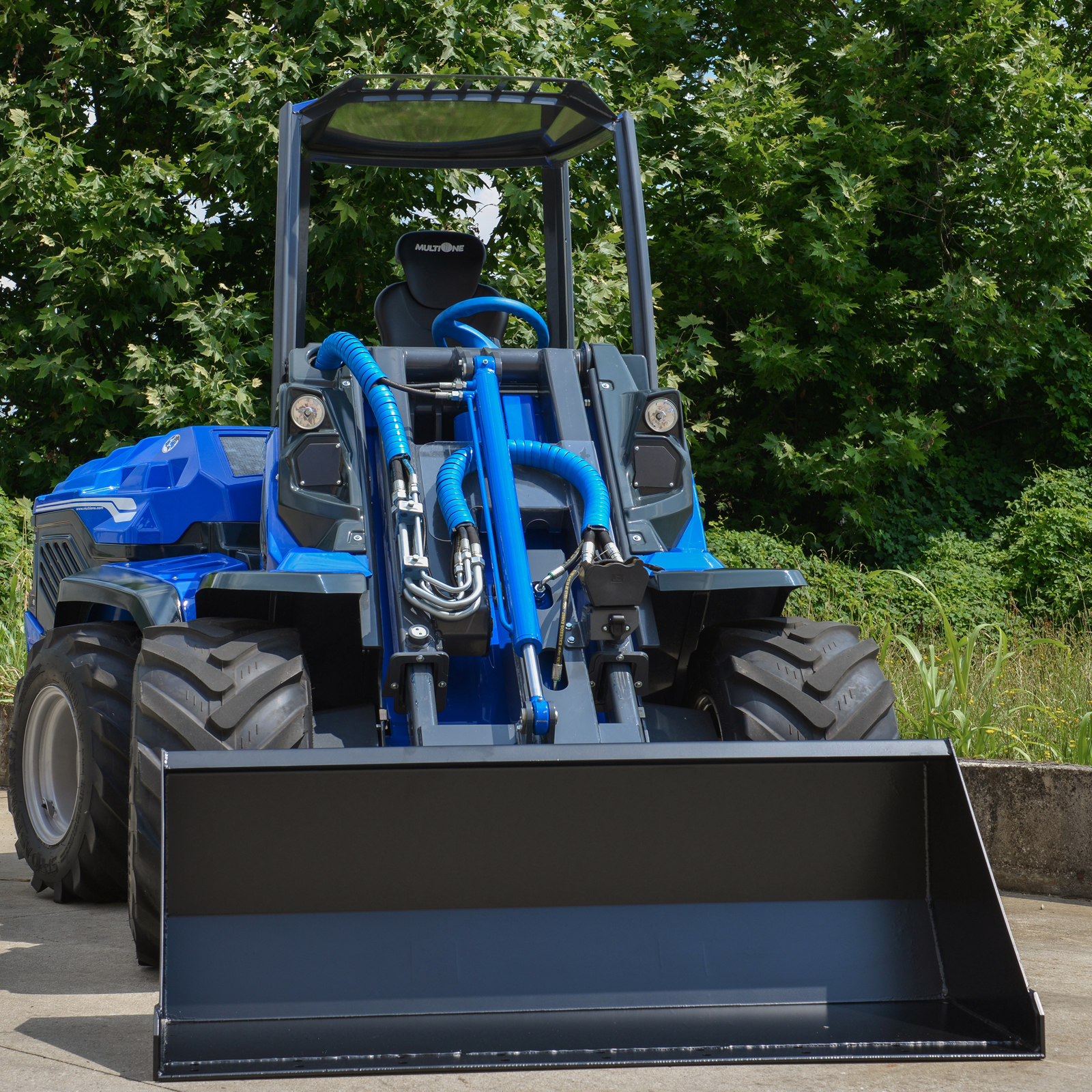

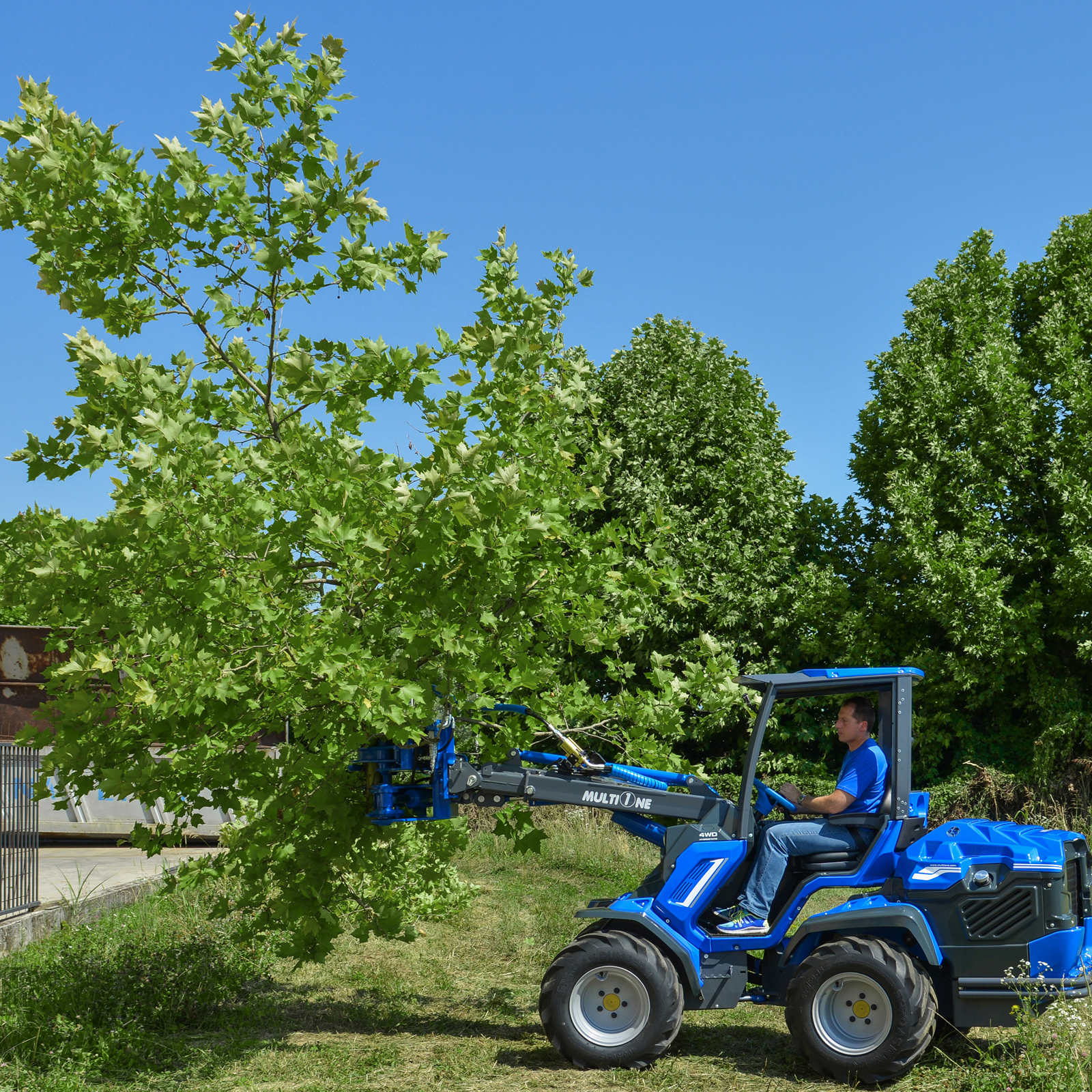

MultiOne 9.5 - 2100kg Mini Loader
The 9.5 Loader from Multione features the best in class weight to lift capacity ratio with a tip load of a whopping 2600kg.
The 9.5 is the evolution of the top class GT series: the new series continues to impress with a brand new architecture and design making it the only compact mini loader in its class to achieve the performance and standards in a very competitive and cost effective packagage.
The 9 Series offers superb value for money to the customer looking for all the benefits of a compact yet powerful package. MultiOne mini loaders come at a competitive price without sacrificing power and quality. These machines are perfectly suited for more demanding jobs requiring high lifting power and pushing force.

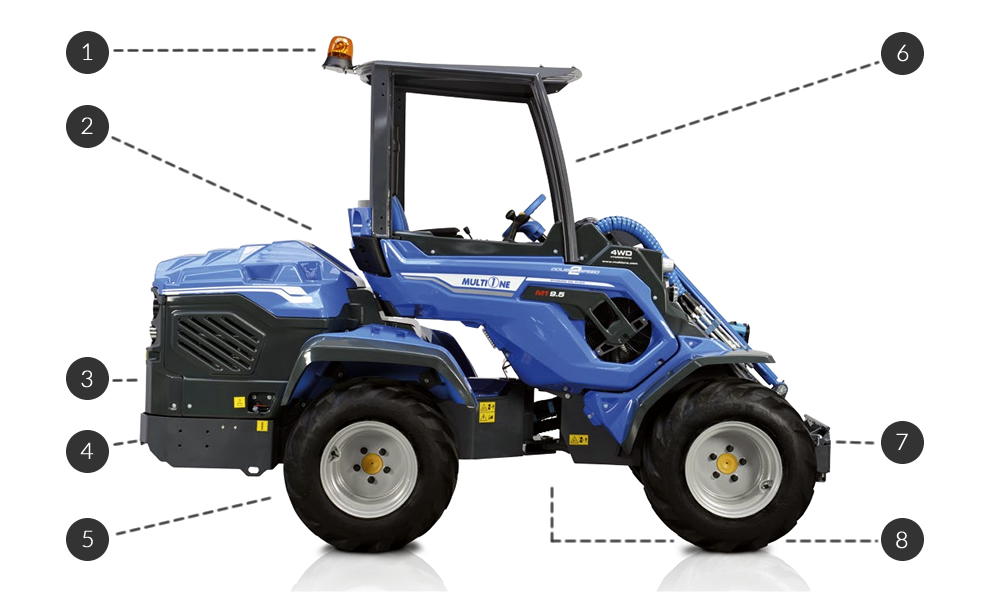

Key Features:
| 1. | Safety |
|
| 2. | Comfort |
|
| 3. | Power |
|
| 4. | Efficiency |
|
| 5. | Speed |
|
| 6. | Vision |
|
| 7. | Attachments |
|
| 8. | Versatility |
|
(9.5)
General:
| Weight | 2100 kg |
| Length | 3200 mm |
| Height | 2150 mm |
Engine:
| Manufacturer | Yanmar |
| Model | 4TNV88 |
| Construction | Liquid-Cooled, 3-Cylinder Diesel |
| Displacement | 2189 cc |
| Output | 37 kW (50 Hp) |
| Torque | 140 Nm @ 1200 RPM |
Drive:
| Construction | Hydrostatic Transmission to direct drive hydraulic wheel motors |
| Motors | Direct Drive Radial Piston x 4 |
| Drive Speed | 0-25 km/h |
| Parking Brake | Multi-Disc |
| Standard Tyres | 31x15.50-15 |
Hydraulics
| Auxiliary Flow | 85 L/m |
Performance
| Max. Lift Height | 3210 mm |
| Max. Tip Load1 | 2600 kg |
| Lifting Capacity Straight2 | 2080 kg |
| Lifting Capacity Fully Articulated3 | 1600 kg |
| Breakout Force | 2200 kg |
| Pushing Force | 1950 kgf |

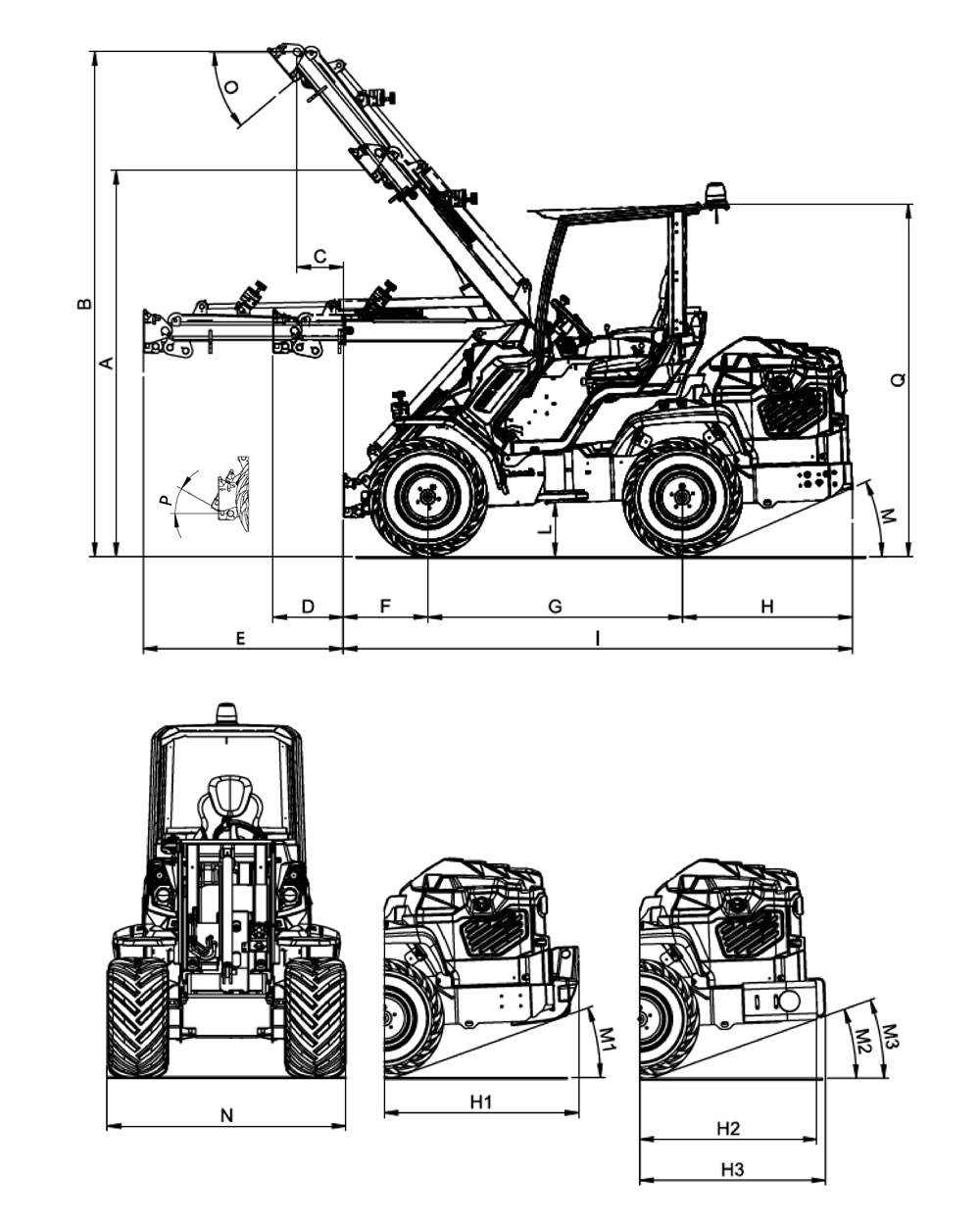

Working Dimensions:
| A | Pivot Point Height (retracted) | 2530 mm |
| B | Pivot Point Height (extended) | 3210 mm |
| C | Outreach, raised boom (extended) | 460 mm |
| D | Outreach, horizontal Boom (retracted) | 460 mm |
| E | Outreach, horizontal boom (extended) | 1256 mm |
| F | Front length | 530 mm |
| G | Wheelbase | 1600 mm |
| H | Rear length | 1070 mm |
| H1 | Rear Length (440kg b/w) | 1225 mm |
| H2 | Rear Length (184kg b/w - side) | 1115 mm |
| H3 | Rear Length (184kg b/w - rear) | 1170 mm |
| I | Machine Length | 3200 mm |
| L | Ground Clearance | 340 mm |
| M | Departure Angle | 24 degrees |
| M1 | Departure Angle (440kg b/w) | 19 degrees |
| M2 | Departure Angle (184 kg b/w - side) | 19 degrees |
| M3 | Departure Angle (194 kg b/w - side) | 19 degrees |
| N | Max Width (standard tyres) | 1500 mm |
| O | Dump Angle | 31 degrees |
| P | Rollback Angle | 29 degrees |
| Q | Height (w/ standard tyres) | 2150 mm |
| Q1 | Height (w/ standard tyres + A/C) | 2350 mm |
1) Maximum load that can be lifted just off the ground when the machine is straight, with backweights and boom not extended, weight off attachment included.
2) Machine straight, with backweights and boom not extended. Weight of attachment included. (80% of tipping load).
3) Machine fully articulated, with backweights and boom not extended. Weight of attachment is included.
* Specifications subject to change without notice due to continual product development.
| SKU | 9.5 |
