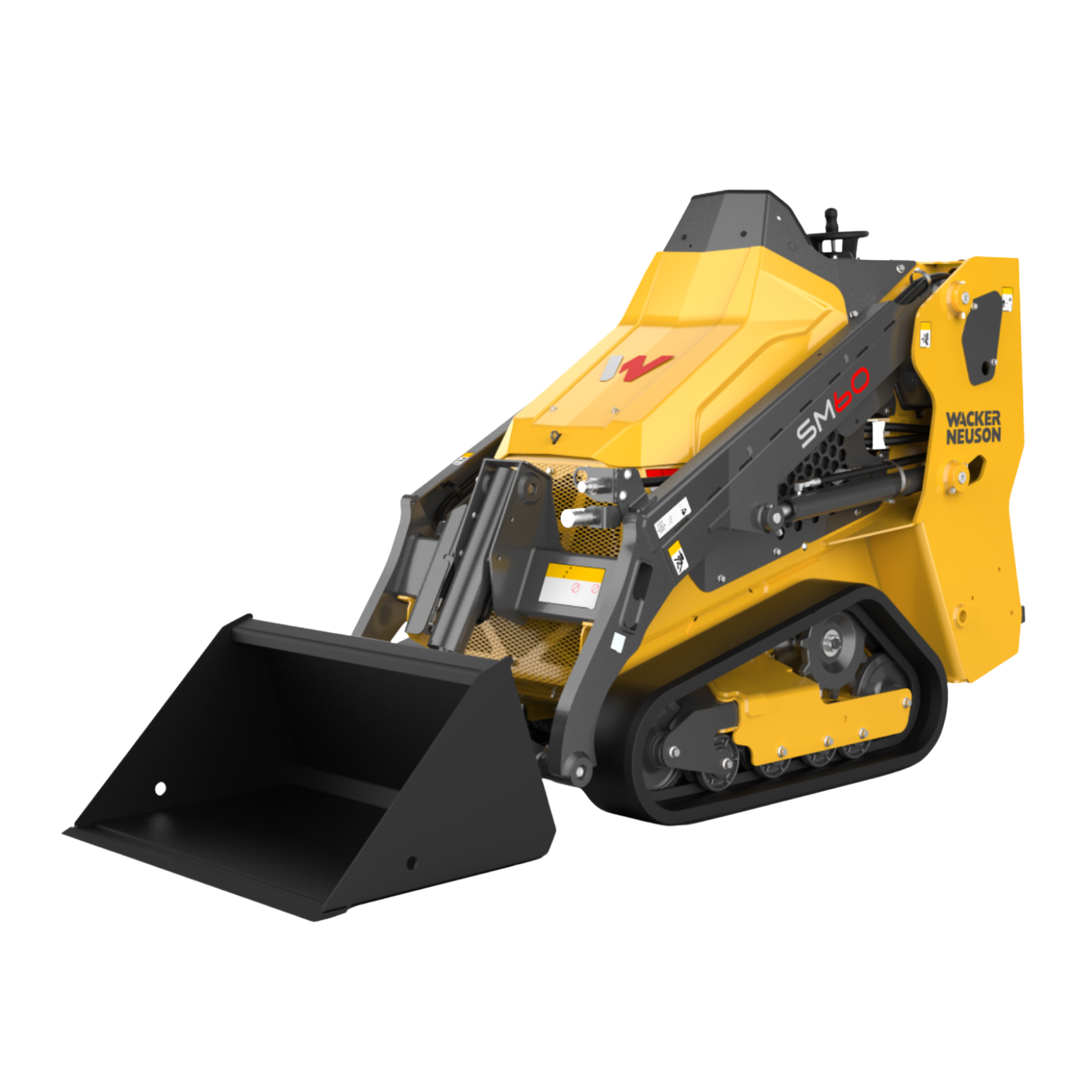

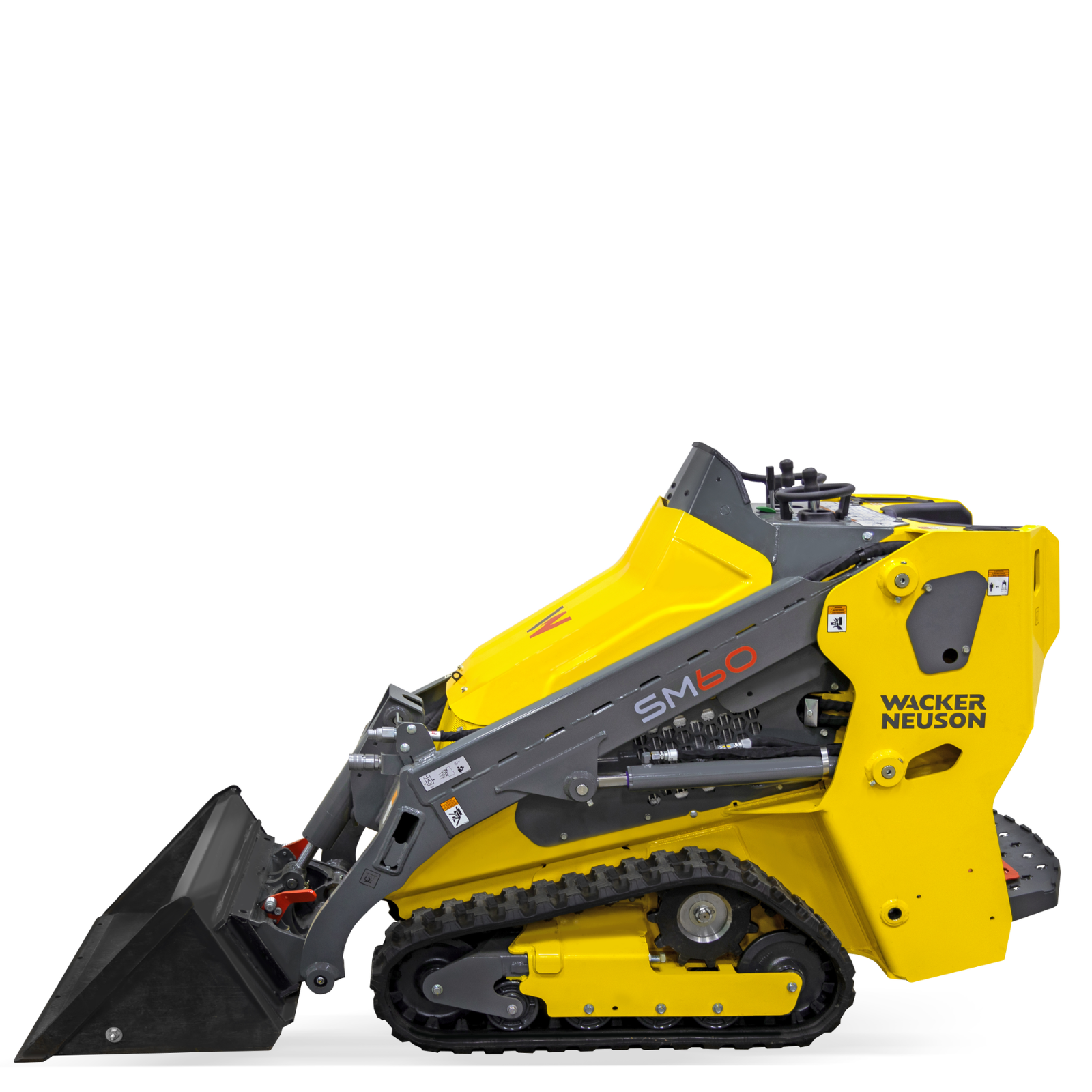

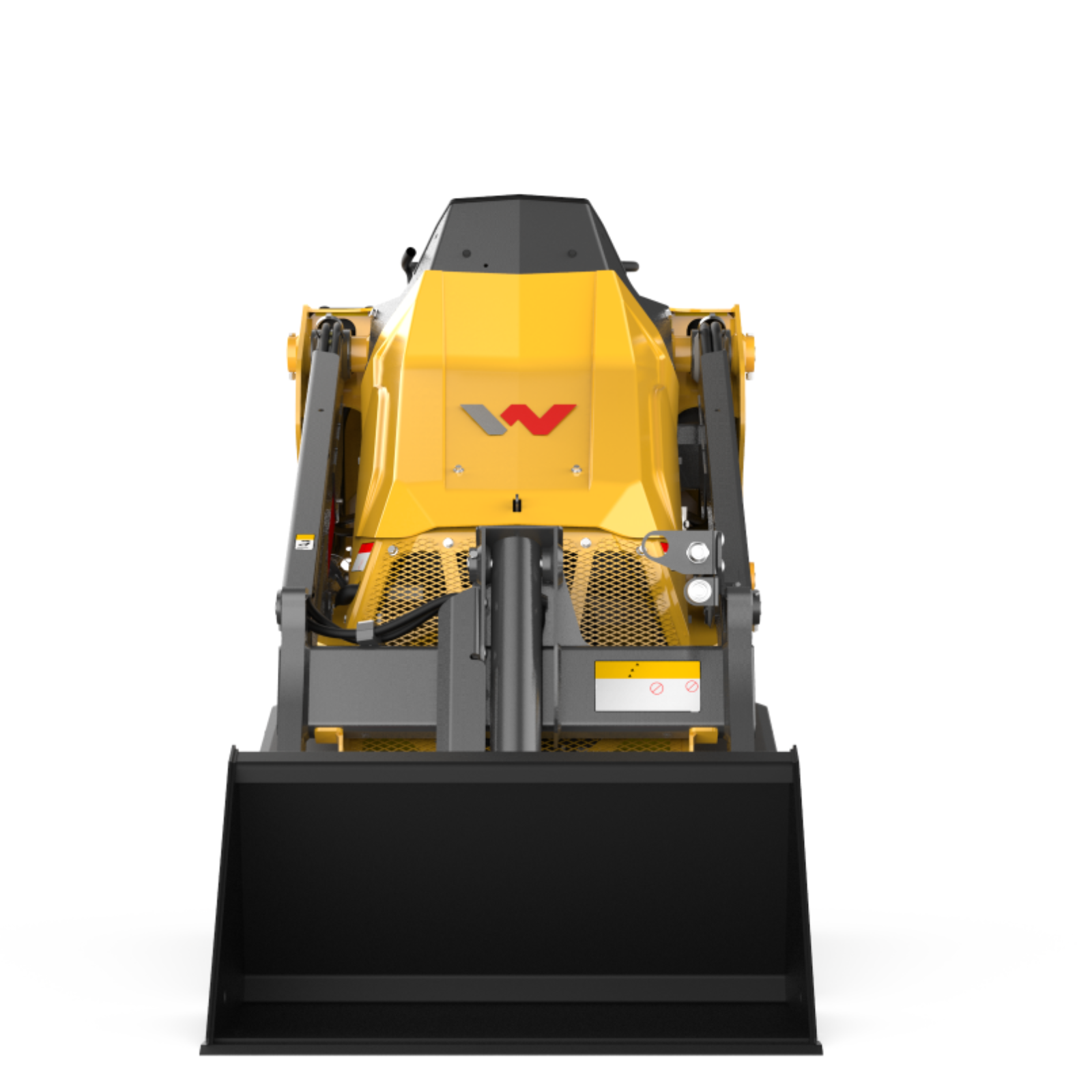

Wacker Neuson SM60 - Tracked Loader

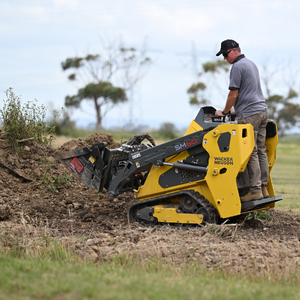

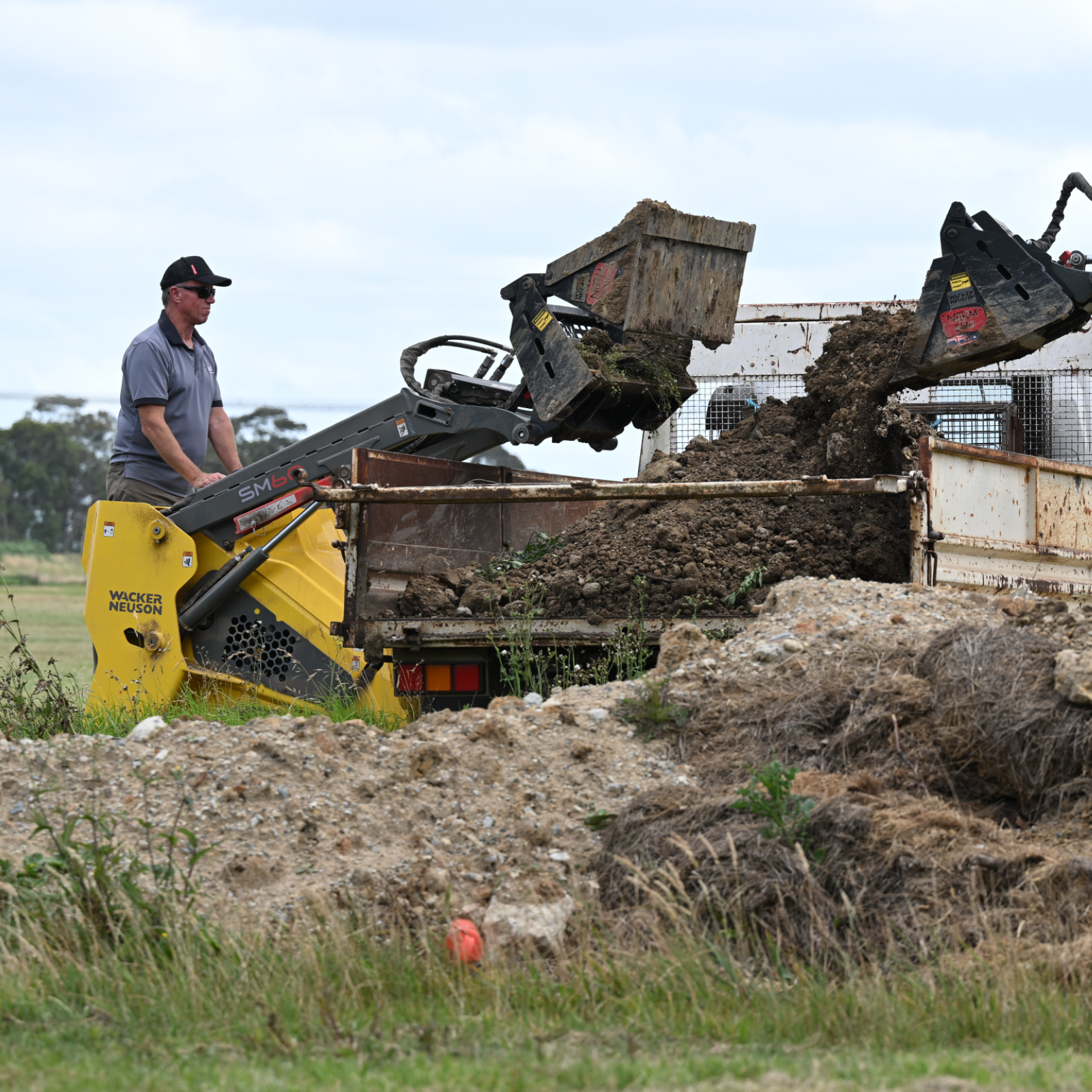

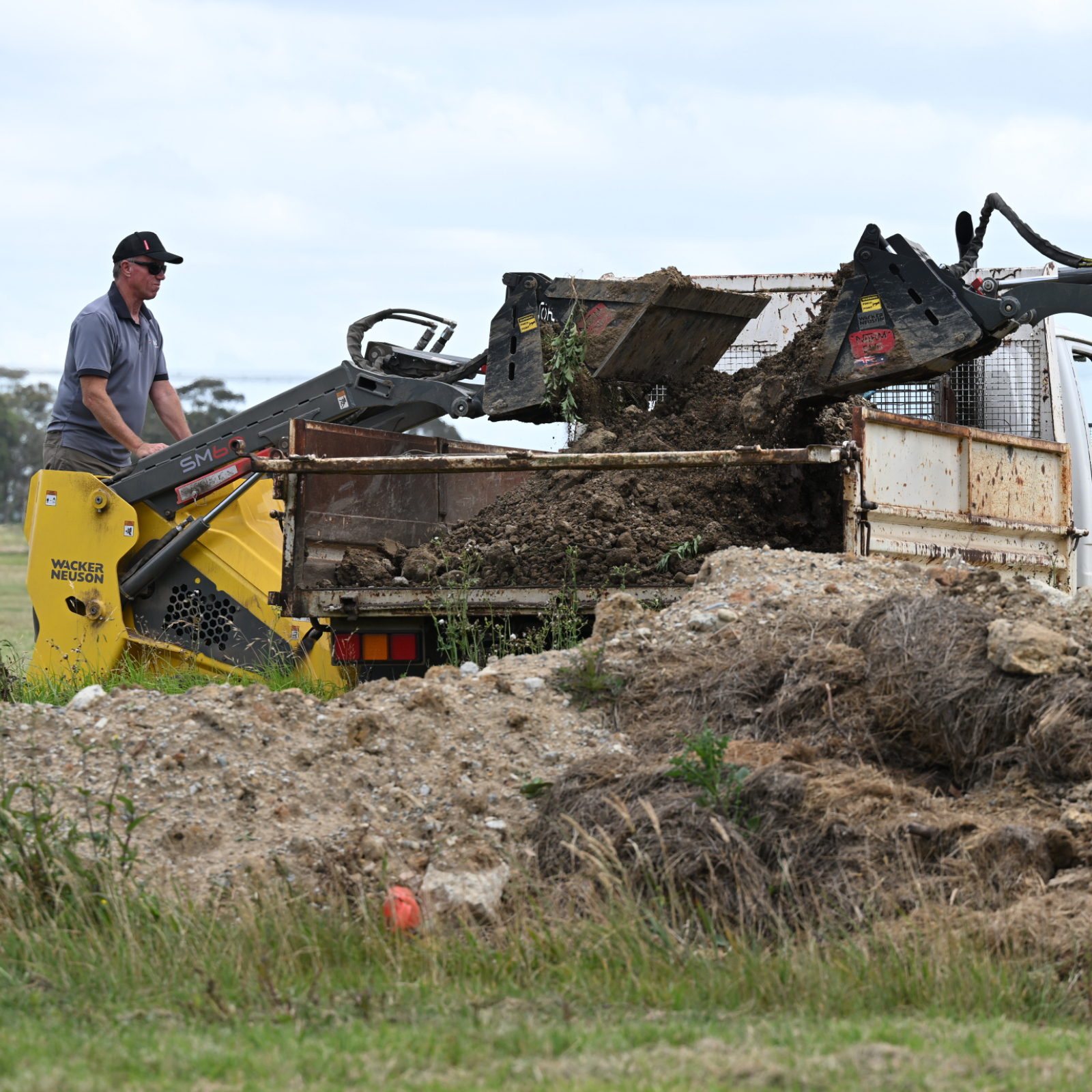

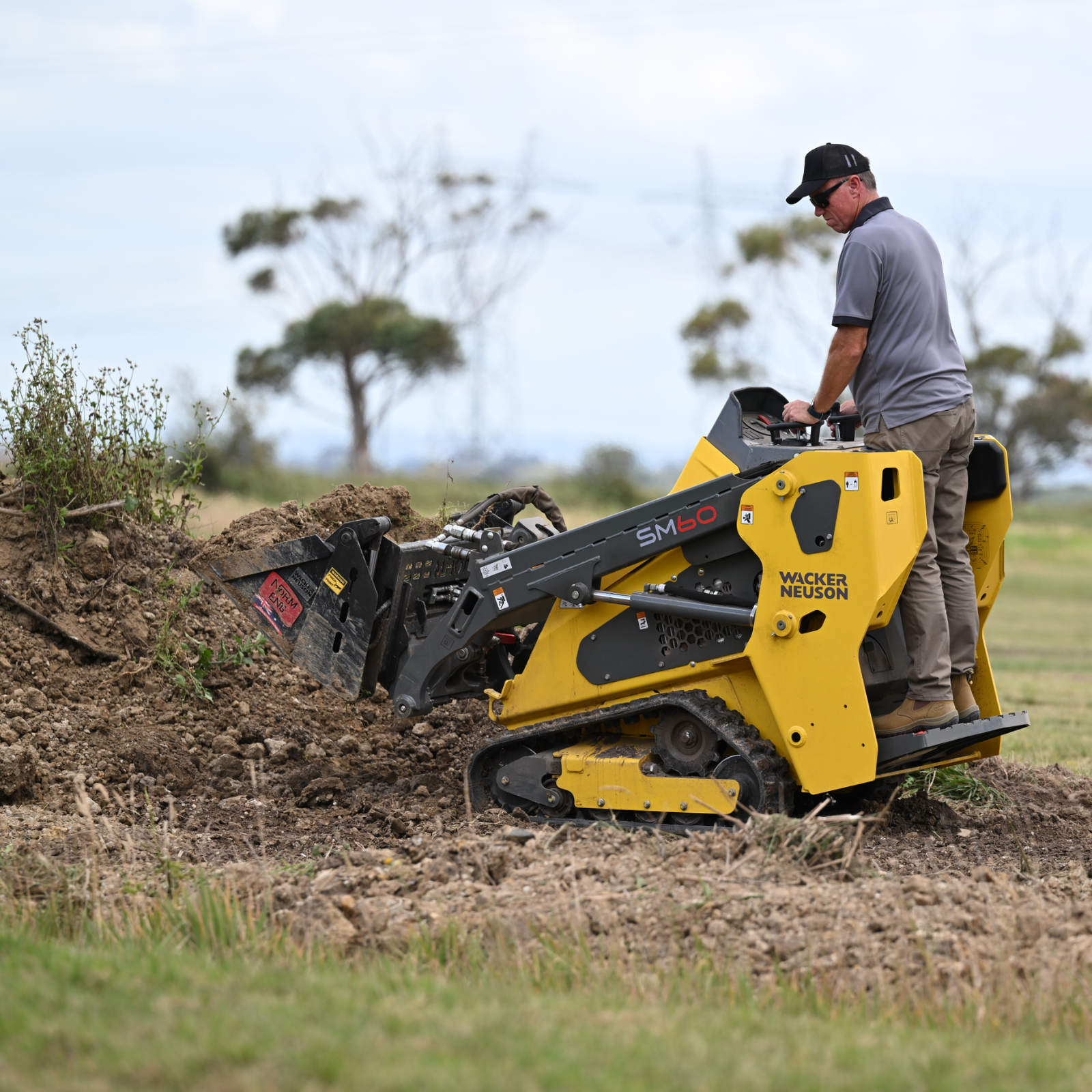

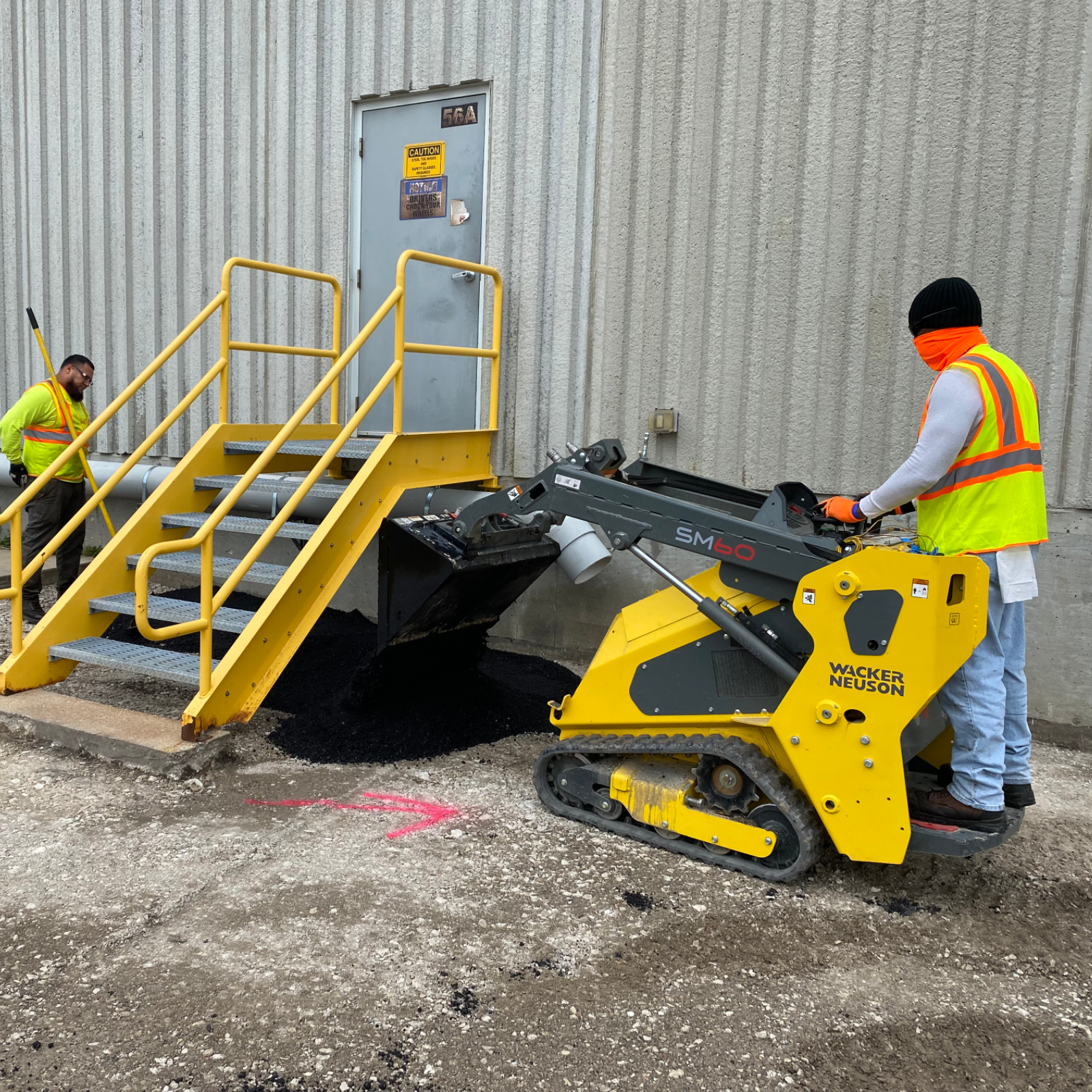

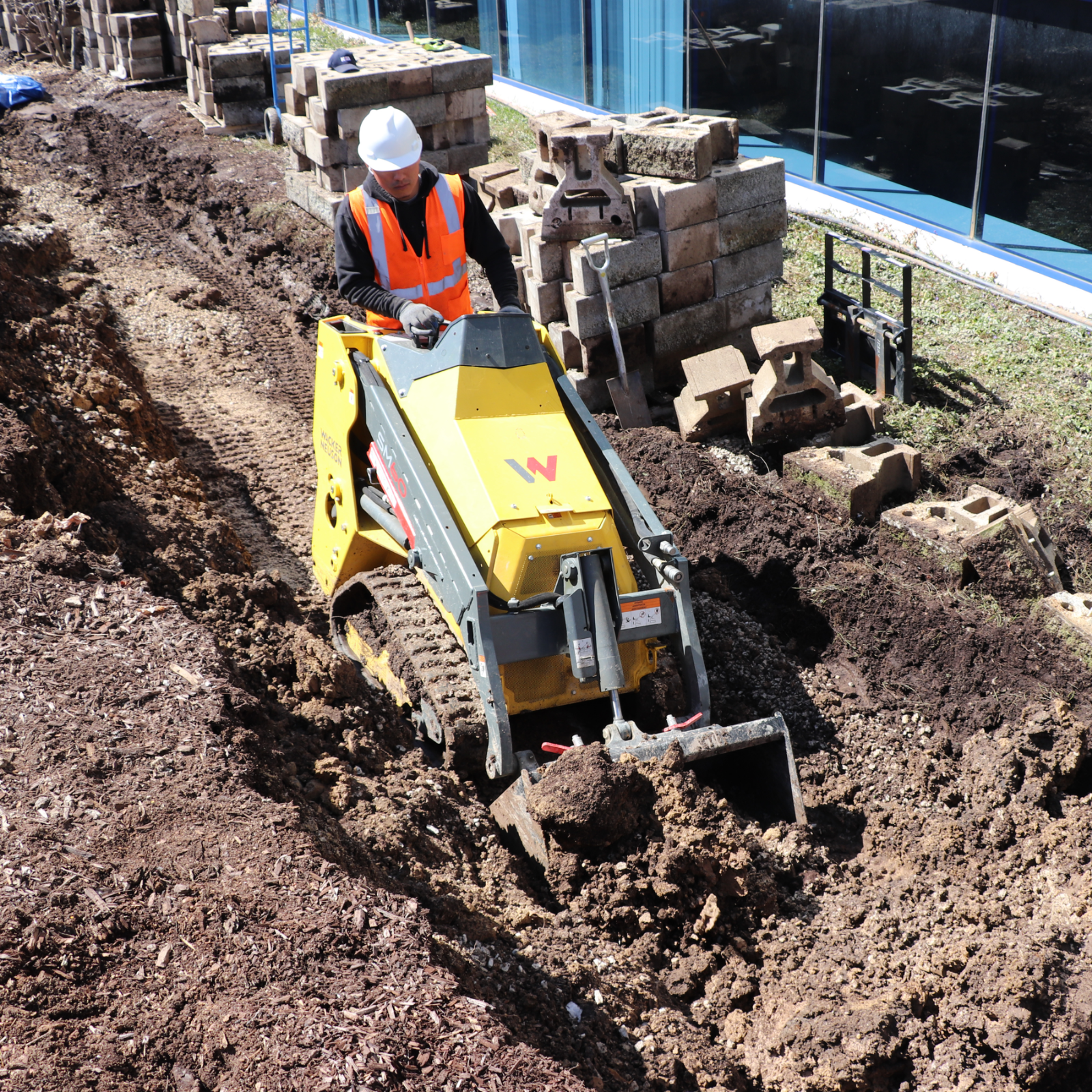

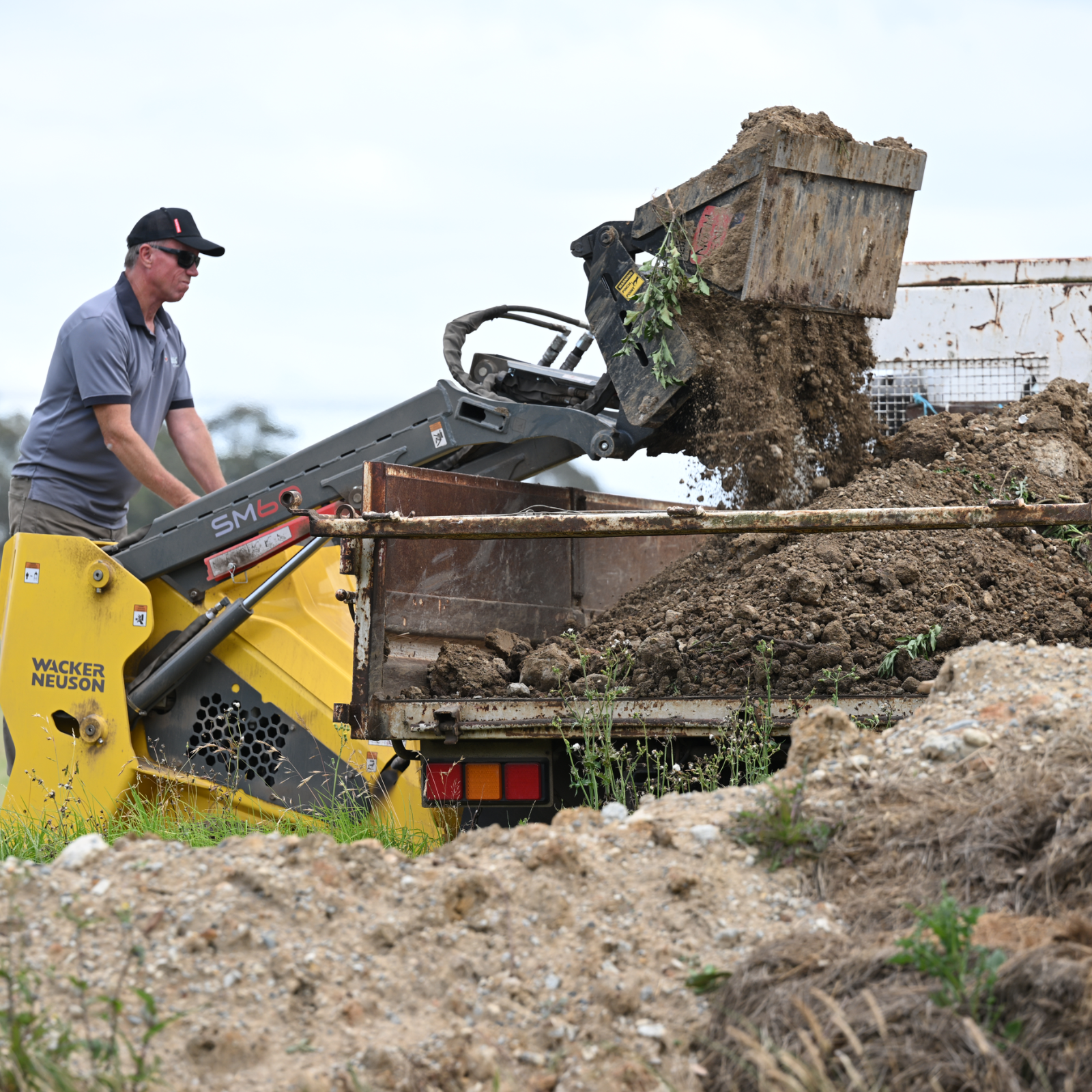

The SM60 prioritizes operator comfort while also ensuring a sleek and compact design. Its wide spring suspension platform not only enhances comfort but also provides stability in opertion. Moreover, the SM60 is equipped with a petrol engine, making it an ideal choice for DIY homeowners, rental fleets and landscape contractors who use petrol-powered equipment. The well designed radial lift arm has the perfect combination of strength, simplicity and high lifting height, perfect for loading small trucks and skips.

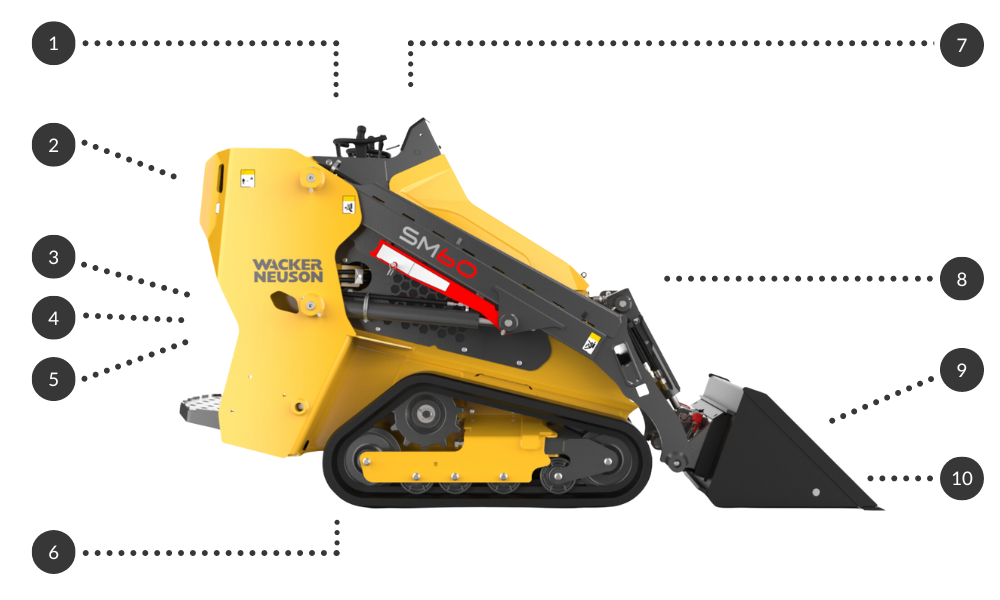

Key Features:

1.	Safety	Operator present switch on foot panel. Low centre of gravity increases stability. Soft touch pilot controls reduce risk of operator being thrown from machine during operation. Easily accessible etie down points for safe transportation. All machines sold by ACES have an OHS Risk assessment prior to delivery.
2.	Quality	Industry leading 5 Year / 5000 hour warranty. Powder coated finishes for long life without fading or corrosion. HD precision ground hardened steel pins and bushes. HD proprietary undercarriage components. 180mm wide tracks for long service life.
3.	Power	Powered by Kohler ECH 749 26HP EFI Petrol engine. Class leading 25HP hydraulic system. Hydrostatic transmission to power tracks. 2 Pump system, 210 bar relief pressure.
4.	Efficiency	Hydrostatic transmission for the best driving efficiency. High, 390kg SWL @ 50% of tip load for low 1,242kg machine mass. Efficient 2 wheel motor, direct drive to sprocket track system. High efficiency hydraulic oil cooler.
5.	Cooling	Efficient air cooled EFI Petrol engine. Fan motor forces hot air away from the operator not into the operator like competitors. High efficiency hydraulic oil cooler. Designed for hot climates.
6.	Traction	High track contact point with unique Wacker Neuson track design. 4 central triple flange rollers. Front idler and lower roller mounted together, optimal distance from front idler to roller, lowers risk of detracking. 180mm track for low ground pressure and high traction forces.

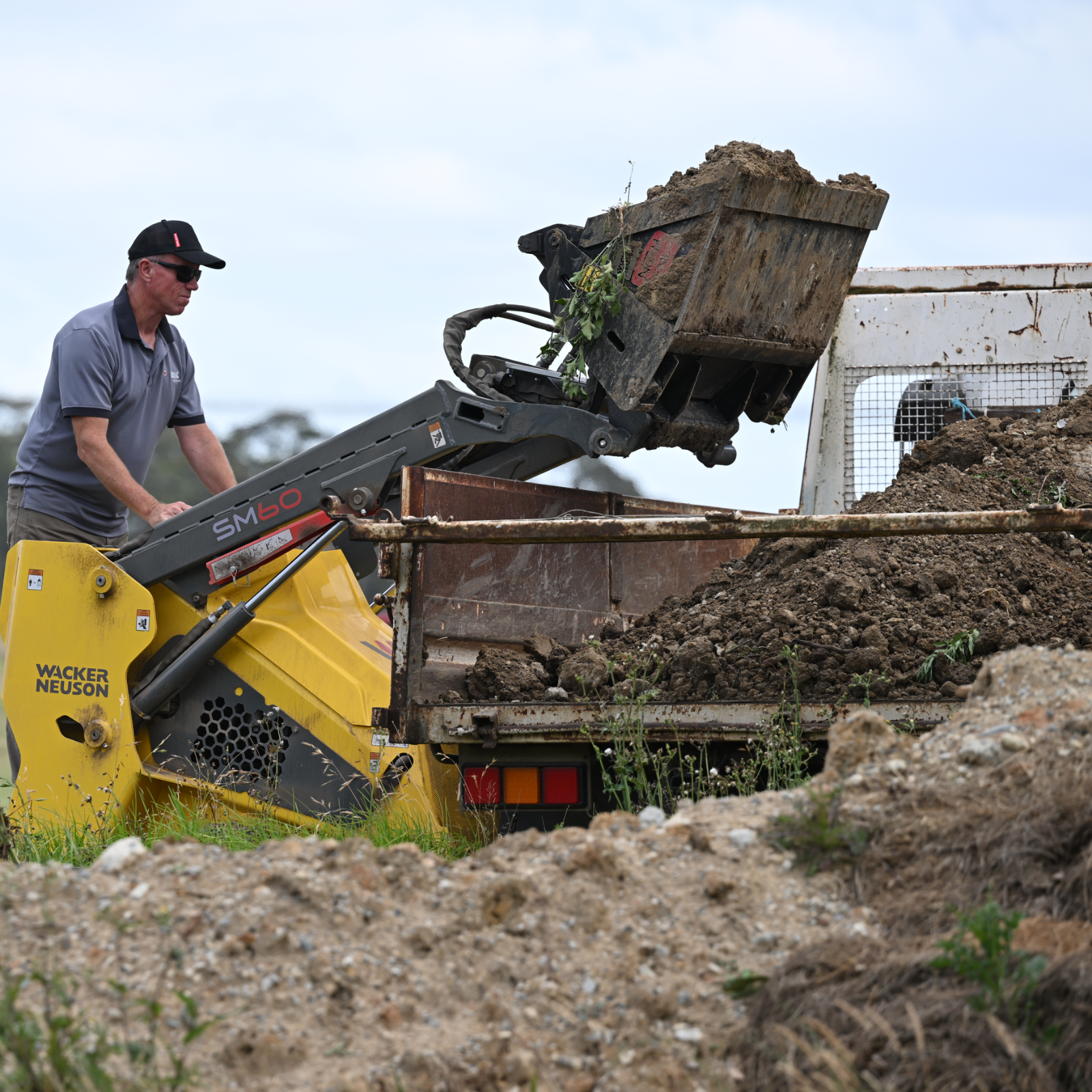

7.	Versatility	ISO control, extremely easy to operate. 1,920mm lift height to hinge point for over fencing dumping and easy loading into trucks and skips. Radial lift for easy loading and unloading of pallets.
8.	Auxiliary Hydraulics	Two way auxiliary piping. Auxiliaries fitted with flat faced coupling for easy connection of attachments. 46L/min standard flow perfect for running a range of attachments such as trenchers, flail mowers and augers.
9.	Hitch	SAE Mini multifit pickup. Superior hitch design for added strength and longevity.
10.	Attachments	SAE Mini multifit hitch for full range of attachments. High capacity hydraulics capable of running a full range of attachments. Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.

(SM60)

SM60 Tracked Mini Loader - Market Comparison

Use the machinery comparison charts to check the facts from the ficton before you make your next excavator purchase. Fields market in green show a good Wacker Neuson advantage, fields market in blue show a significant Wacker Neuson advantage.

Click on the links below to compare the machines:

Dingo K9PT vs Wacker Neuson SM60
Ditch Witch SK600 vs Wacker Neuson SM60
Kanga PT728 vs Wacker Nesuon SM60
Toro TX700 vs Wacker Neuson SM60
Vermeer SX450TX vs Wacker Neuson SM60
Vermeer CTX50 vs Wacker Neuson SM60

Wacker Neuson SM60 vs Dingo K9PT

	SM60	K9PT	Wacker Neuson Advantage
Engine Power	26.5 HP	23 HP	15%
Tipping Load	780 Kg	650 Kg	20%
Auxilliary Hydraulic Flow	46 L/min	47 L/min	0%
Max. Travel Speed	6.3 Km/h	7.5 Km/h	0%
Ground Clearance	173 mm	155 mm	12%
Track Width	178 mm	450 mm	0%
Ground Pressure	0.3 Bar	0.35 Bar	0%
Transport Weight	1252 Kg	989 Kg	0%
Max. Hinge Pin Height	1920 mm	1940 mm	0%
Machine Width	902 mm	1020 mm	13%

Wacker Neuson SM60 vs Ditch Witch SK600

	SM60	SK600	Wacker Neuson Advantage
Engine Power	26.5 HP	24.8 HP	7%
Tipping Load	780 Kg	782 Kg	0%
Auxilliary Hydraulic Flow	46 L/min	45.4 L/min	1%
Max. Travel Speed	6.3 Km/h	6.6 Km/h	0%
Ground Clearance	173 mm	216 mm	0%
Track Width	178 mm	180 mm	0%
Ground Pressure	0.3 Bar	0.33 Bar	0%
Transport Weight	1252 Kg	1096 Kg	0%
Max. Hinge Pin Height	1920 mm	1930 mm	0%
Machine Width	902 mm	850 mm	0%

Wacker Neuson SM60 vs Kanga PT728

	SM60	PT728	Wacker Neuson Advantage
Engine Power	26.5 HP	23.5 HP	13%
Tipping Load	780 Kg	463 Kg	68%
Auxilliary Hydraulic Flow	46 L/min	41 L/min	12%
Max. Travel Speed	6.3 Km/h	7 Km/h	0%
Ground Clearance	173 mm	195 mm	0%
Track Width	178 mm	305 mm	0%
Ground Pressure	0.3 Bar	2.4 Bar	0%
Transport Weight	1252 Kg	863 Kg	0%
Max. Hinge Pin Height	1920 mm	1870 mm	3%
Machine Width	902 mm	1040 mm	15%

Wacker Neuson SM60 vs Toro TX700

	SM60	TX700	Wacker Neuson Advantage
Engine Power	26.5 HP	24.7 HP	7%
Tipping Load	780 Kg	989.7 Kg	0%
Auxilliary Hydraulic Flow	46 L/min	52 L/min	0%
Max. Travel Speed	6.3 Km/h	6.4 Km/h	0%
Ground Clearance	173 mm	133 mm	30%
Track Width	178 mm	340 mm	0%
Ground Pressure	0.3 Bar	0.44 Bar	0%
Transport Weight	1252 Kg	1140 Kg	0%
Max. Hinge Pin Height	1920 mm	1867 mm	3%
Machine Width	902 mm	869 mm	0%

Wacker Neuson SM60 vs Vermeer S450TX

	SM60	S450TX	Wacker Neuson Advantage
Engine Power	26.5 HP	24.8 HP	7%
Tipping Load	780 Kg	649 Kg	20%
Auxilliary Hydraulic Flow	46 L/min	47.3 L/min	0%
Max. Travel Speed	6.3 Km/h	5.6 Km/h	13%
Ground Clearance	173 mm	165 mm	5%
Track Width	178 mm	200 mm	0%
Ground Pressure	0.3 Bar	0.2 Bar	50%
Transport Weight	1252 Kg	1043 Kg	0%
Max. Hinge Pin Height	1920 mm	1829 mm	5%
Machine Width	902 mm	909 mm	1%

Wacker Neuson SM60 vs Vermeer CTX50

	SM60	Vermeer CTX50	Wacker Neuson Advantage
Engine Power	26.5 HP	25 HP	6%
Tipping Load	780 Kg	680 Kg	15%
Auxilliary Hydraulic Flow	46 L/min	47.3 L/min	0%
Max. Travel Speed	6.3 Km/h	5.6 Km/h	13%
Ground Clearance	173 mm	152 mm	14%
Track Width	178 mm	180 mm	0%
Ground Pressure	0.3 Bar	0.3 Bar	0%
Transport Weight	1252 Kg	952 Kg	0%
Max. Hinge Pin Height	1920 mm	1829 mm	5%
Machine Width	902 mm	902 mm	0%

Weights:

Transport Weight	1,252 kg
Operating Weight	1,242 kg
Tipping Load	780 kg
Maximum Payload	273 kg (35% ROC) 390 kg (50% ROC)

Engine:

Manufacturer	Kohler
Model	ECH749
Construction	2-cylinder, EFI petrol, air-cooled
Displacement	747 cm³
Engine Output according to ISO	19.8 kW (26.5 HP)

Hydraulics:

Auxiliary Hydraulics	47 L/min
Operating Pressure for working hydraulics	210 bar
Construction	Hydrostatic Drive + Single Gear Pump

Undercarriage:

Construction	Raised Drive with Direct Drive Motor
Track Width	180 mm

Operating Data:

Tip Load	780 kg
Max. Travel Speed	6.3 km / h

Capacities:

Fuel Tank

53 L

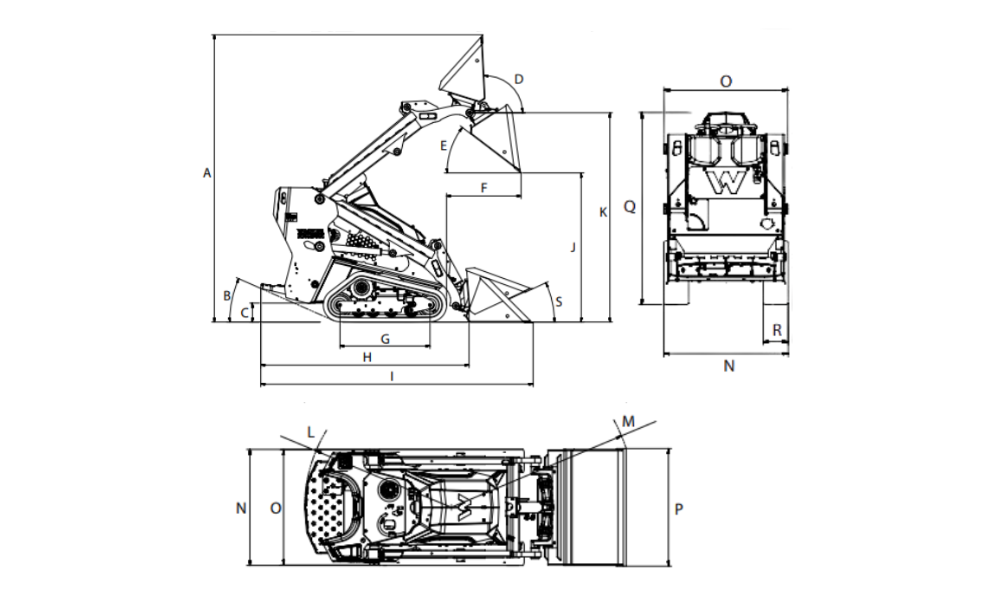

Working Dimensions:

A	Overall operating height, fully raised, with bucket	2,635.9 mm
B	Angle of departure	23.7°
C	Ground Clearance, bottom of belly pan	173.5 mm
D	Maximum rollback, fully raised	92.9°
E	Dump angle at maximum height	37.3°
F	Reach at maximum height	684.7 mm
G	Wheelbase	826.7 mm
H	Overall length, without bucket, with coupler	1,913.7 mm
I	Overall length, with bucket	2,501 mm
J	Dump height	1,367.5 mm
K	Hinge pin height, fully raised	1,920 mm
L	Clearance circle, rear	1,141 mm
M	Clearance circle, bucket on ground	1,435 mm
N	Overall width	901.7 mm
O	Track gauge	896.3 mm
P	Bucket width	914.4 mm
Q	Overall height	1,392 mm
R	Track width	180 mm
S	Maximum rollback at ground	24.9°

* Specifications subject to change without notice due to continual product development.
