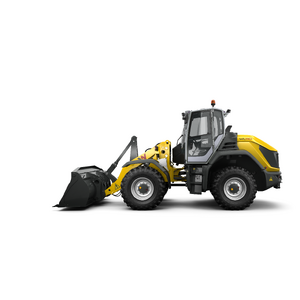

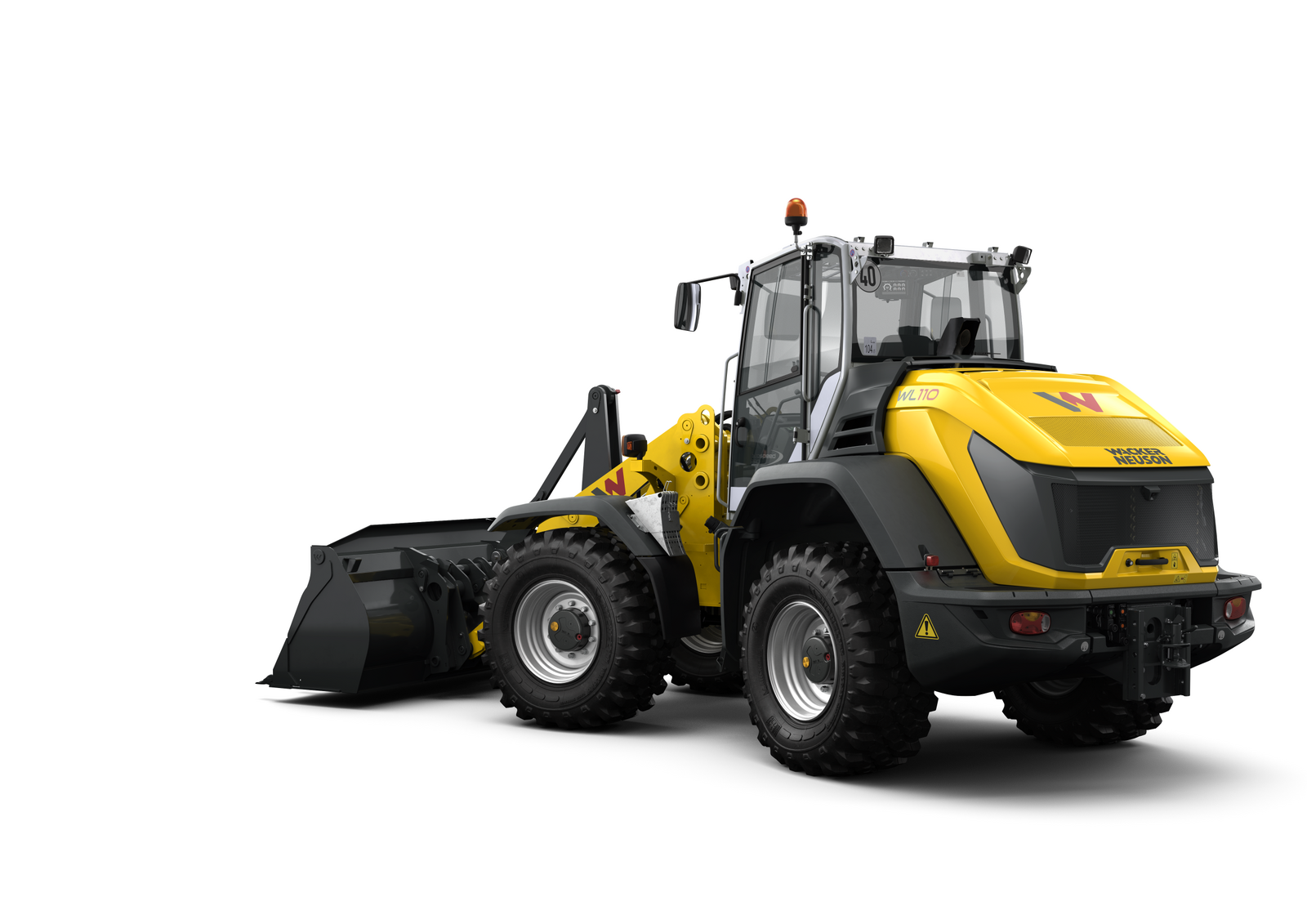

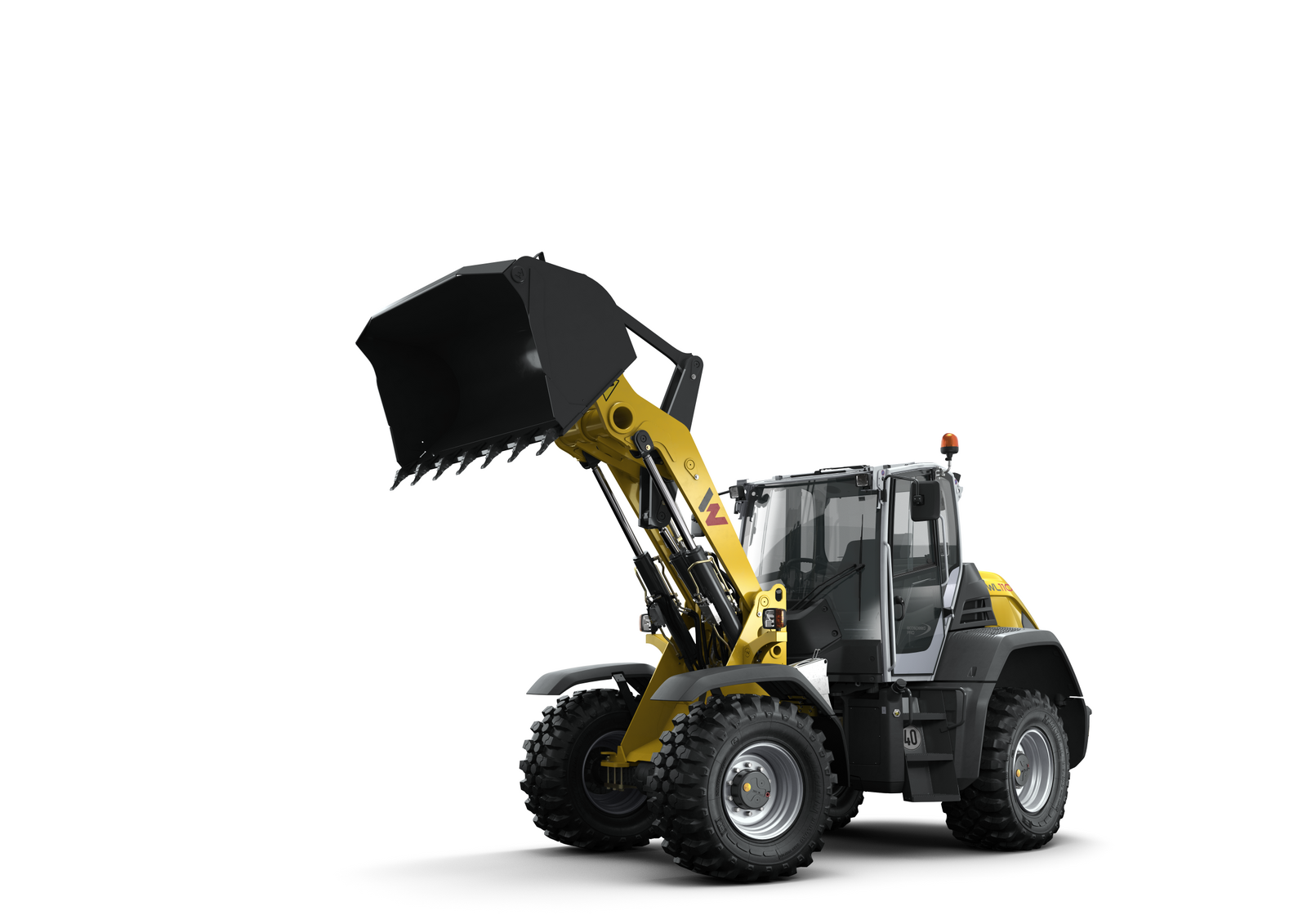

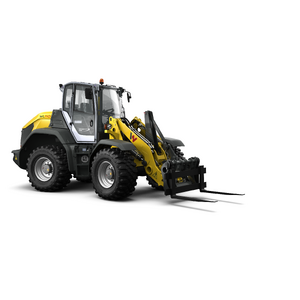

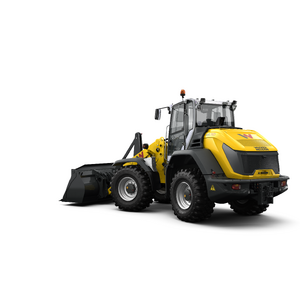

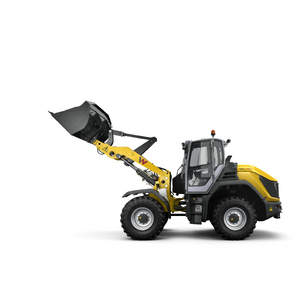

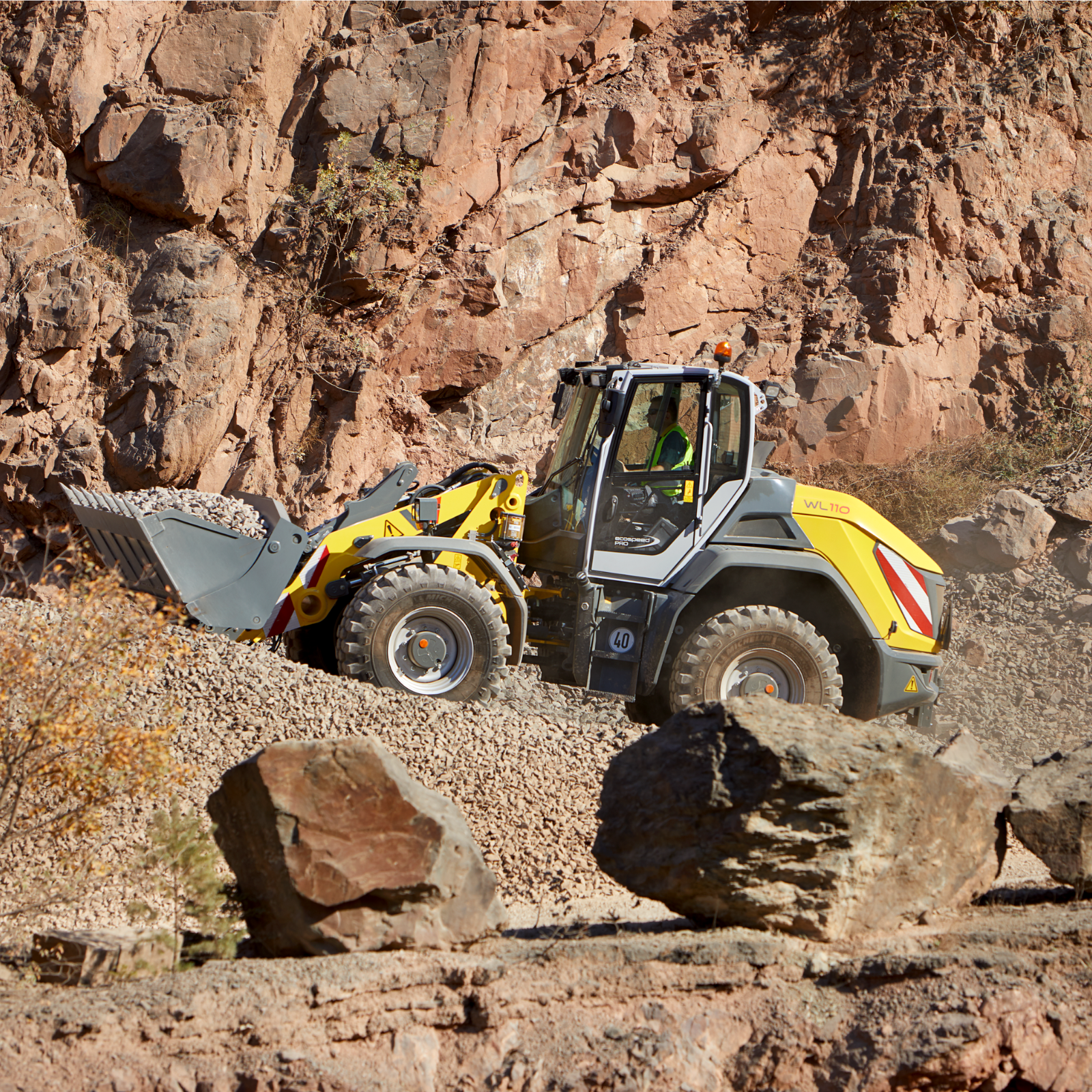

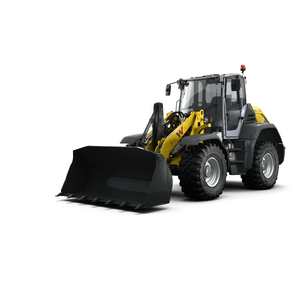

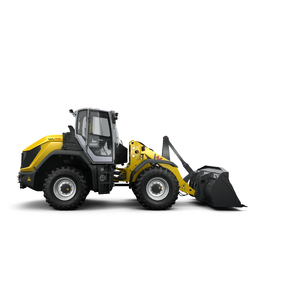

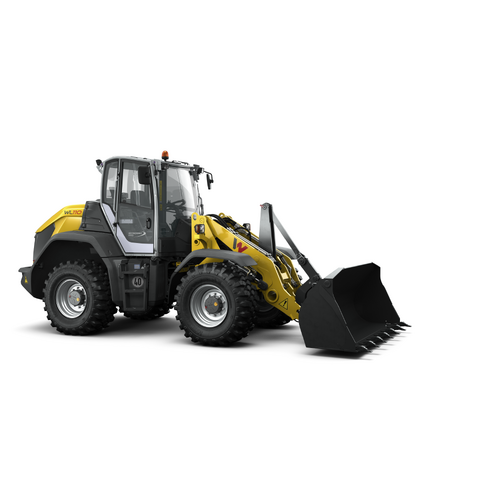

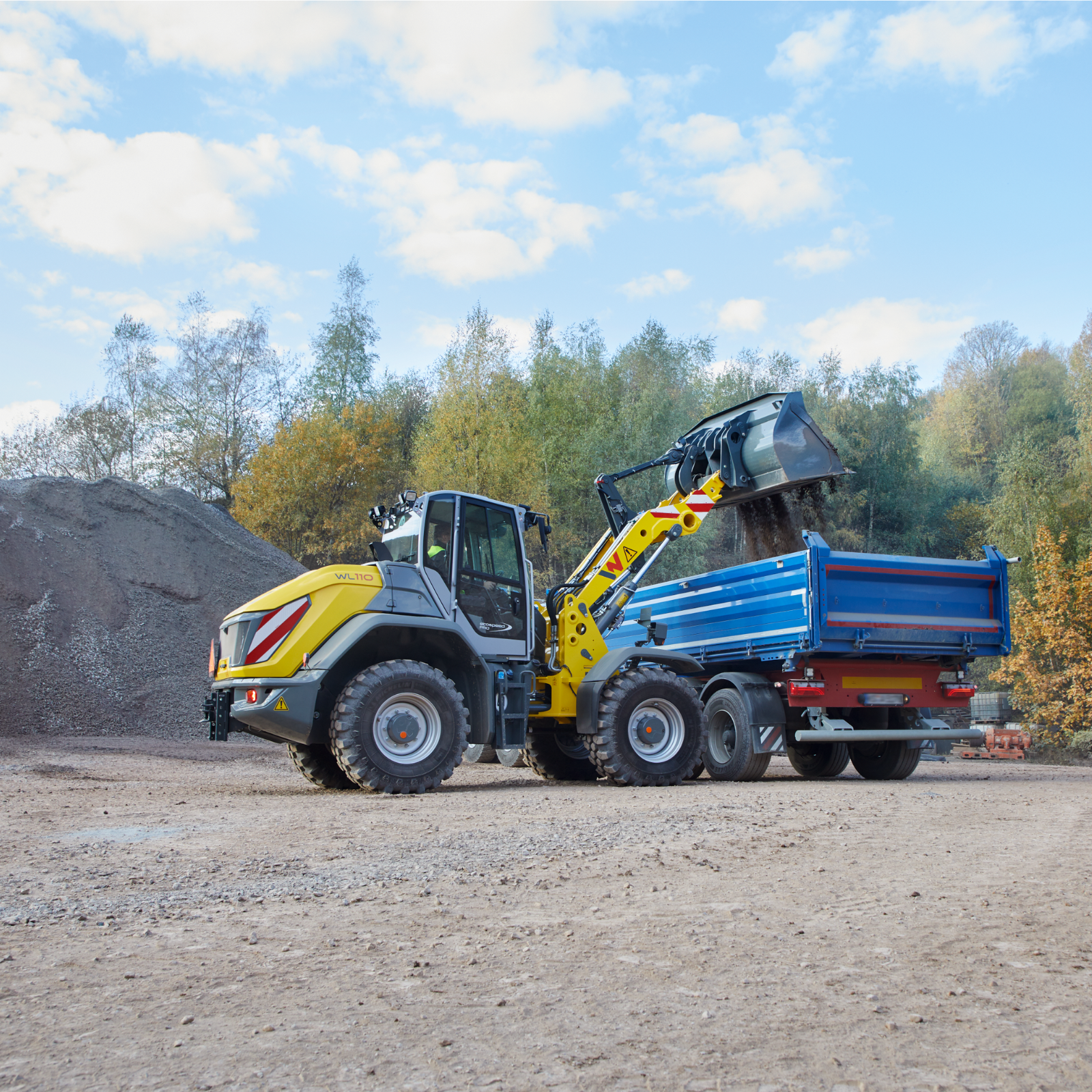

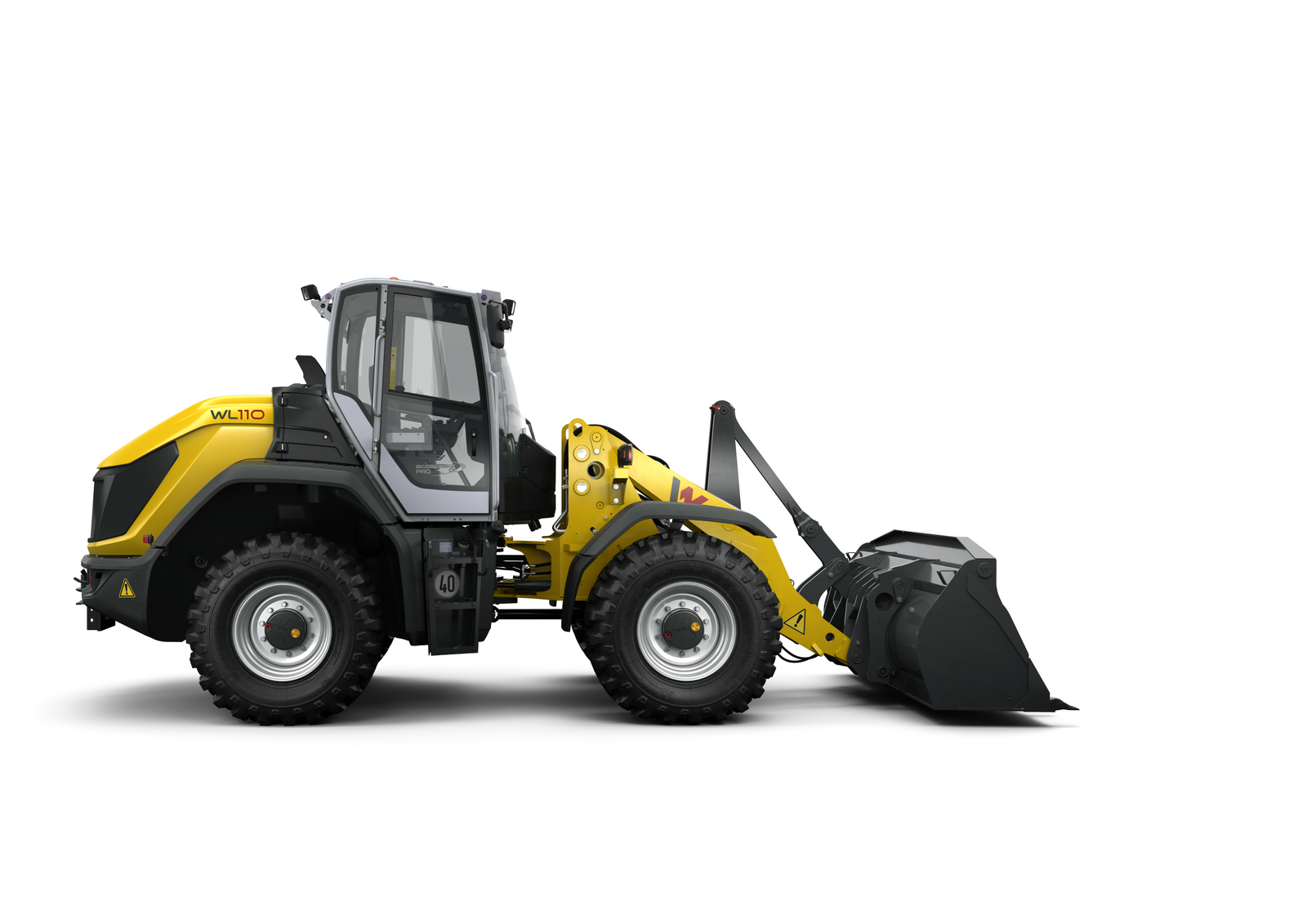

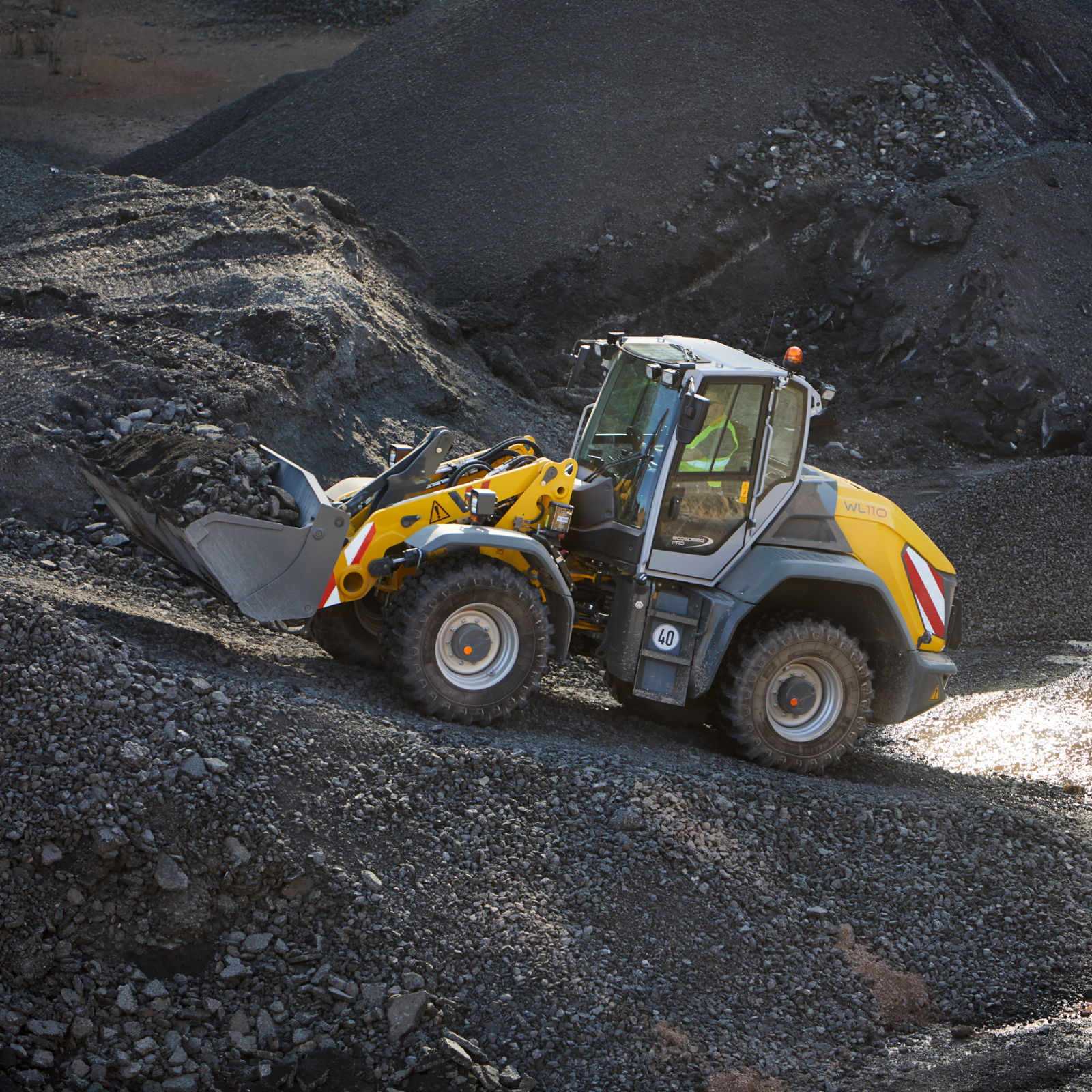

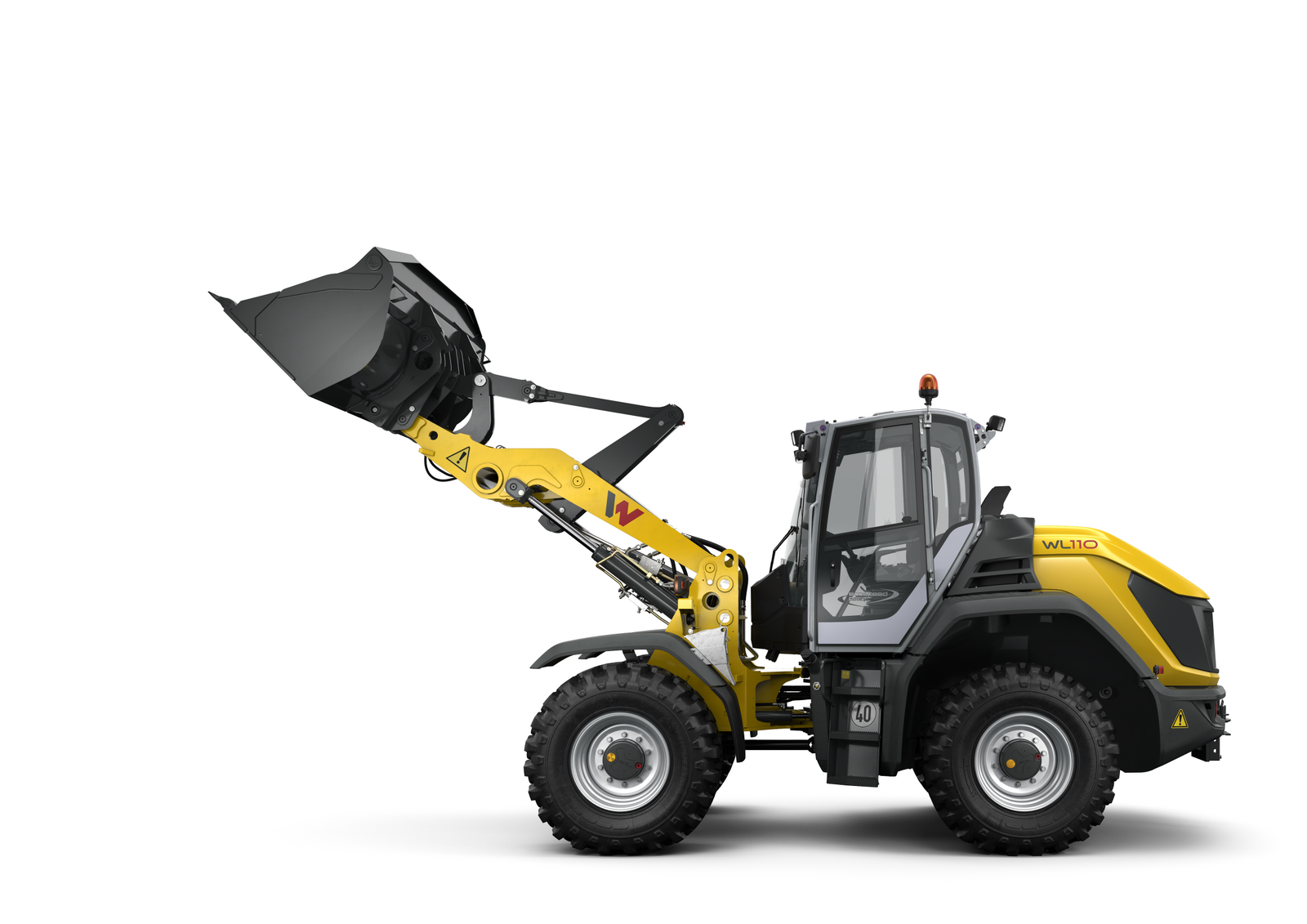

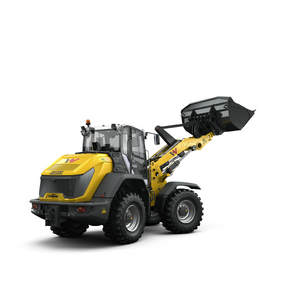

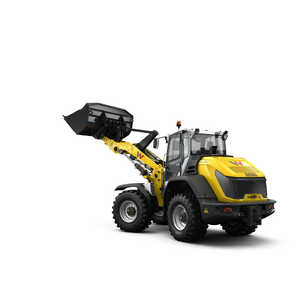

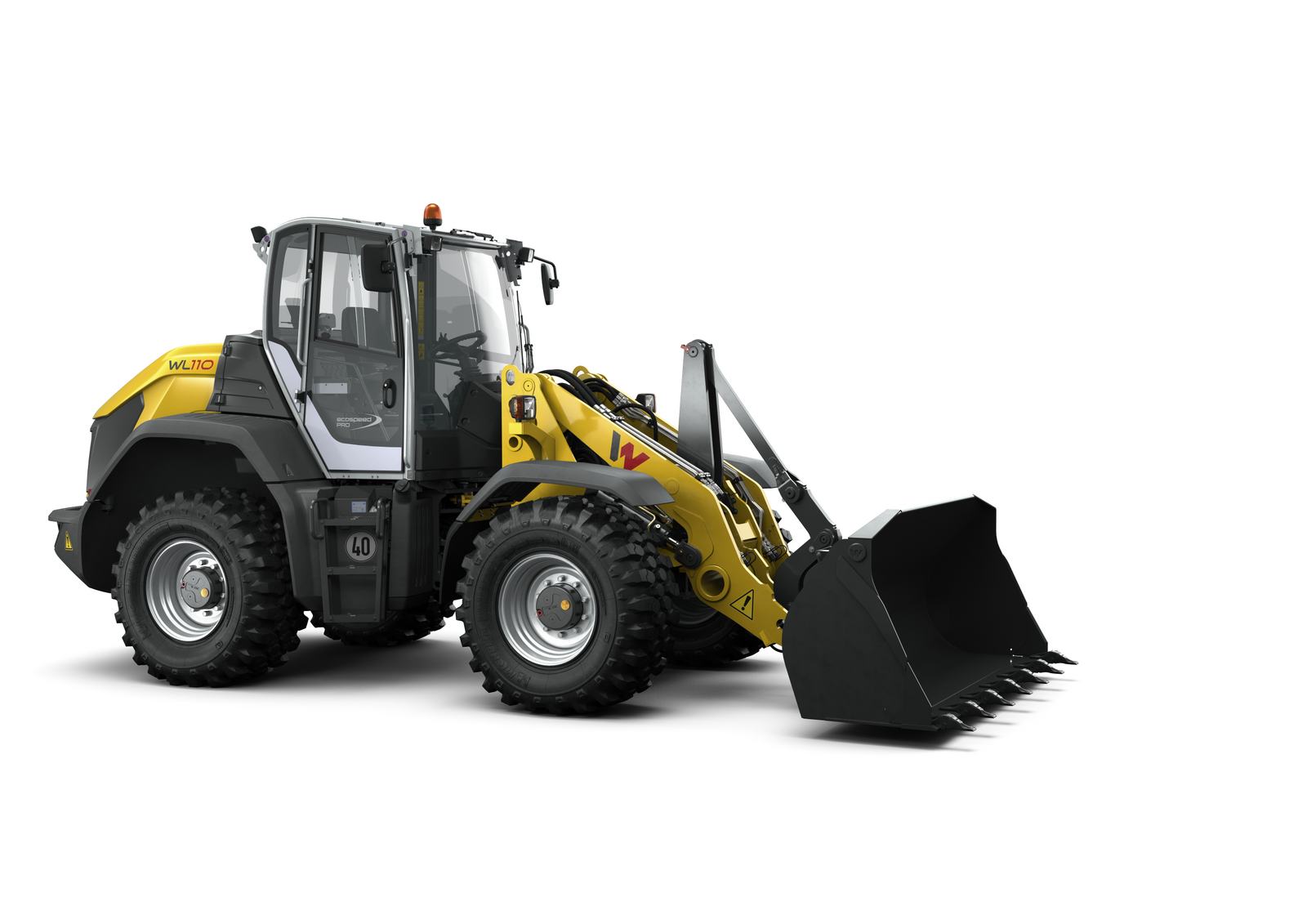

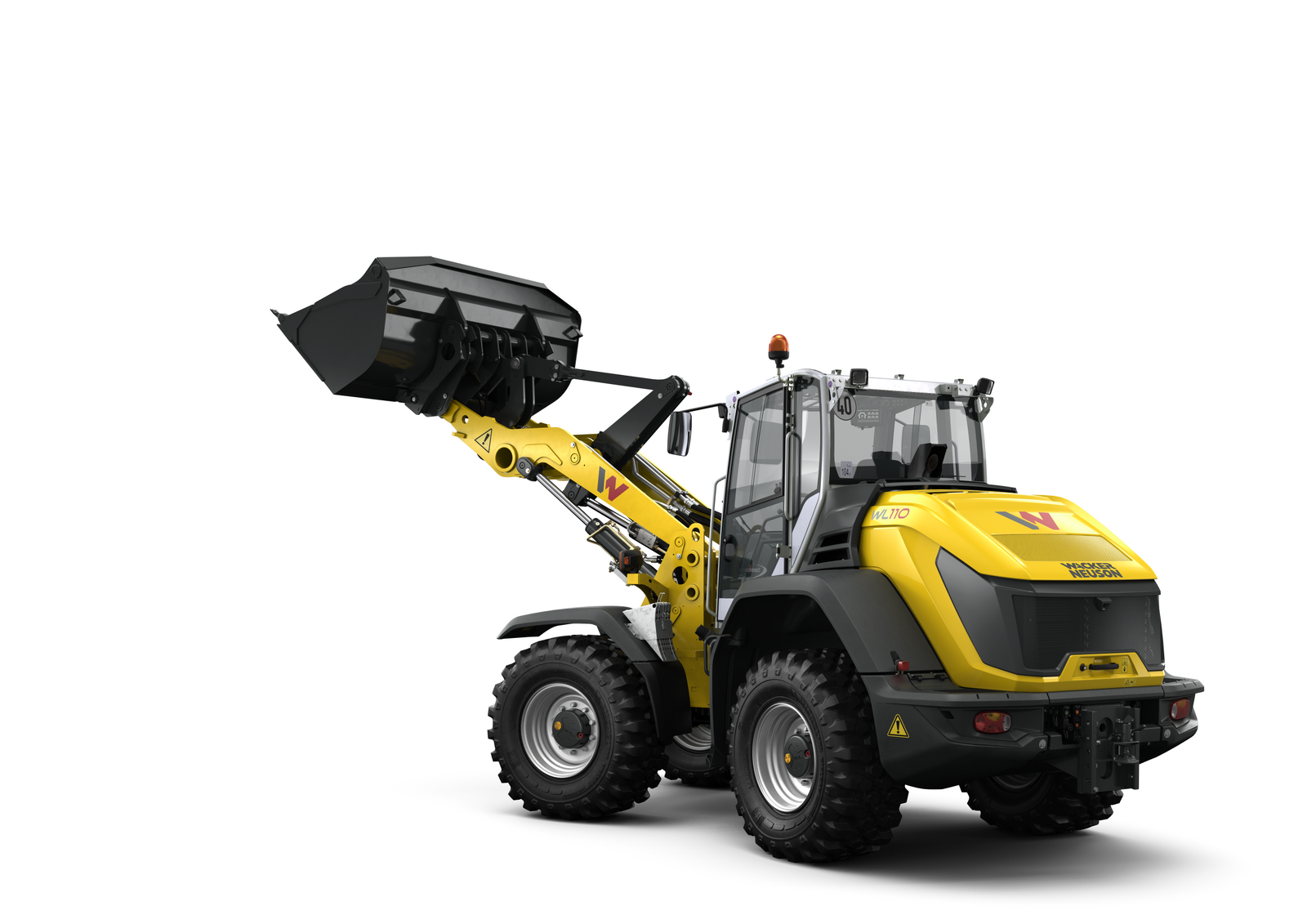

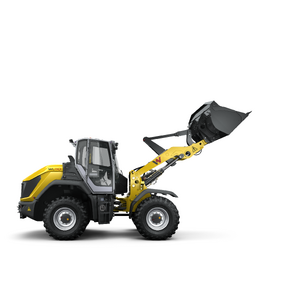

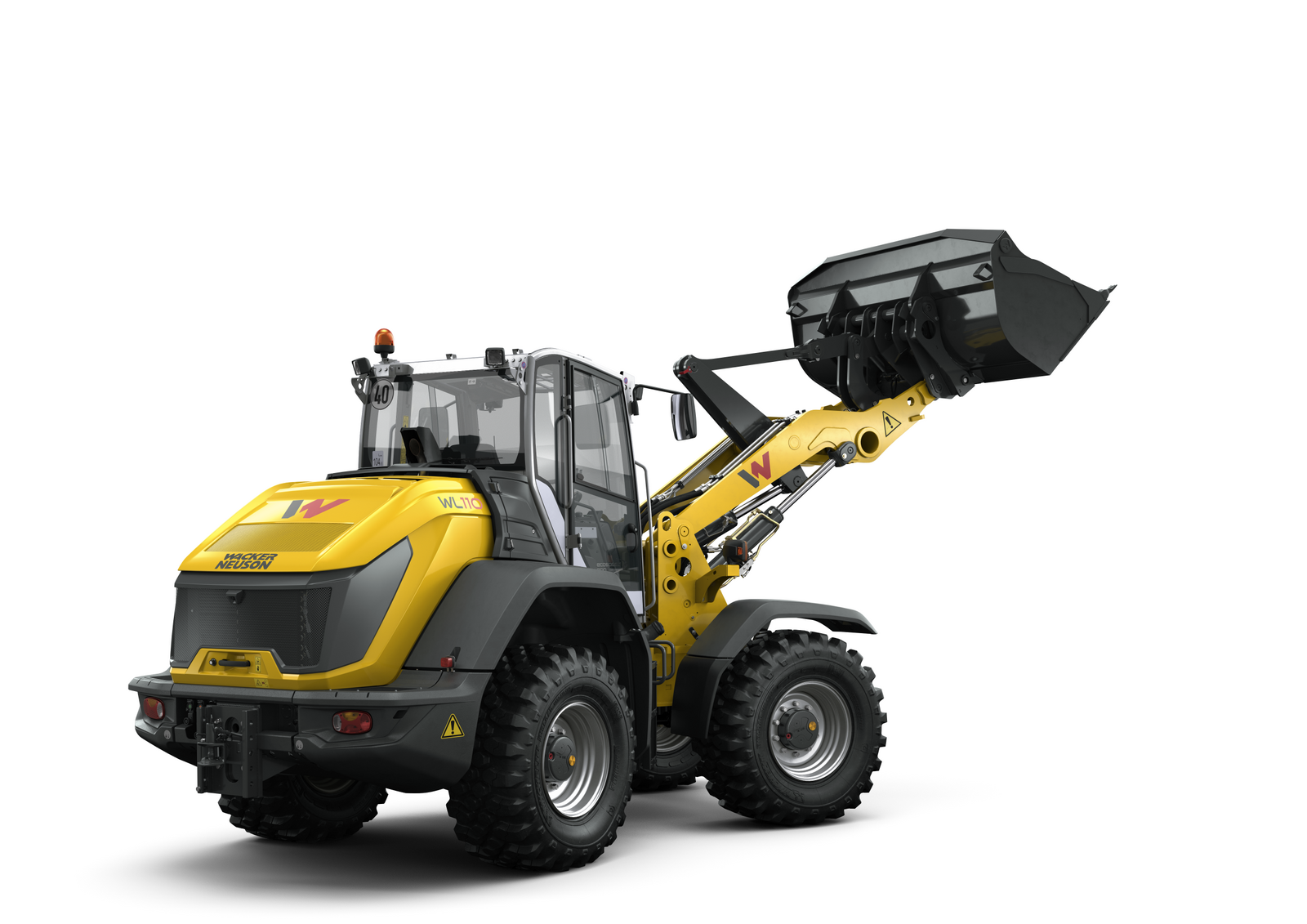

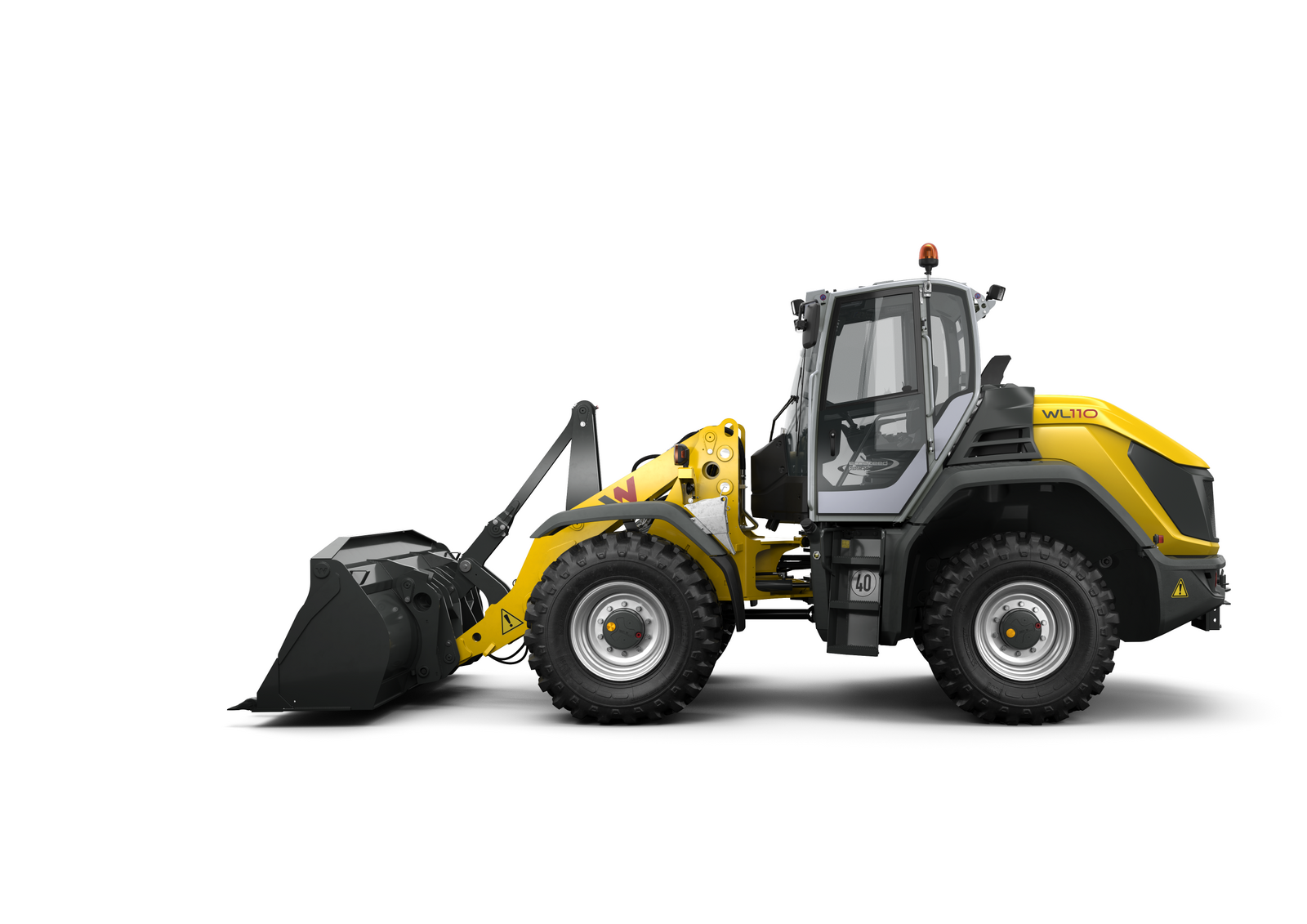

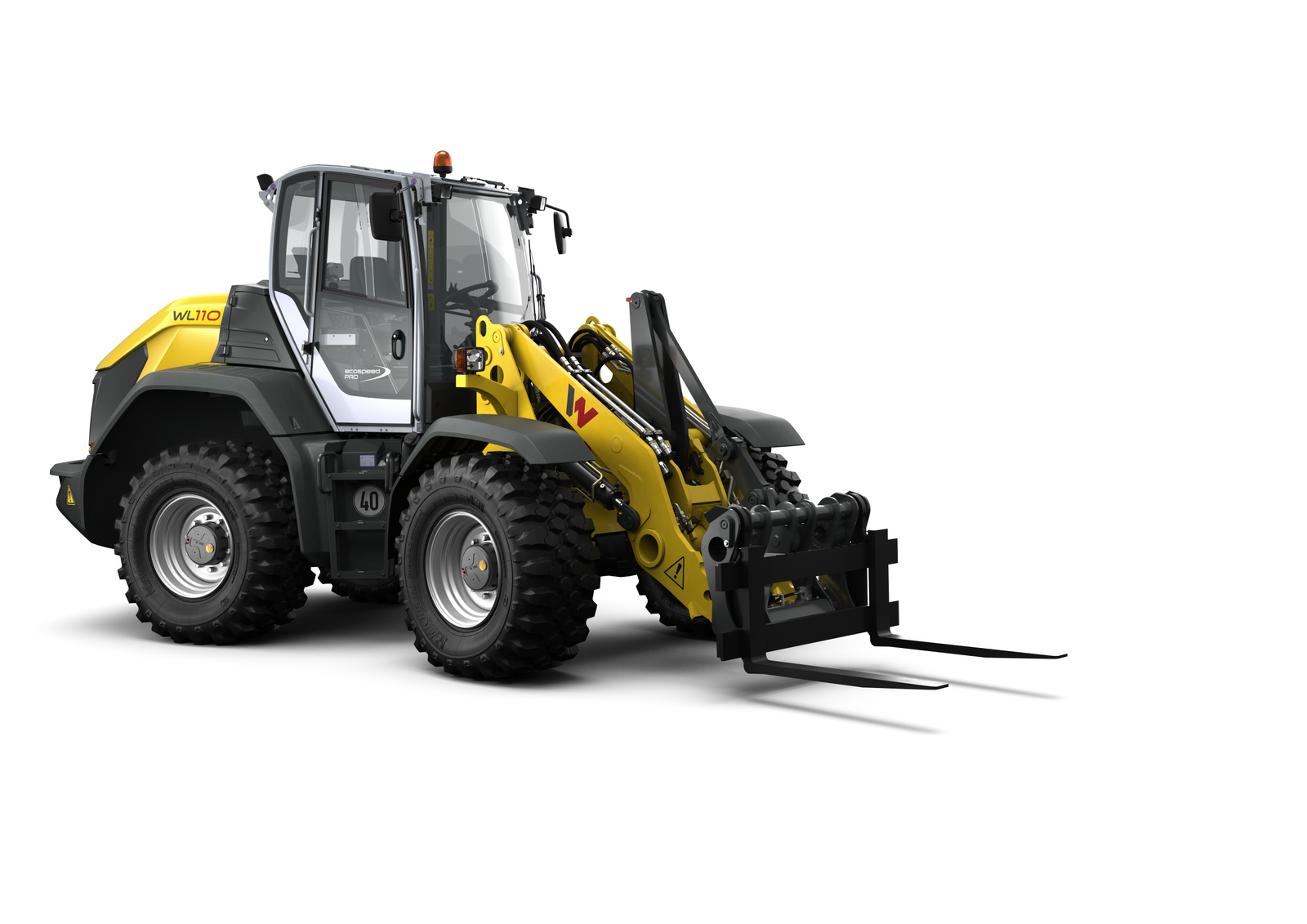

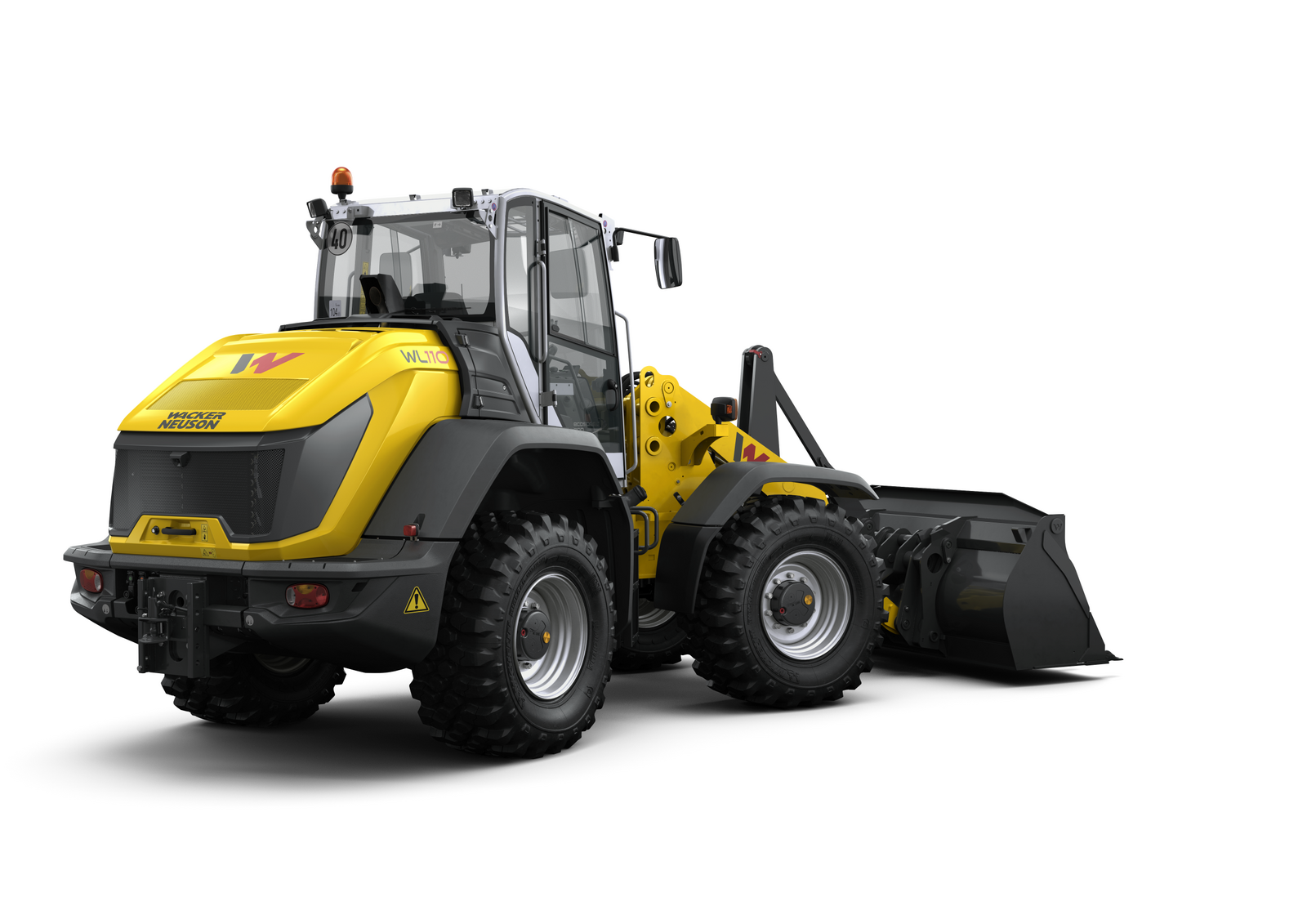

Wacker Neuson WL110 - 11T Wheel Loader
The Wacker Neuson WL110 is the largest loader manufactured by Wacker Neuson. It distinguishes itself in the 1.8 m3 loader class with remarkable performance, evident through its impressive tipping load and pushing power. WL110 is powered by a Deutz 115kW engine and unique hydrostatic drive with infinitely variable speed up to 40km/h (optional). Manufactured in Germany, the WL110 is the most advanced wheel loader in its class globally. WL110 comes standard with a 5 Year / 5000 hour Warranty

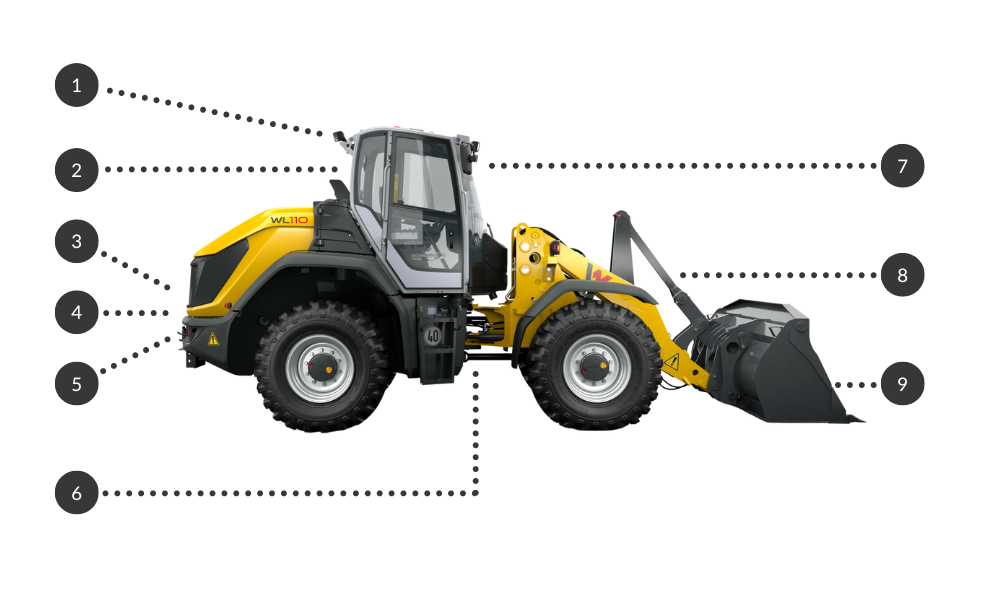

Key Features:
.png)
| 1. |
Safety |
- ROPS Air-Conditioned Cabin.
- Excellent visibility all around.
- Reversing camera.
- Seat belt.
- Parking brake.
- Reverse beeper.
- Rotating beacon.
|
| 2. |
Comfort |
- Automatic climate control air-conditioning.
- High-Back Air-Suspension seat.

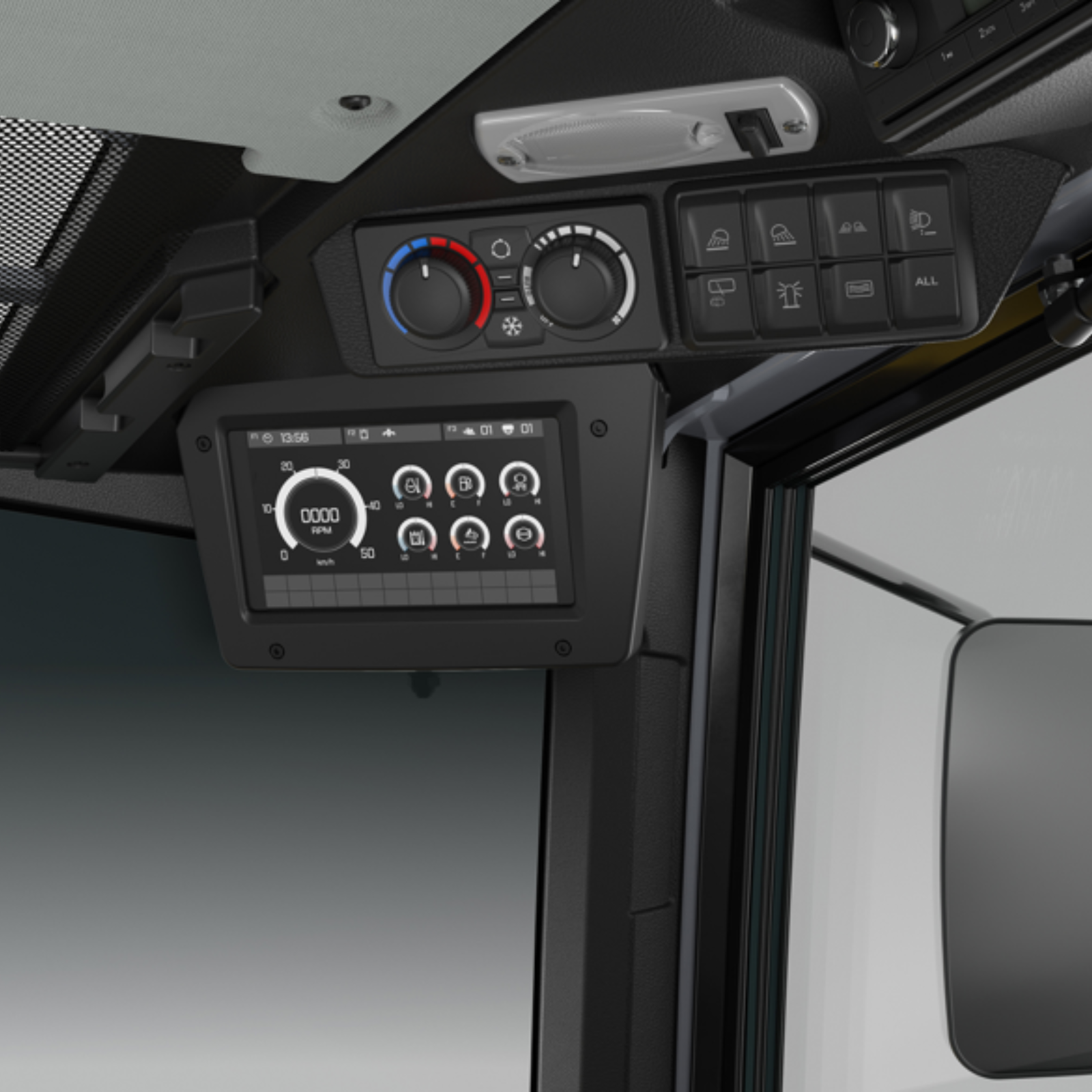

- Spacious ergonomically designed operator station with optimal positioning of switches and display.

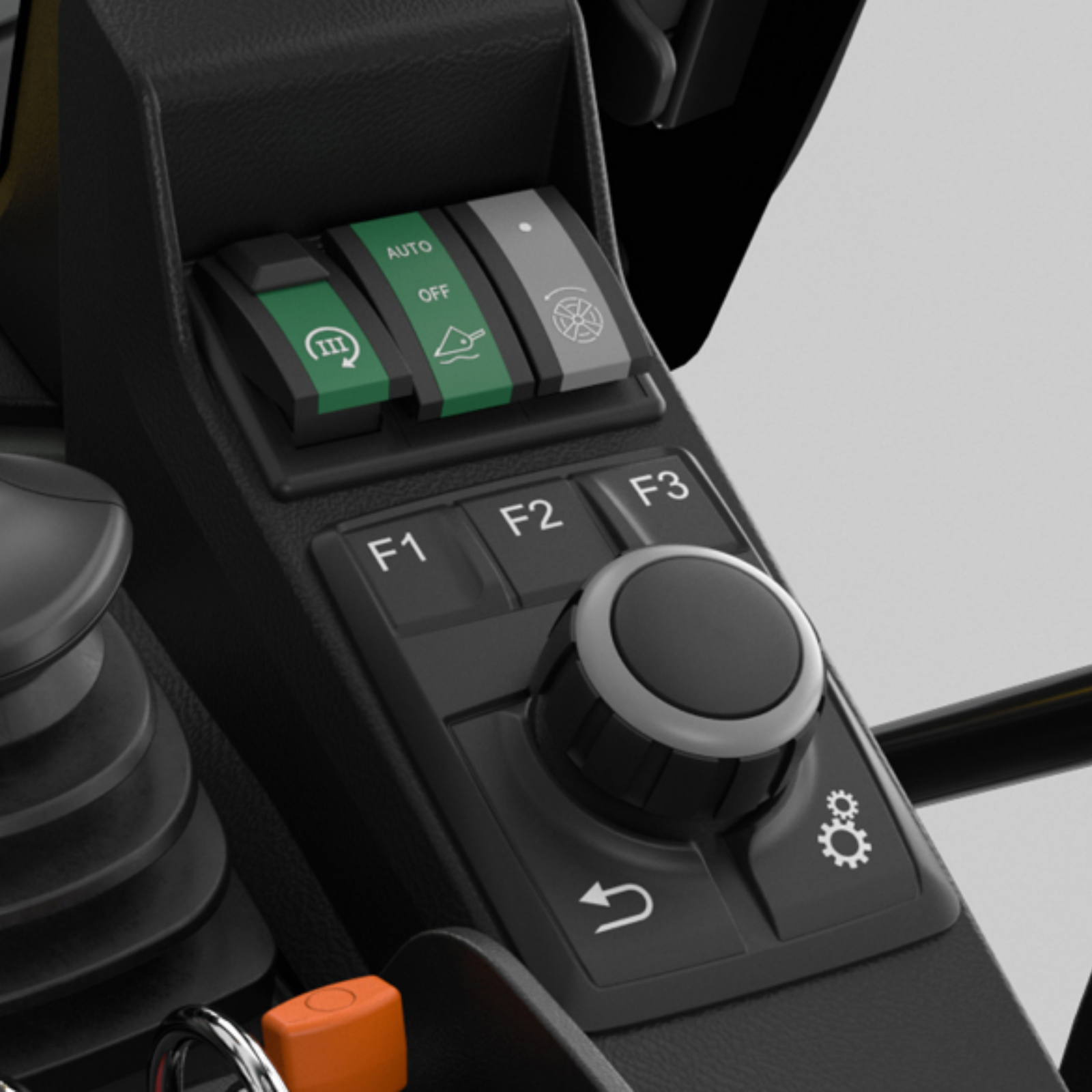

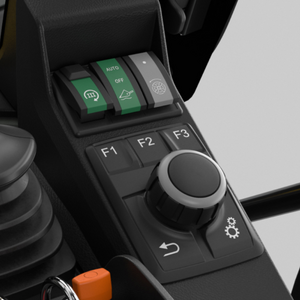

- Joystick mounted to seat console for optimal comfort.
- Enclosed cabin with heating (optional).
|
| 3. |
Power |
- 156HP / 115kW Deutz TCD Diesel engine
- 4WD hydrostatic drive with differential lock
- 150l/min hydraulic flow rate.
- 6,647kg Tip Load
|
| 4. |
Efficiency |
- Eco Speed Pro, continuously variable hydrostatic transmission.
- Highly efficient Stave 5 Deutz diesel engine.
- Work Hydraulics optimised for efficiency.
- Hydraulic Oil Cooler.
- Infinitely variable hydrostatic drive system up to 40km/h(optional).
- Infinitely variable hydrostatic drive system up to 20km/h(standard).
|
| 5. |
Maintenance |
- Ground level service access, fully openable bonnet.
- Easily accessible lubrication points.
- Tiltable Cabin.
- Split hydraulic hoses at boom for easy replacement.
- Long Service intervals.
- Equipcare telematics with remote diagnosis.
|
| 6. |
Vision |
- Fantastic 360 Degree unobstructed visibility.
- Optimally designed rear engine hood for rear visibility.
- Integrated Reversing Camera
|
| 7. |
Attachments |
- 3rd control circuit standard.
- Proportionally controlled hydraulics.
- Hydraulic quick hitch standard.
|
| 8. |
Versatility |
- Robust articulation system.
- High Tip load for compact size.
- Class leading travel speeds.
- Hydrostatic drive with 3 speeds for simplistic control and operation.
- High ground clearance
- Choice or tyre options for different applications.
|
(WL110)
General:
| Weight |
11,250 kg |
| Length |
6,500 mm |
| Height |
5,610 mm |
Engine:
| Manufacturer |
Deutz |
| Model |
TCD 4.1 S5 |
| Construction |
4 Cylinder Liquid Cooled Turbo Diesel |
| Displacement |
4 L |
| Output |
115 kW (156Hp) |
| Torque |
699 Nm |
Drive:
| Construction |
Hydrostatic Via Transfer Case |
| Axles |
PA1900 |
| Travel Speed |
20-40 km/h |
| Standard Tyres |
500 / 70 R24 Michelin BIBLOAD ET40 |
Hydraulics:
| Auxiliary Flow |
150l/min max pump flow |
Performance:
| Max. Lift Height |
3,060 mm |
| Max. Load |
3,337 kg |
| Bucket Capacity |
1.80 m³ |
| Tipping load with bucket |
7,739 kg |
Working Dimensions:
| A |
Total length |
6,470 mm |
| B |
Total length without bucket |
5,610 mm |
| C |
Bucket pivot point (to center of axle) |
1,200 mm |
| D |
Wheel base |
2,660 mm |
| E |
Rear overhang |
1,520 mm |
| F |
Hieght with cab |
3,060 mm |
| H |
Seat height |
1,940 mm |
| J |
Total working height |
4,780 mm |
| K |
Bucket pivot point (max. lift height) |
3,820 mm |
| L |
Load-over height |
3,550 mm |
| M |
Dumping height |
2,860 mm |
| N |
Reach (at M) |
970 mm |
| O |
Digging depth |
136 mm |
| P |
Total width |
2,390 mm |
| Q |
Track width |
1,820 mm |
| S |
Ground clearance |
500 mm |
| T |
Maximum radius |
5,370 mm |
| U |
Radius on the outer edge |
4,900 mm |
| V |
Inner radius |
2,450 mm |
| W |
Articulation angle |
40° |
| X |
Rollback angle at max. lift height |
61° |
| Y |
Dumping angle |
45° |
| Z |
Rollback angle on ground |
45° |
* Specifications subject to change without notice due to continual product development.
