Wacker Neuson BS68-4Ab/28

View PDF brochure for Wacker Neuson BS68-4Ab/28

Wacker Neuson BS68-4Ab/28

4 Stroke Rammer - 72kg

Share:
$3,999.00
Sold Out
Notify Me

Calculate Shipping

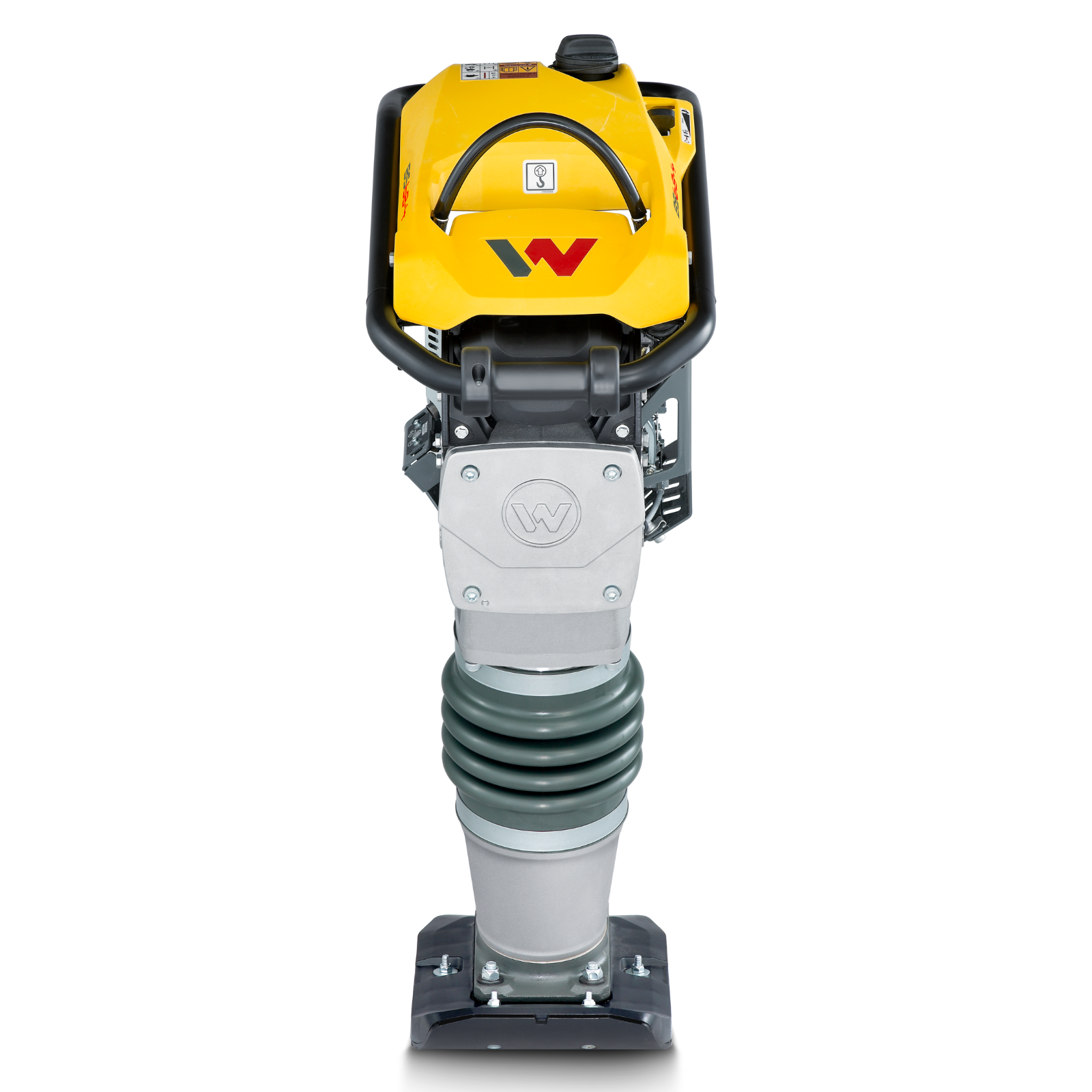

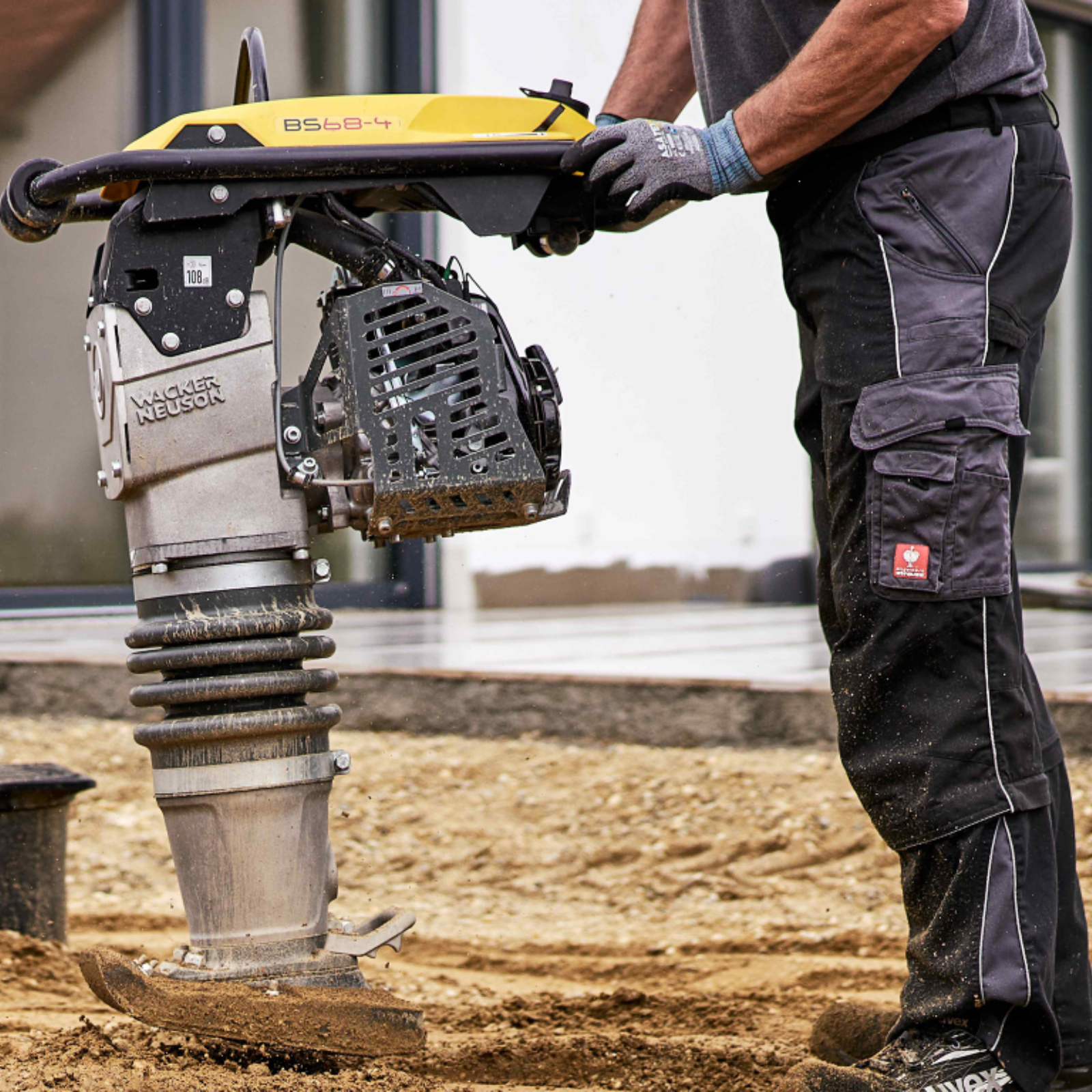

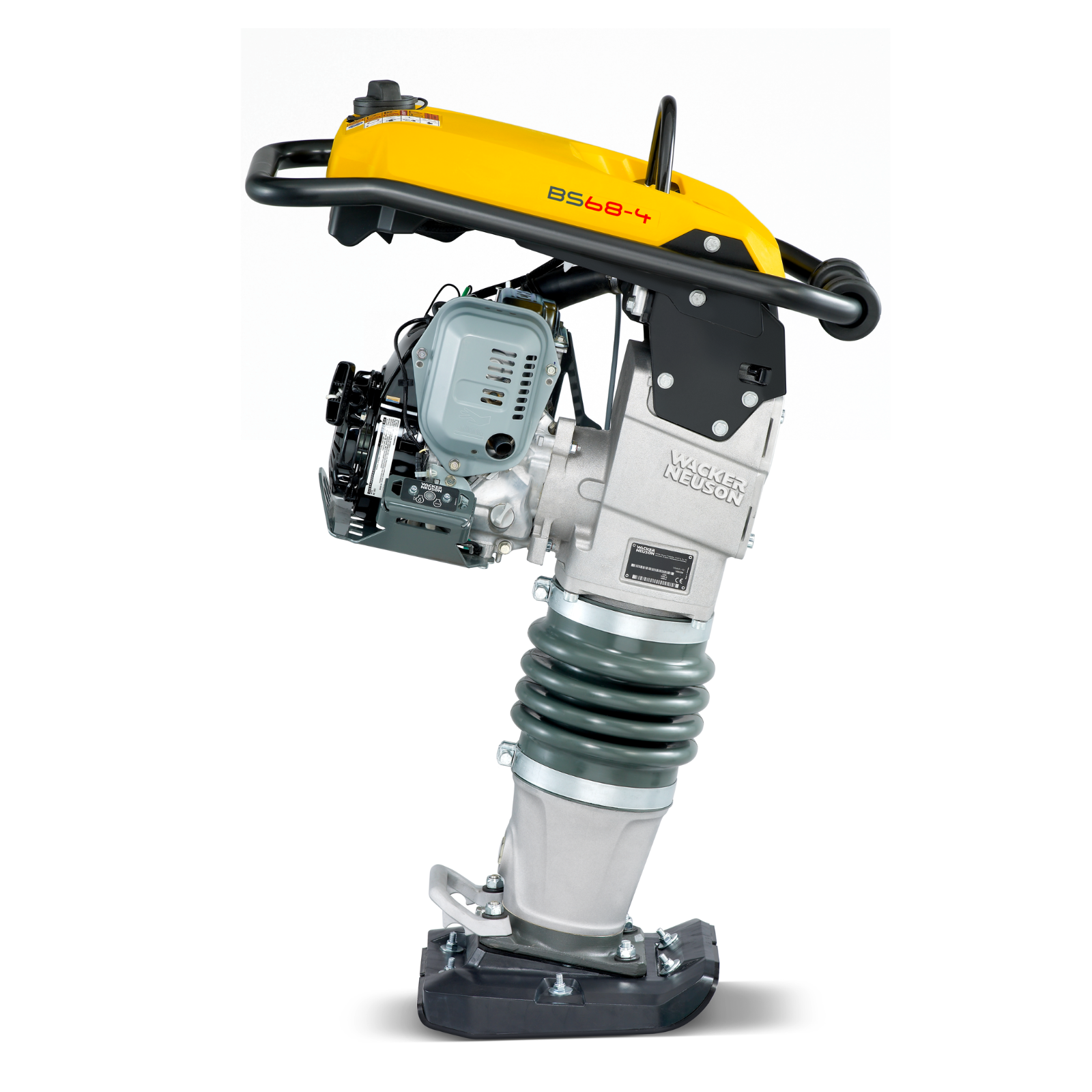

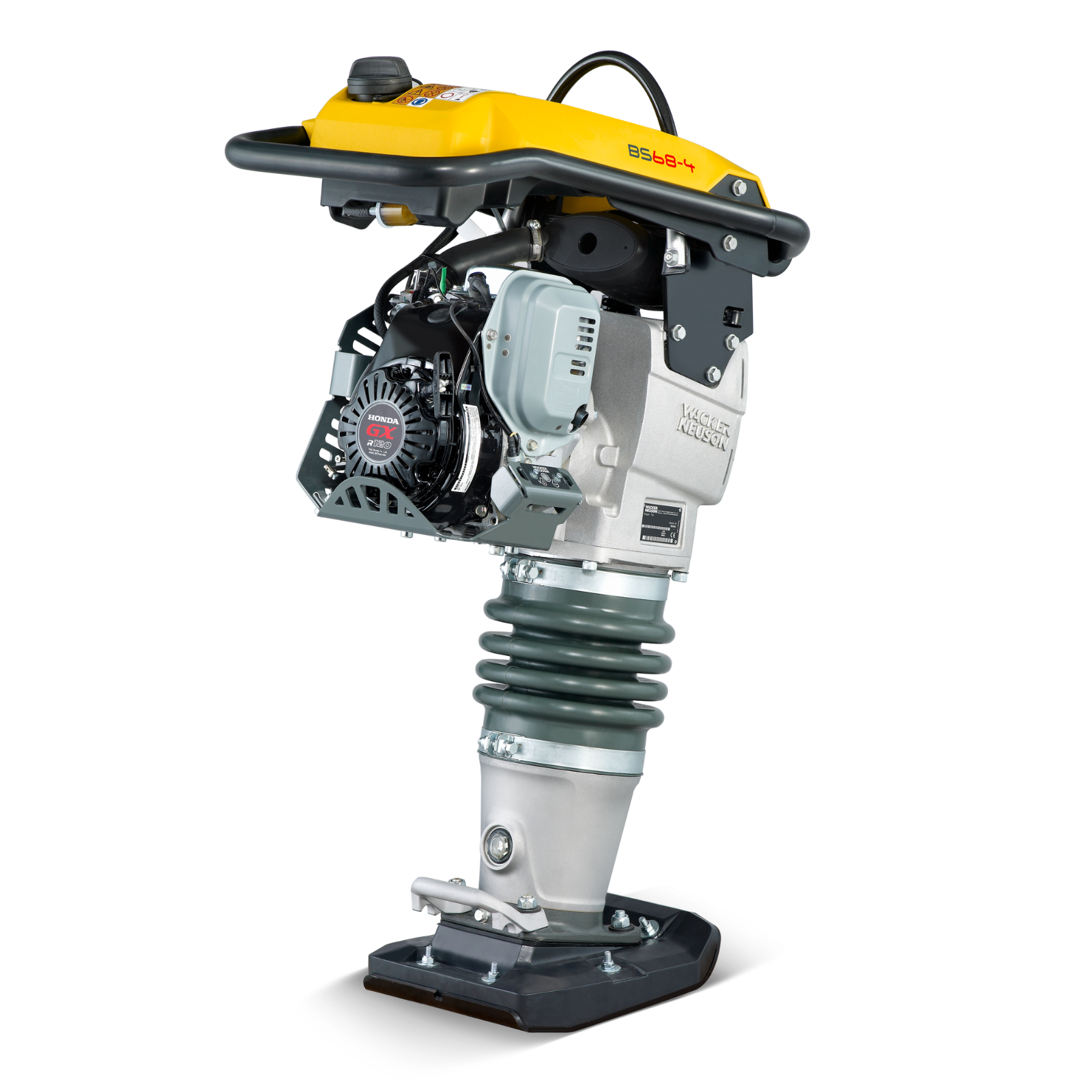

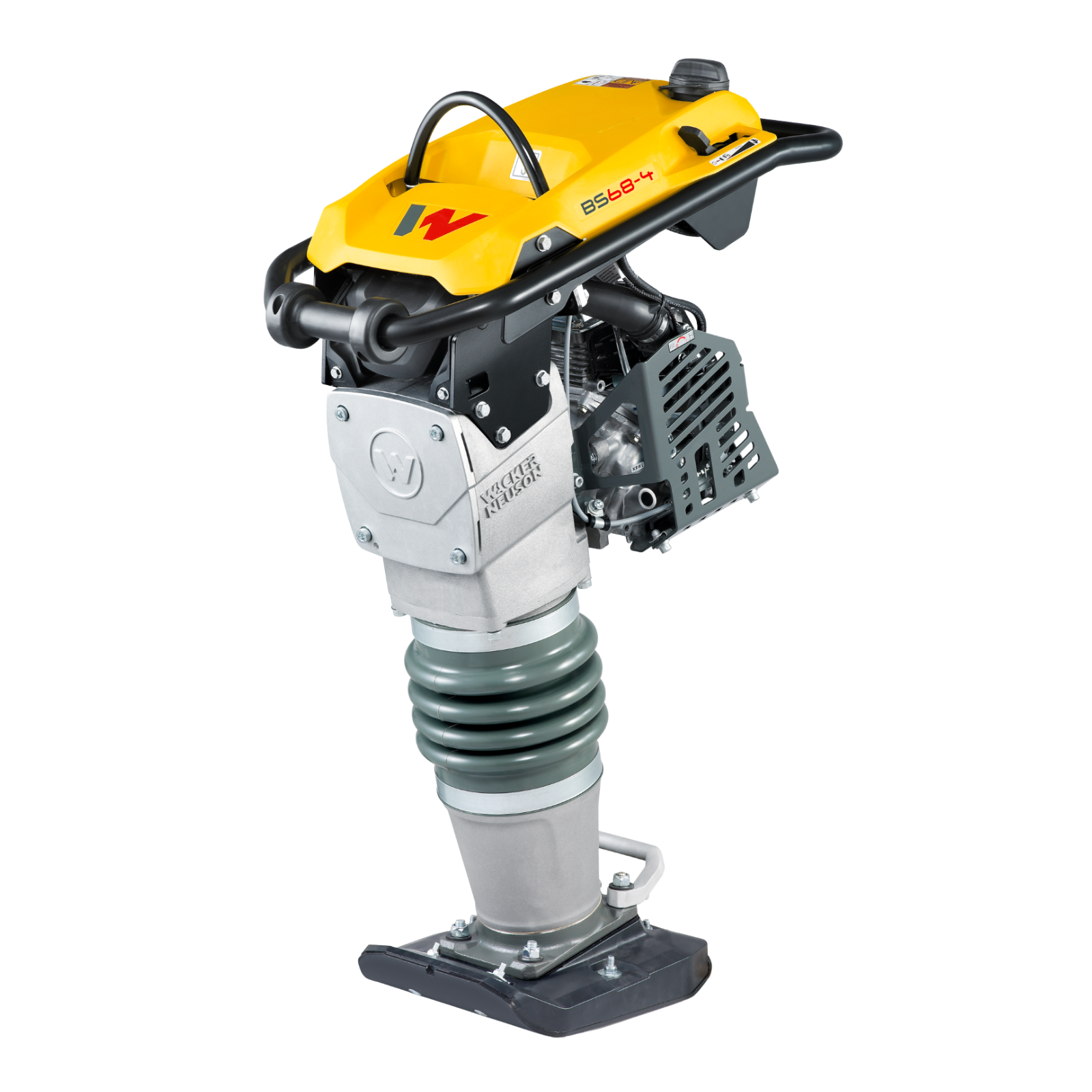

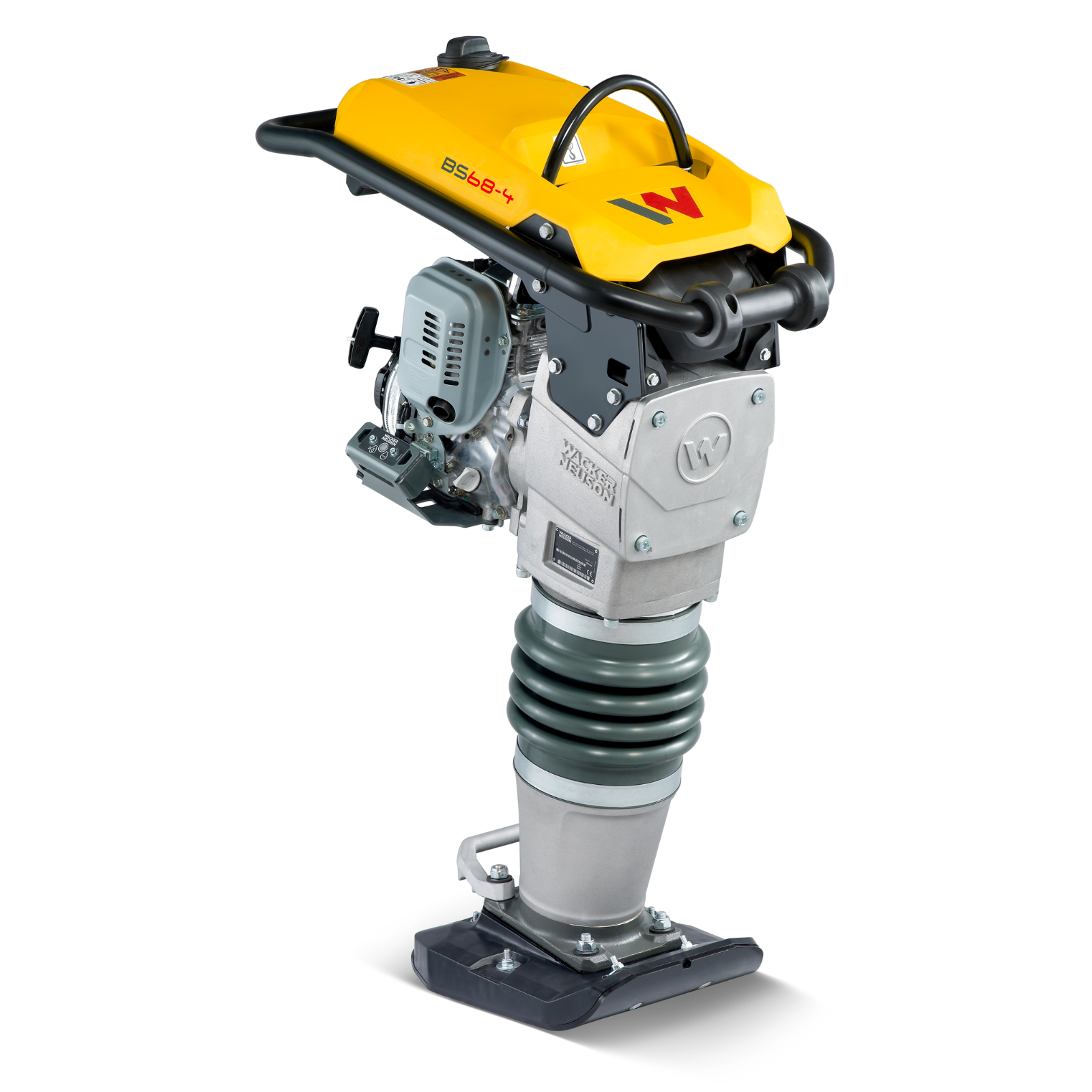

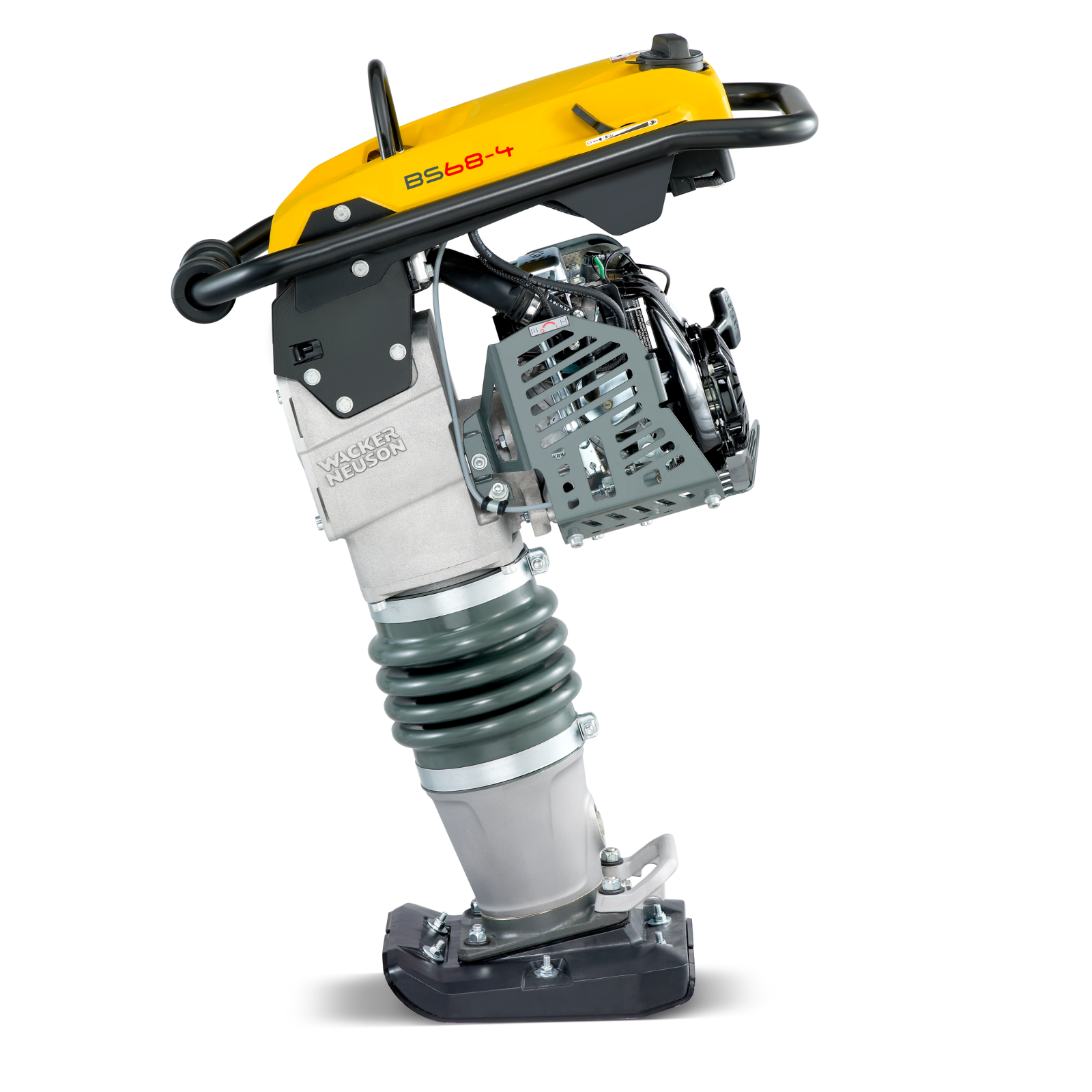

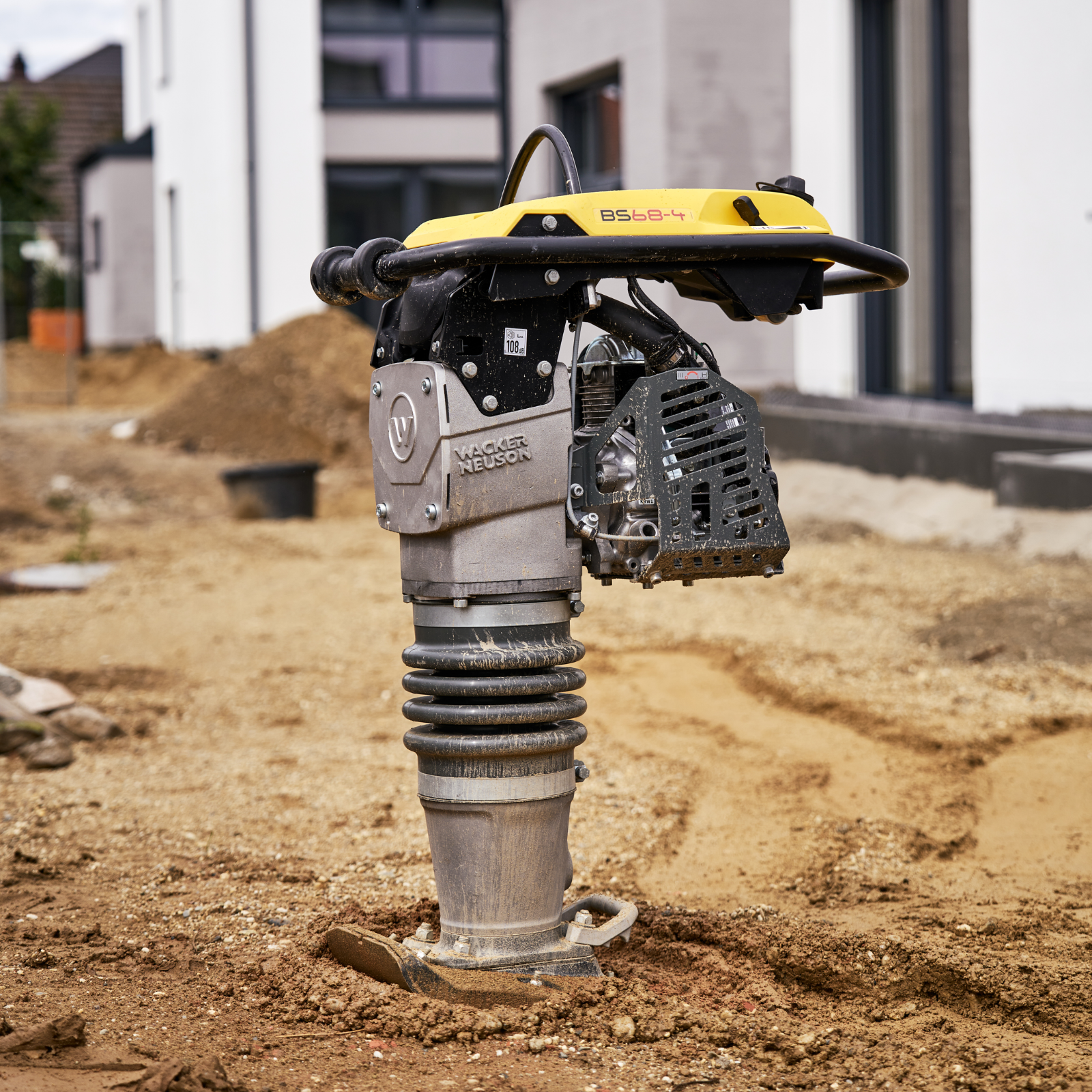

Wacker Neuson BS68-4Ab/28 - 4 Stroke Rammer

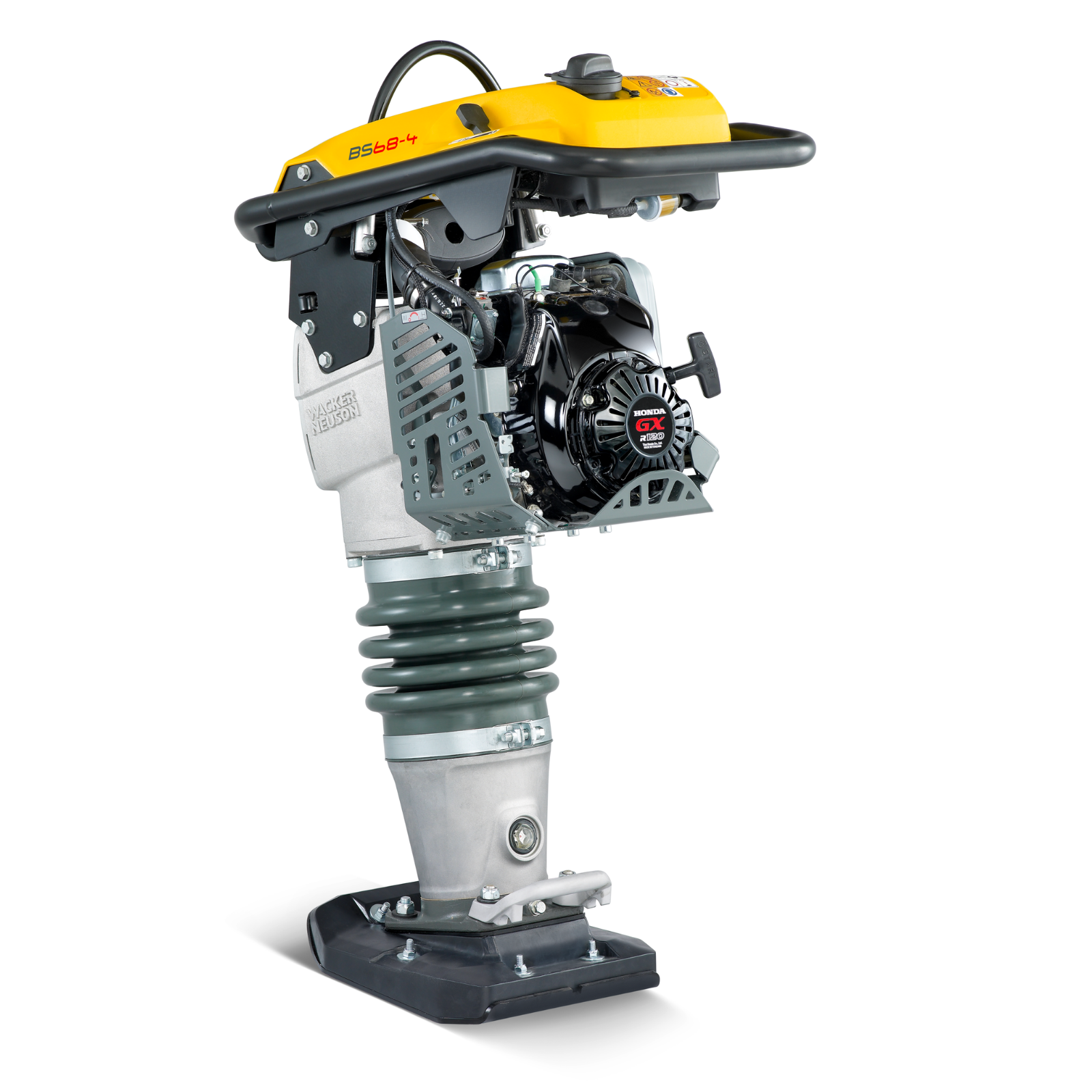

Wacker Neuson Rammers are known as the benchmark of Rammers in the construction industry.  Available in 4 sizes, with 4 different engine options, there simply is no better choice for a Rammer than a Wacker Neuson. The BS68-4Ab/28 is powered by a Honda GXR 120 4-stroke engine, designed and manufactured for Wacker Neuson. The BS68-4Ab/28s is fitted standard with a 280mm shoe with optional 200mm shoes available.

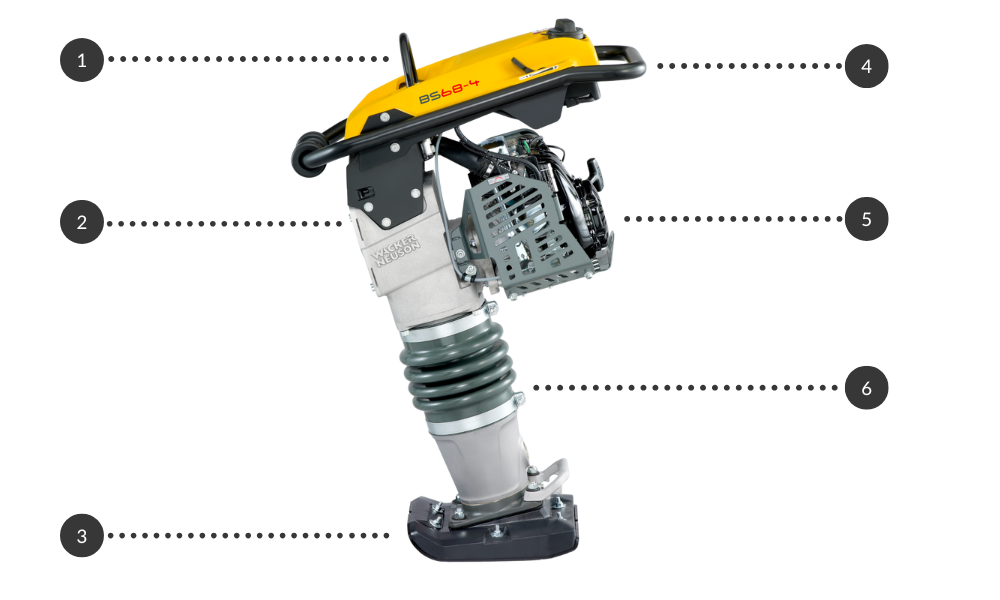

Key Features:

1. Ease of Use

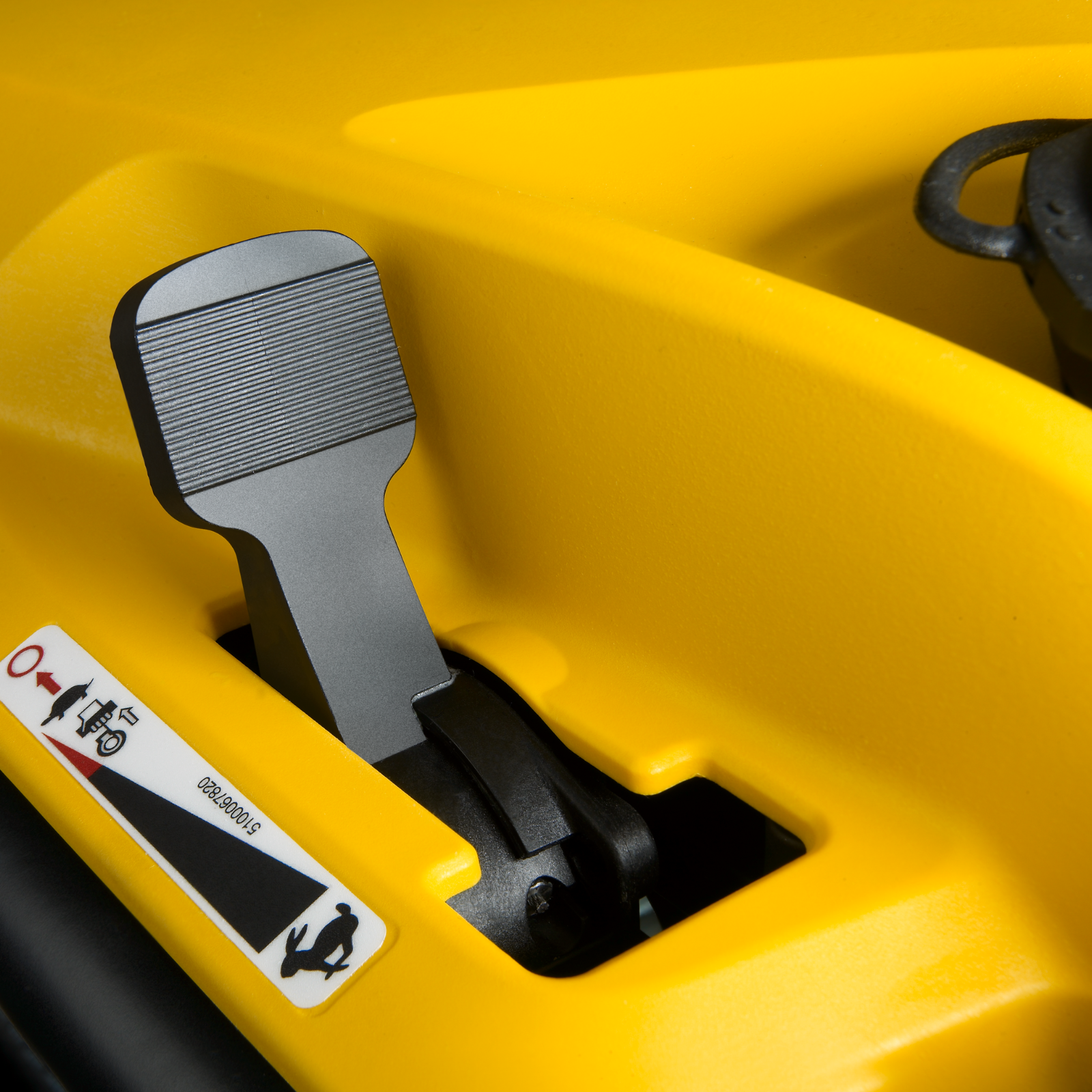

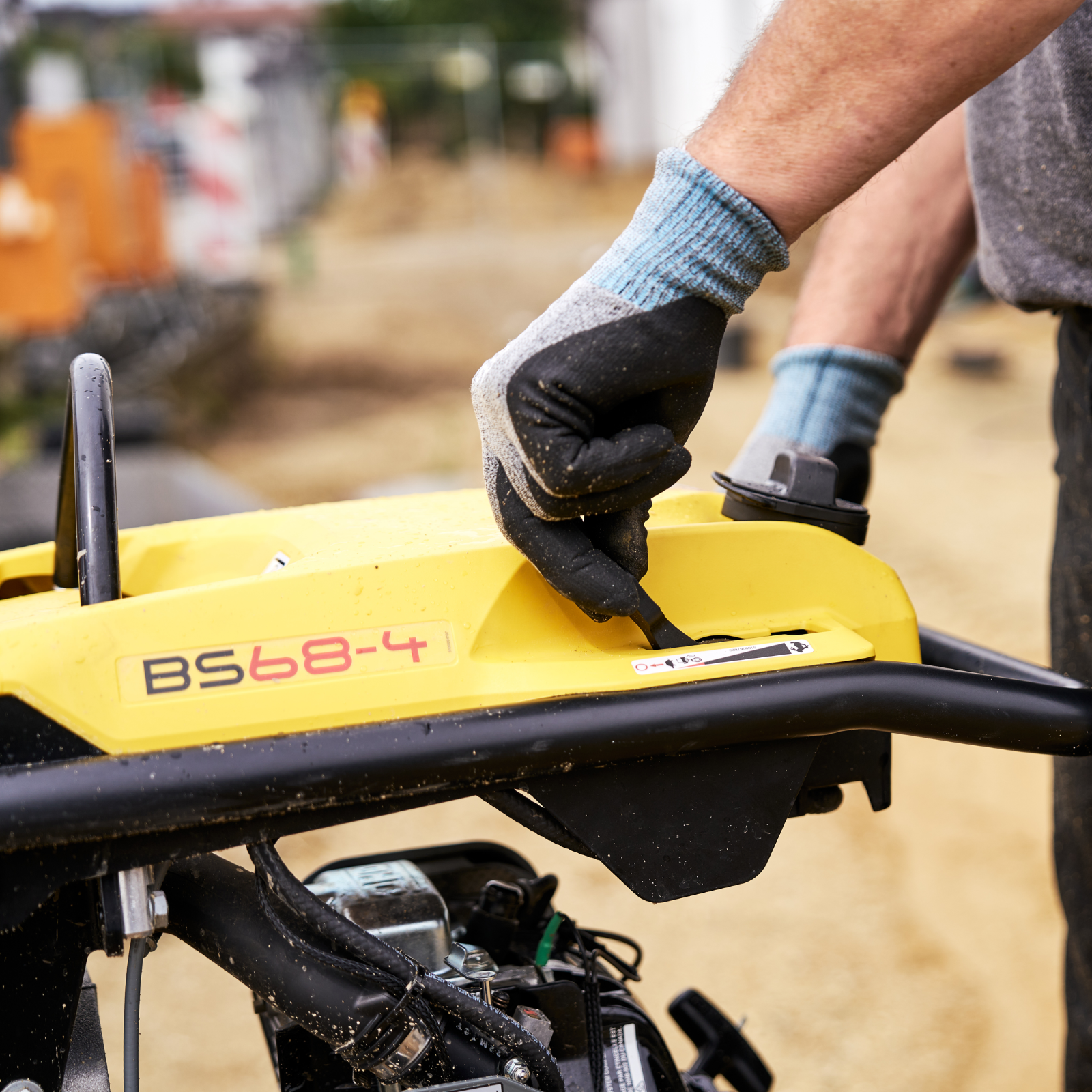

  • Throttle, start/stop and fuel shut off all controlled with one lever.
2. Maintenance
  • Perfect air supply through cowling - ensures long filter service life.
  • High impact plastic ramming shoe with reinforced steel plate - specifically designed for Wacker Neuson Rammers and for long life.
  • Hour meter fitted.
3. Reliability
  • Wacker Neuson invented the Trench Rammer and has been making them for over 80 years.

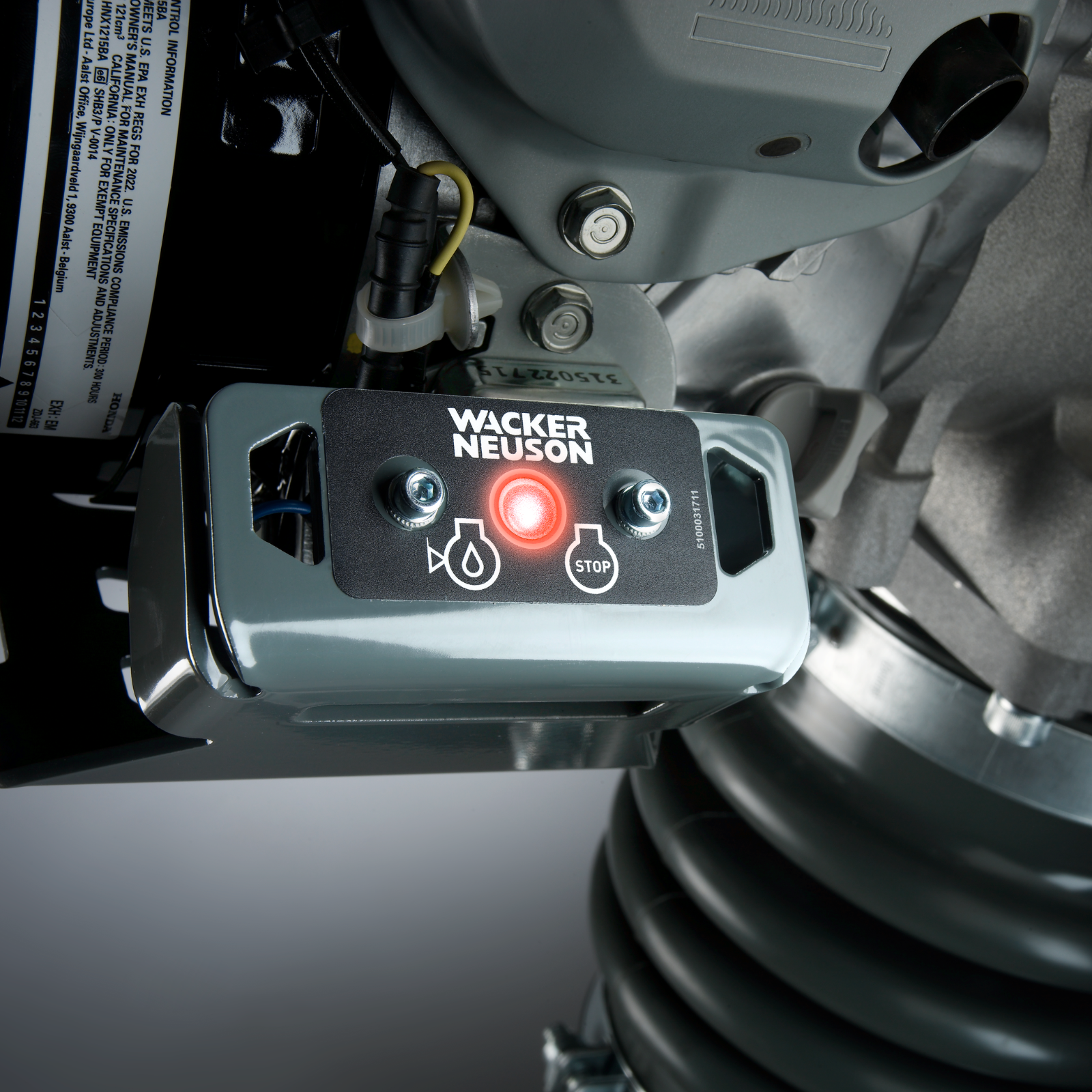

  • Rammer is alerted when oil tank is low and will shut off before running out of oil, avoiding damage.

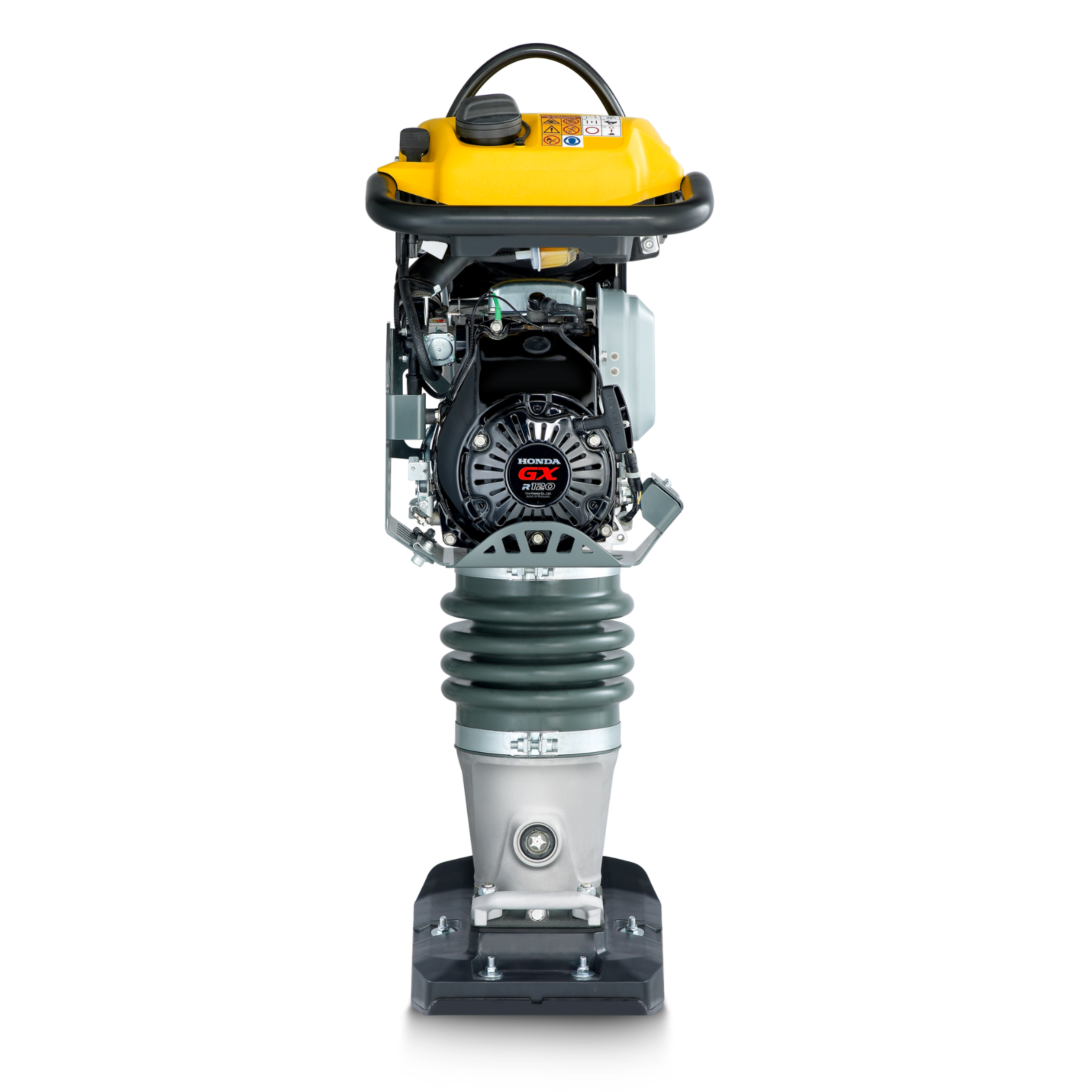

  • Long life Honda GXR 120 designed for rammer use
4. Safety

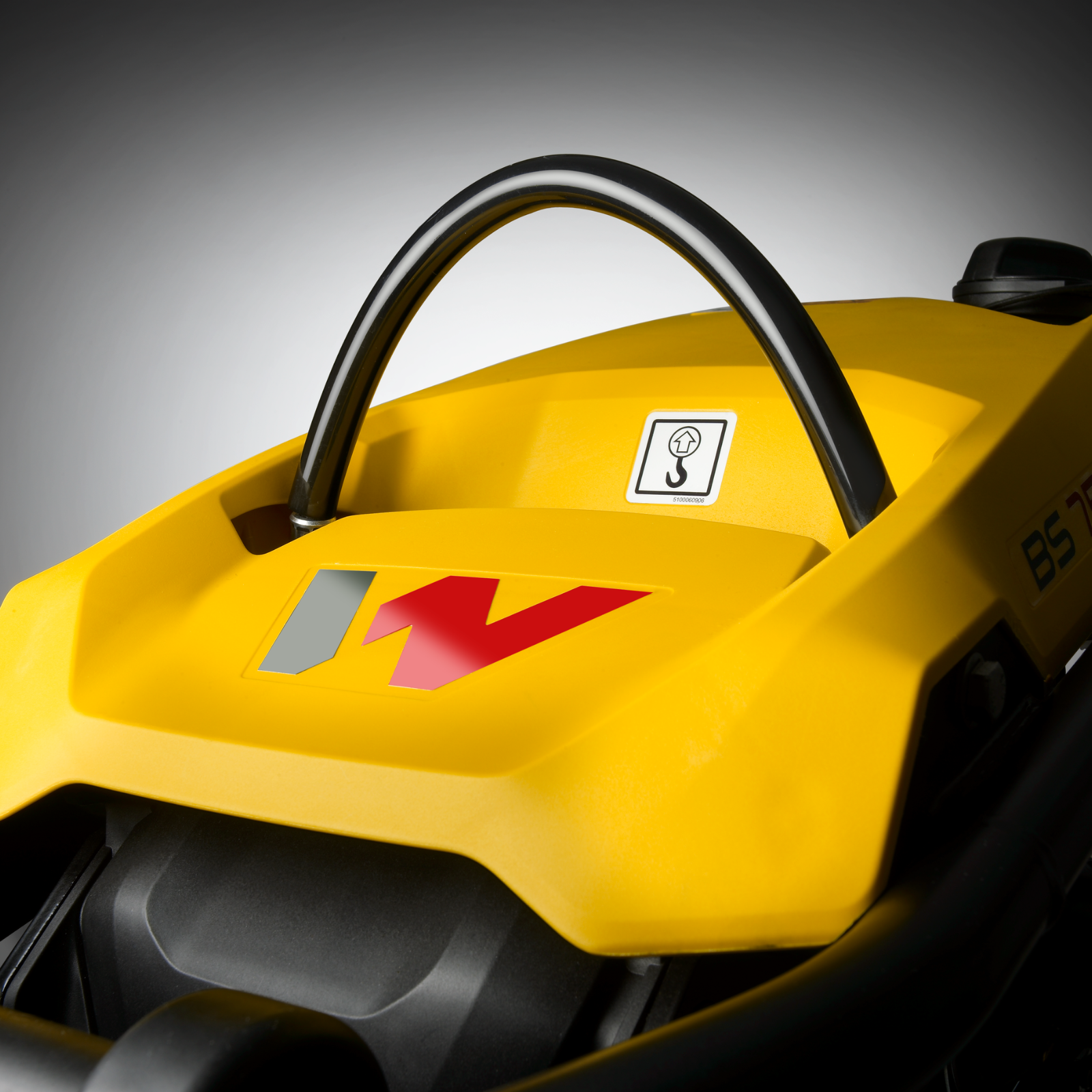

  • Central certified lifting point to lift rammer with a crane
  • Lifting point attached directly to crank housing ensures no strain is put on handle or vibration dampeners.
5. Versatility
  • Unique design ensures perfect blend of balance, impact and travel speed - vertical rammers lean forward for better travel speeds.
  • Narrow design ensures Wacker Neuson rammers can be used in tight spaces.
  • Honda GXR 120 engine custom designed for Rammers, not a one size fits all engine.
6. Accessories
  • Narrow shoe kits available.
  • Wheel Kit available.
  • Trolley available.

(5100061970)

Operating Specifications:

Operating weight 70 Kg
Ramming shoe (W x L) 280 mm x 340 mm
L x W x H 662 mm x 347 mm x 920 mm
Number of blows 689 / min
Stroke at the ramming shoe 63 mm
Operating speed 12 m / min
Surface capacity 202 m2 / h
Impact Force 19 kN



Specifications subject to change without notice due to continual product development

SKU 5100061970
Shipping Weight 75.0000kg
Shipping Width 0.380m
Shipping Height 0.990m
Shipping Length 0.690m
Shipping Cubic 0.259578000m3
