Wacker Neuson EZ26

View PDF brochure for Wacker Neuson EZ26

Wacker Neuson EZ26

2.6T Excavator

Share:
Enquiry/Quote

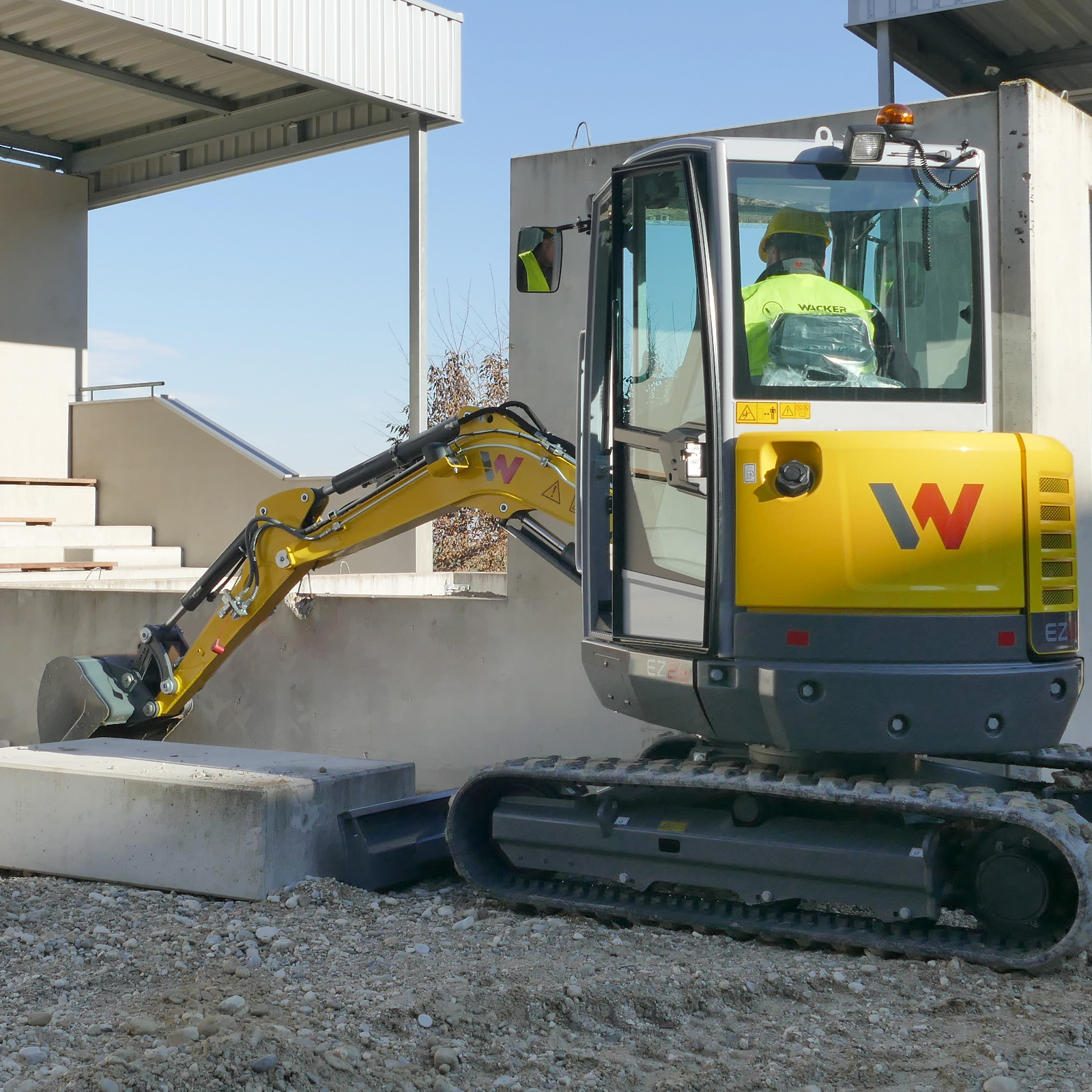

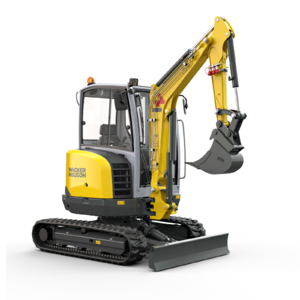

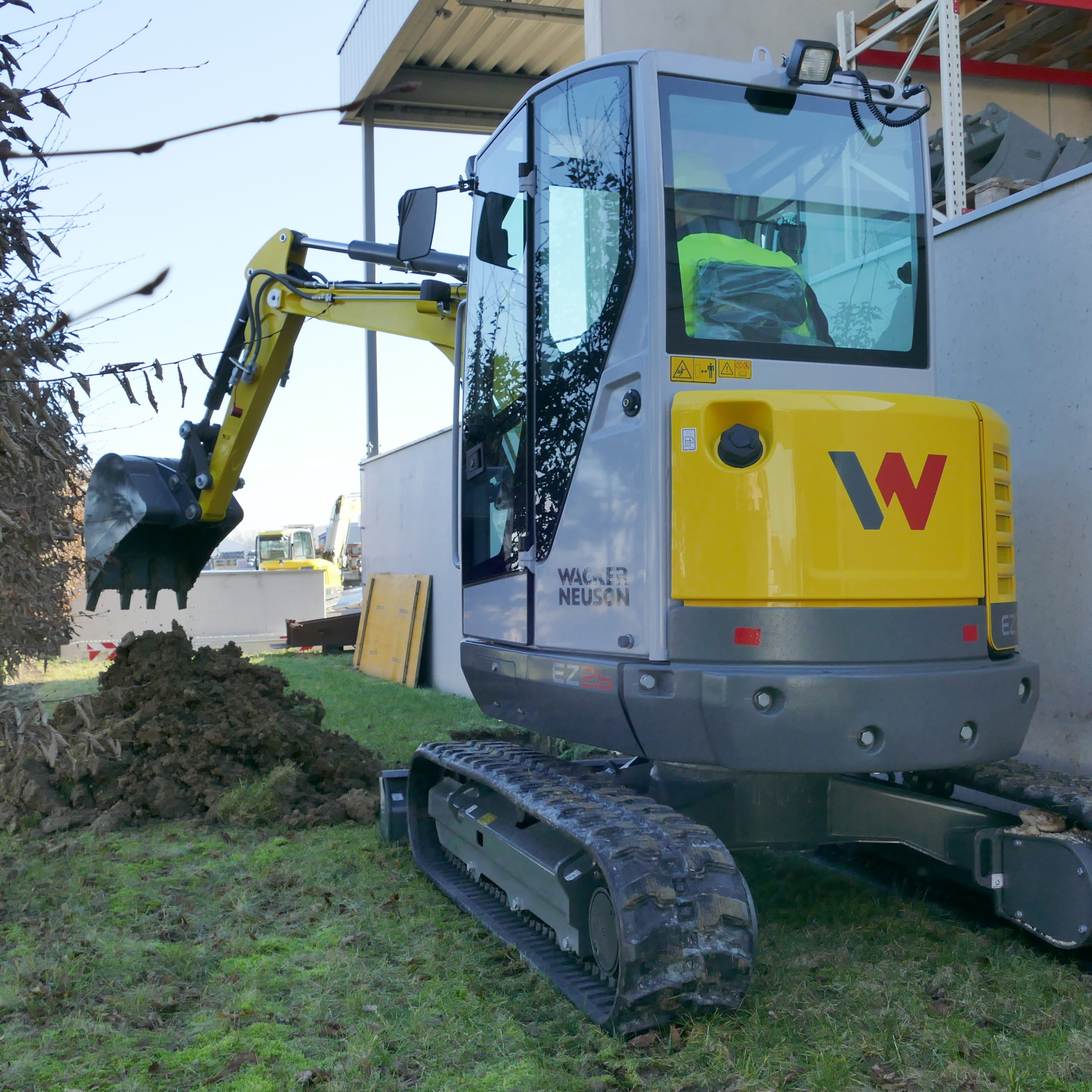

Wacker Neuson EZ26 - 2.6 - 3.1 Tonne Zero Swing Mini Excavator:

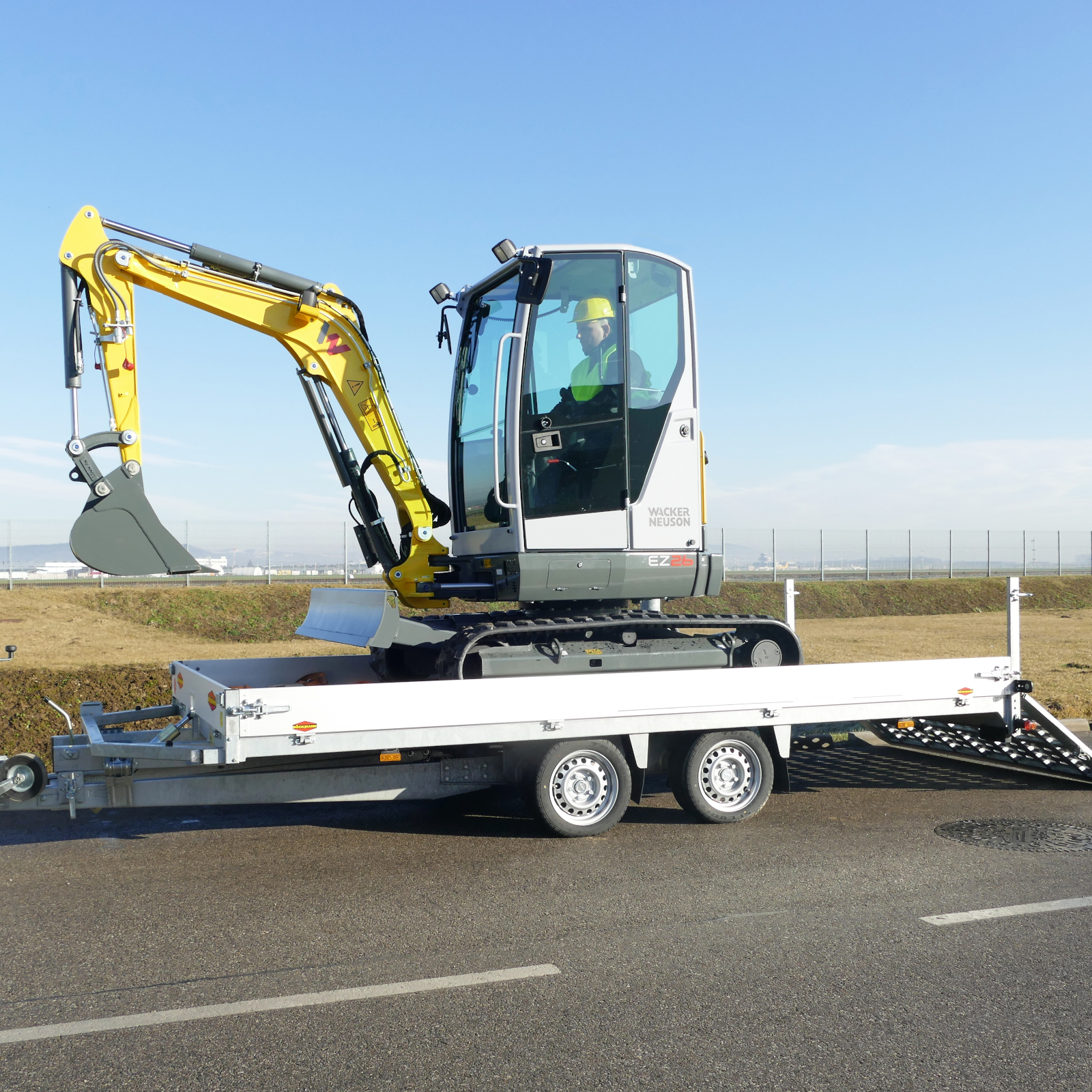

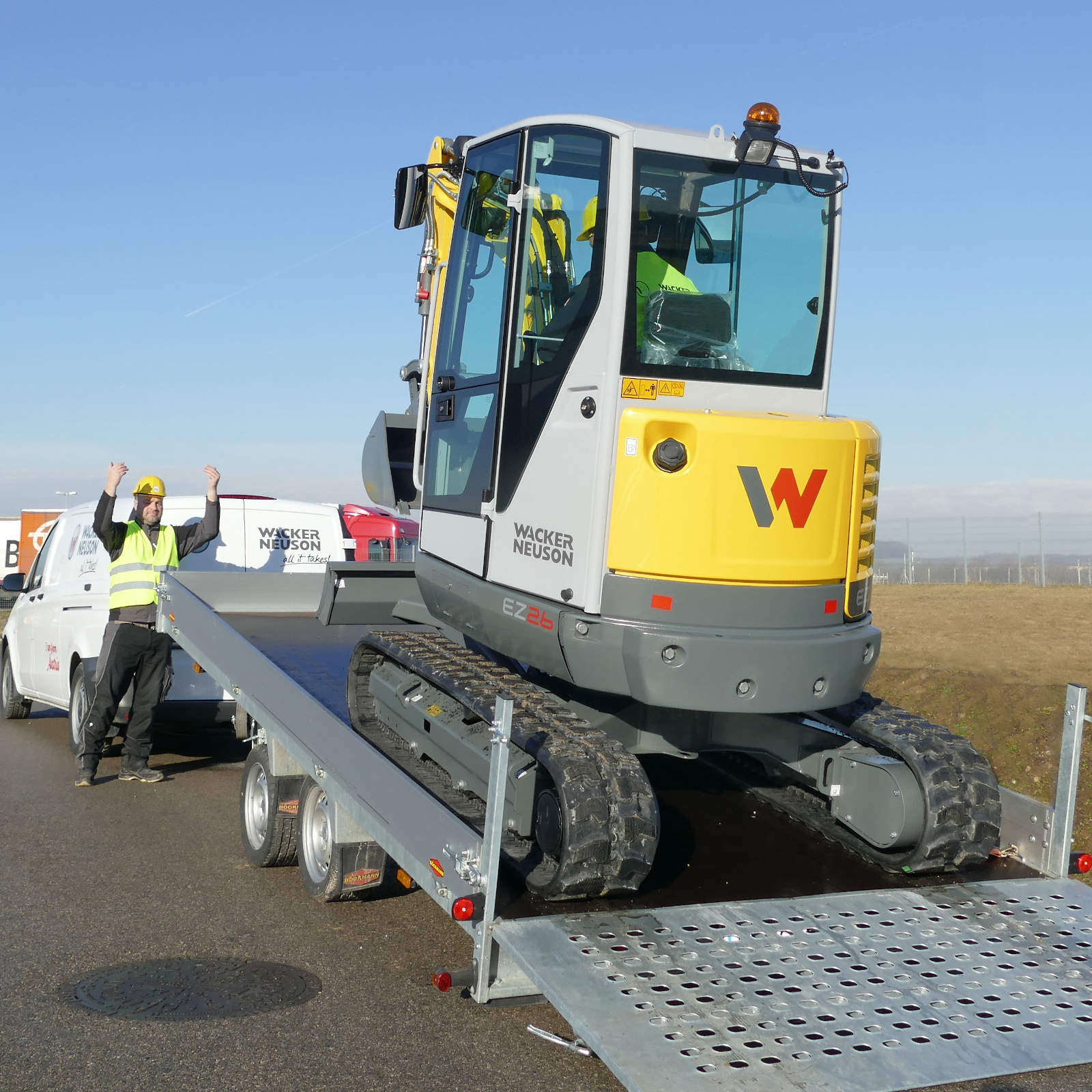

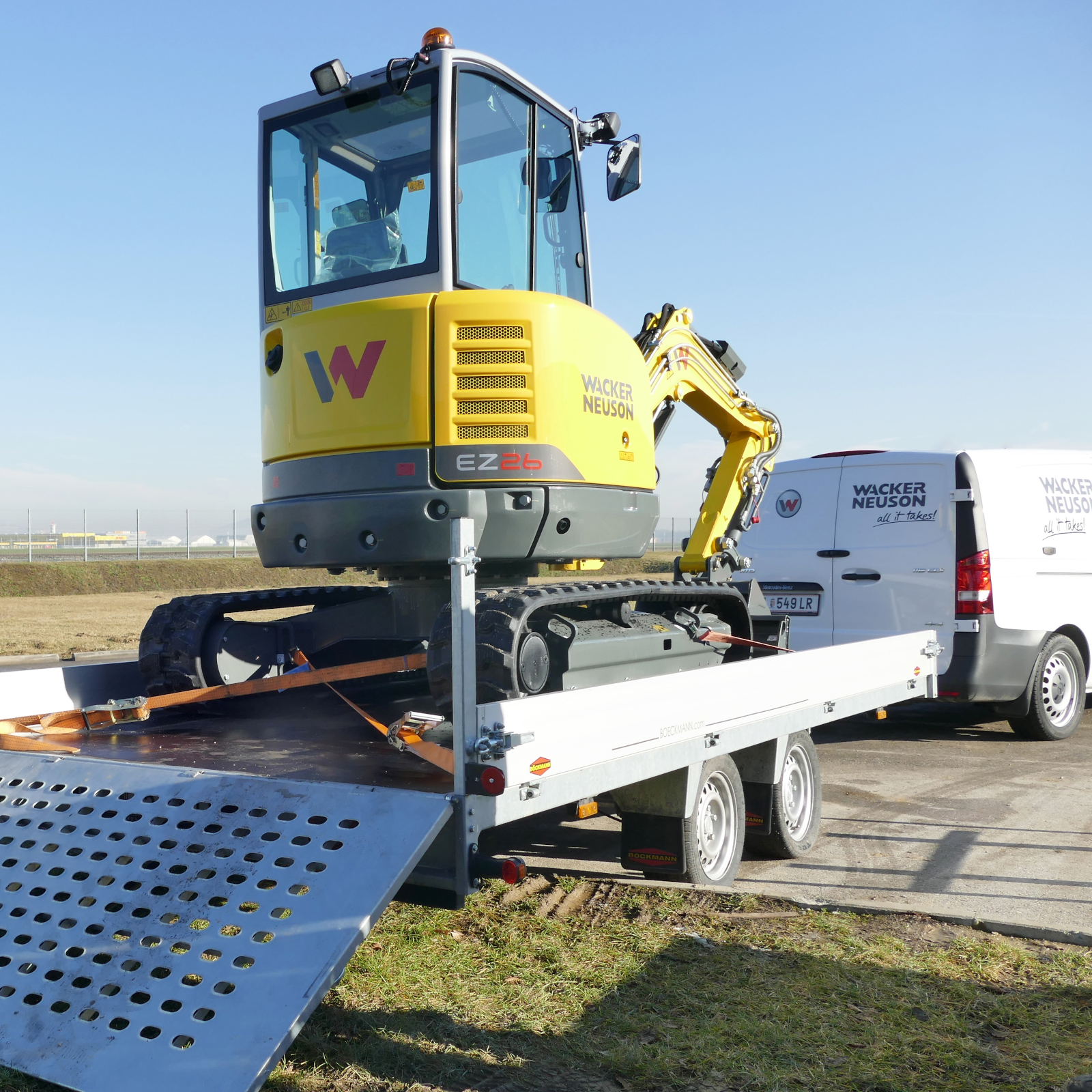

The Wacker Neuson EZ26 is the perfect mid sized mini excavator. EZ26 is a great step up in power from a 1.7/1.8t excavator, while still small enough for easy transport. Available with both a canopy and cabin, (canopy standard). The EZ26 is feature rich with the same quality and reliability you would expect from all Wacker Neuson equipment.

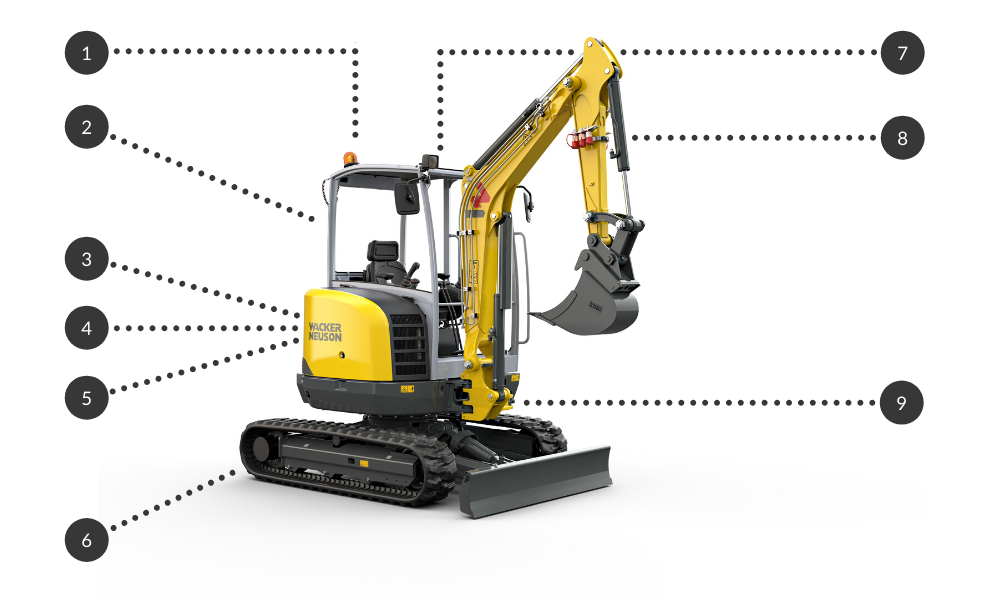

Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • Working lights on front and rear of canopy, and on boom for optimum safety at night.

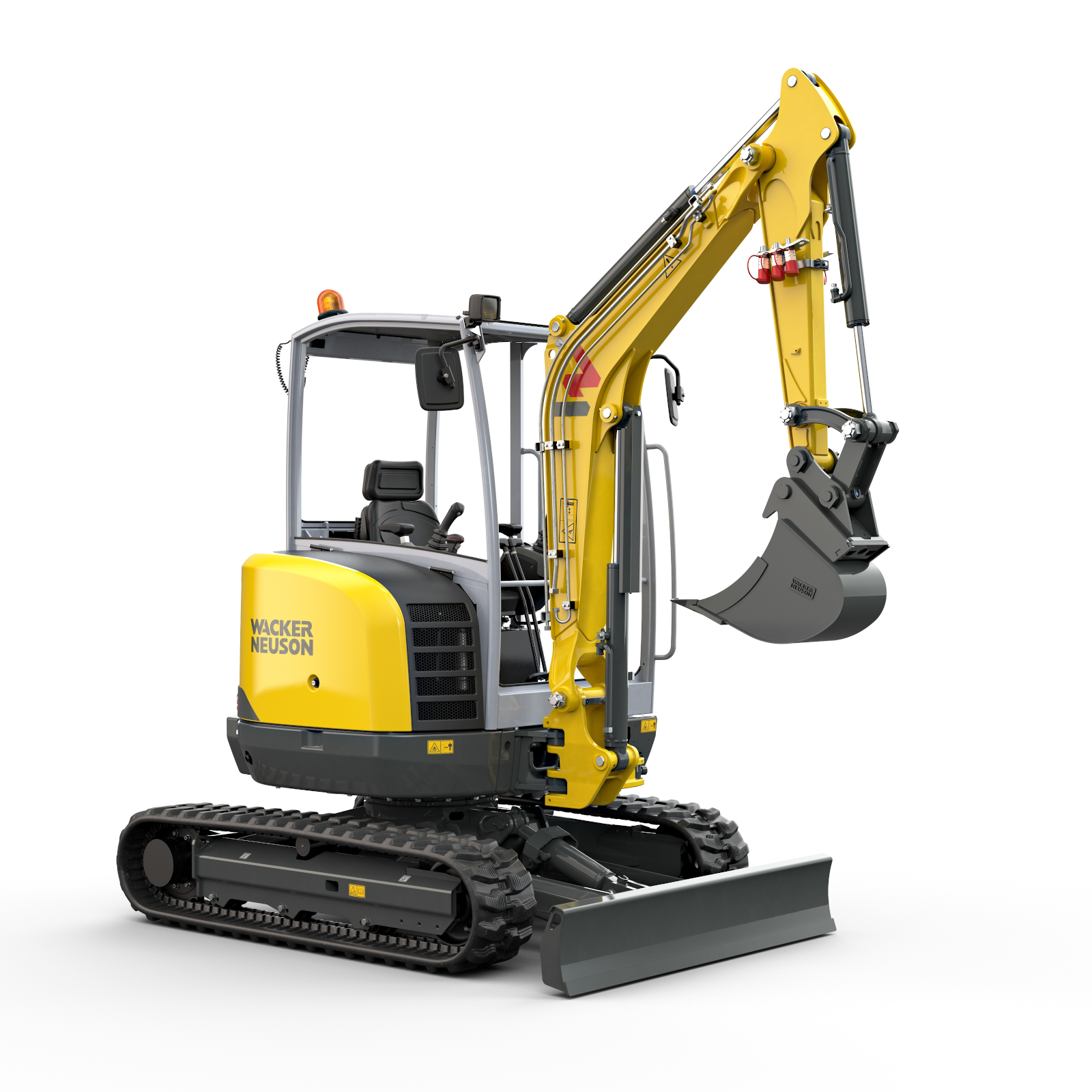

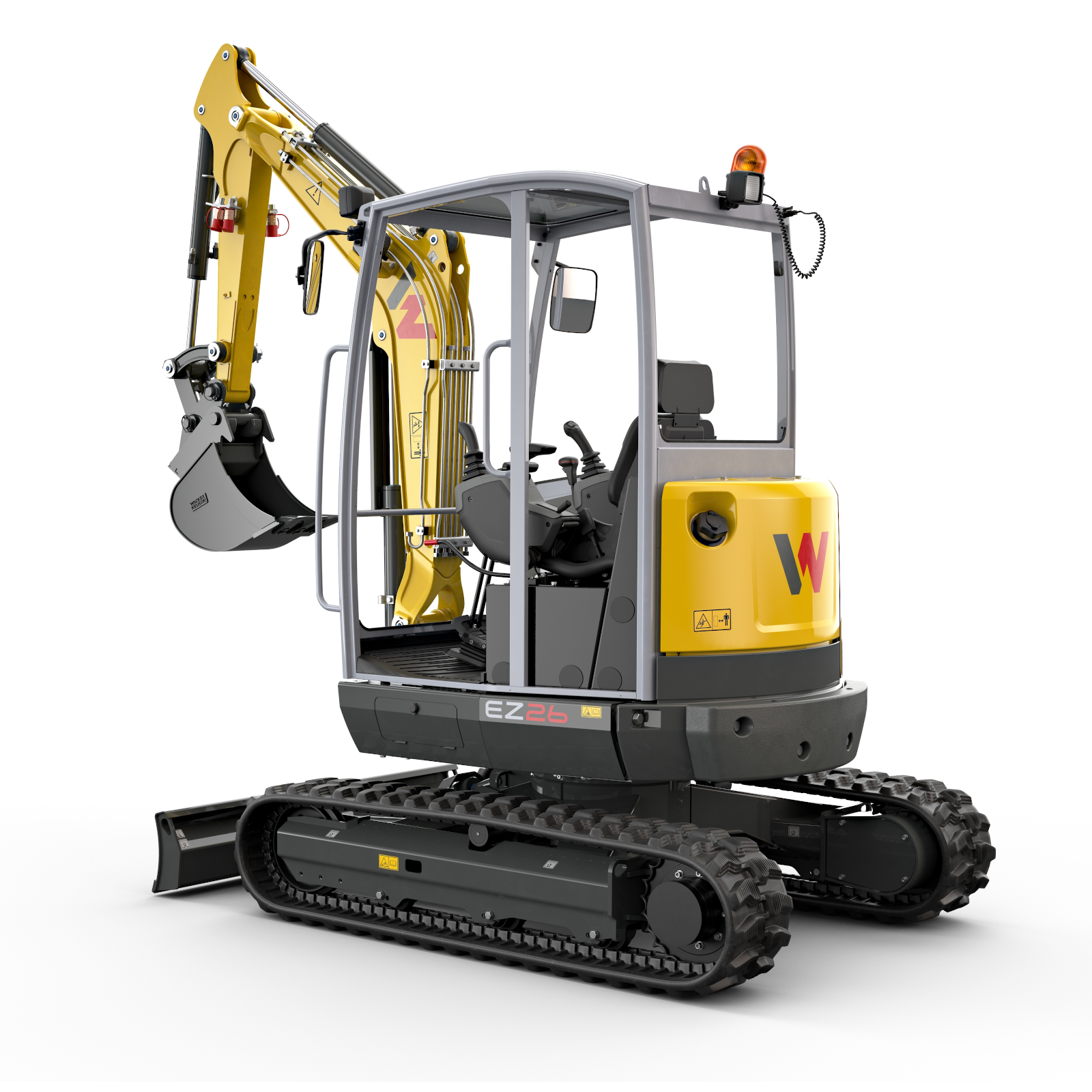

  • ROPS certified canopy (standard) and cabin (optional)
2. Comfort
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  •  Adjustable arm rests fitted as standard.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension for operators of different sizes.
  • Travel levers fitted with large foot pedals for precise track control while operating other controls.

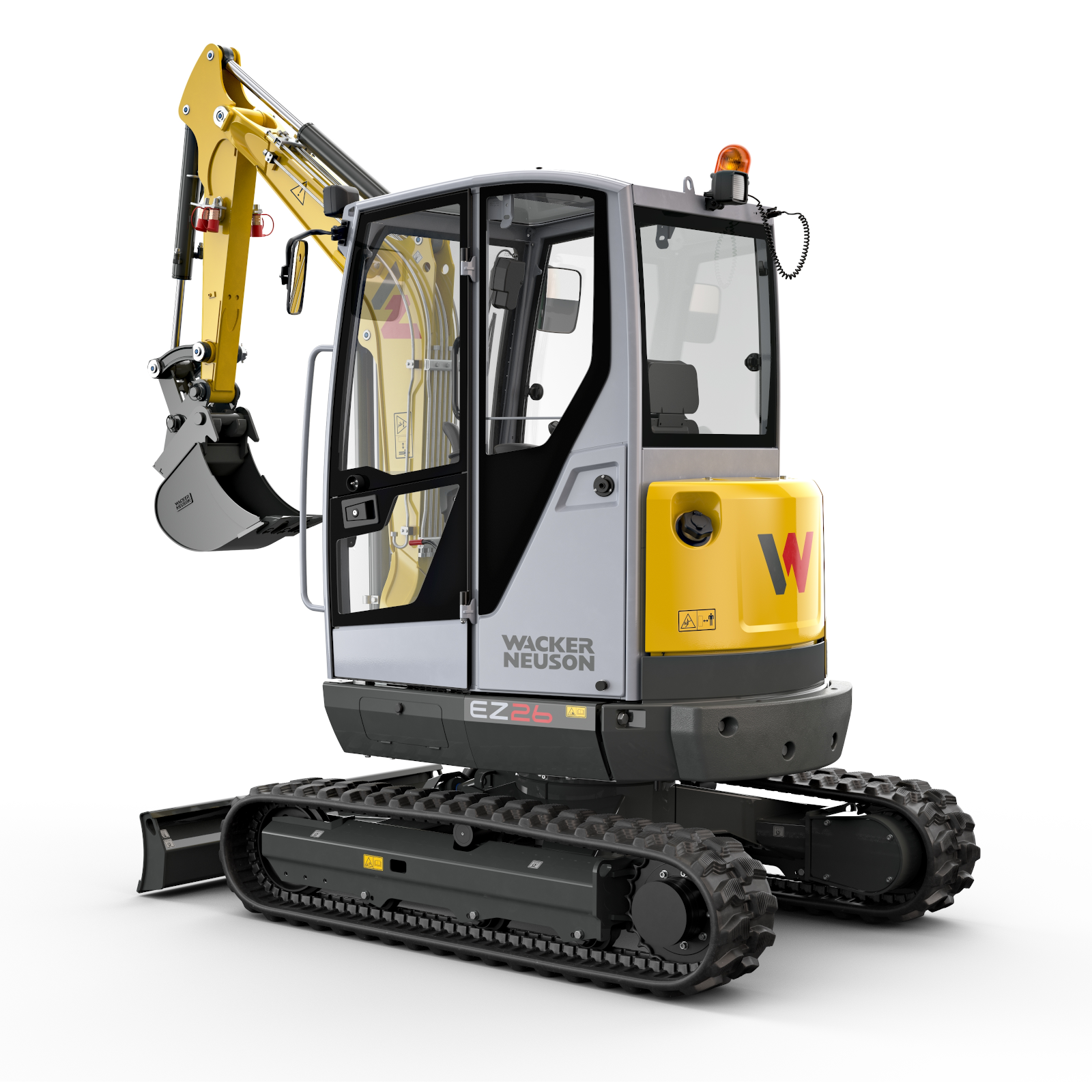

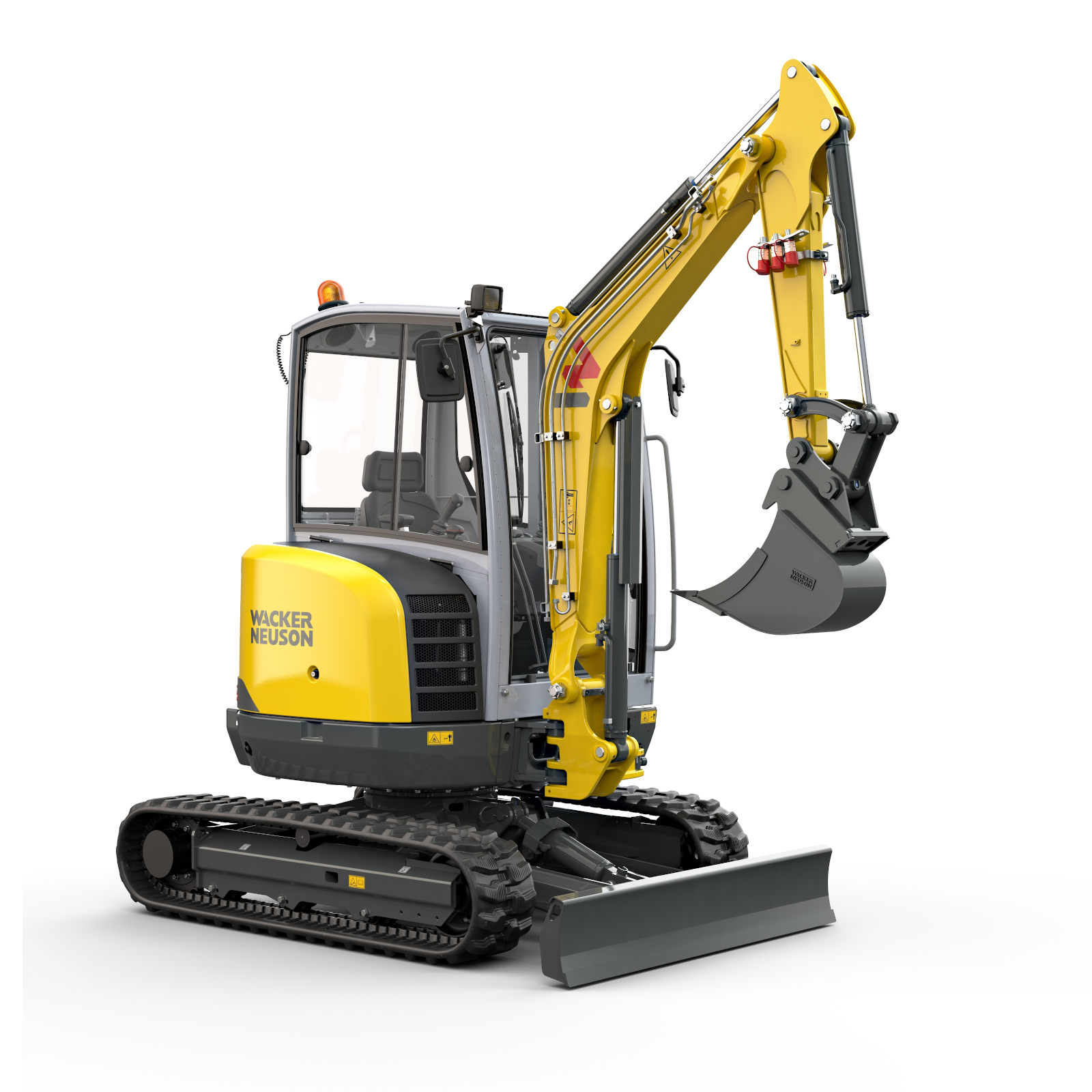

  • Cabin model fitted with fully retractable front glass panel and openable side window.
  • Cabin model fitted with heater.
3. Power
  • Powered by Yanmar 3 Cylinder diesel (20.4HP / 15.2 kW).
  • Enough power to ensure machine never stalls at any load.
4. Efficiency
  • Hydraulic system of EZ26 comprises of double variable displacement axial piston pump and two fixed displacement pumps.
  • System uses dedicated pilot pump for smooth and efficient control of machine.
  • High capacity pumps ensure enough flow to control multiple circuits at all times and are reason EZ26 has such high auxiliary flow availability.
5. Cooling
  • A high efficiency radiator and cooling system keeps the EZ26 cool in high ambient temperatures.
  • Oil cooler and radiator mounted side by side for easy cleaning,
  • Side by side coolers stops common problem of debris building up between coolers mounted in front of each other, ensuring the most efficient cooling.
6. Versatility
  • EZ26 fitted standard with rubber tracks and has stable footing with a 1560mm maximum width.
  • Two speed travel pushes machine along quickly
  • Gradable up to 30º.
  • Pattern change from Backhoe (SAE) to Excavator (ISO)
7. Vision

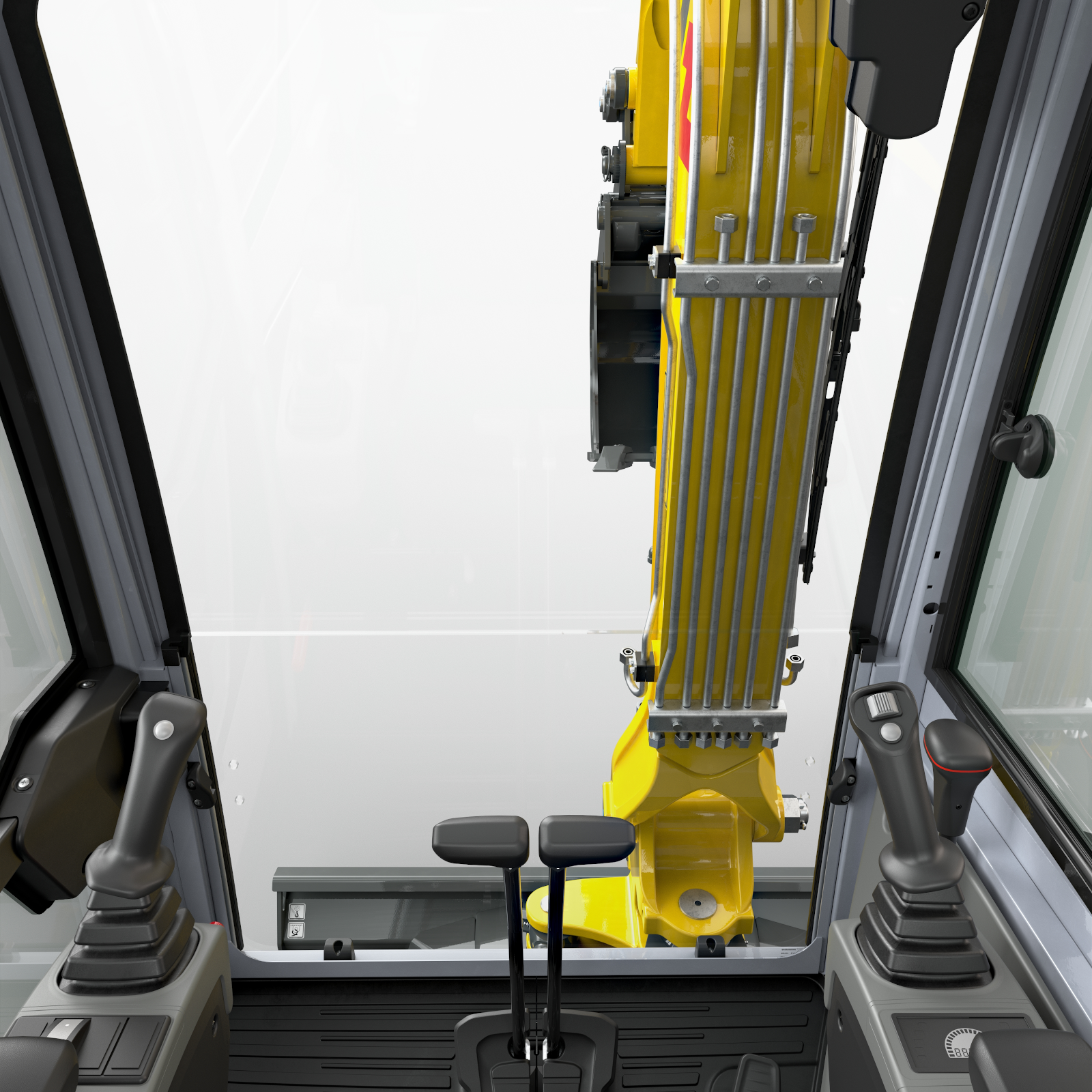

  • Both canopy and cabin designed with perfect visibility.
  • ROPS posts positioned to ensure operator's view is not restricted.
  • Canopy roof fitted with window, allowing bucket visibility at all times.
8. Auxiliary Hydraulics
  • 2 way auxiliary piping standard from factory. Boasts one of the highest auxiliary flow in the industry
  • Massive 52.2L/min.
  • Fitted with dedicated oversized return line for hammer use. This ensures a minimal backpressure so that if running a hammer, it will run at it's most efficient.
9. Hitches
  • Fitted with Wacker Neuson Easy Lock fully automatic quick hitch as standard.
  • Wacker Neuson Easy Lock Powertilt fully automatic quick hitch (optional) also available.
10. VDS
  • Veritcal Dig System or VDS is a Patented Wacker Neuson innovation.
  • Allows uppercarriage of machine to be tilted 15º away from undercarriage.
  • Provides perfect stability for excavator and allows level excavating on unlevel grounds.

(EZ26)

General:

Transport Weight 2,469-3,161kg
Operating Weight 2,571-3,262kg

Engine:

Manufacturer Yanmar
Model 3TNV76
Construction Liquid-cooled, 3-cylinder diesel
Displacement 1,116cm3
Engine Speed 2,500rpm
Engine Output according to ISO 15.8kW (21.2HP)
Battery Voltage / Capacitance 14V / 44Ah

Hydraulics:

Pumps Double variable and double gear pumps
Max. flow rate 2 x 30.5 + 20.2 + 7.2
Operating Pressure for working and driving hydraulics 225bar
Operating Pressure for slewing gear 206bar
Slewing speed 10rpm
Max. tear out force short / long arm 15.3kN
Max. breakaway force 22.5kN

Undercarriage:

Track Width 300mm
Ground Pressure 0.27kg/cm3
Number of track rollers 3
Ground Clearance 277mm
Drive speed 3.8km/h
Max. gradebility 30º

Blade:

Width 1570mm
Stroke above / below 380 / 419mm

Capacities:

Hydraulic system 26.5L
Fuel Tank 36L

Working Dimensions:

    EZ28 EZ28 VDS
A Height, mm 2,414 2,524
B1 Width of the cabin, mm 970 970
B2 Width of the revolving superstructure, mm 1,340 1,340
B3 Width of the undercarriage, mm 1,570 1,570
C1 Transport length (short dipper arm), mm 4,266 4,199
C2 Transport length (long dipper arm), mm 4,272 4,241
D1 Max. digging depth (short dipper arm), mm 2,544 2418
D2 Max. digging depth (long dipper arm), mm 2,744 2,617
E1 Max. vertical recess depth (short dipper arm), mm 1,962 1,845
E2 Max. veritcal recess depth (long dipper arm), mm 2,152 2,035
T1 Max. recess height (short dipper arm), mm 4,169 4,300
T2 Max. recess height (long dipper arm), mm 4,299 4,430
G1 Max. dumping height (short dipper arm), mm 2,840 2,960
G2 Max. dumping height (long dipper arm), mm 2,970 3,087
H1 Max. ground coverage (short dipper arm), mm 4,481 4,443
H2 Max. ground coverage (long dipper arm), mm 4,681 4,6444
K1 Max. digging radius (short dipper arm), mm 4,613 4,614
K2 Max. digging radius (long dipper arm), mm 4,805 4,806
M Max. boom offset to centre of bucket, right side, mm 764 765
N Max. boom offset to centre of bucket, left side, mm 533 535
O Max. lifting height of dozer blade above subgrade, mm 380 388
P Max. scraping depth of dozer blade below subgrade, mm 419 411
Q1 Clearance of bucket dozer blade (short dipper arm), mm 259 218
Q2 Clearance of bucket dozer blade (long dipper arm), mm 354 326
R1 Min. tail swing radius, mm 759 759
R2 Boom swing radius, centre, mm 2,080 2,080
R3 Boom swing radius, right, mm 1,960 1,943
R4 Boomswing radius, left, mm 1,641 1,640
S Total travelling gear length, mm 2,006 2,021
T Travelling gear length of the sprocket guide wheel, mm - -
V VDS tilt angle, º - 15
W1 Max. swing angle of the arm system to the right, º 50 50
W2 Max. swing angle of the arm system to the left, º 75 75
X Chain width, mm 300 300
Y1 Dozer blade width, mm 1,570 1,570
Z Dozer blade height, mm 300 300

Specifications subject to change without notice due to continual product development
