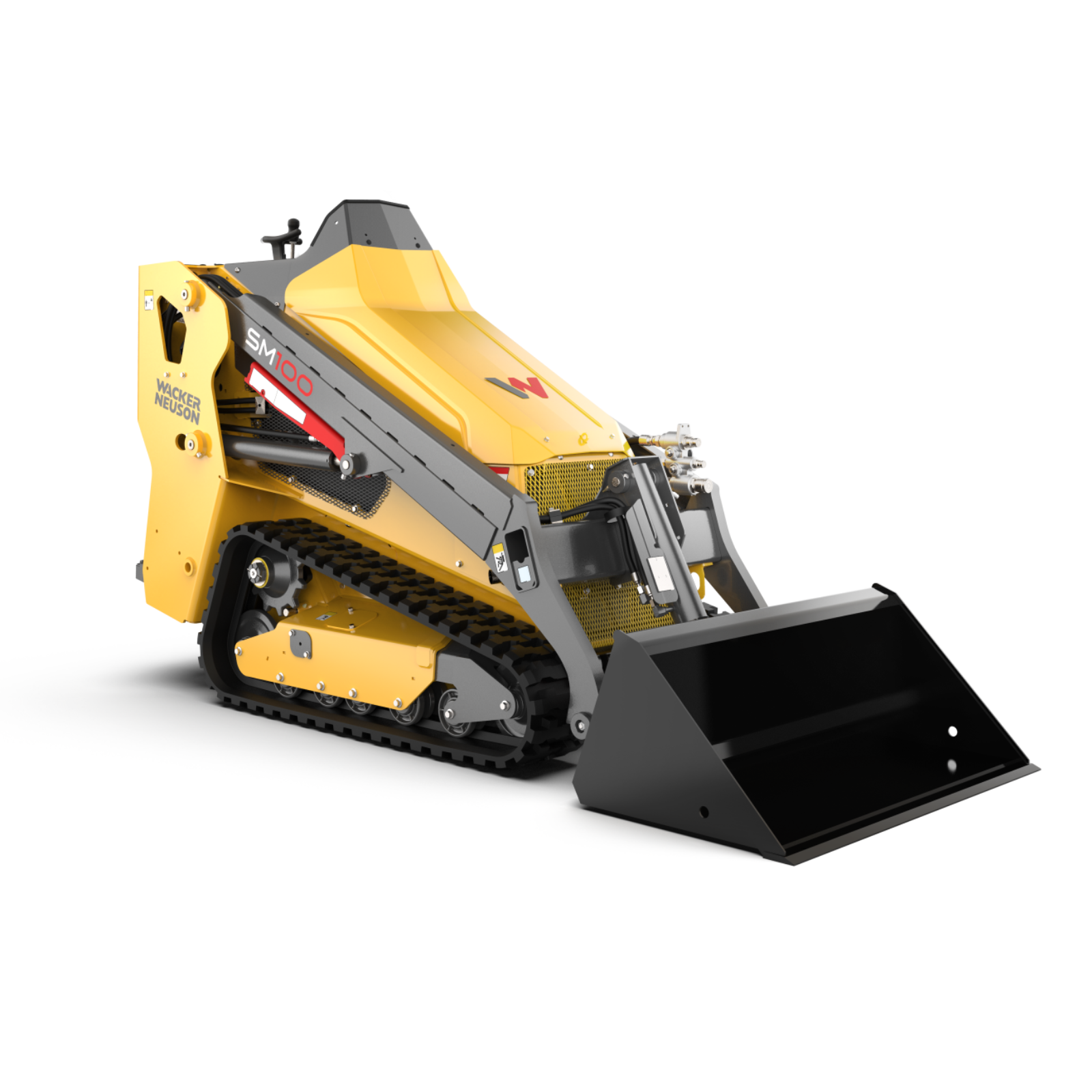

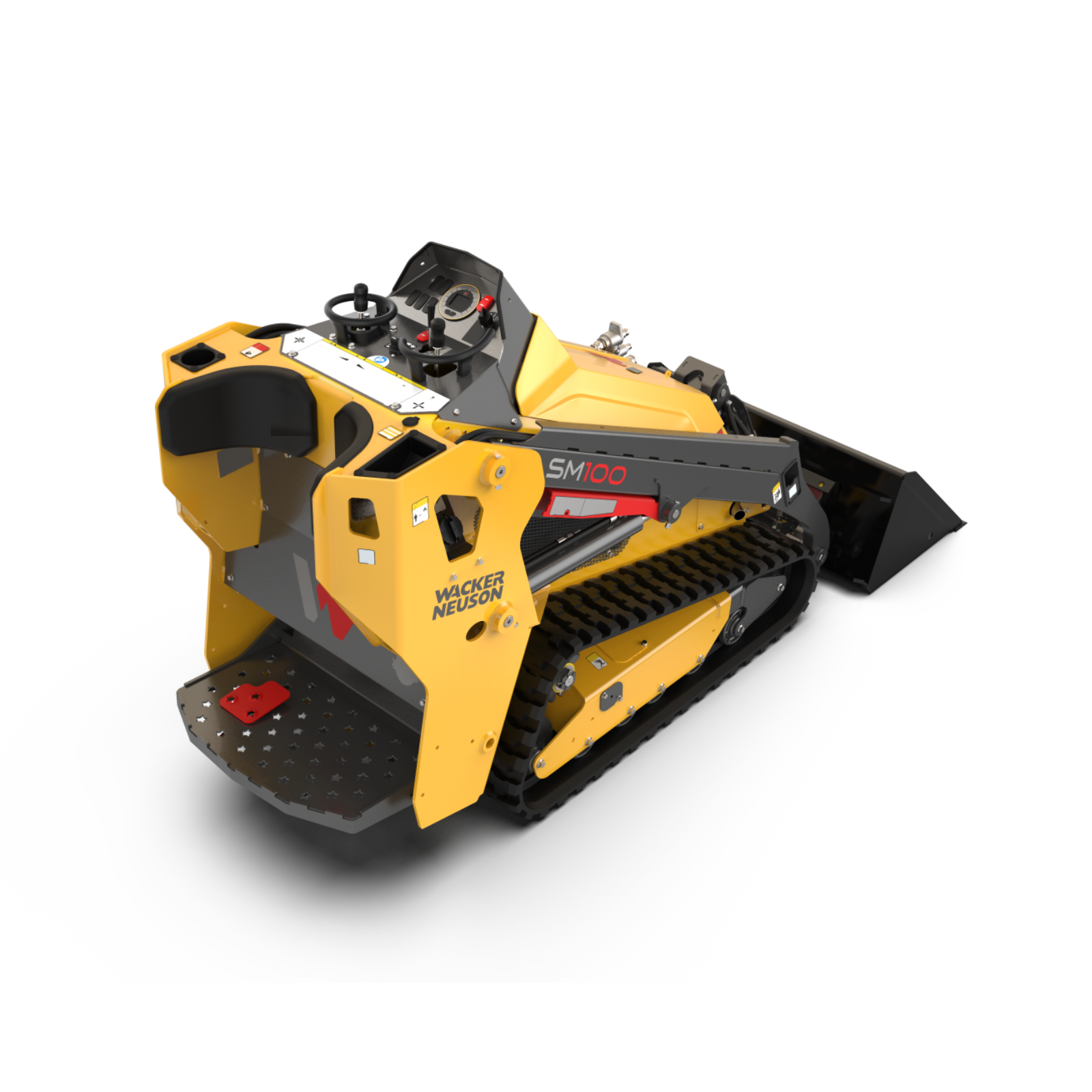

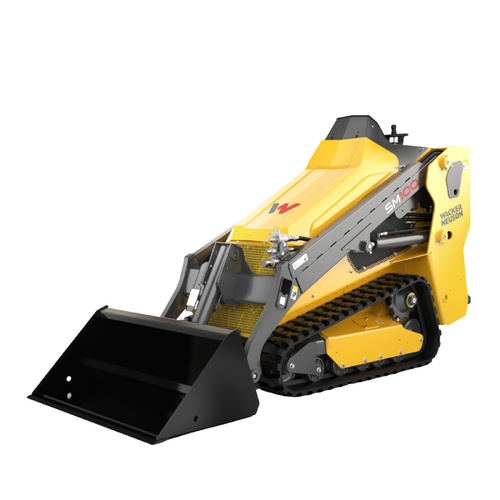

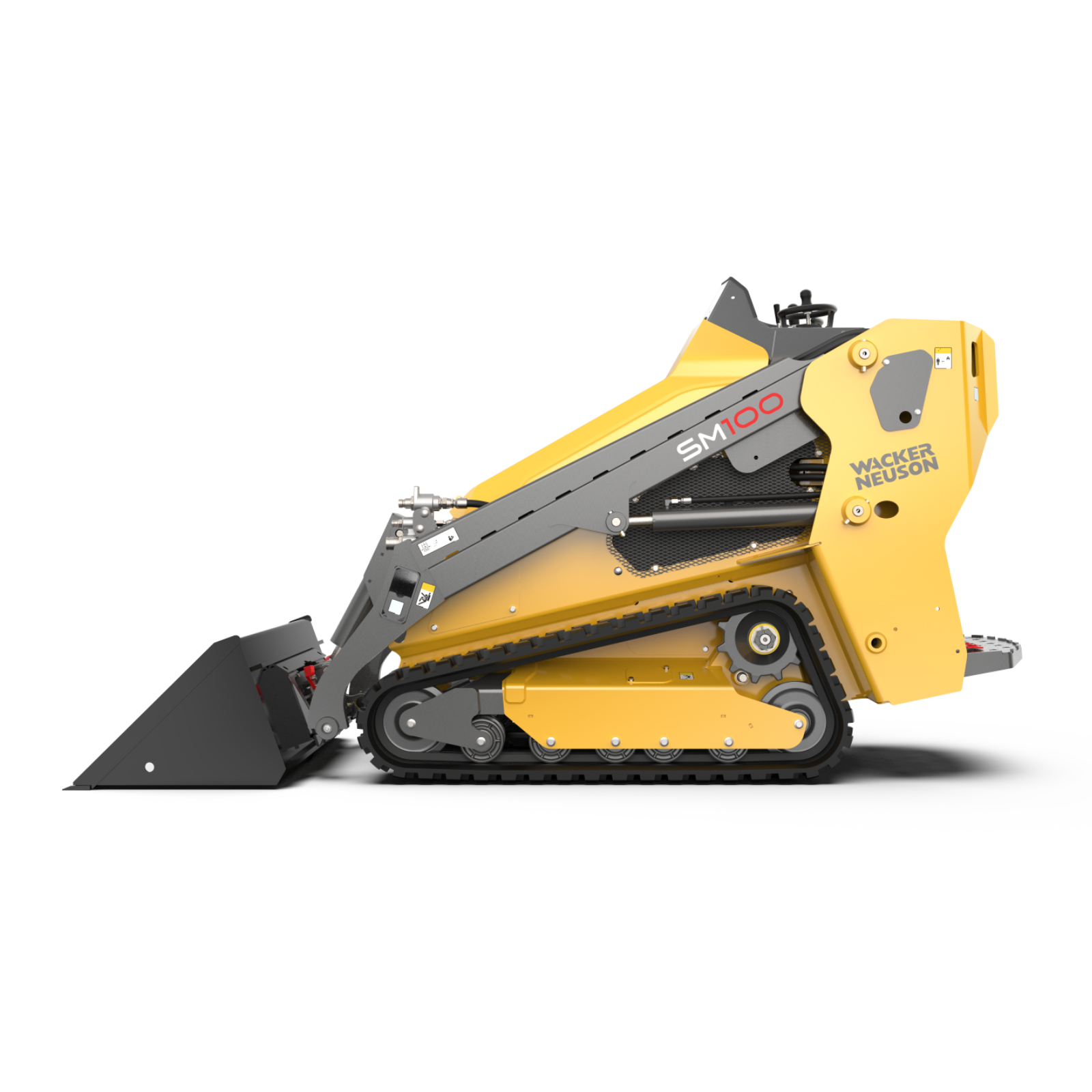

Wacker Neuson SM100 - 25HP Diesel Tracked Mini Loader:

SM100 compact, powerful tracked mini loader powered by a reliable 3-cylinder turbo Yanmar diesel engine. SM100 features a powerful pilot controlled hydrostatic transmission to power the tracks, and twin gear pump to control the arm and auxiliaries with a high flow 49l/min perfect for a large range of attachments and efficient trenching. SM100 comes in on track configuration with a narrow stance of 902mm and 230mm tracks, no need to wide and narrow versions.

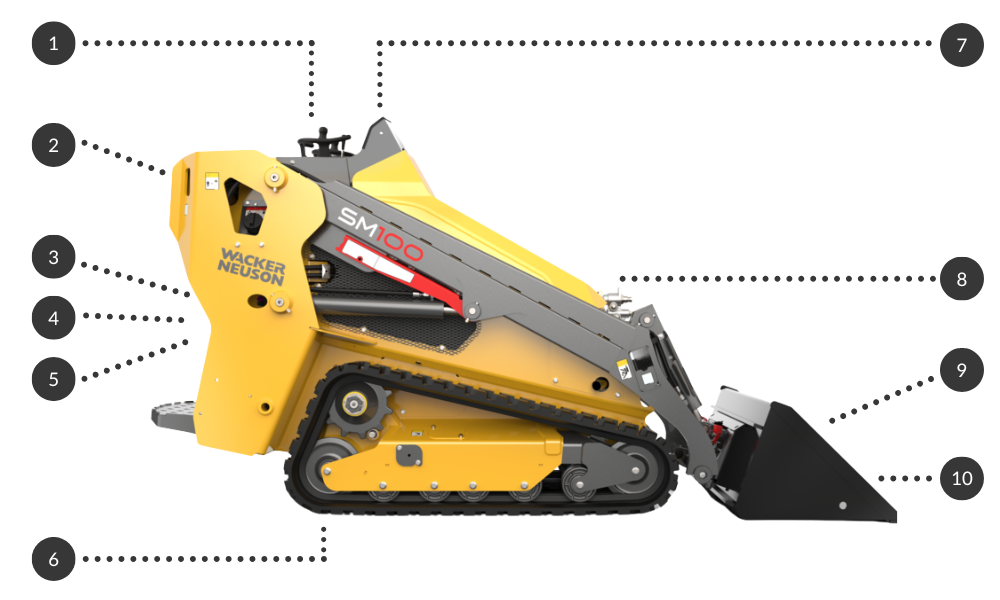

Key Features:

1.	Safety	Operator present switch on foot panel. Low centre of gravity increases stability. Soft touch pilot controls reduce risk of operator being thrown from machine during operation. Easily accessible etie down points for safe transportation. All machines sold by ACES have an OHS Risk assessment prior to delivery.
2.	Quality	Industry leading 5 Year / 5000 hour warranty. Powder coated finishes for long life without fading or corrosion. HD precision ground hardened steel pins and bushes. HD proprietary undercarriage components. 230mm wide tracks for long service life.
3.	Power	Powered by Yanmar 3TNV80 25HP turbo diesel engine. Class leading 25HP hydraulic system. Hydrostatic transmission to power tracks. 2 Pump system, 210 bar relief pressure.
4.	Efficiency	Hydrostatic transmission for the best driving efficiency. 452kg SWL @ 35% of tip load for low 1,497kg machine mass. Efficient 2 wheel motor, direct drive to sprocket track system. High efficiency hydraulic oil cooler.

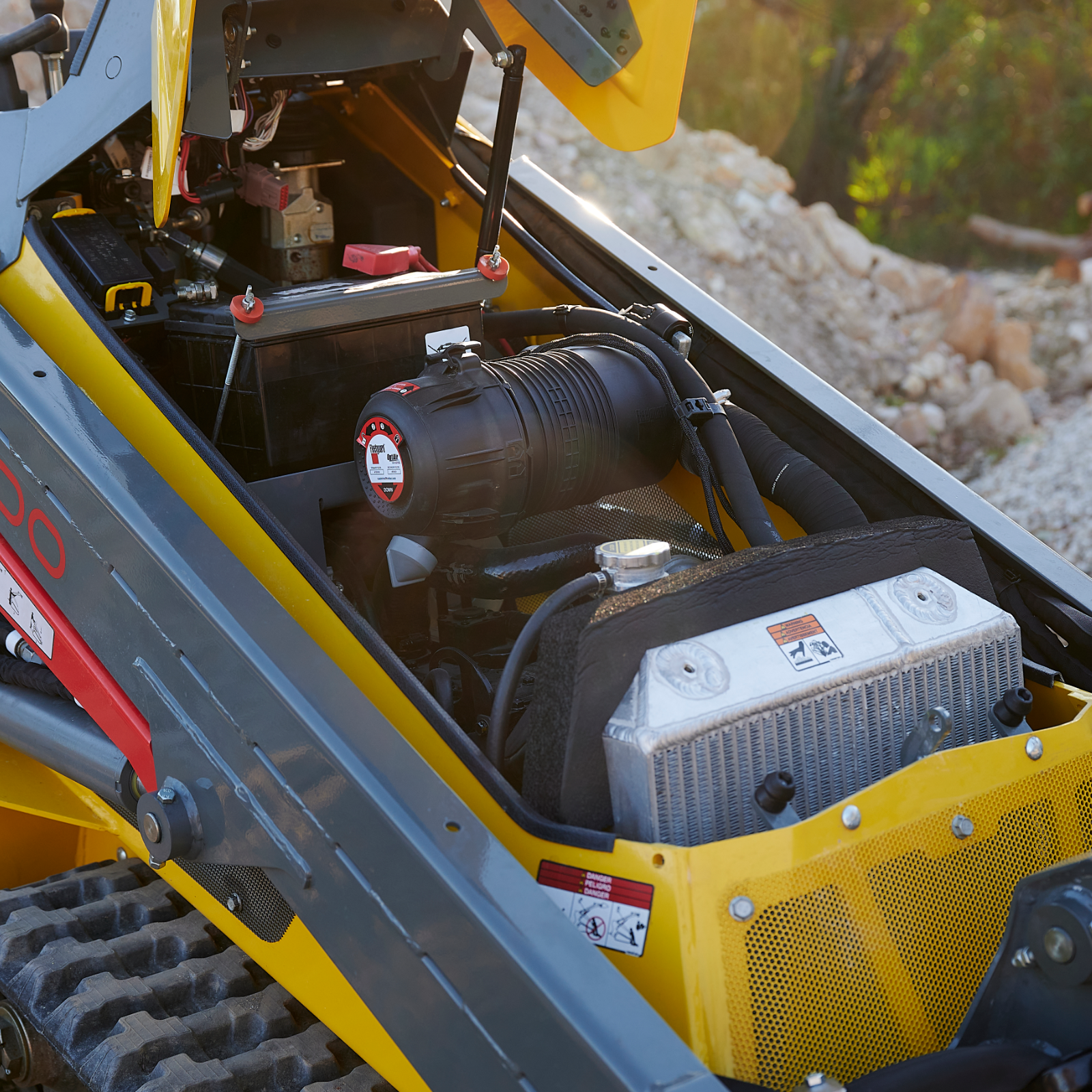

5.	Cooling	Efficient liquid-cooled diesel engine. Fan motor forces hot air away from the operator not into the operator like competitors. High efficiency hydraulic oil cooler. Designed for hot climates.
6.	Traction	Wide track standard, no need for narrow track version (902mm wide). High track contact point with unique Wacker Neuson track design. 5 central triple flange rollers. Front idler and lower roller mounted together, optimal distance from front idler to roller, lowers risk of detracking. 230mm track for low ground pressure and high traction forces.

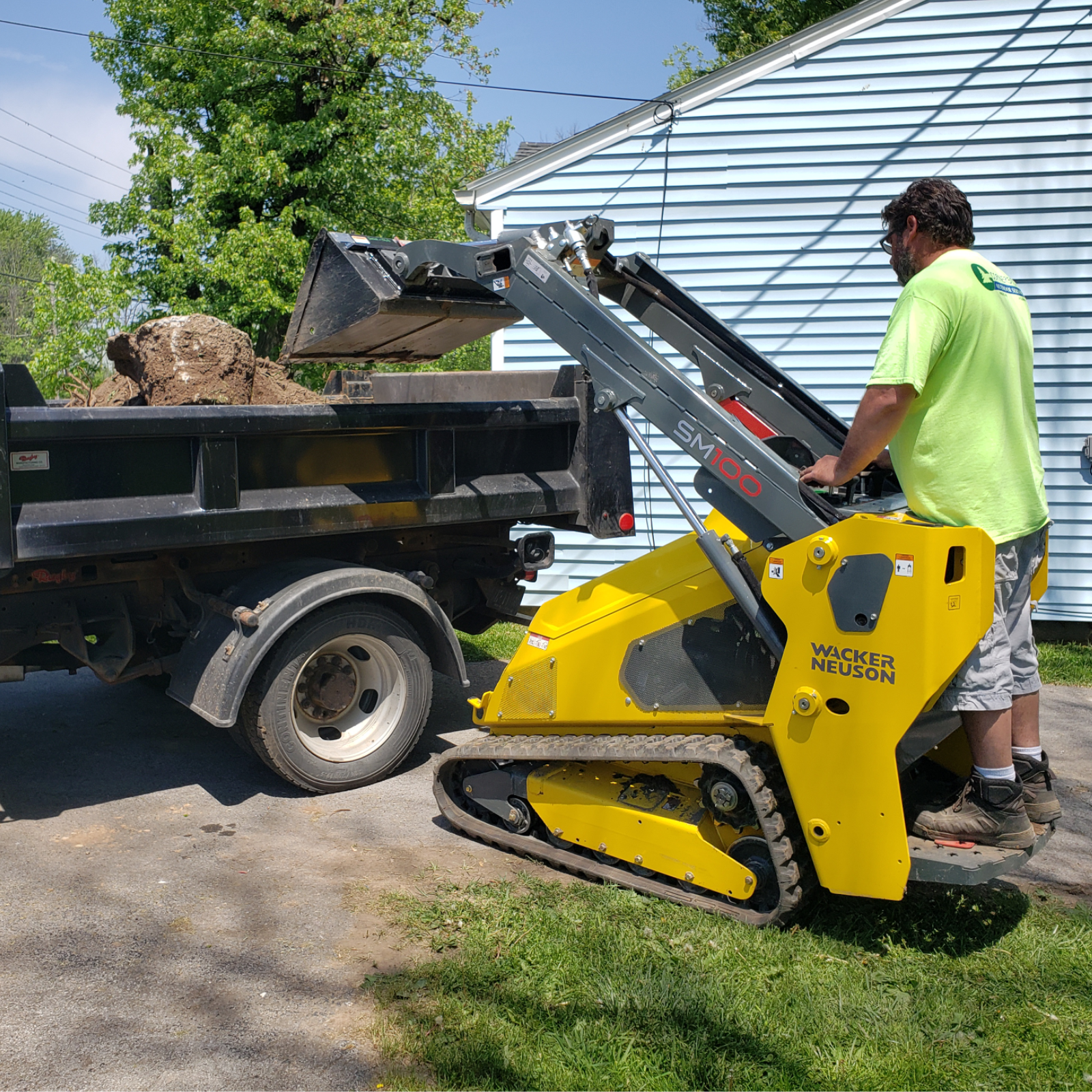

7.	Versatility	ISO control, extremely easy to operate. 2,176mm lift height to hinge point for over fencing dumping and easy loading into trucks and skips. Radial lift for easy loading and unloading of pallets.
8.	Auxiliary Hydraulics	Two way auxiliary piping. Case drain standard. Auxiliaries fitted with pressure reducing flat faced coupling for easy connection of attachments. 49L/min standard flow perfect for running a range of attachments such as trenchers, flail mowers and augers.
9.	Hitch	SAE Mini multifit pickup. Superior hitch design for added strength and longevity.

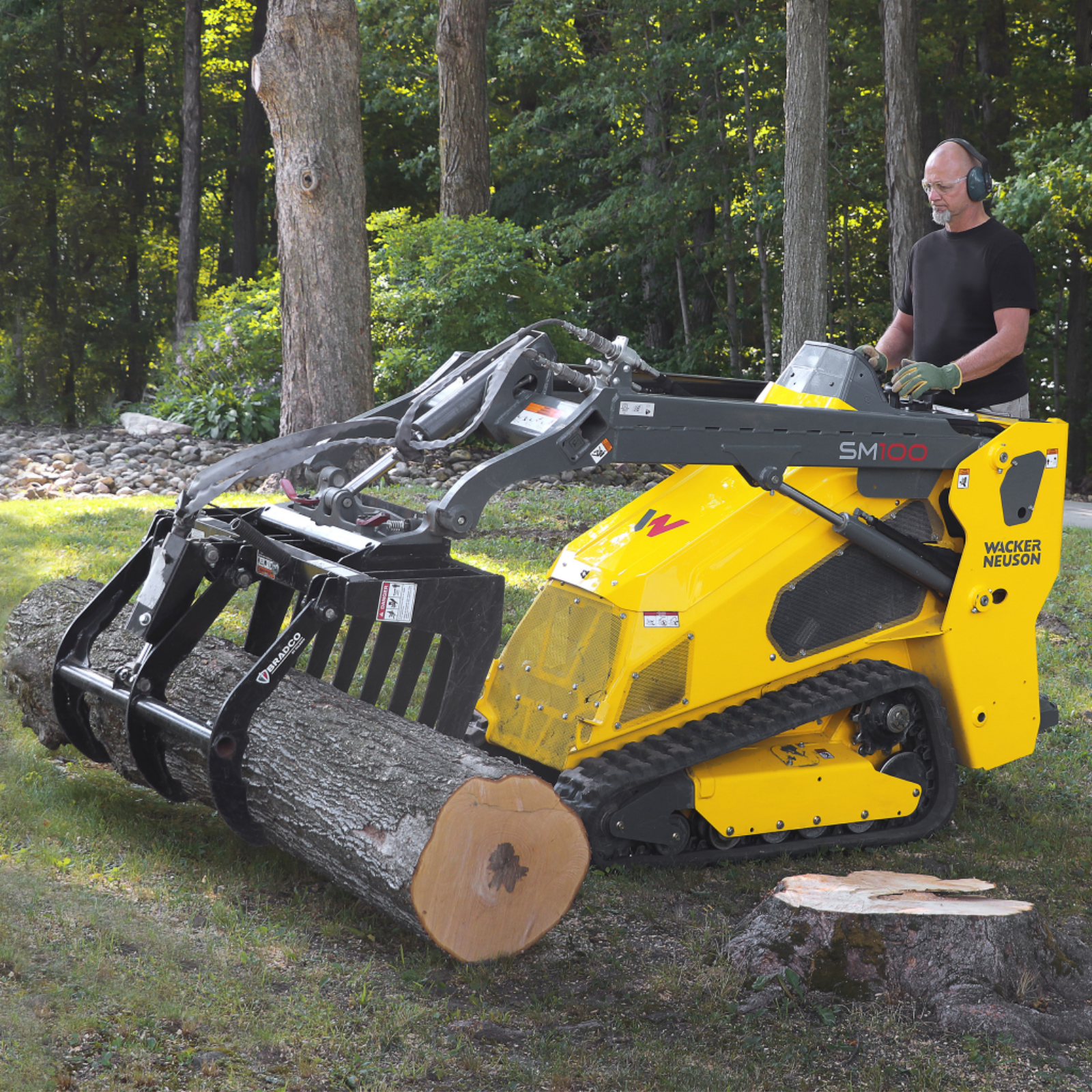

10.	Attachments	SAE Mini multifit hitch for full range of attachments. High capacity hydraulics capable of running a full range of attachments. Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.

(SM100)

SM100 Tracked Mini Loader - Market Comparison

Use the machinery comparison charts to check the facts from the ficton before you make your next excavator purchase. Fields market in green show a good Wacker Neuson advantage, fields market in blue show a significant Wacker Neuson advantage.

Click on the links below to compare the machines:

Bobcat MT100 vs Wacker Neuson SM100
Dingo K9DT vs Wacker Neuson SM100
Dingo K9CT vs Wacker Neuson SM100
Ditch Witch SK900 vs Wacker Neuson SM100
Kanga DT725 vs Wacker Neuson SM100
Toro TX1000 Narrow Track vs Wacker Neuson SM100
Toro TX1000 Wide Track vs Wacker Neuson SM100
Vermeer S925TX vs Wacker Neuson SM100

Wacker Neuson SM100 vs Bobcat MT100

	SM100	MT100	Wacker Neuson Advantage
Engine Power	24.7 HP	24.8 HP	0%
Tipping Load	1295 Kg	1314 Kg	0%
Auxilliary Hydraulic Flow	49.2 L/min	41.64 L/min	18%
Max. Travel Speed	8.4 Km/h	6.6 Km/h	27%
Ground Clearance	198 mm	200 mm	0%
Track Width	230 mm	180 mm	28%
Ground Pressure	0.2 Bar	0.35 Bar	0%
Transport Weight	1497 Kg	1050 Kg	0%
Max. Hinge Pin Height	2177 mm	2055 mm	6%
Machine Width	902 mm	914 mm	1%

Wacker Neuson SM100 vs Dingo K9DT

	SM100	K9DT	Wacker Neuson Advantage
Engine Power	24.7 HP	27 HP	0%
Tipping Load	1295 Kg	650 Kg	99%
Auxilliary Hydraulic Flow	49.2 L/min	47 L/min	5%
Max. Travel Speed	8.4 Km/h	7.5 Km/h	12%
Ground Clearance	198 mm	155 mm	28%
Track Width	230 mm	230 mm	0%
Ground Pressure	0.2 Bar	0.34 Bar	0%
Transport Weight	1497 Kg	1093 Kg	0%
Max. Hinge Pin Height	2177 mm	1940 mm	12%
Machine Width	902 mm	1020 mm	13%

Wacker Neuson SM100 vs Dingo K9CT

	SM100	K9CT	Wacker Neuson Advantage
Engine Power	24.7 HP	27 HP	0%
Tipping Load	1295 Kg	880 Kg	47%
Auxilliary Hydraulic Flow	49.2 L/min	73 L/min	0%
Max. Travel Speed	8.4 Km/h	9.5 Km/h	0%
Ground Clearance	198 mm	155 mm	28%
Track Width	230 mm	230 mm	0%
Ground Pressure	0.2 Bar	0.35 Bar	0%
Transport Weight	1497 Kg	1180 Kg	0%
Max. Hinge Pin Height	2177 mm	1985 mm	10%
Machine Width	902 mm	1020 mm	13%

Wacker Neuson SM100 vs Ditch Witch SK900

	SM100	SK900	Wacker Neuson Advantage
Engine Power	24.7 HP	24.8 HP	0%
Tipping Load	1295 Kg	1208 Kg	7%
Auxilliary Hydraulic Flow	49.2 L/min	45.3 L/min	9%
Max. Travel Speed	8.4 Km/h	6.4 Km/h	31%
Ground Clearance	198 mm	226 mm	0%
Track Width	230 mm	180 mm	28%
Ground Pressure	0.2 Bar	0.36 Bar	56%
Transport Weight	1497 Kg	1447 Kg	0%
Max. Hinge Pin Height	2177 mm	2100 mm	4%
Machine Width	902 mm	1065 mm	18%

Wacker Neuson SM100 vs Kanga DT725

	SM100	DT725	Wacker Neuson Advantage
Engine Power	24.7 HP	22.1 HP	12%
Tipping Load	1295 Kg	430 Kg	201%
Auxilliary Hydraulic Flow	49.2 L/min	41 L/min	20%
Max. Travel Speed	8.4 Km/h	7 Km/h	20%
Ground Clearance	198 mm	195 mm	2%
Track Width	230 mm	300 mm	0%
Ground Pressure	0.2 Bar	2.78 Bar	0%
Transport Weight	1497 Kg	863 Kg	0%
Max. Hinge Pin Height	2177 mm	1870 mm	16%
Machine Width	902 mm	1040 mm	15%

Wacker Neuson SM100 vs Toro TX1000 Narrow Track

	SM100	TX1000 Narrow	Wacker Neuson Advantage
Engine Power	24.7 HP	24.8 HP	0%
Tipping Load	1295 Kg	1296 Kg	0%
Auxilliary Hydraulic Flow	49.2 L/min	36 L/min	37%
Max. Travel Speed	8.4 Km/h	6.1 Km/h	38%
Ground Clearance	198 mm	152 mm	30%
Track Width	230 mm	149 mm	54%
Ground Pressure	0.2 Bar	0.39 Bar	0%
Transport Weight	1497 Kg	1263 Kg	0%
Max. Hinge Pin Height	2177 mm	2057 mm	6%
Machine Width	902 mm	868 mm	0%

Wacker Neuson SM100 vs Toro TX1000 Wide Track

	SM100	TX1000 Wide	Wacker Neuson Advantage
Engine Power	24.7 HP	24.8 HP	0%
Tipping Load	1295 Kg	1393 Kg	0%
Auxilliary Hydraulic Flow	49.2 L/min	36 L/min	37%
Max. Travel Speed	8.4 Km/h	7.6 Km/h	11%
Ground Clearance	198 mm	152 mm	30%
Track Width	230 mm	241 mm	0%
Ground Pressure	0.2 Bar	0.25 Bar	0%
Transport Weight	1497 Kg	1265 Kg	0%
Max. Hinge Pin Height	2177 mm	2057 mm	6%
Machine Width	902 mm	1041 mm	15%

Wacker Neuson SM100 vs Vermeer S925TX

	SM100	S925TX	Wacker Neuson Advantage
Engine Power	24.7 HP	35 HP	0%
Tipping Load	1295 Kg	1198 Kg	8%
Auxilliary Hydraulic Flow	49.2 L/min	58.7 L/min	0%
Max. Travel Speed	8.4 Km/h	7.3 Km/h	15%
Ground Clearance	198 mm	152 mm	30%
Track Width	230 mm	180 mm	28%
Ground Pressure	0.2 Bar	0.4 Bar	0%
Transport Weight	1497 Kg	1519 Kg	1%
Max. Hinge Pin Height	2177 mm	2146 mm	1%
Machine Width	902 mm	914 mm	1%

Weights:

Operating Weight

1,497 Kg

Engine:

Manufacturer	Yanmar
Model	3TNV80 FT
Construction	3-cylinder, turbo diesel, liquid-cooled
Displacement	1,266 cm³
Engine Output according to ISO	18.4 kW (25 HP)

Hydraulics:

Auxiliary Hydraulics	49 L/min
Operating Pressure for working hydraulics	210 Bar
Construction	Hydrostatic Drive + Twin Gear Pump

Undercarriage:

Construction	Raised Drive with Direct Drive Motor
Track Width	230 mm

Operating Data:

Rated Capacity 35% ROC Rated Capacity 50% ROC	453 Kg 650 Kg
Tip Load	1,299 Kg
Travel Speed	8.7 Km/h

Capacities:

Fuel Tank

64 L

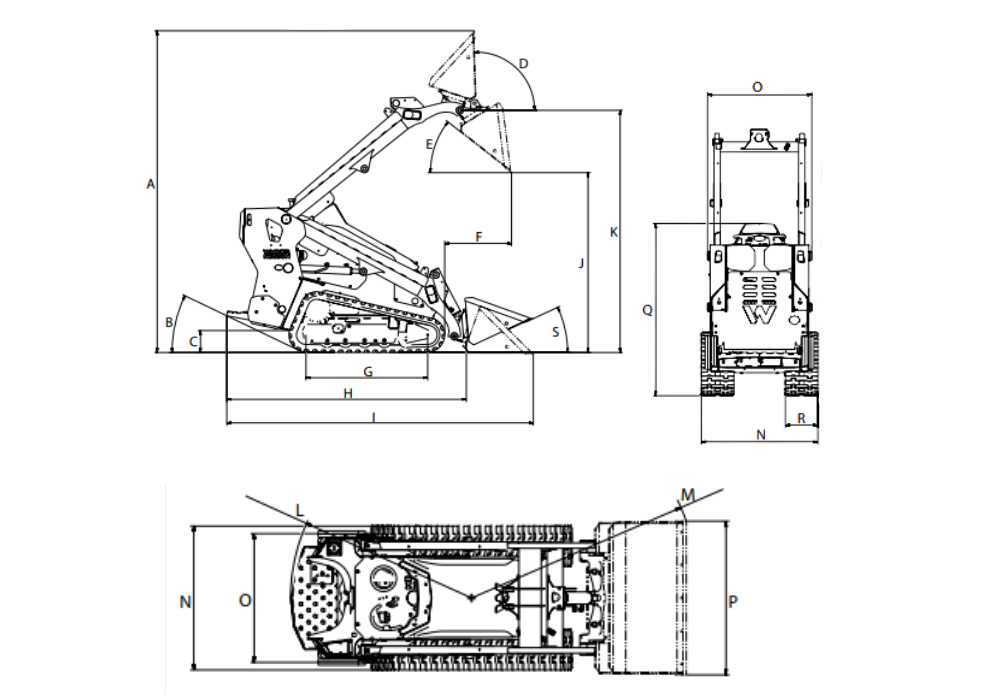

Working Dimensions:

A	Overall operating height, fully raised, with bucket	2,892.2 mm
B	Angle of departure	25.6°
C	Ground clearance, bottom of belly pan	196.9 mm
D	Maximum rollback, fully raised	92°
E	Dump Angle at maximum height	38.2°
F	Reach at maximum height	604.1 mm
G	Wheelbase	1,092.5 mm
H	Overall length, without bucket, with coupler	2,153 mm
I	Overall length with bucket	2,754.9 mm
J	Dump height	1,615.1 mm
K	Hinge pin height, fully raised	2,175 mm
L	Clearance circle, rear	1,260.2 mm
M	Clearance circle, bucket on ground	1,564 mm
N	Overall width	901.74 mm
O	Track gauge	896.4 mm
P	Bucket width	914.4 mm
Q	Overall height	1,478 mm
R	Track width	230 mm
S	Maximum rollback at ground	25°

Specifications subject to change without notice due to continual product development.
