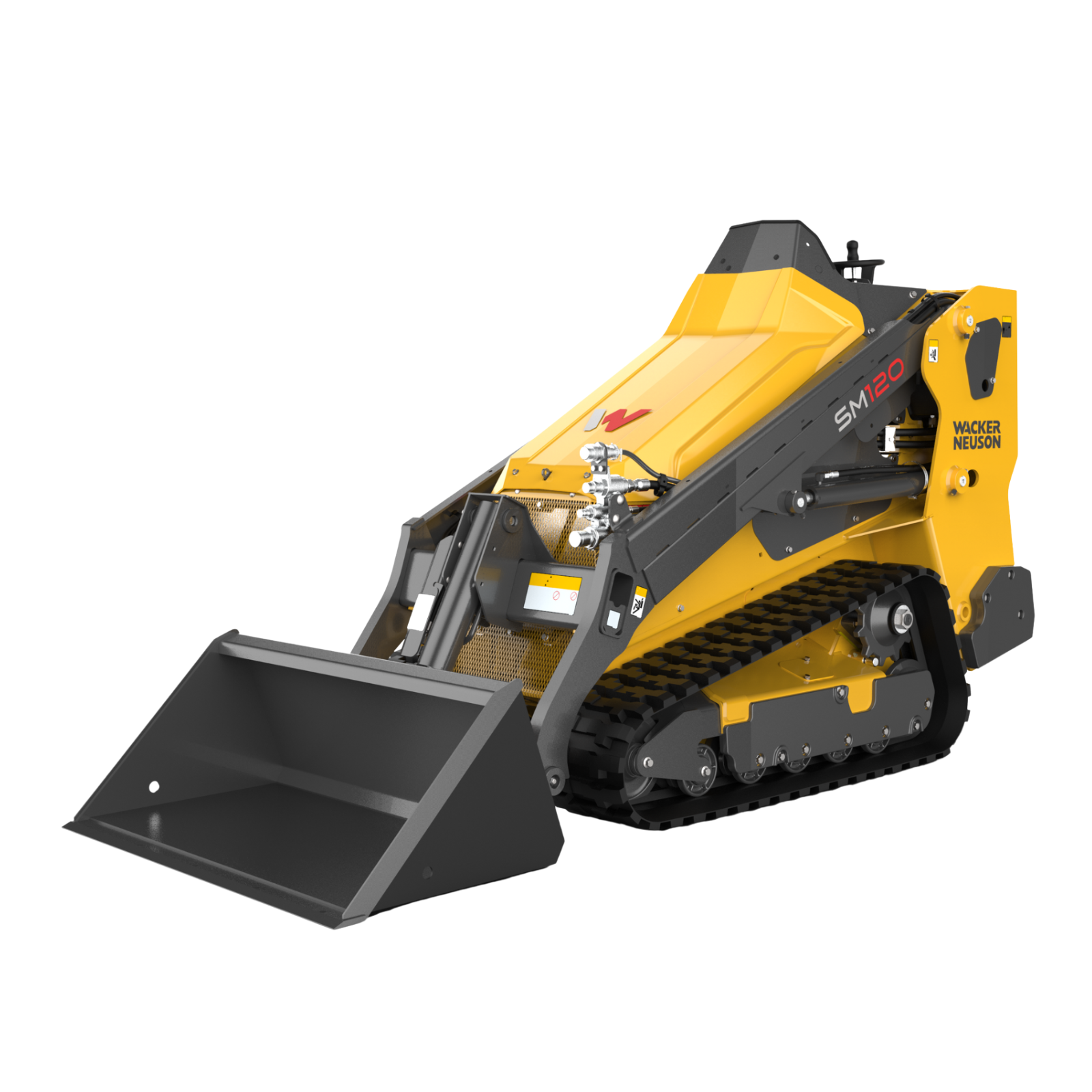

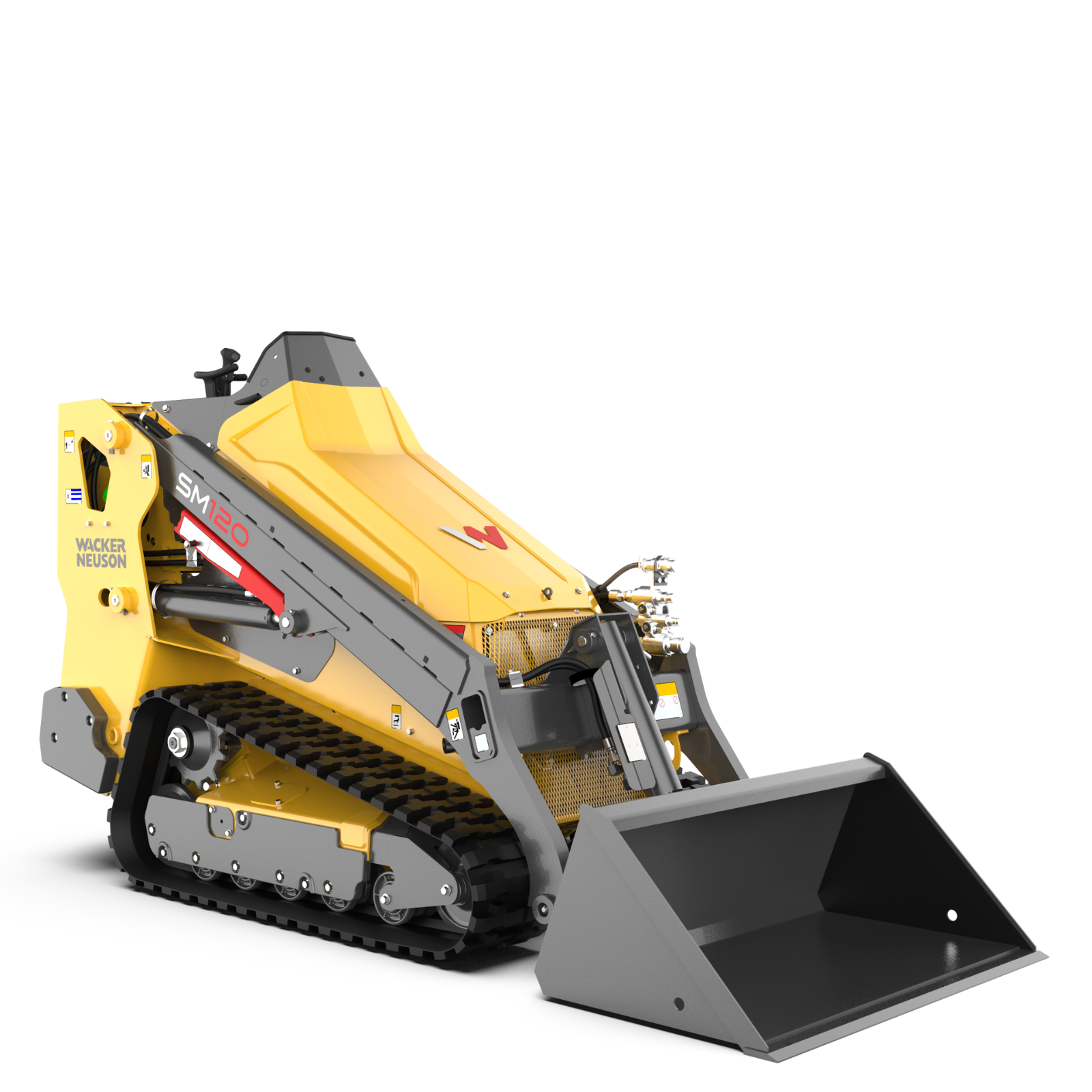

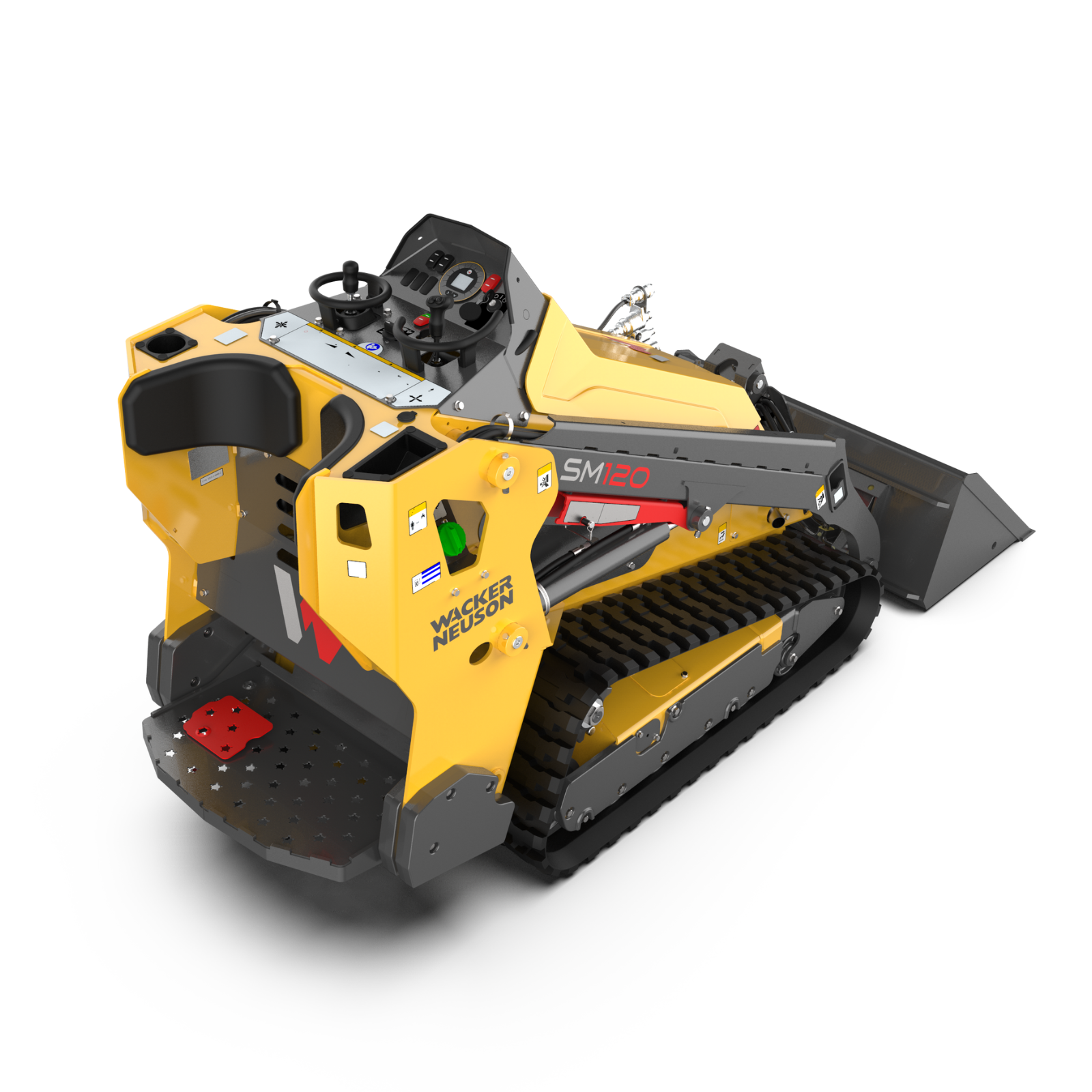

Wacker Neuson SM120 Tracked Loader

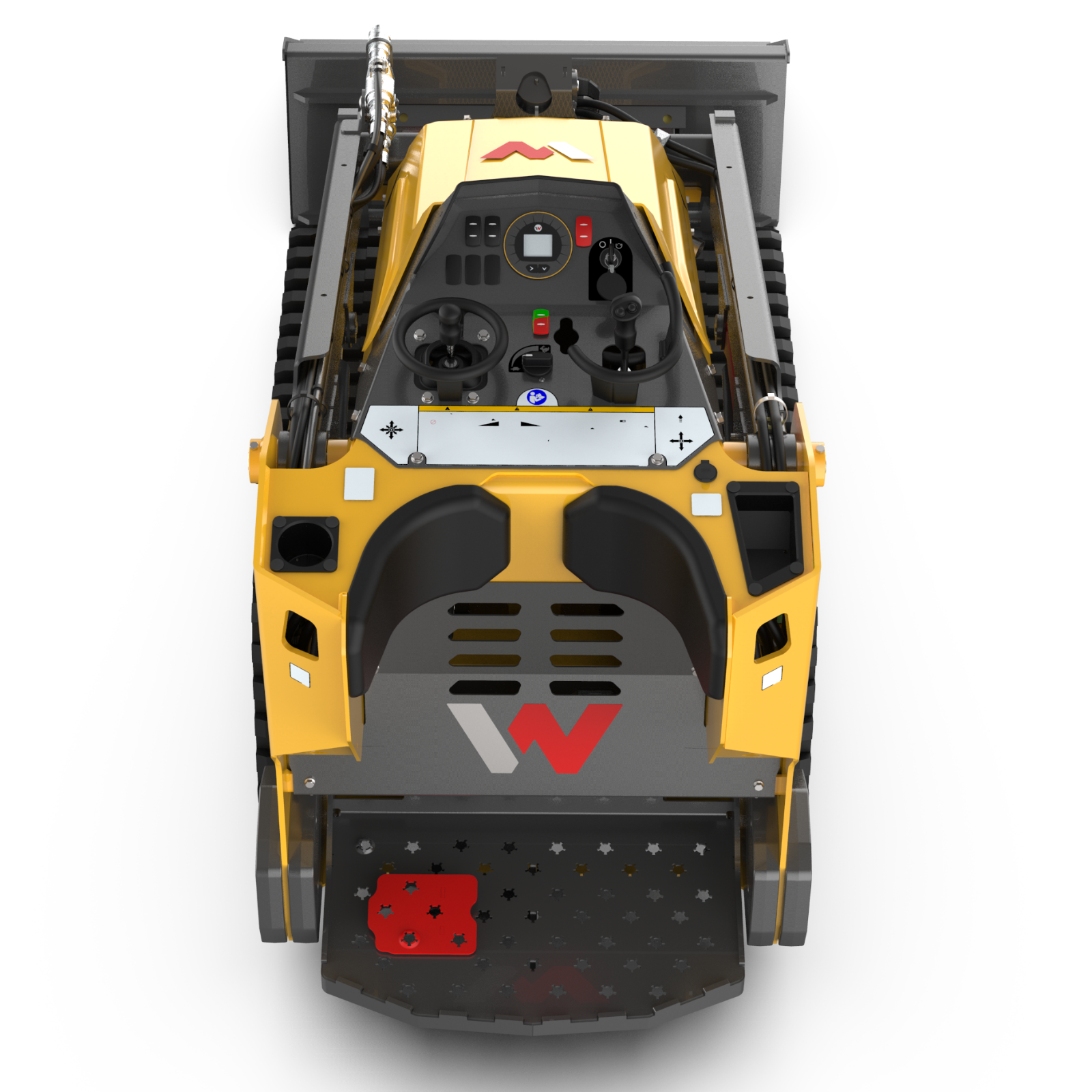

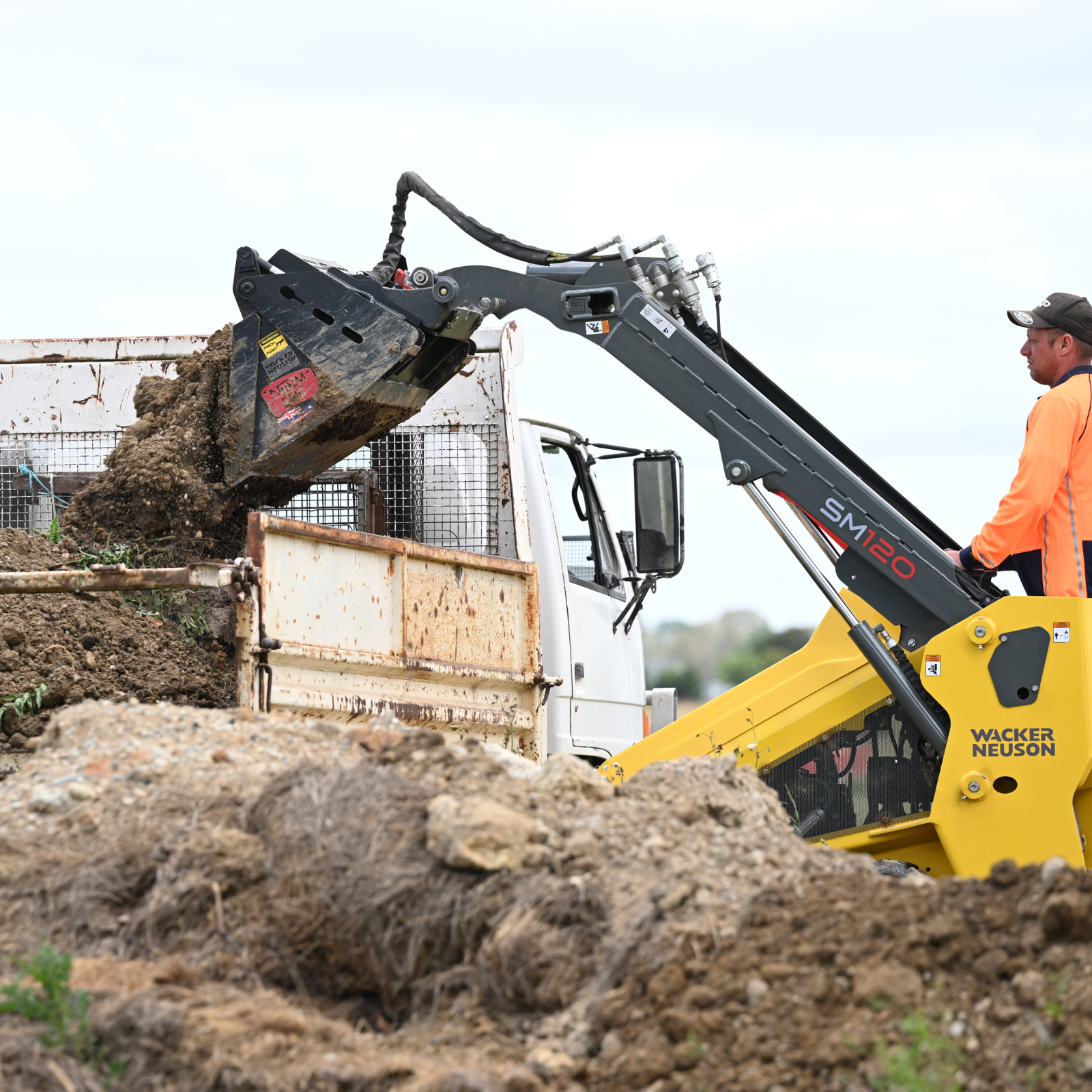

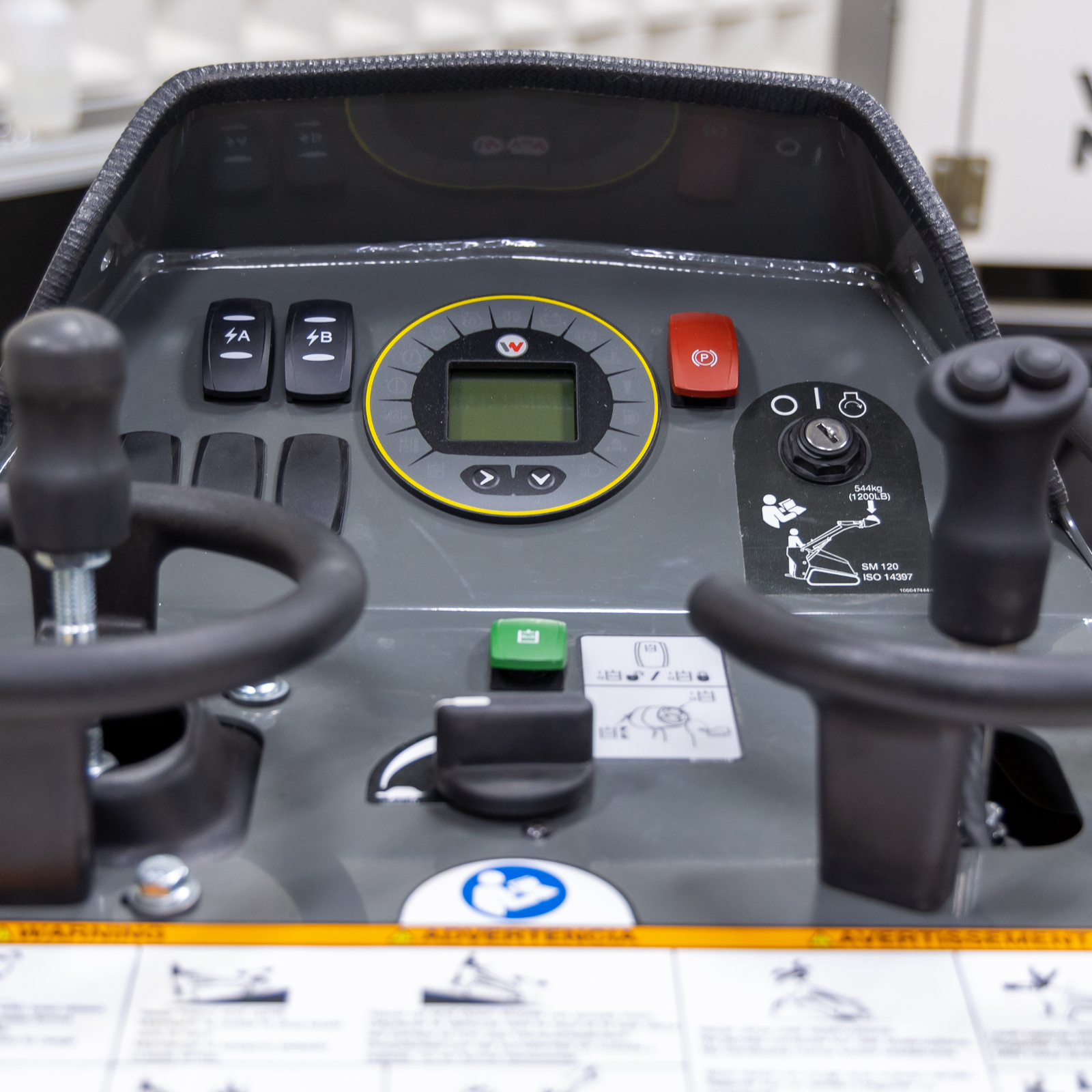

The SM120 mini-loader is optimized for operator comfort and efficiency with Wacker Neuson's state-of-the-art ergonomic controls and a spring suspension system that ensures a smooth, stable ride. Equipped with the productivity package, essential controls are easily accessible at the operator's fingertips via a thumbwheel control, enabling seamless operation of attachments. With its elevated hinge pin offering a 2,175mm lift height to hinge pin, the SM120 facilitates effortless loading into tall trucks and skips. Moreover, the machine's wide 280 track width significantly reduces ground pressure, making it one of the best choices to avoid accidental damage at worksites.

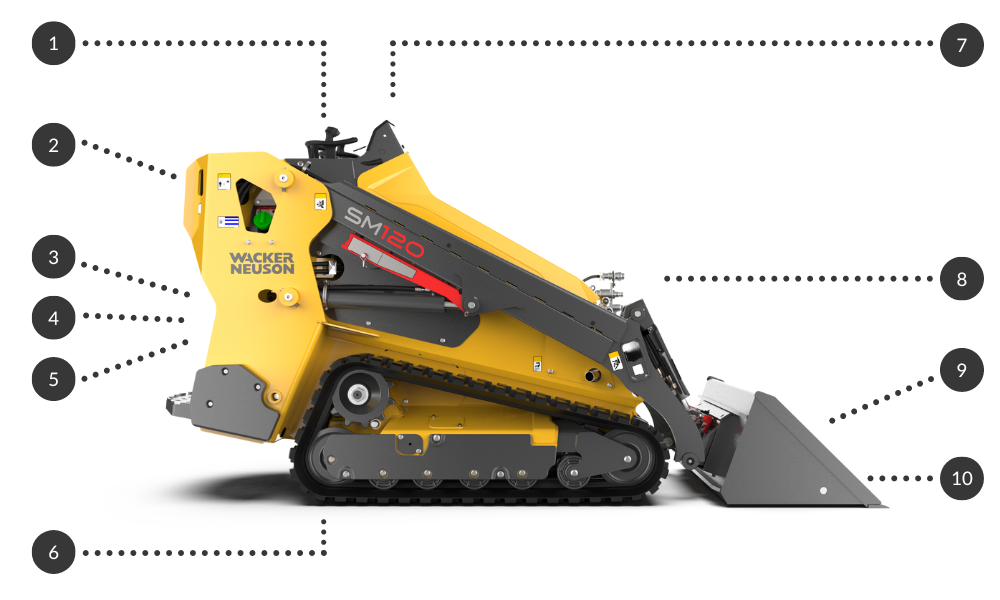

Key Features:

1.	Safety	Operator present switch on foot panel. Low centre of gravity increases stability. Soft touch pilot controls reduce risk of operator being thrown from machine during operation. Easily accessible etie down points for safe transportation. All machines sold by ACES have an OHS Risk assessment prior to delivery.
2.	Quality	Industry leading 5 Year / 5000 hour warranty. Powder coated finishes for long life without fading or corrosion. HD precision ground hardened steel pins and bushes. HD proprietary undercarriage components. 280mm wide tracks for long service life.
3.	Power	Powered by Yanmar 3TNV80 25HP turbo diesel engine. Class leading 25HP hydraulic system. Hydrostatic transmission to power tracks. 2 Pump system, 210 bar relief pressure.
4.	Efficiency	Hydrostatic transmission for the best driving efficiency. 556kg SWL @ 35% of tip load for low 1,497kg machine mass. Efficient 2 wheel motor, direct drive to sprocket track system. High efficiency hydraulic oil cooler.
5.	Cooling	Efficient liquid-cooled diesel engine. Fan motor forces hot air away from the operator not into the operator like competitors. High efficiency hydraulic oil cooler. Designed for hot climates.

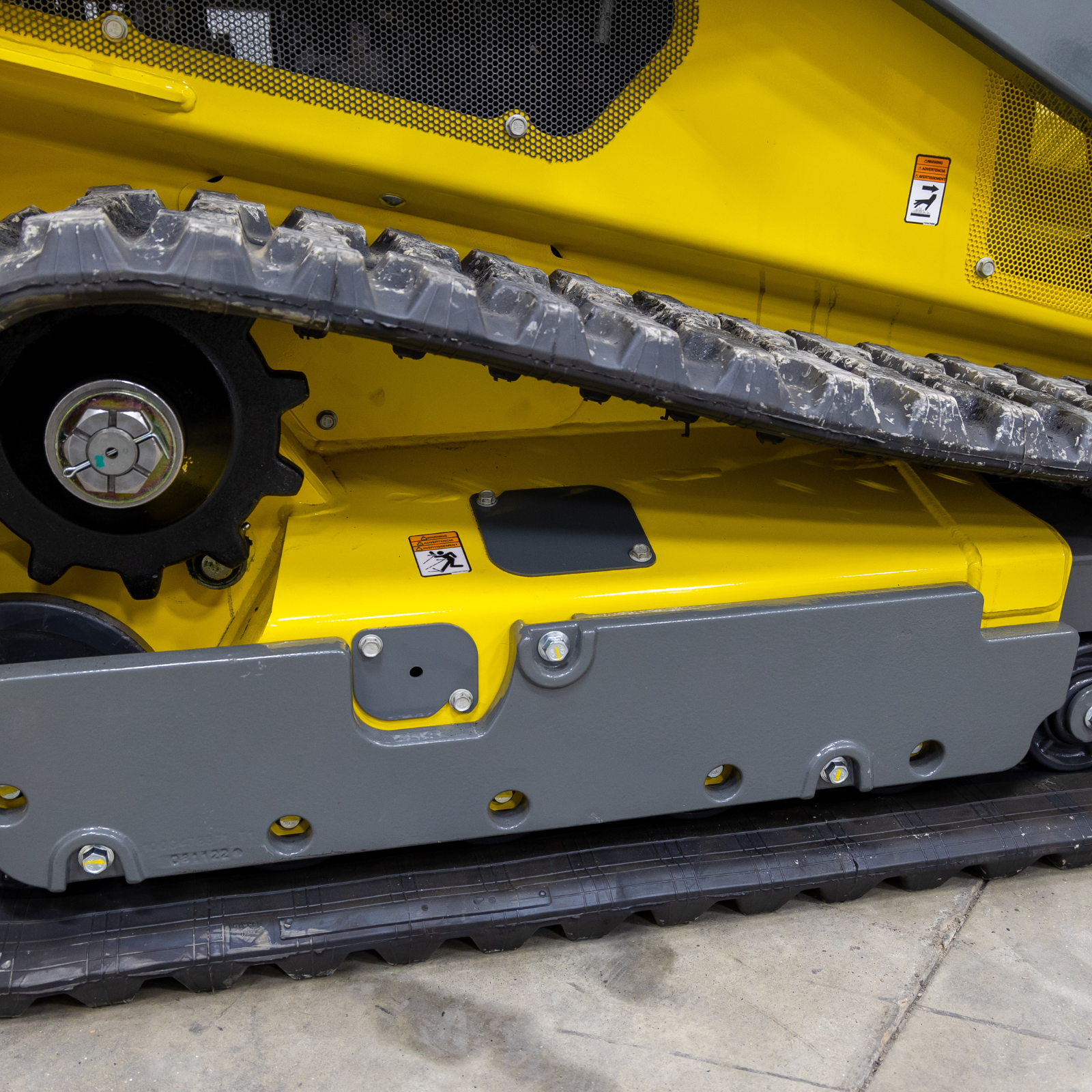

6.	Traction	High track contact point with unique Wacker Neuson track design. 5 central triple flange rollers. Front idler and lower roller mounted together, optimal distance from front idler to roller, lowers risk of detracking. 280mm track for low ground pressure and high traction forces.

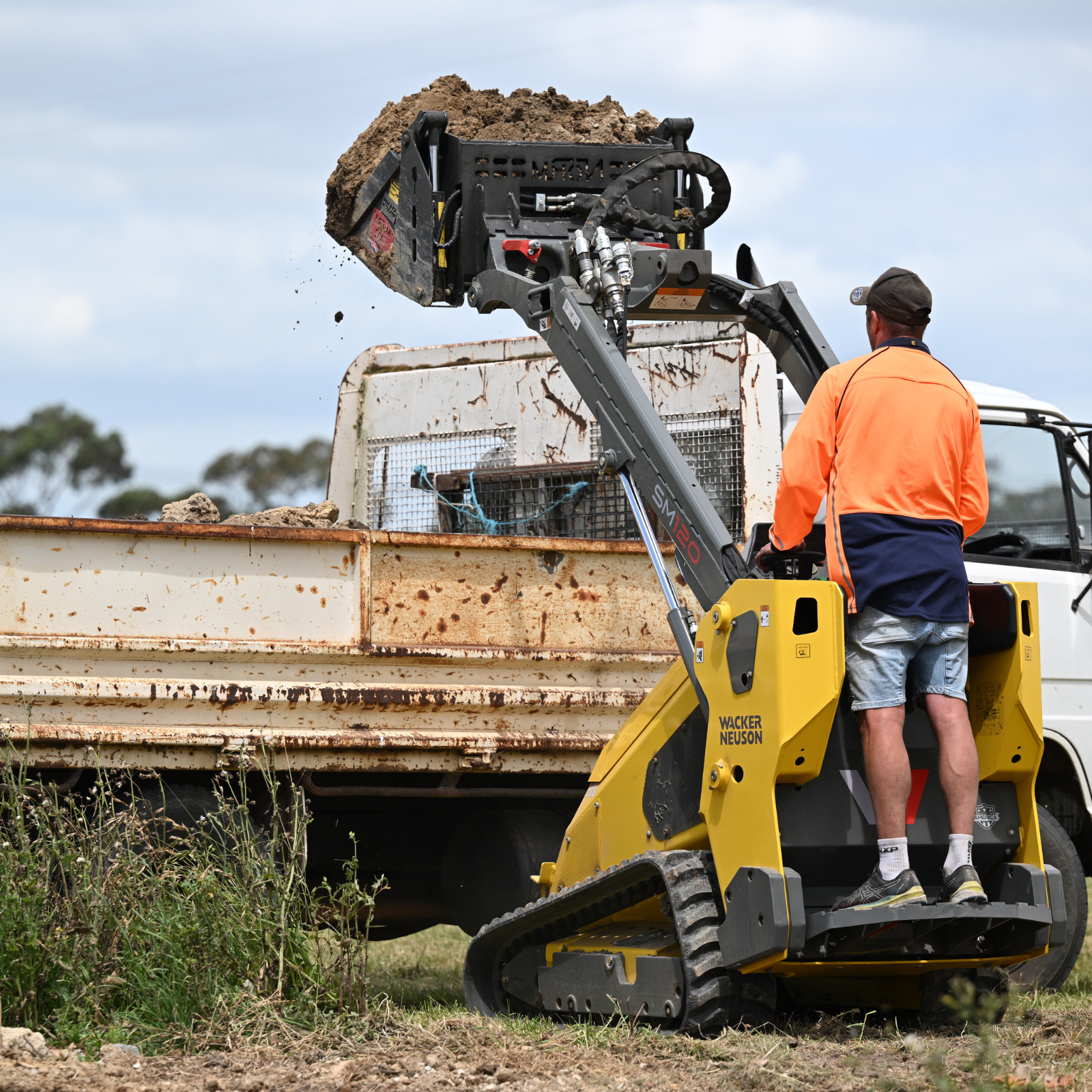

7.	Versatility	ISO control, extremely easy to operate. 2,176mm lift height to hinge point for over fencing dumping and easy loading into trucks and skips. Radial lift for easy loading and unloading of pallets.
8.	Auxiliary Hydraulics	Thumb wheel control standard. Two way auxiliary piping. Case drain standard. 14 Pin attachment control standard Auxiliaries fitted with pressure reducing flat faced coupling for easy connection of attachments. 49L/min standard flow perfect for running a range of attachments such as trenchers, flail mowers and augers.
9.	Hitch	SAE Mini multifit pickup. Superior hitch design for added strength and longevity.
10.	Attachments	SAE Mini multifit hitch for full range of attachments. High capacity hydraulics capable of running a full range of attachments. Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.

(SM120)

SM120 Tracked Mini Loader - Market Comparison

Use the machinery comparison charts to check the facts from the ficton before you make your next excavator purchase. Fields market in green show a good Wacker Neuson advantage, fields market in blue show a significant Wacker Neuson advantage.

Click on the links below to compare the machines:

Dingo K9CT vs Wacker Neuson SM120
Ditch Witch SK1050 vs Wacker Neuson SM120
Kanga DT835 vs Wacker Neuson SM120
Toro TX1000 Wide Track vs Wacker Neuson SM120
Vermeer CTX100 vs Wacker Neuson SM120

Wacker Neuson SM120 vs Dingo K9CT

	SM120	K9CT	Wacker Neuson Advantage
Engine Power	24.7 HP	27 HP	0%
Tipping Load	1589 Kg	880 Kg	81%
Auxilliary Hydraulic Flow	49 L/min	52 L/min	0%
Max. Travel Speed	8.1 Km/h	9.5 Km/h	0%
Ground Clearance	198 mm	155 mm	28%
Track Width	280 mm	230 mm	22%
Ground Pressure	0.3 Bar	0.35 Bar	0%
Transport Weight	1703 Kg	1180 Kg	0%
Max. Hinge Pin Height	2176 mm	1985 mm	10%
Machine Width	1041 mm	1020 mm	0%

Wacker Neuson SM120 vs Ditch Witch SK1050

	SM120	SK1050	Wacker Neuson Advantage
Engine Power	24.7 HP	36.9 HP	0%
Tipping Load	1589 Kg	1377 Kg	15%
Auxilliary Hydraulic Flow	49 L/min	52.6 L/min	0%
Max. Travel Speed	8.1 Km/h	7.6 Km/h	7%
Ground Clearance	198 mm	188 mm	5%
Track Width	280 mm	180 mm	56%
Ground Pressure	0.3 Bar	0.43 Bar	0%
Transport Weight	1703 Kg	1558 Kg	0%
Max. Hinge Pin Height	2176 mm	2108 mm	3%
Machine Width	1041 mm	1060 mm	2%

Wacker Neuson SM120 vs Kanga DT835

	SM120	DT835	Wacker Neuson Advantage
Engine Power	24.7 HP	33.5 HP	0%
Tipping Load	1589 Kg	604 Kg	163%
Auxilliary Hydraulic Flow	49 L/min	50 L/min	0%
Max. Travel Speed	8.1 Km/h	9.3 Km/h	0%
Ground Clearance	198 mm	195 mm	2%
Track Width	280 mm	330 mm	0%
Ground Pressure	0.3 Bar	2.7 Bar	0%
Transport Weight	1703 Kg	1050 Kg	0%
Max. Hinge Pin Height	2176 mm	2057 mm	6%
Machine Width	1041 mm	1046 mm	0%

Wacker Neuson SM120 vs Toro TX1000 Wide Track

	SM120	TX1000 Wide Track	Wacker Neuson Advantage
Engine Power	24.7 HP	24.8 HP	0%
Tipping Load	1589 Kg	1393 Kg	14%
Auxilliary Hydraulic Flow	49 L/min	36 L/min	36%
Max. Travel Speed	8.1 Km/h	7.6 Km/h	7%
Ground Clearance	198 mm	152 mm	30%
Track Width	280 mm	241 mm	16%
Ground Pressure	0.3 Bar	0.25 Bar	20%
Transport Weight	1703 Kg	1265 Kg	0%
Max. Hinge Pin Height	2176 mm	2057 mm	6%
Machine Width	1041 mm	1041 mm	0%

Wacker Neuson SM120 vs Vermeer CTX100

	SM120	CTX100	Wacker Neuson Advantage
Engine Power	24.7 HP	40 HP	0%
Tipping Load	1589 Kg	1341 Kg	18%
Auxilliary Hydraulic Flow	49 L/min	58.7 L/min	0%
Max. Travel Speed	8.1 Km/h	7.1 Km/h	14%
Ground Clearance	198 mm	171 mm	16%
Track Width	280 mm	180 mm	56%
Ground Pressure	0.3 Bar	0.4 Bar	0%
Transport Weight	1703 Kg	1533 Kg	0%
Max. Hinge Pin Height	2176 mm	2235 mm	0%
Machine Width	1041 mm	914 mm	0%

Weights:

Operating Weight

1,497 Kg

Engine:

Manufacturer	Yanmar
Model	3TNV80 FT
Construction	3-cylinder, turbo diesel, liquid-cooled
Displacement	1,266 cm³
Engine Output according to ISO	18.4 kW (25 HP)

Hydraulics:

Auxiliary Hydraulics	49.4 L/min
Operating Pressure for working hydraulics	210 Bar
Construction	Hydrostatic Drive + Twin Gear Pump

Undercarriage:

Construction	Raised Drive with Direct Drive Motor
Track Width	230 mm

Operating Data:

Rated Operating Capacity 35% Rated Operating Capacity 50%	556 Kg 795 Kg
Tip Load	1,590 Kg
Travel Speed	8.7 Km/h

Capacities:

Fuel Tank

64 L

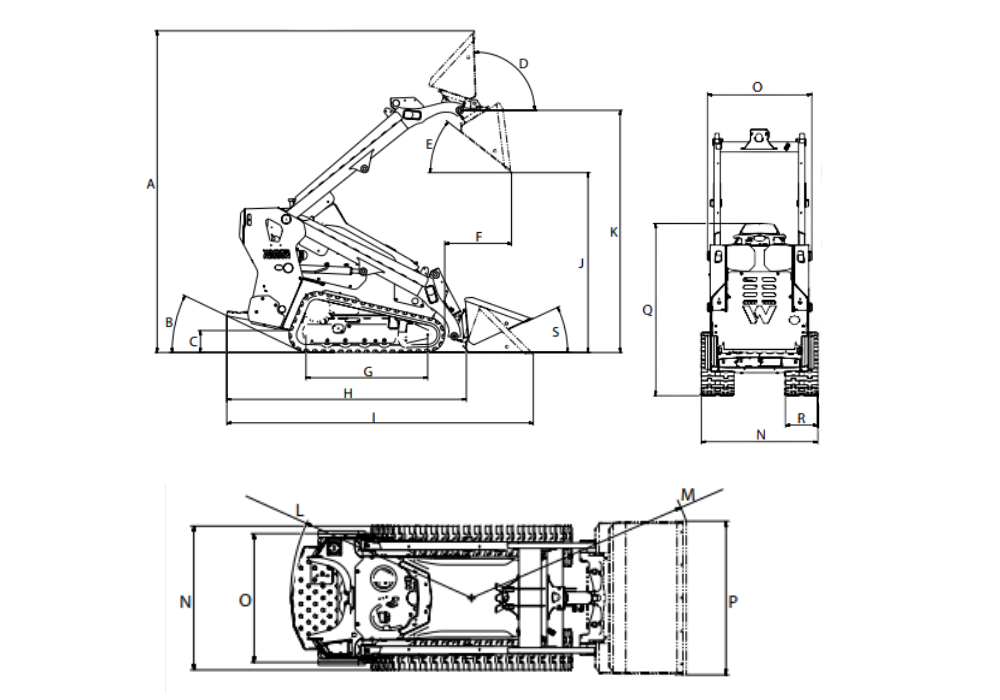

Working Dimensions:

A	Overall operating height, fully raised, with bucket	2,889 mm
B	Angle of departure	25.6°
C	Ground clearance, bottom of belly pan	196.9 mm
D	Maximum rollback, fully raised	92°
E	Dump Angle at maximum height	38.2°
F	Reach at maximum height	599.9 mm
G	Wheelbase	1,092.5 mm
H	Overall length, without bucket, with coupler	2,150.2 mm
I	Overall length with bucket	2,751.6 mm
J	Dump height	1,615.1 mm
K	Hinge pin height, fully raised	2,175 mm
L	Clearance circle, rear	1,260.2 mm
M	Clearance circle, bucket on ground	1,587.1 mm
N	Overall width	1,041.4 mm
O	Track gauge	896.4 mm
P	Bucket width	1,070 mm
Q	Overall height	1,478 mm
R	Track width	280 mm
S	Maximum rollback at ground	25°

* Specifications subject to change without notice due to continual product development.
