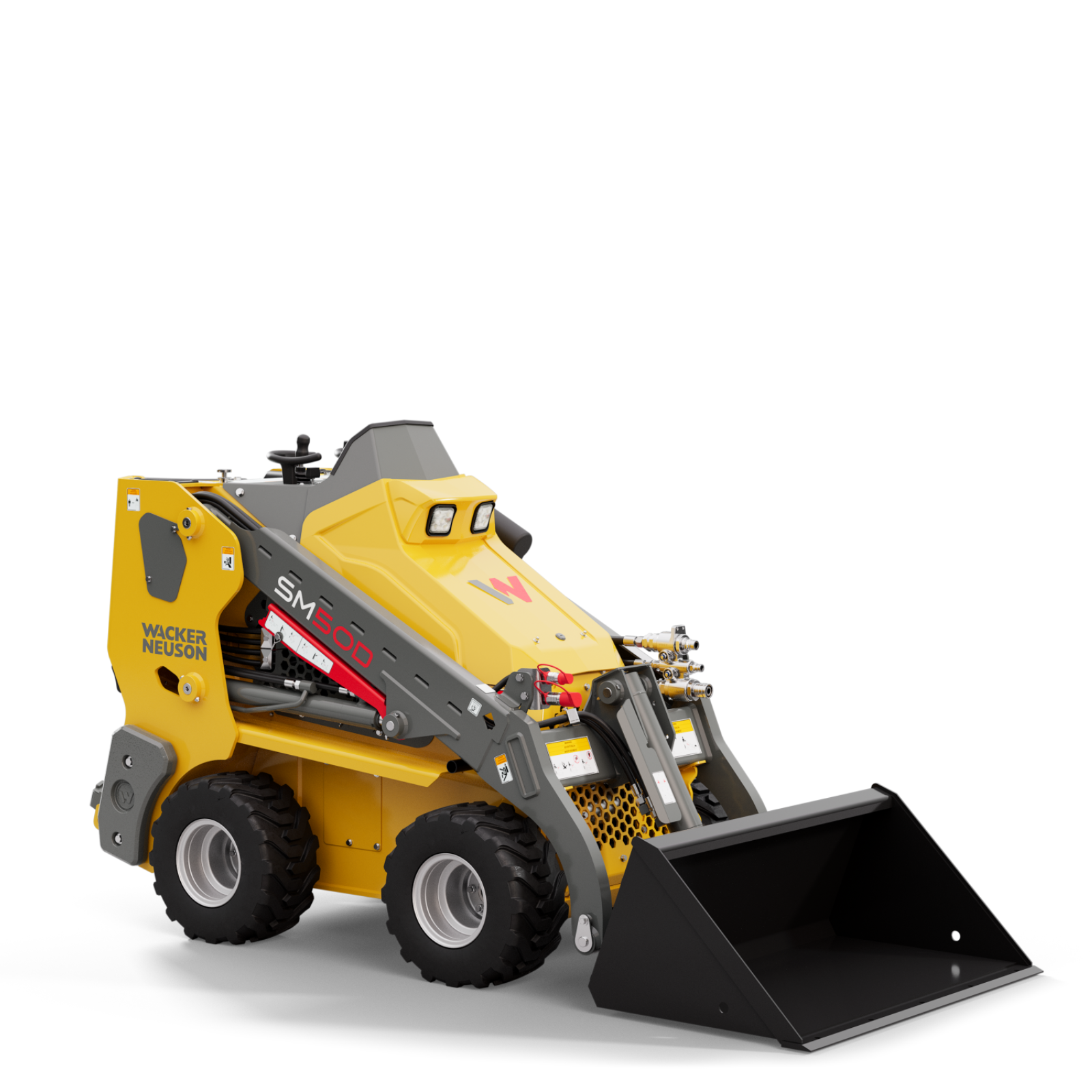

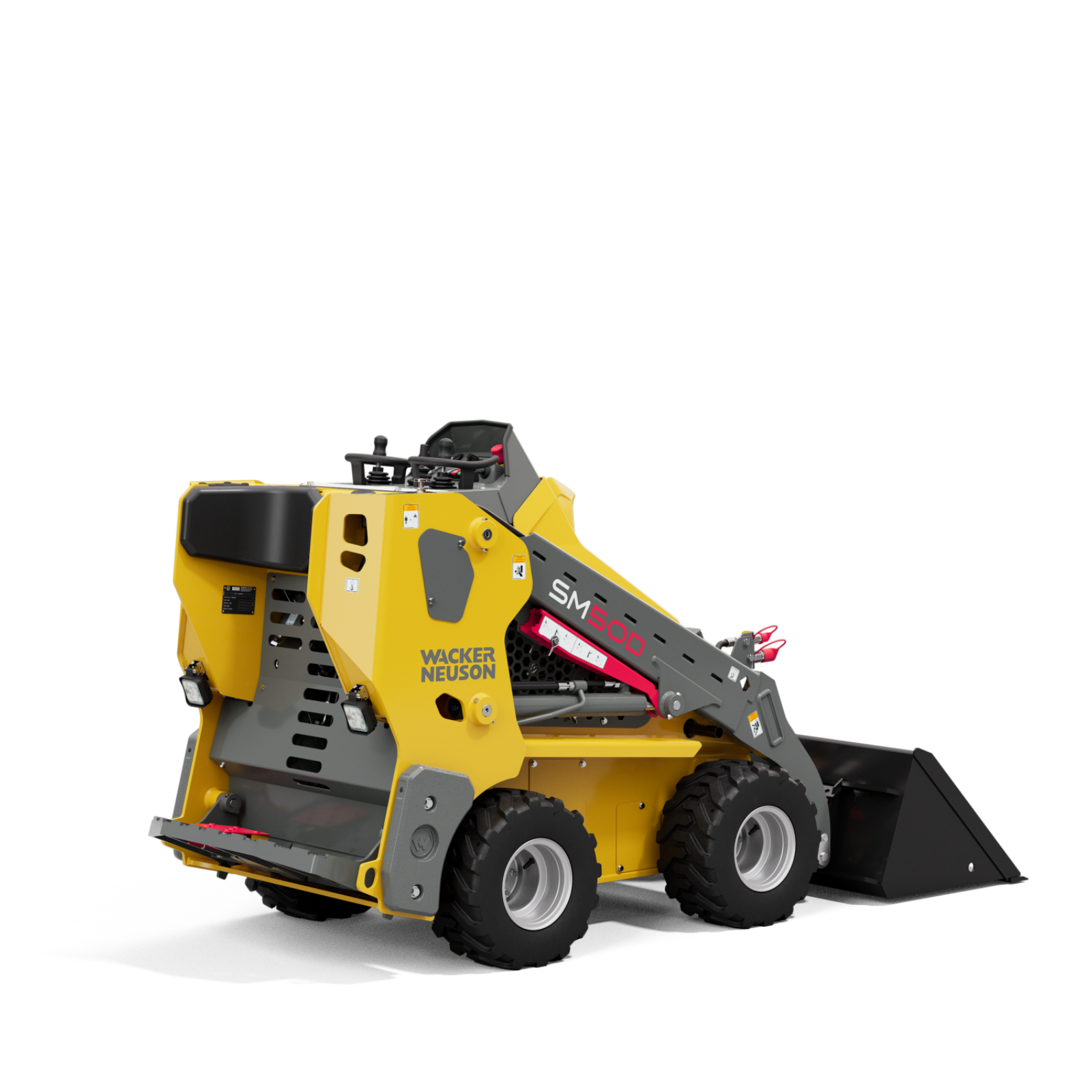

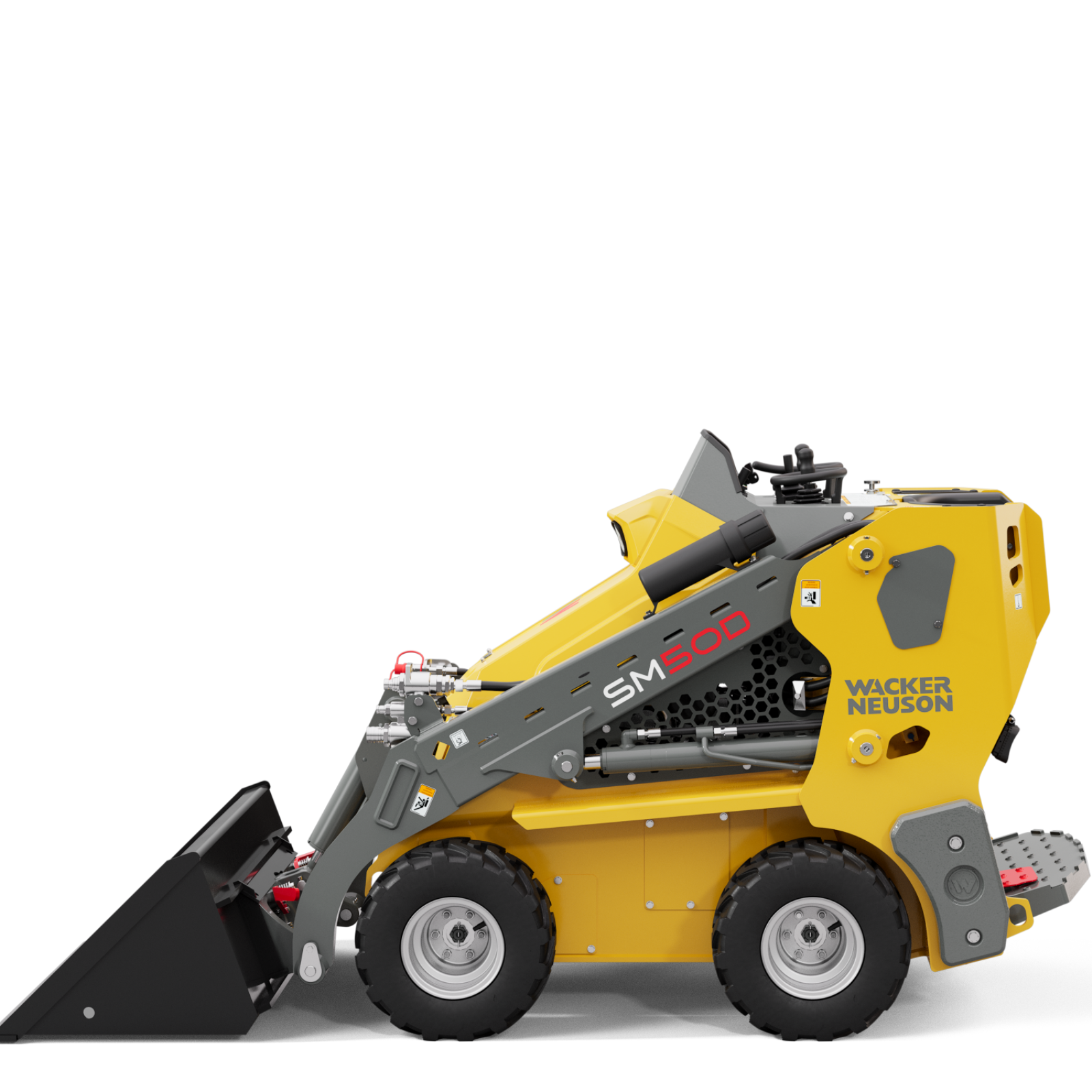

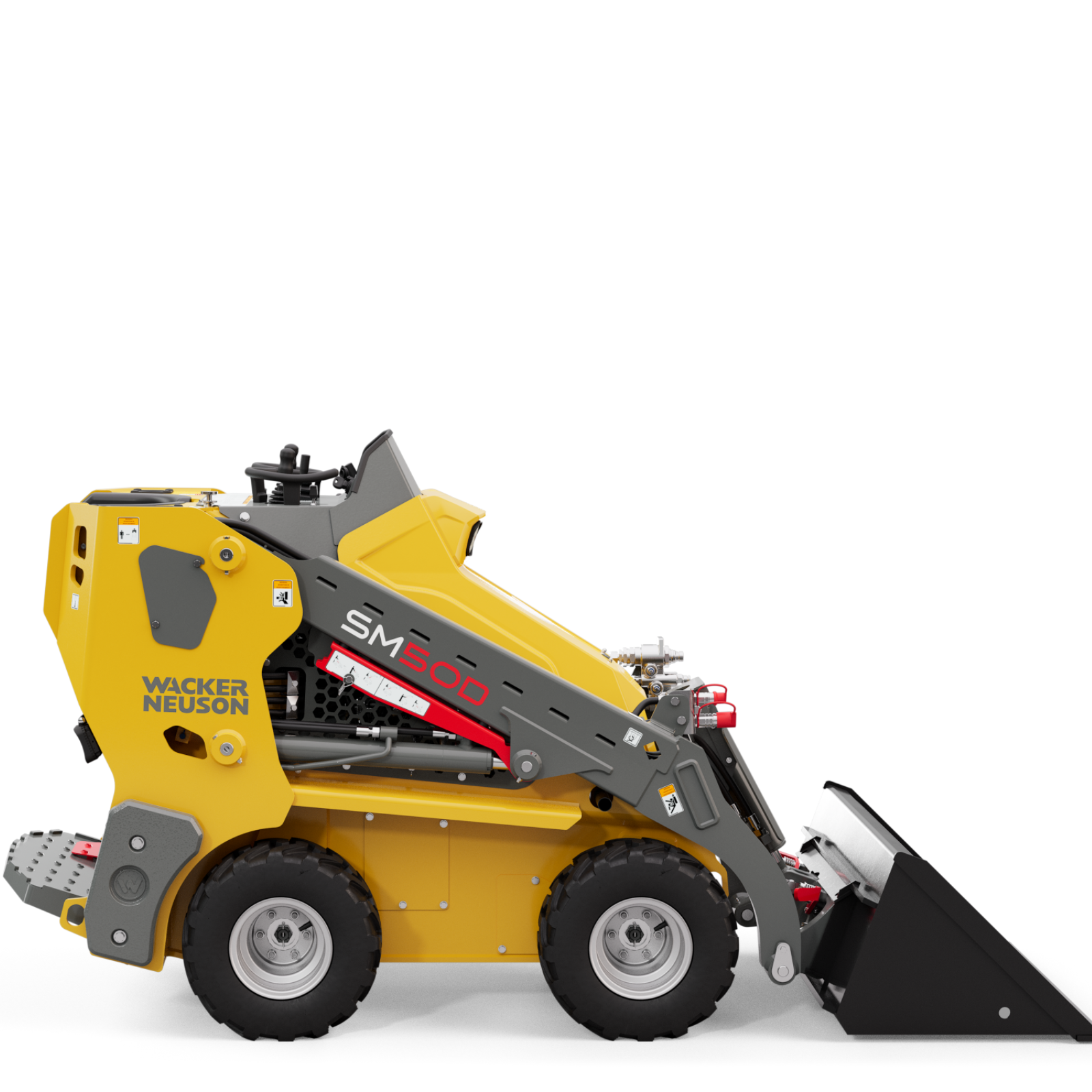

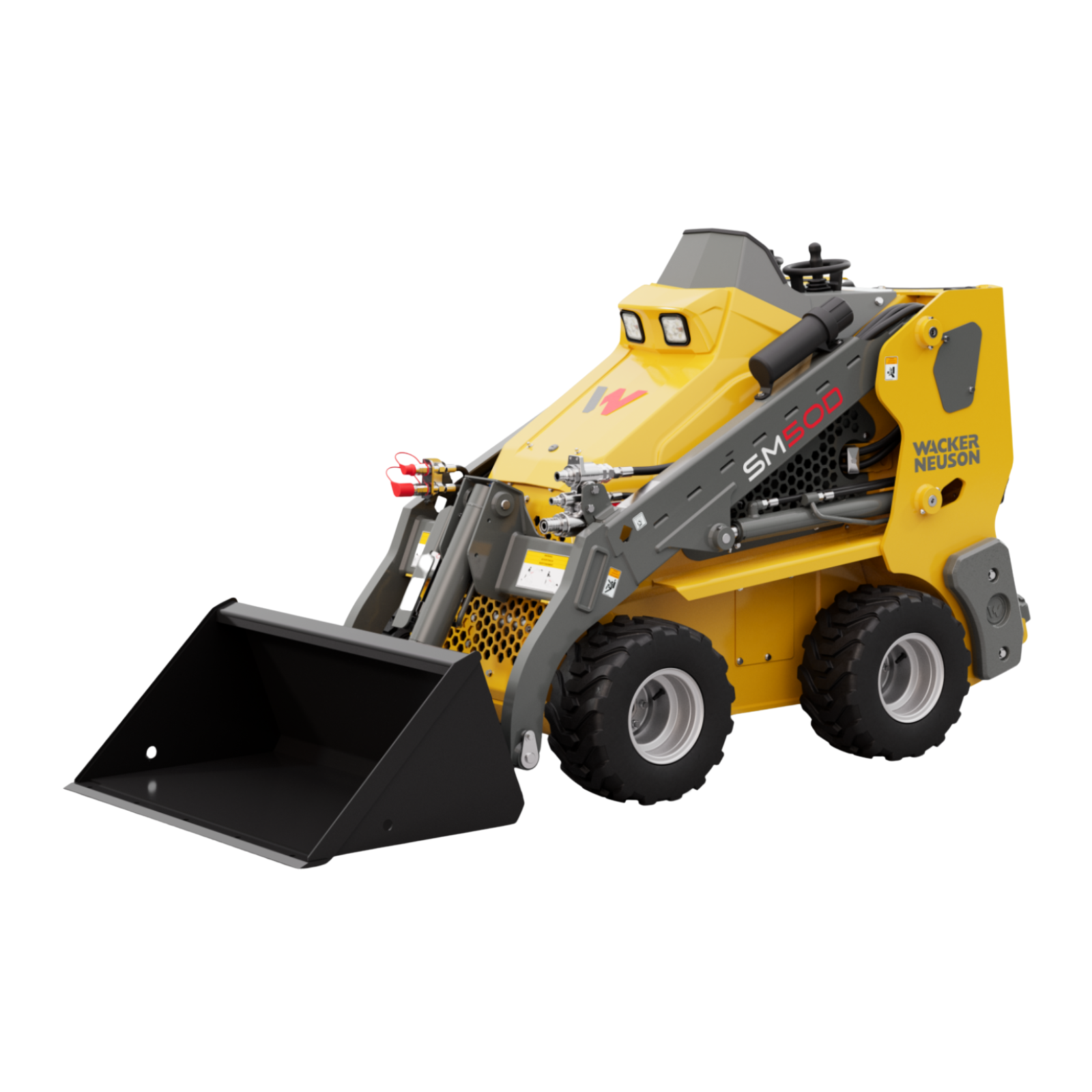

NEW Wacker Neuson SM50D Wheeled Mini Loader For Sale

Enquiry/Quote

Wacker Neuson SM50 - Tracked Loader

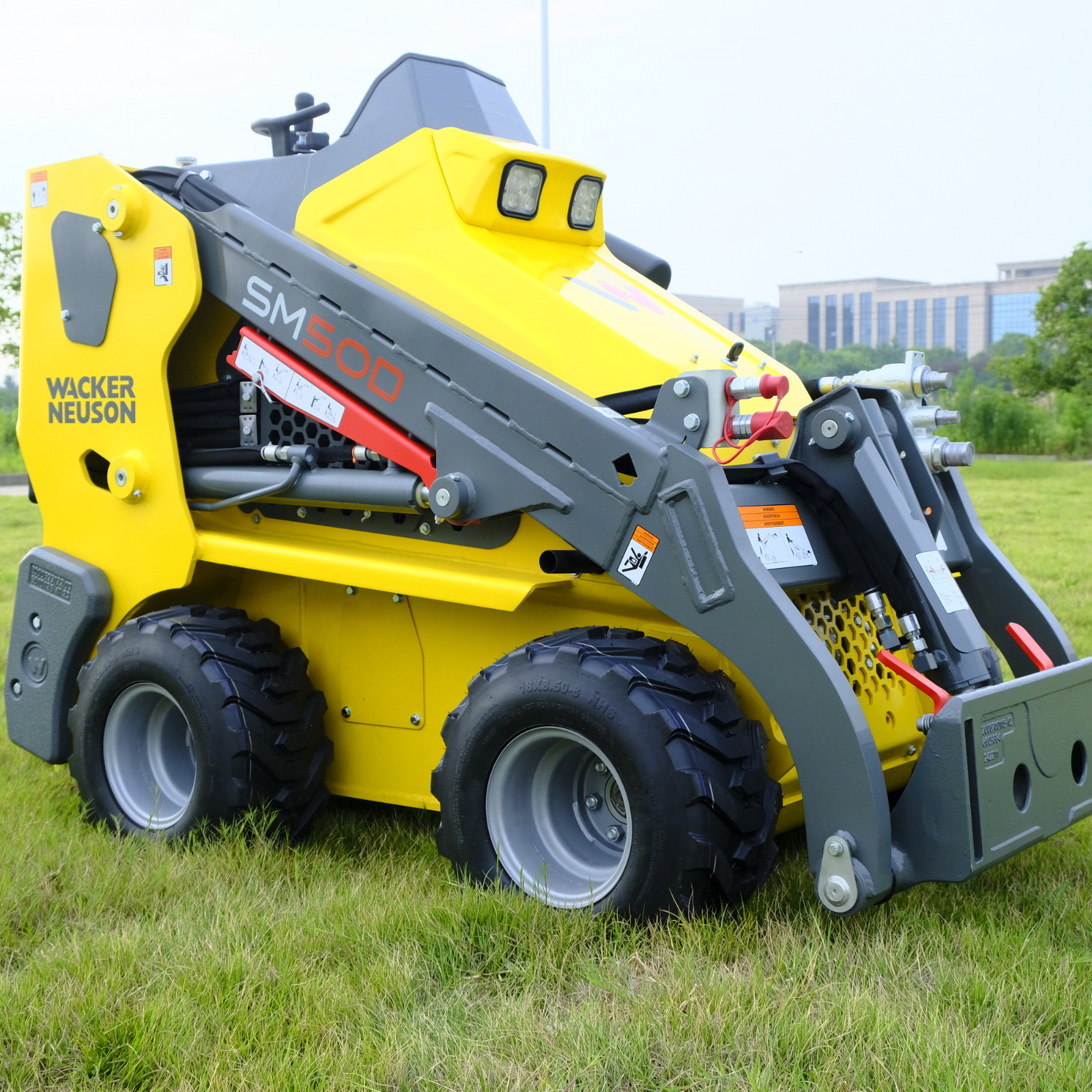

The Wacker Neuson SM50D compact utility wheel loader combines German engineering with years of Australian operator feedback. This results in a versatile and efficient machine perfect for tight spaces and demanding jobs. A powerful drive system and load-sensing hydraulics ensure performance and fuel economy. Ergonomic joystick controls and a well-designed operator station prioritize comfort and ease of use. High-flow auxiliary hydraulics allow for a wide range of attachments. Standard with 5 year / 5000 hour warranty.

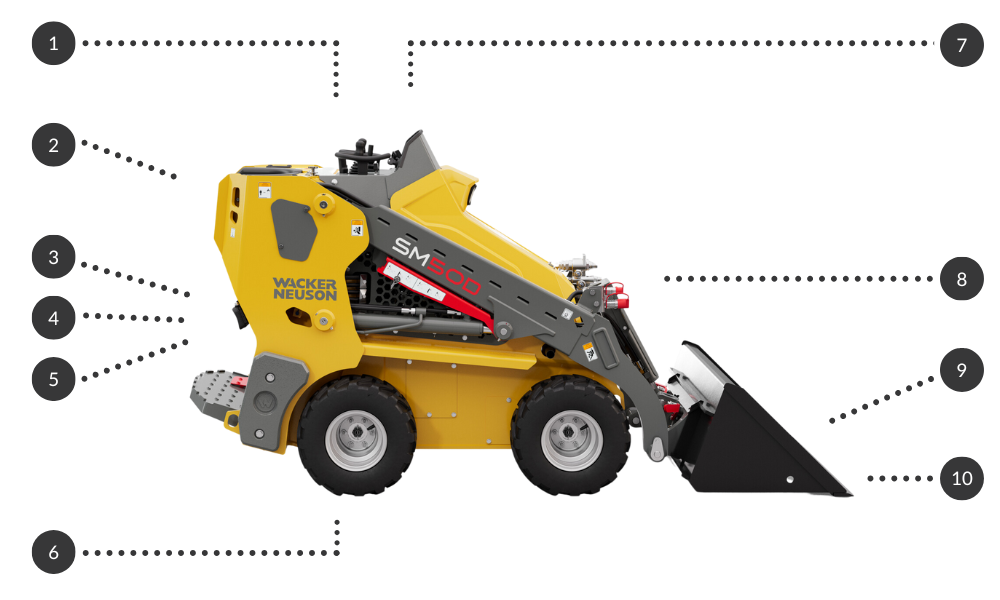

Key Features:

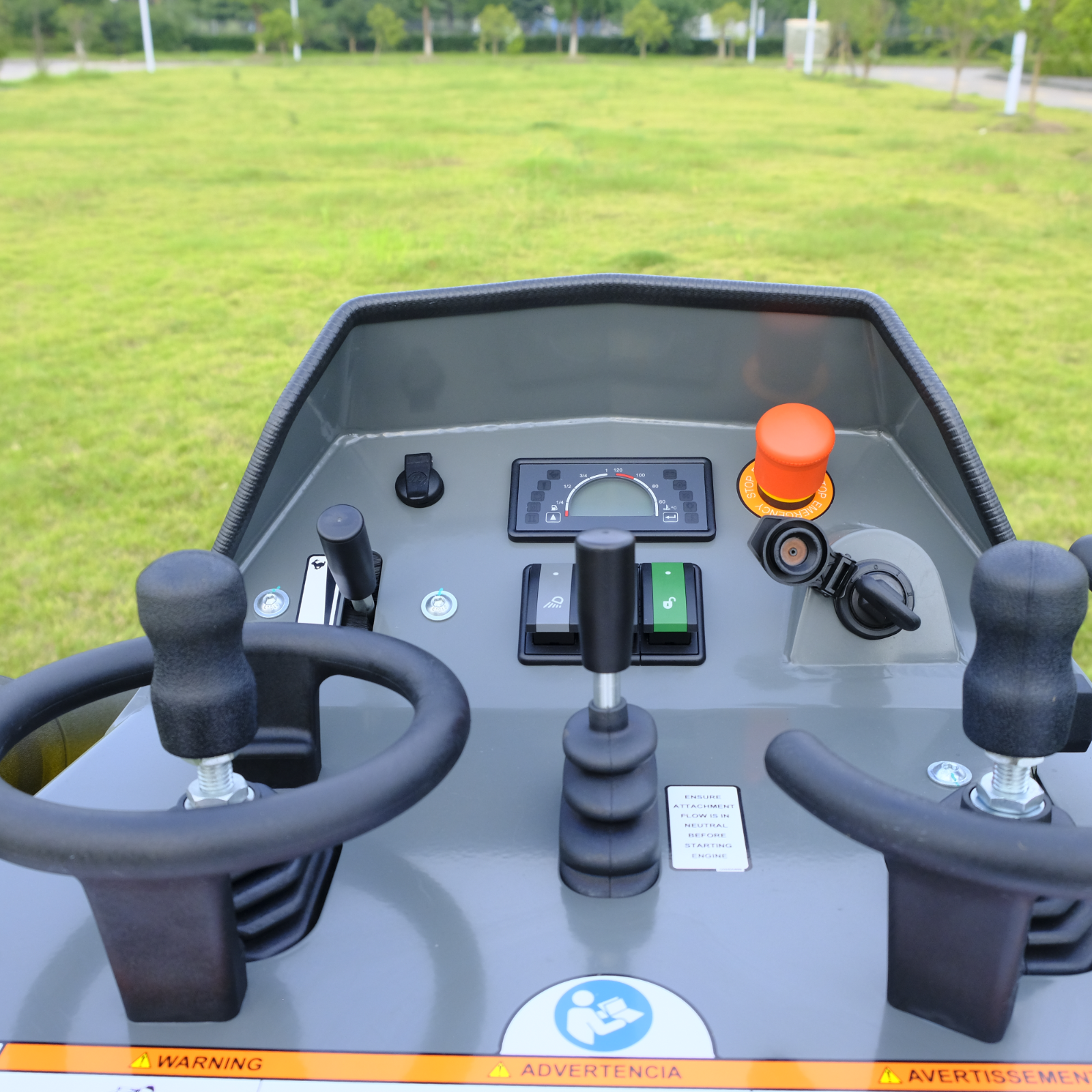

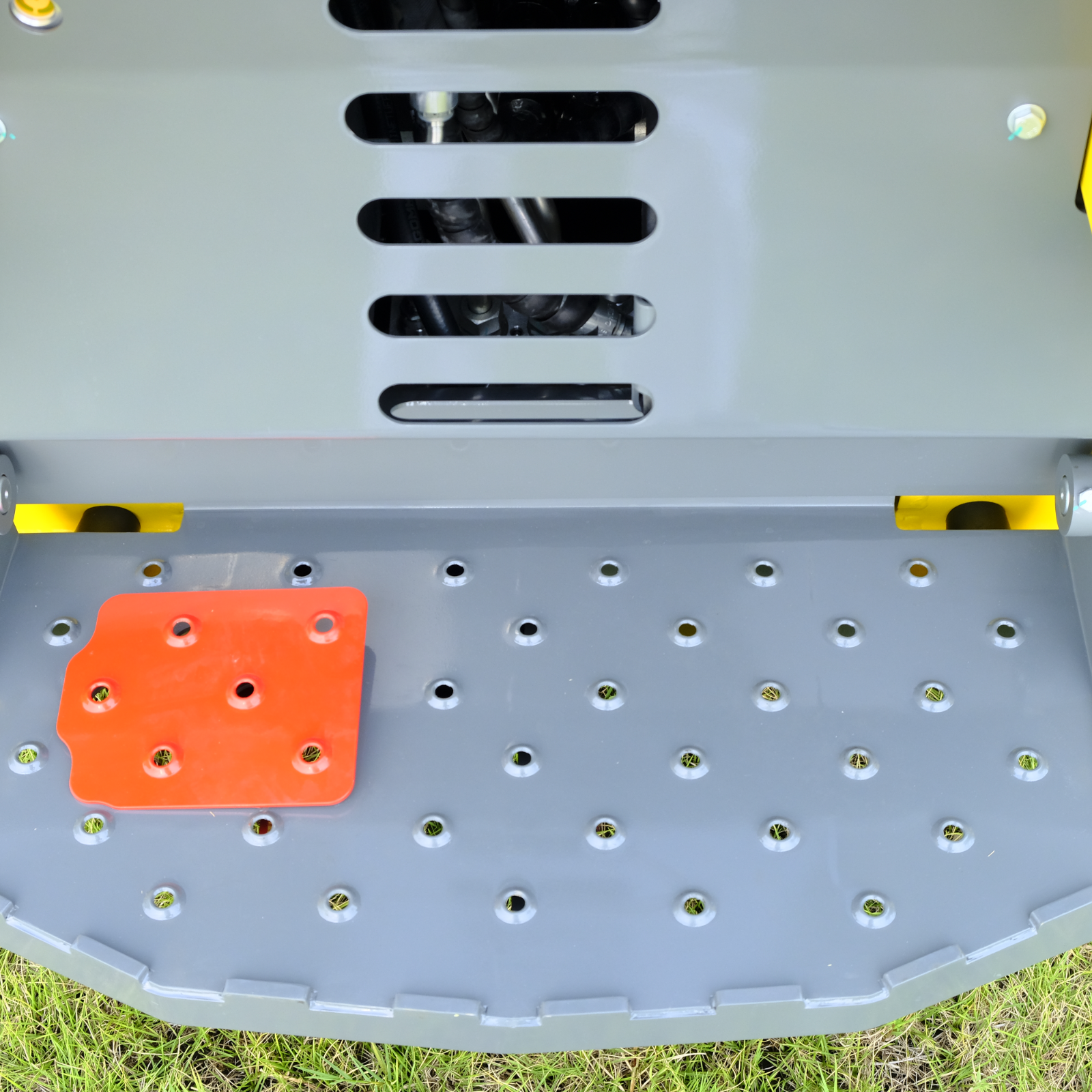

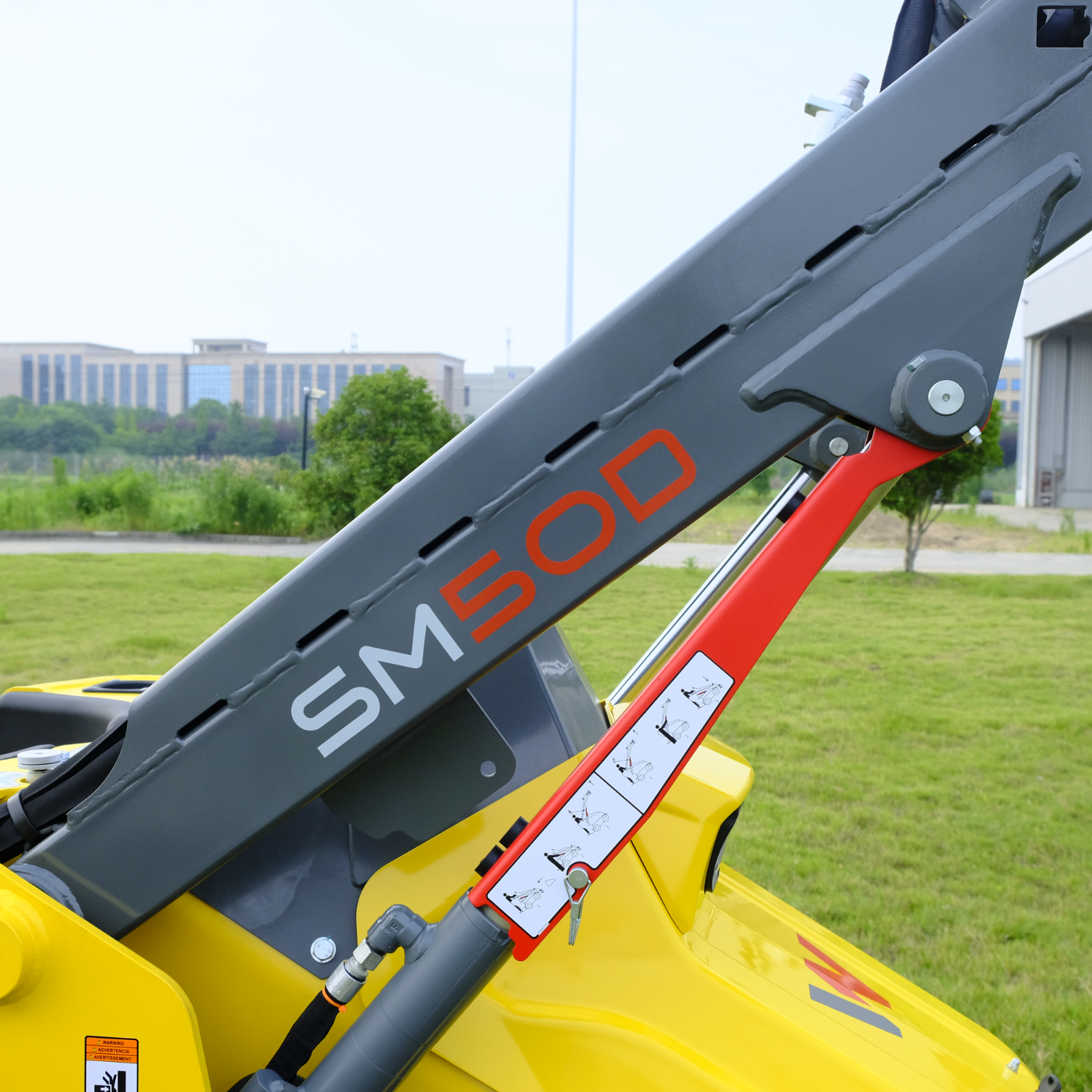

1.	Safety	Operator present switch on foot panel. Low centre of gravity increases stability. Soft touch pilot controls reduce risk of operator being thrown from machine during operation. Easily accessible tie down points for safe transportation. Integrated boom lockout bar for maintenance. E-Stop Standard. All machines sold by ACES have an OHS Risk assessment prior to delivery.
2.	Quality	Industry leading 5 Year / 5000 hour warranty. HD precision ground hardened steel pins and bushes. HD proprietary undercarriage components. LUDV Axial Piston Pump. Faster Hydraulic Couplings
3.	Power	Powered by Yanmar 3TNV76 21 HP diesel engine. Load Sensing LUDV Axial Piston Pump. 240 bar drive relief pressure.
4.	Efficiency	Load Sensing LUDV Axial Piston Pump. High, 372kg SWL @ 50% of tip load for low 1,105kg machine mass. Efficient 4 wheel motor, direct drive to wheel motor. High efficiency hydraulic oil cooler.
5.	Cooling	Efficient liquid-cooled diesel engine. Fan motor forces hot air away from the operator not into the operator like competitors. High efficiency hydraulic oil cooler. Designed for hot climates.
6.	Traction	All wheel drive system with motors specificially desiged for the SM60,. Square wheel CD for optimal traction vs tyre life.

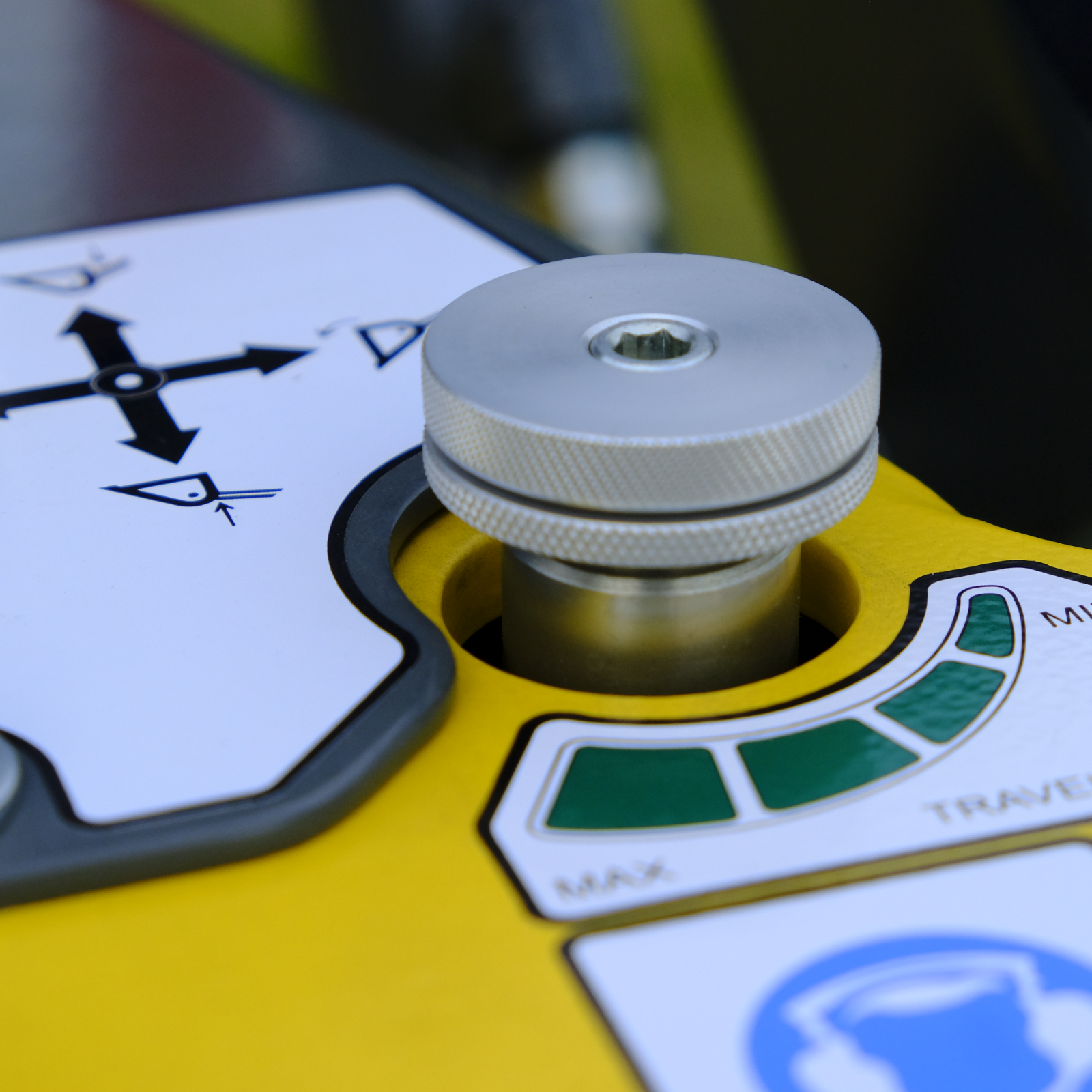

7.	Versatility	ISO control, extremely easy to operate. 1,940mm lift height to hinge point for over fencing dumping and easy loading into trucks and skips. Radial lift for easy loading and unloading of pallets. Dual auxiliary function for operating a multitude of attachments.

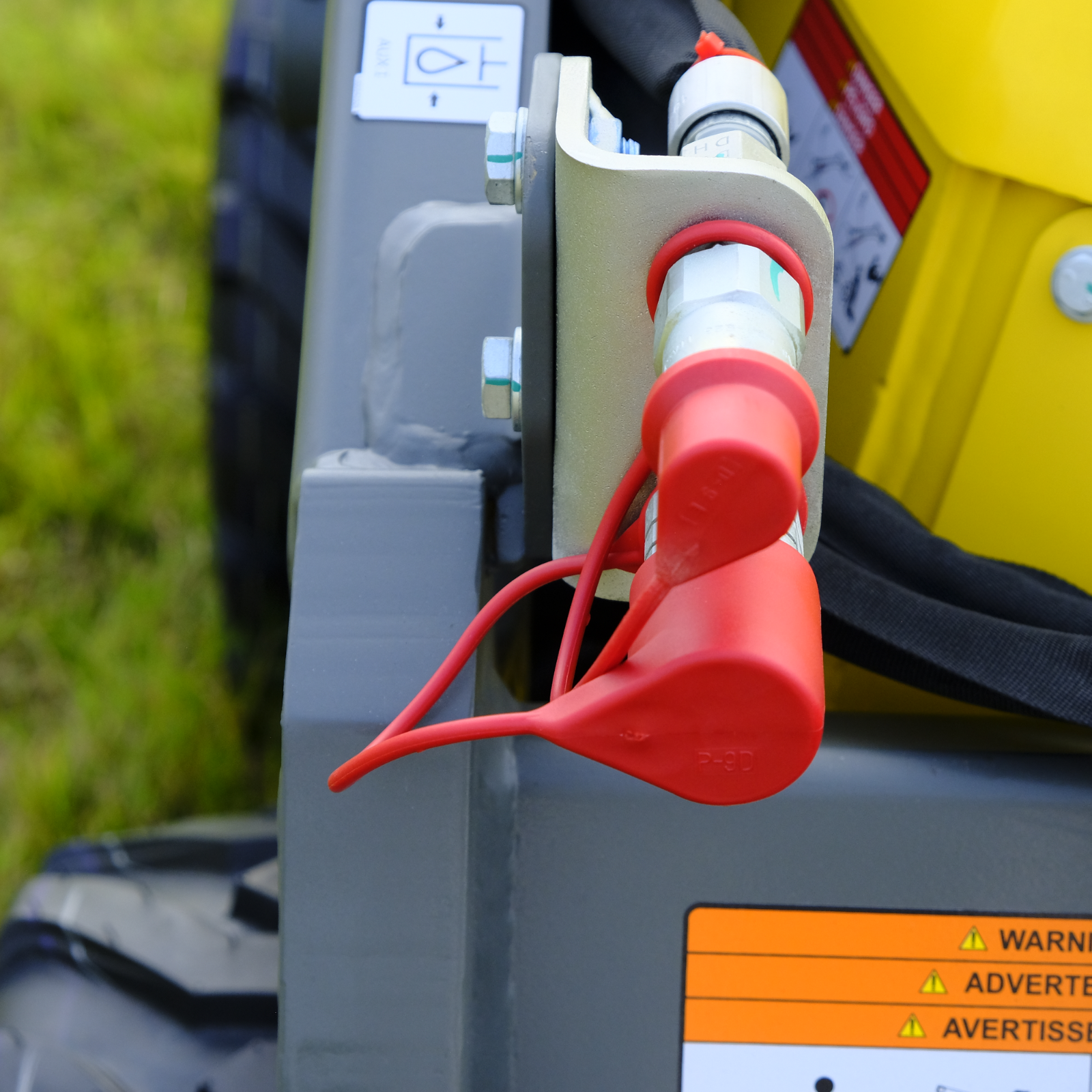

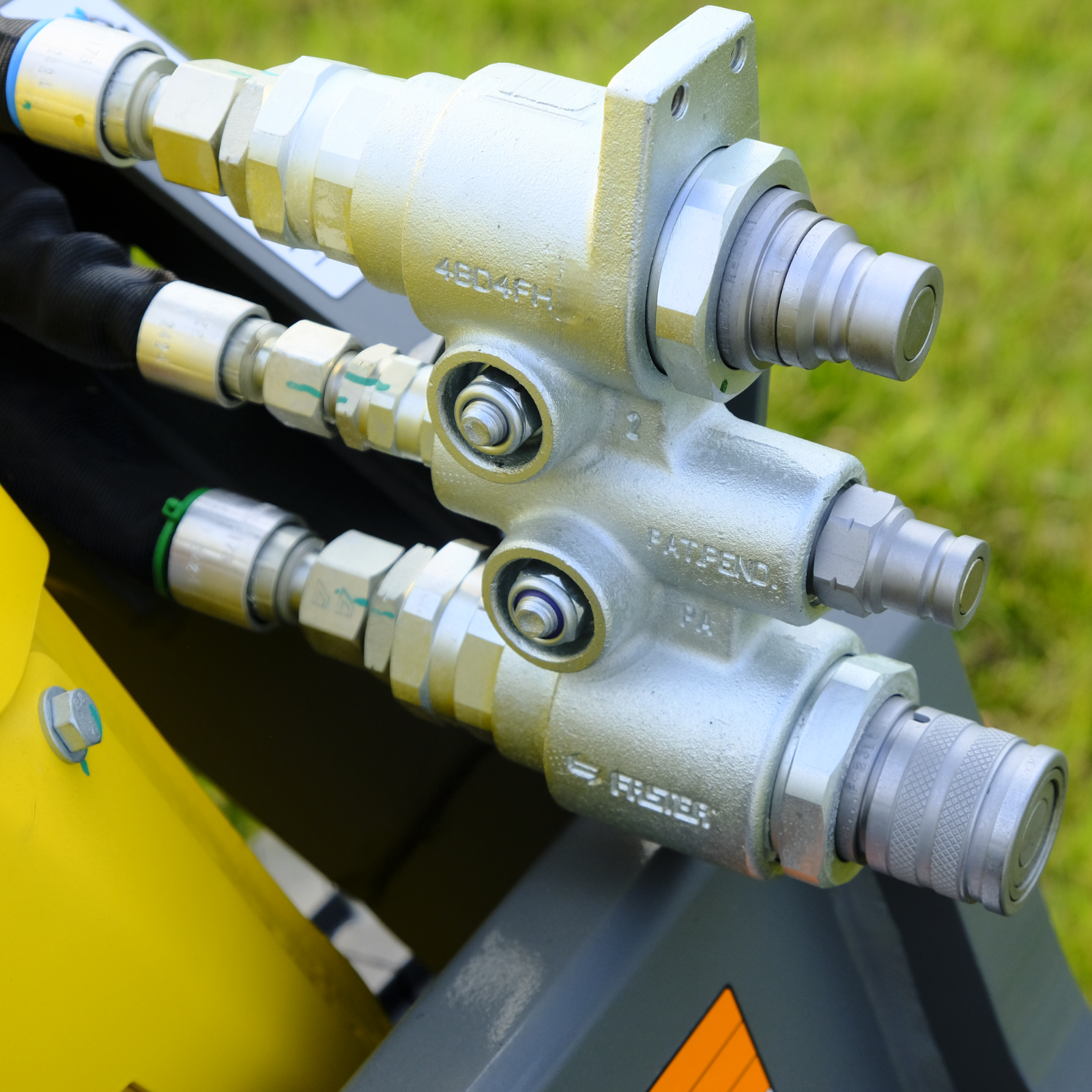

8.	Auxiliary Hydraulics	Dual two way auxiliary piping. Auxiliaries fitted with flat faced coupling for easy connection of attachments. 60L/min standard flow perfect for running a range of attachments such as trenchers, flail mowers and augers. Second set of auxiliary couplings perfect for 4-in-1 bucket operation.

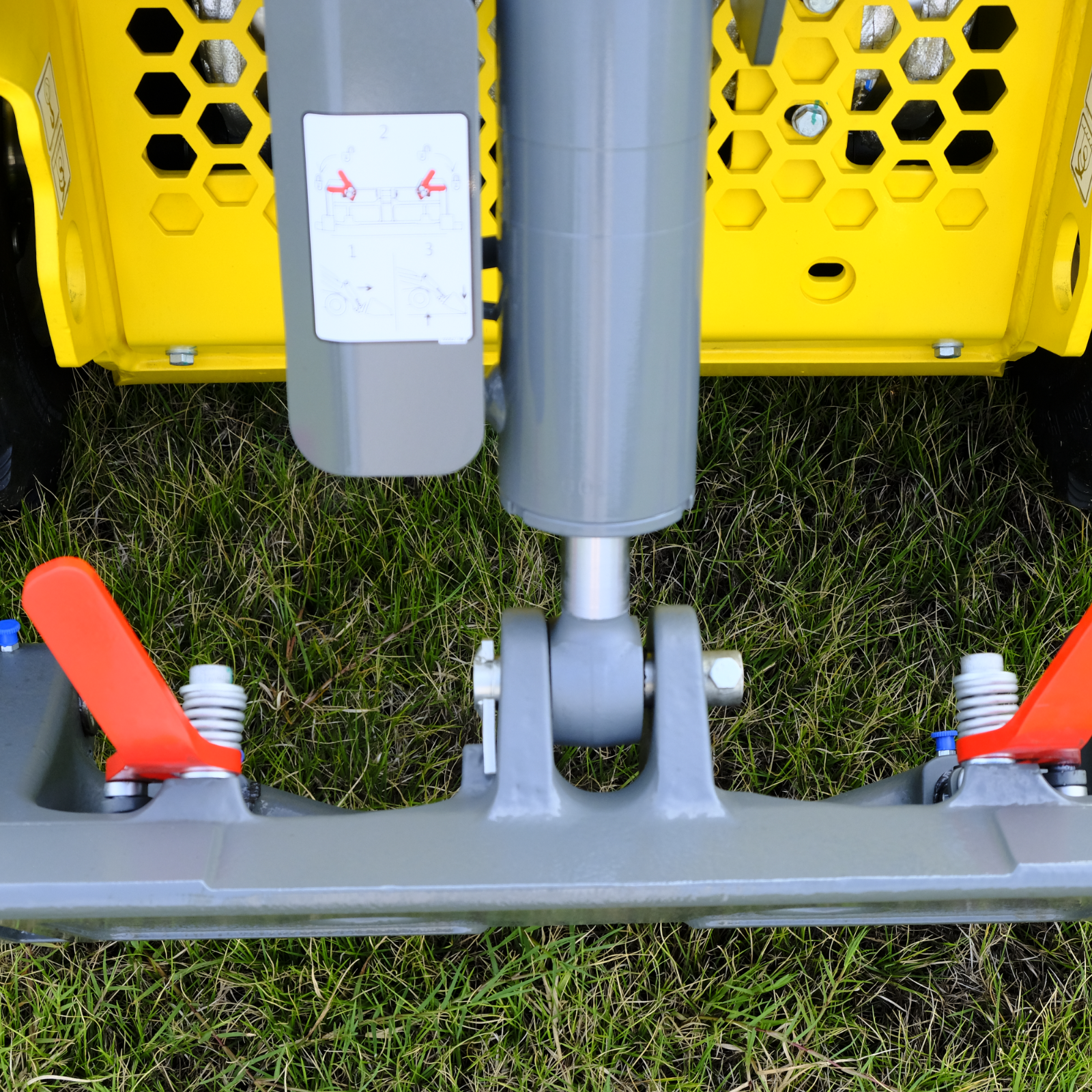

9.	Hitch	SAE Mini multifit pickup. Superior hitch design for added strength and longevity.
10.	Attachments	SAE Mini multifit hitch for full range of attachments. High capacity hydraulics capable of running a full range of attachments. Full range of attachments available including buckets, grapples, forks, mixers, augers, hammers and much more.

(1000525414)

Weights:

Transport Weight	1,105 kg
Operating Weight	1,258 kg
Tipping Load	743 kg
Maximum Payload	260 kg (35% ROC) 372 kg (50% ROC)

Engine:

Manufacturer	Yanmar
Model	3TNV76
Power	15.5 kW (21.1HP)
Torque	67.4 Nm
Displacement	1,115 cm³
Speed	2,500 RPM
Construction	3-cylinder, diesel, liquid-cooled

Operating Data:

Max. Bucket Breakout Force	11.36 kN
Max. Travel Speed	6.4 km/h
Max. Lift height to Pivot Pin	1,940 mm
Max. Width	1,017 mm

Hydraulics:

Construction	Single Variable Displacement Axial Piston Pump with LUDV Load Sensing
Maximum Flow Rate	60 l/min
Auxiliary Flow Rate	60 l/min
Drive Flow Rate	60 l/min
System Pressure	240 bar
Auxiliary Pressure	220 bar
Drive Pressure	240 bar

Drive:

Construction	LUDV Load Sensing Pump to 4 x Wheel Motors
Wheel Motors	4 Direct Drive Geroller

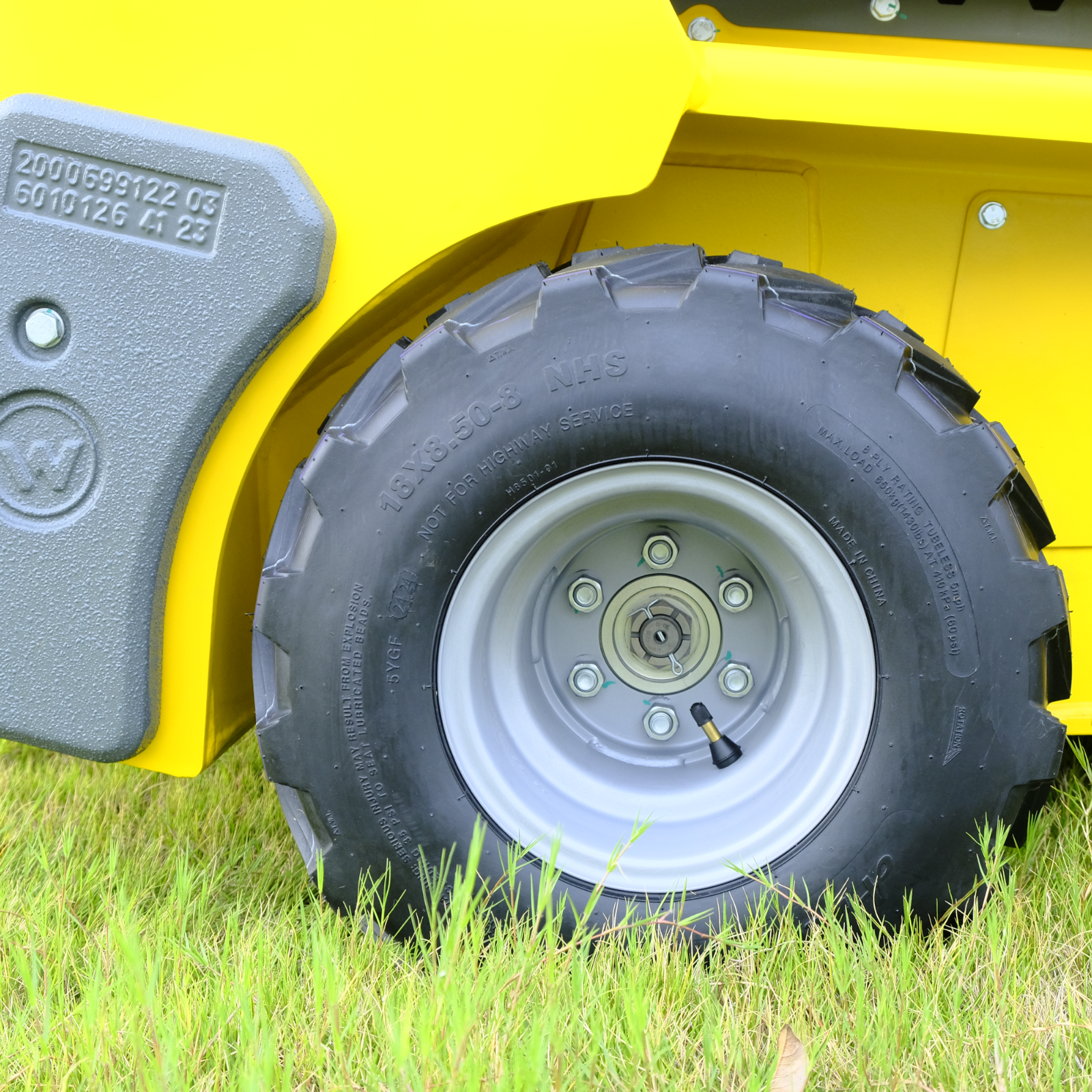

Standard Tyres	18x8.5-8
Ground Clearance	146 mm
Parking Break	Hydraulic

Capacities:

Fuel Tank	24 L
Hydraulic Tank	20 L
Battery	12V / 47 Ah

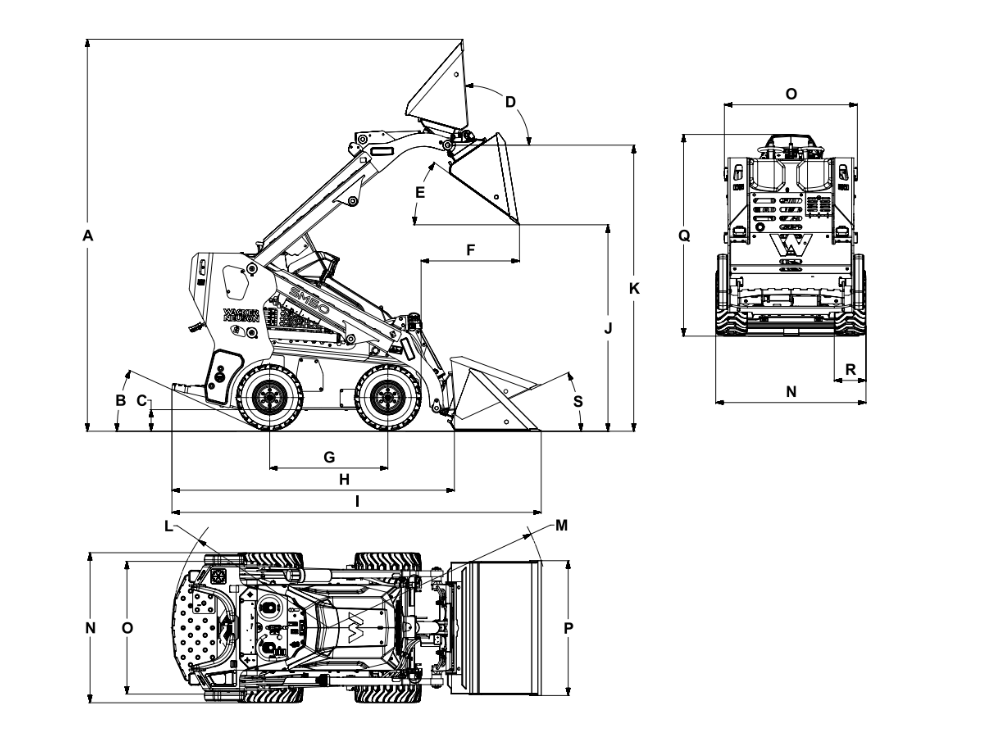

Working Dimensions:

A	Overall operating height, fully raised, with bucket	2,658 mm
B	Angle of departure	25°
C	Ground Clearance, bottom of belly pan	146 mm
D	Maximum rollback, fully raised	94°
E	Dump angle at maximum height	37°
F	Reach at maximum height	667 mm
G	Wheelbase	800 mm
H	Overall length, without bucket, with coupler	1,920 mm
I	Overall length, with bucket	2,501 mm
J	Dump height	1,400 mm
K	Hinge pin height, fully raised	1,940 mm
L	Clearance circle, rear	1,062 mm
M	Clearance circle, bucket on ground	1,532 mm
N	Overall width	1,017 mm
O	Track gauge	802 mm
P	Bucket width	1,050 mm
Q	Overall height	1,368 mm
R	Tyre Width	215 mm
S	Maximum rollback at ground	25°

* Specifications subject to change without notice due to continual product development.
