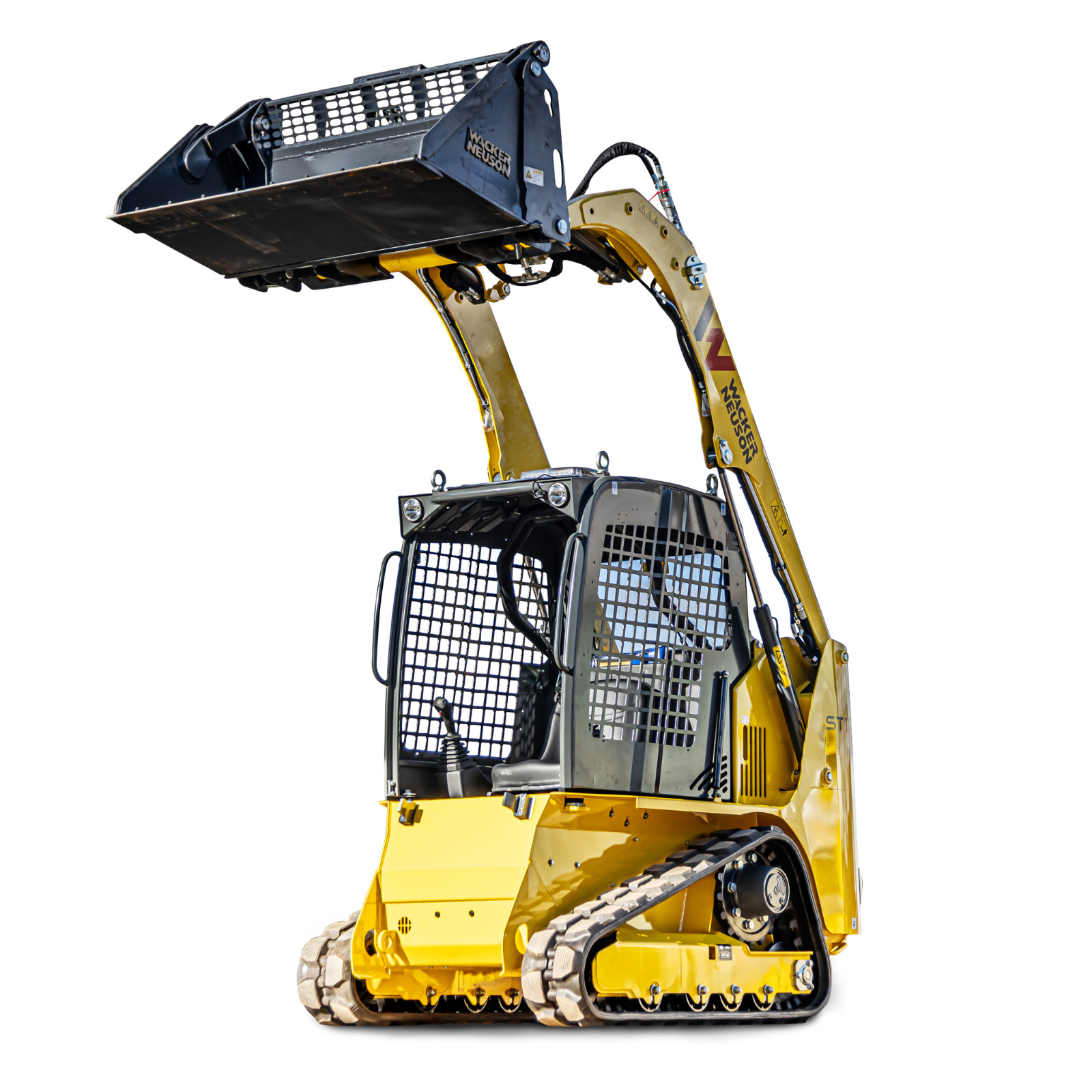

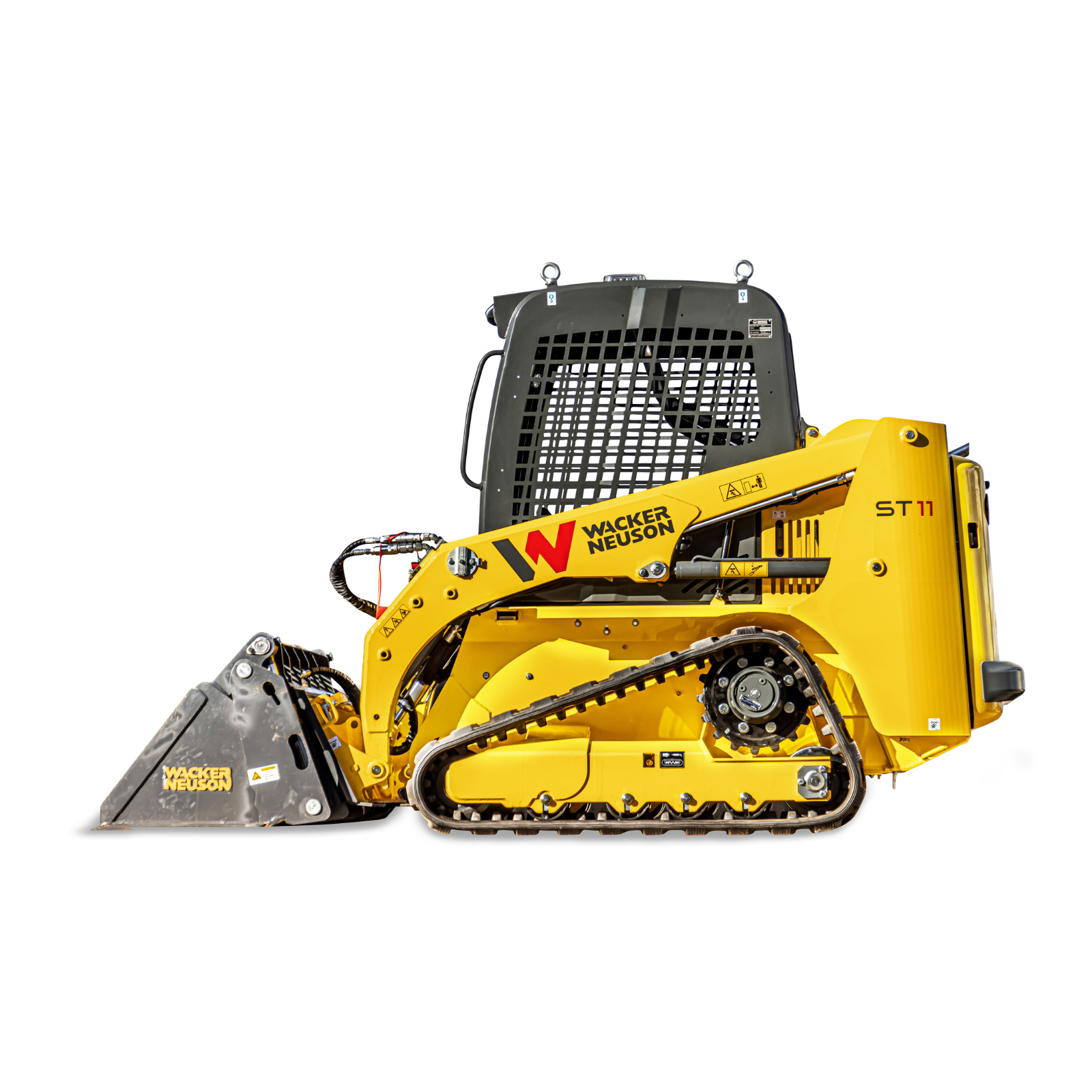

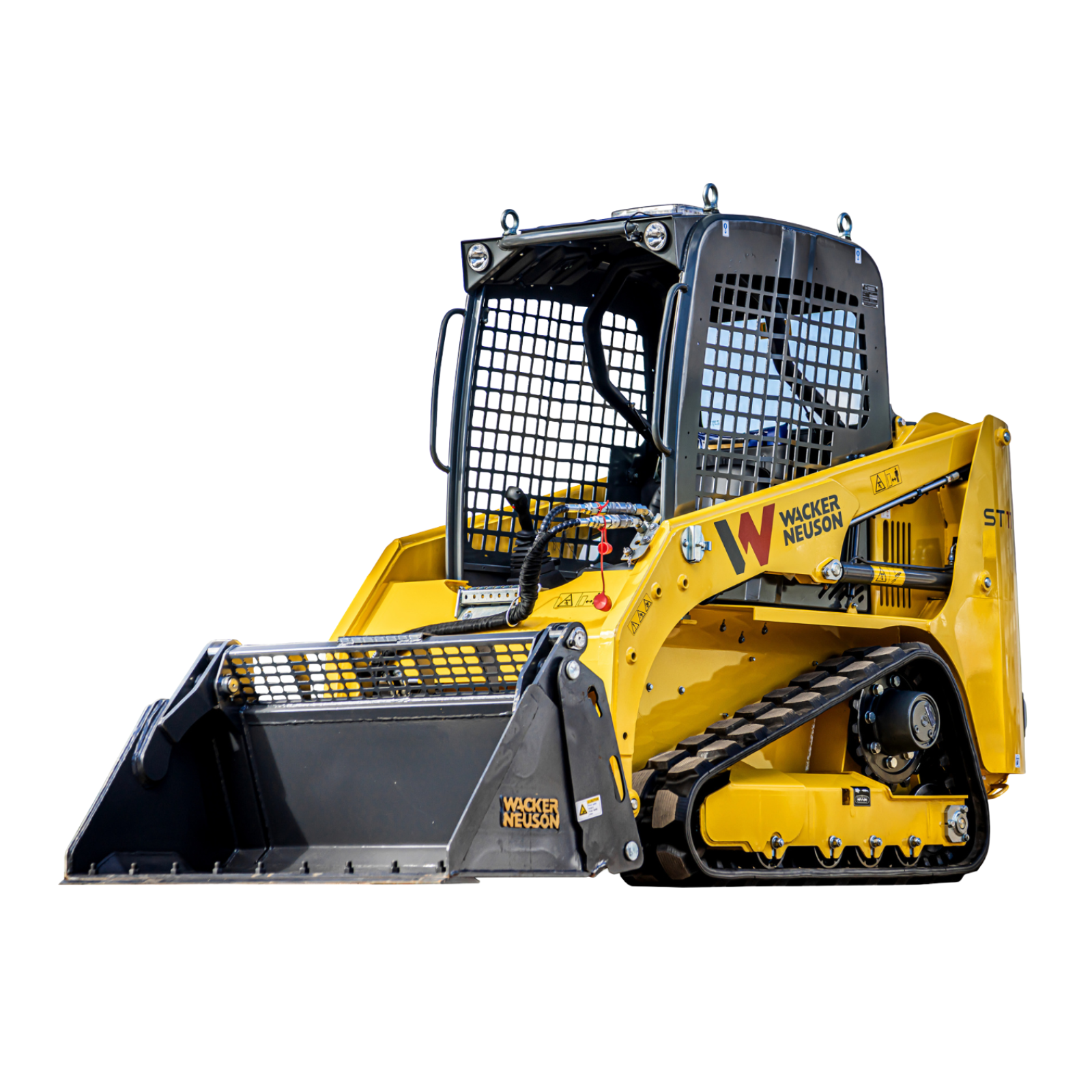

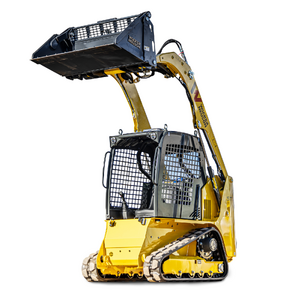

Wacker Neuson ST11

View PDF brochure for Wacker Neuson ST11

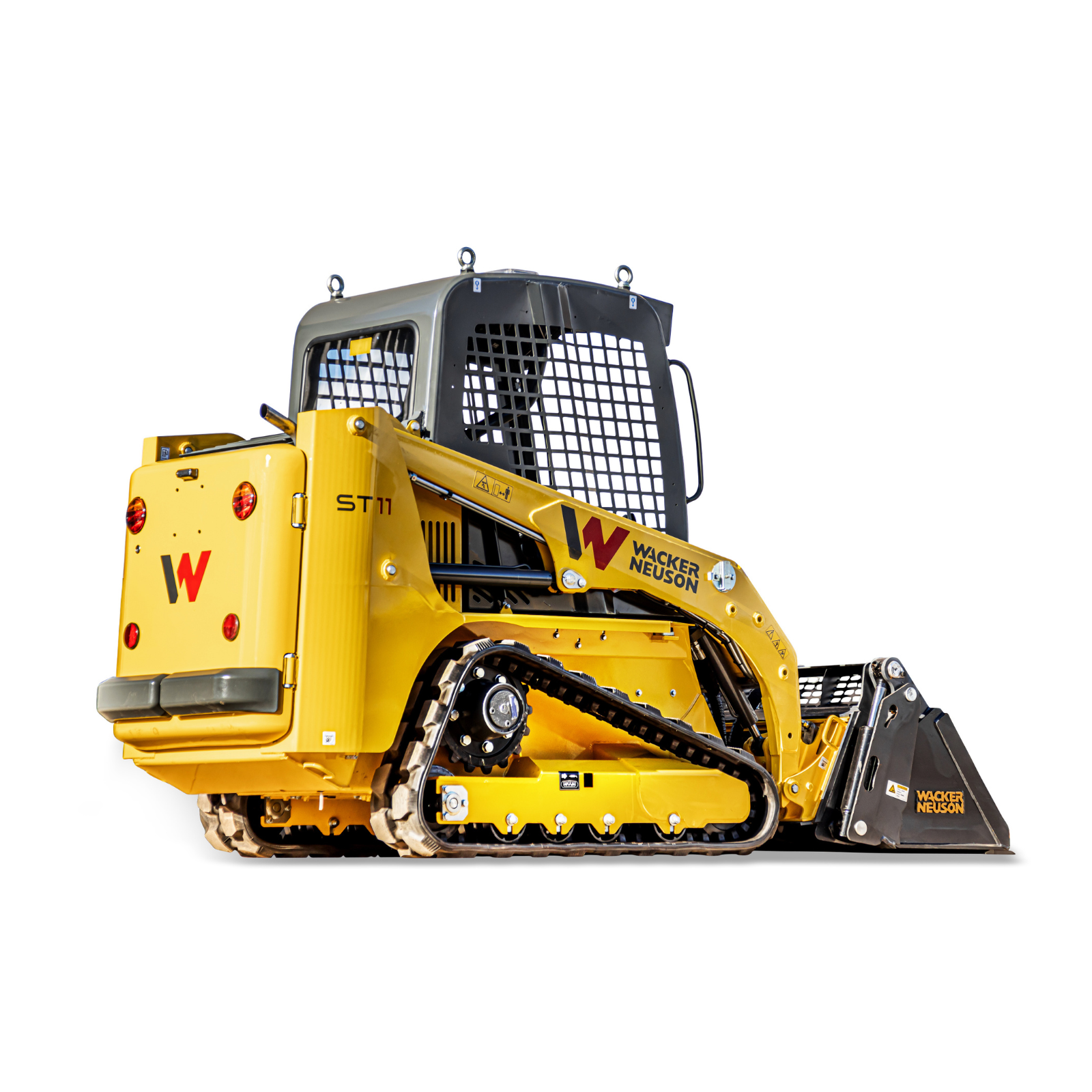

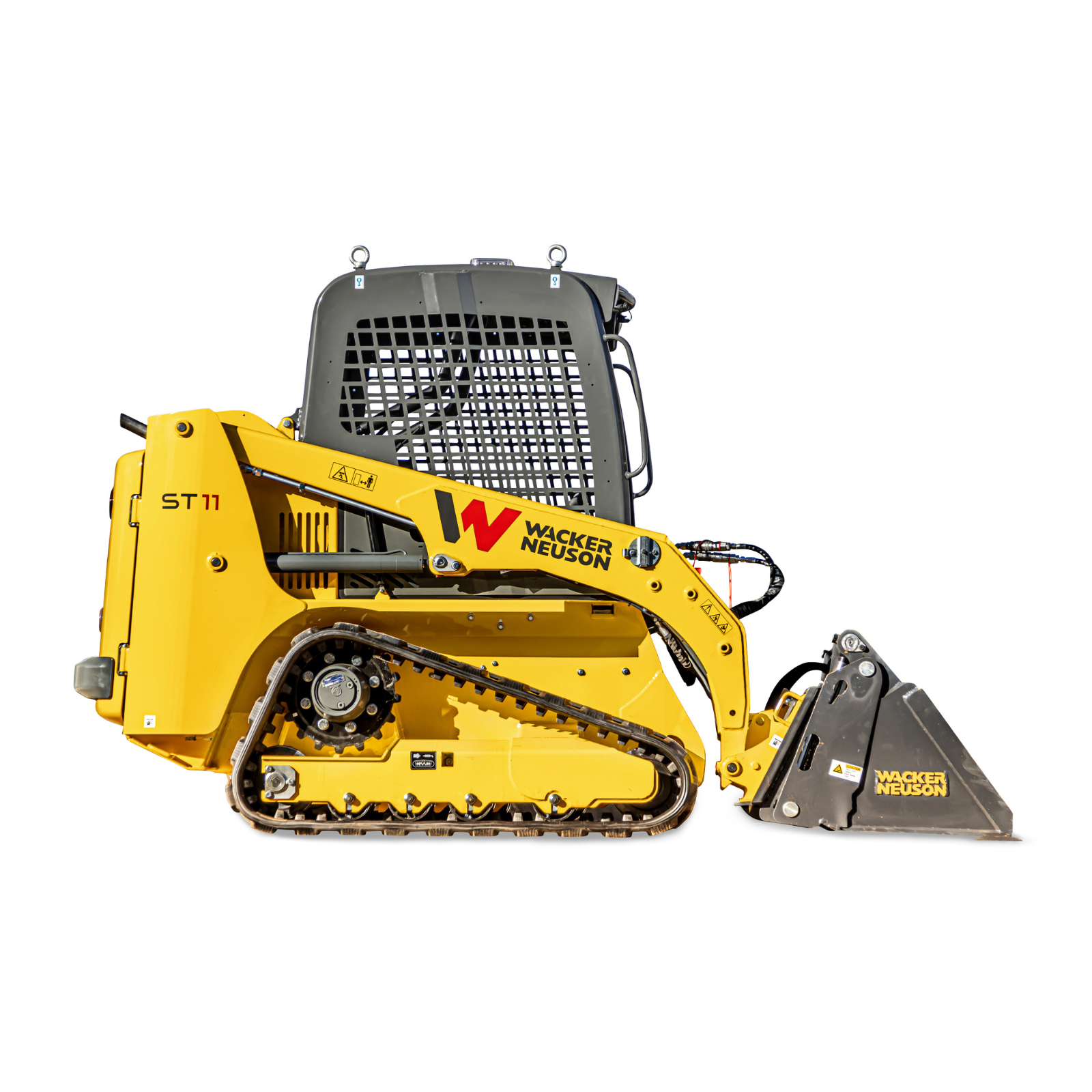

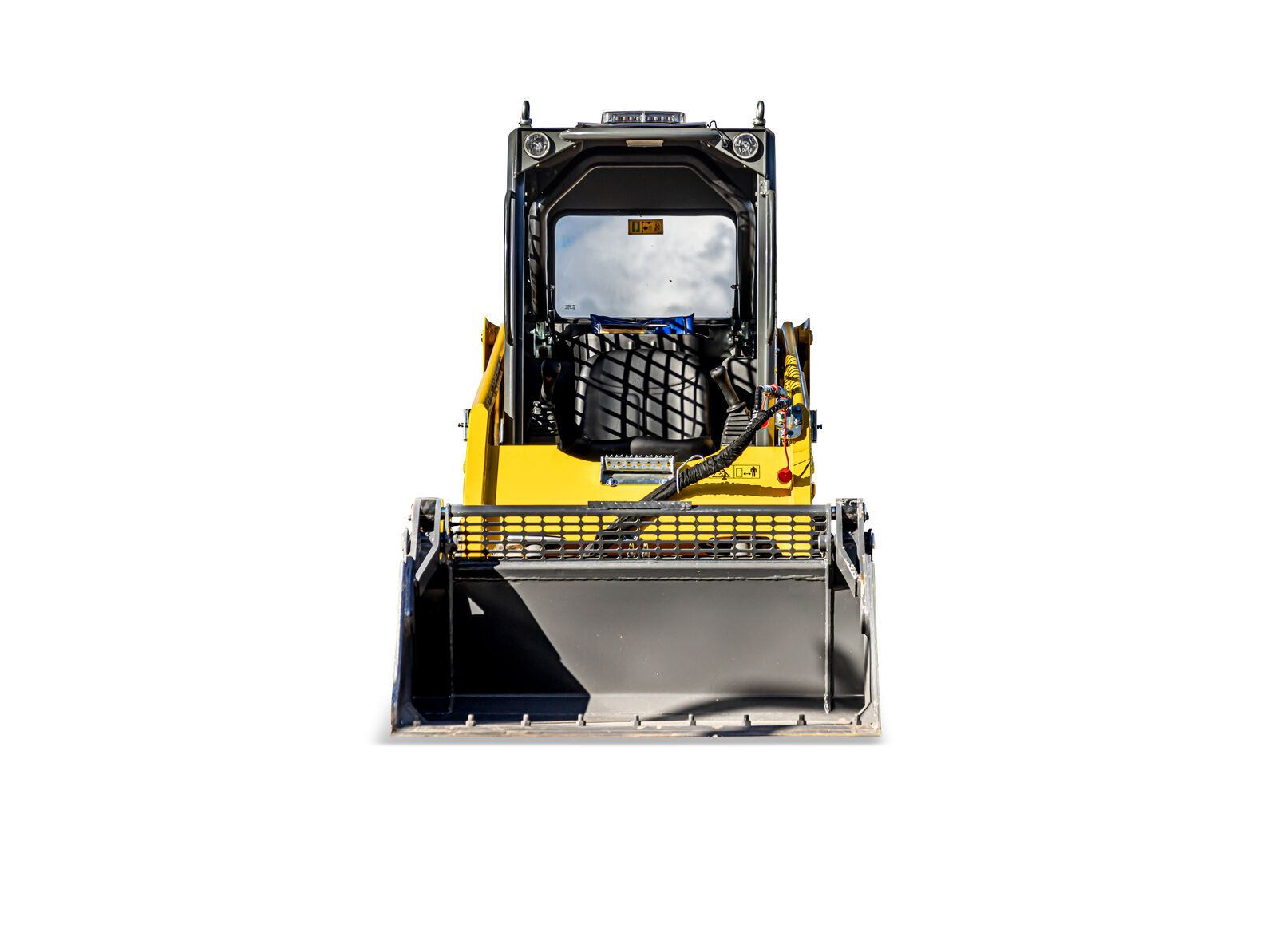

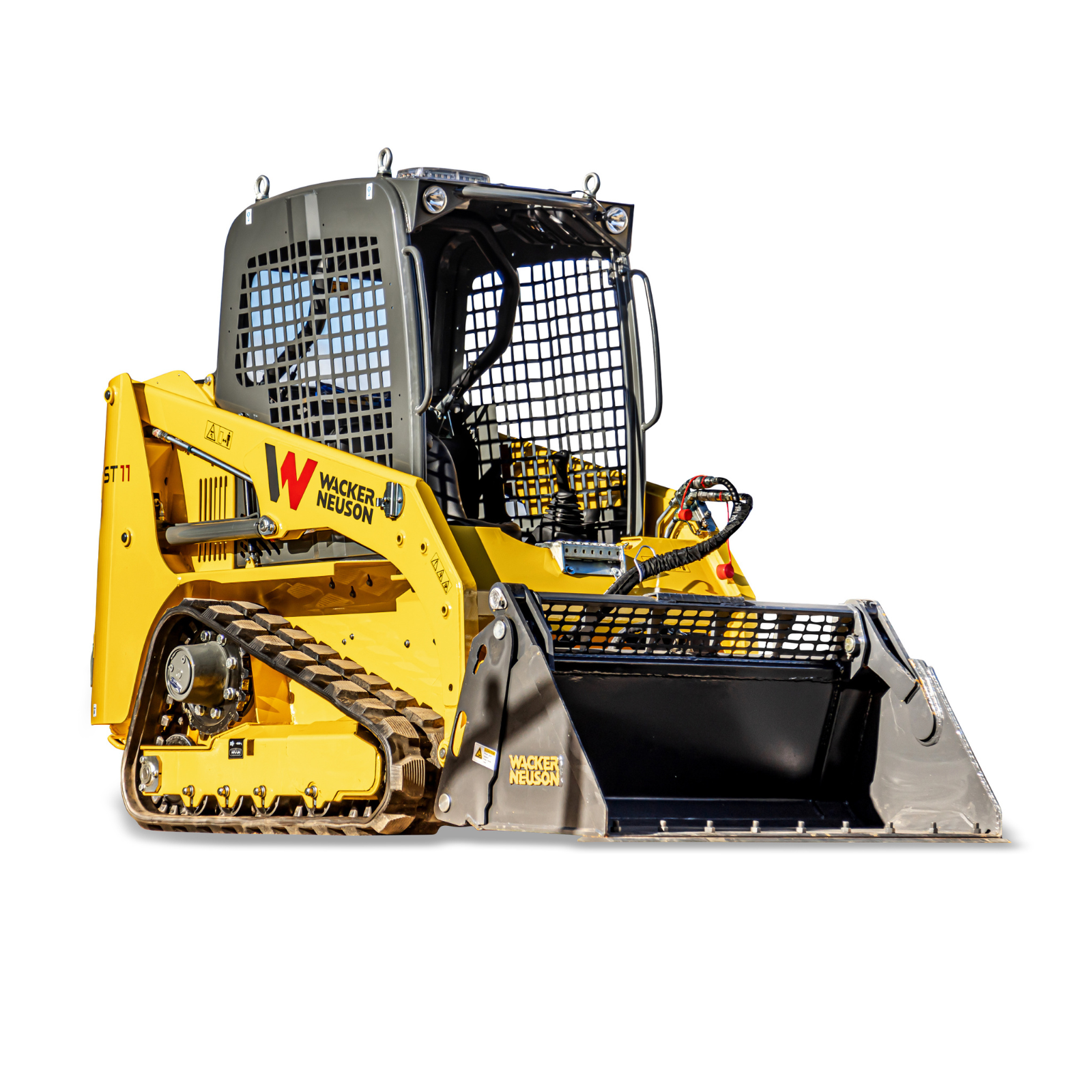

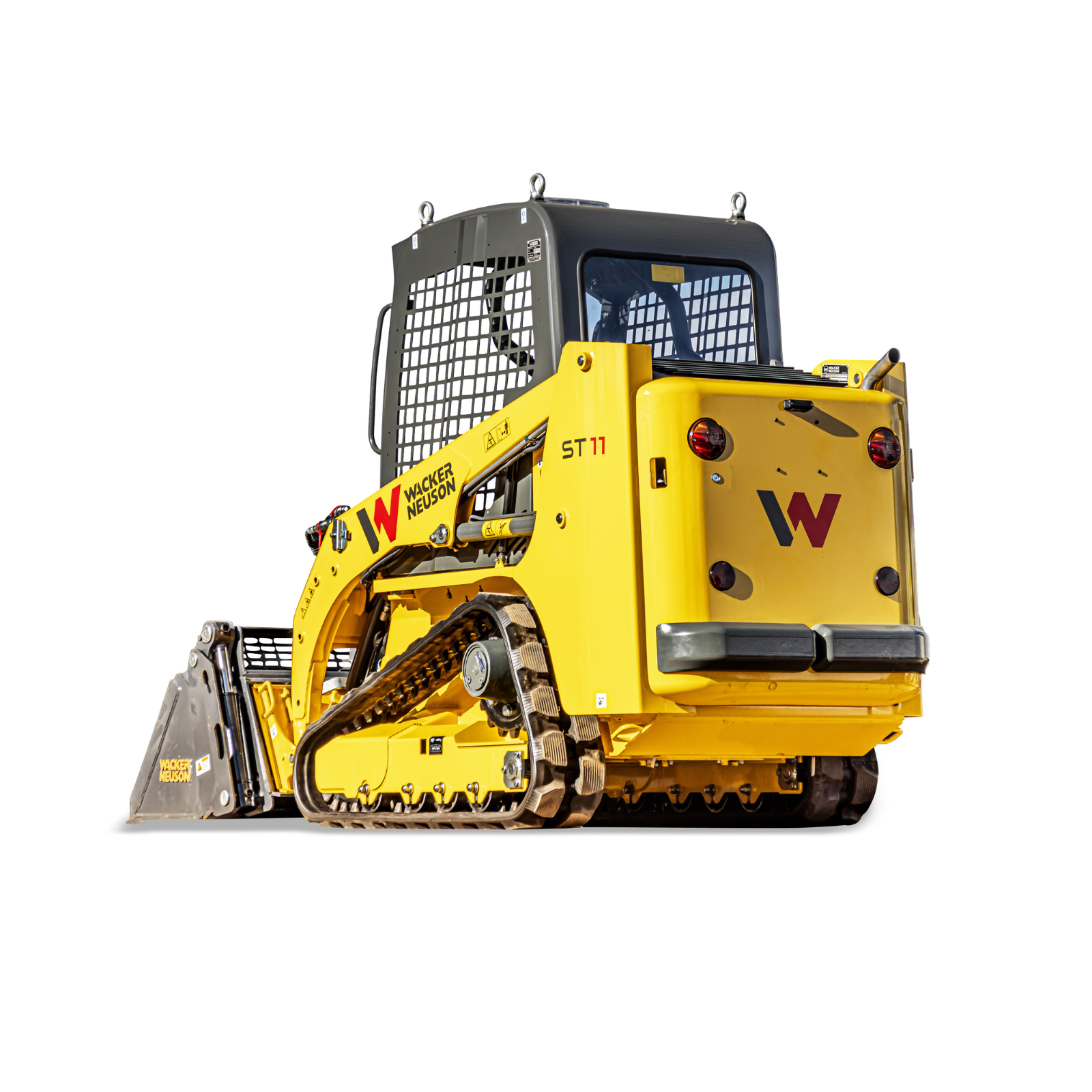

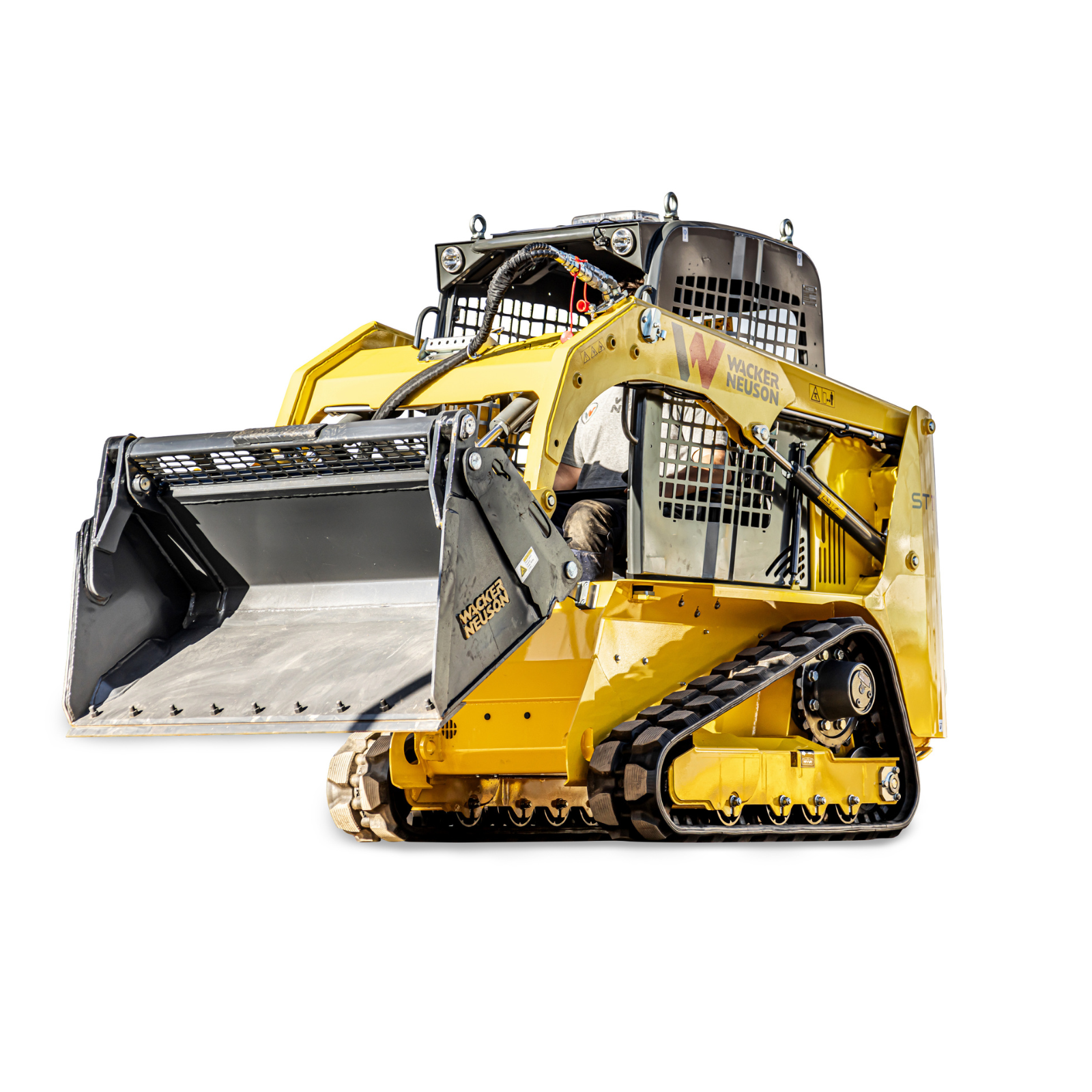

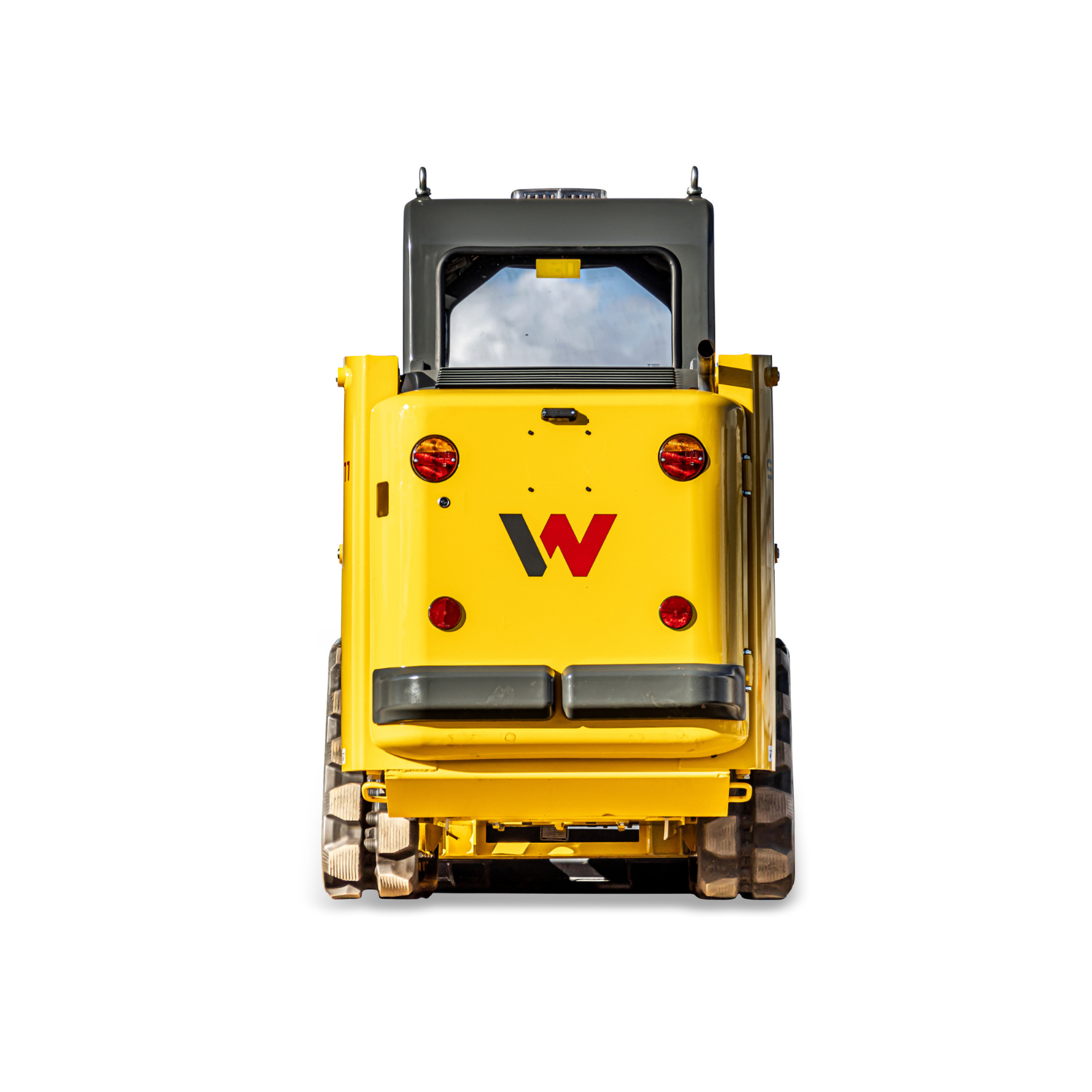

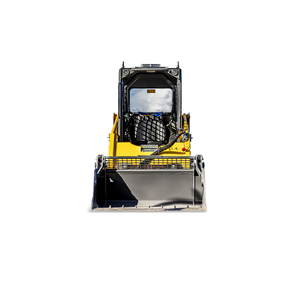

Wacker Neuson ST11

41Hp Radial Lift Tracked Loader

Share:
Enquiry/Quote

Wacker Neuson ST11 - 41Hp Vertical Lift Tracked Loader:

Wacker Neuson ST11, the first compact frame tracked loader from Wacker Neuson.  At 1250mm wide with a 2.2t operating weight ST11 is perfect for tight construction sites and landscaping.  Powered by a 41Hp Kubota diesel engine, ST11 has plenty of pushing power and 39L/min at the auxiliaries for a range of high powered attachments. Backed with a 5 Year / 5000 hour warranty.



Key Features:



1. Safety
  • Rotating beacons, reverse beepers and warning horns as standard, ensures machine is inline with latest safety standards.
  • All machines sold by ACES have an OHS Risk assessment prior to delivery.
  • Dual work lights for optimal visibility at night.
  • Low entry door for decreased tripping hazards.
  • Lap Bar.
  • ROPS Canopy with side guarding.
2. Vision
  • Cabin designed with perfect visibility.
  • Narrow ROPS pillars and wide entrance for superior visibility over competitor machines.
  • Cabin roof is fitted with window, allowing bucket visibility at all times.
3. Auxiliary Hydraulics
  • Auxiliary Hydraulics
  • Two way auxiliary piping.
  • Auxiliaries fitted with flat-faced couplings for easy connection.
  • 39L/min high flow hydraulics.
  • Controlled via thumb wheel on right joystick.
4. Hitches
  • SAE standard universal skid steer pickup.
  • Lock out pins on hitch.
5. Attachments
  • SAE standard hitch for full range of attachments.
  • High capacity hydraulics capable of running a full range of attachments.
  • Full range of attachments available including buckets, grapples, flail mowers, forks, mixers, augers, hammers and much more.
6. Traction
  • High traction force with 1218mm wheel base.
  • High rise sprocket with planetary reduction gearbox.
  • Low ground pressure.
  • 250mm track width.
7. Comfort
  • Operators station ergonomically designed for continuous operation without fatigue.
  • Controls ensure comfort and feature large handles.
  • All levers and switches positioned within easy and comfortable reach.
  • Seat features adjustable suspension.
8. Versatility
  • Superior Wacker Neuson rigid radial lift system, perfect for heavy duty earthmoving.
  • Pilot controlled with ISO pattern.
  • High traction forces through HD track system.
9. Power
  • High breakout forces 9.3kN at the bucket.
  • Powered by Kubota V1505T high-efficiency Turbo Diesel engine (30.5kW / 41 Hp).
  • Smooth and reliable power with mechanical fuel injection.
  • Pilot controlled hydrostatic transmission.
10. Efficiency
  • Pilot controls with highly efficient power curves.
  • Class leading hydraulic HP for efficient use of attachments.
  • No DPF regeneration, no unnecessary burn cycles = 100% uptime.
  • Mechanical fuel injection for optimal fuel efficiency.
  • Efficient hose routing in the transmission circuit for minimal pressure / heat losses.
11. Cooling
  • A high efficiency radiator and cooling system keeps the ST11 cool in high ambient temperatures.
  • Hydraulically driven, variable speed cooling fan for optimal temperature control.
  • Easily cleanable top mounted radiator and cooler.

(ST11)

General:

Operating Weight 2,220 kg

Engine:

Manufacturer Kubota
Model V1505 T
Construction Water cooled 4-cylinder turbo diesel engine
Displacement 1,498 cm³
Engine Output according to ISO 30.5 kW (41 HP)

Hydraulics:

Auxiliary Hydraulics - Standard 39 L/min
Operating Pressure for working hydraulics 180 bar
Operating Pressure for drive hydraulics 300 bar
Max. breakout force - bucket 9.3 kN

Undercarriage:

Track width - standard 250 mm
Number of track rollers 4
Roller system Single, and Double combination
Ground clearance 185 mm
Drive speed 10 km/h

Operating Data:

Rated Capacity 50% 520 kg
Rated Capacity 35% 400 kg

Capacities:

Hydraulic tank 30 L
Fuel tank 42 L

Working Dimensions:

Specifications subject to change without notice due to continual product development.
